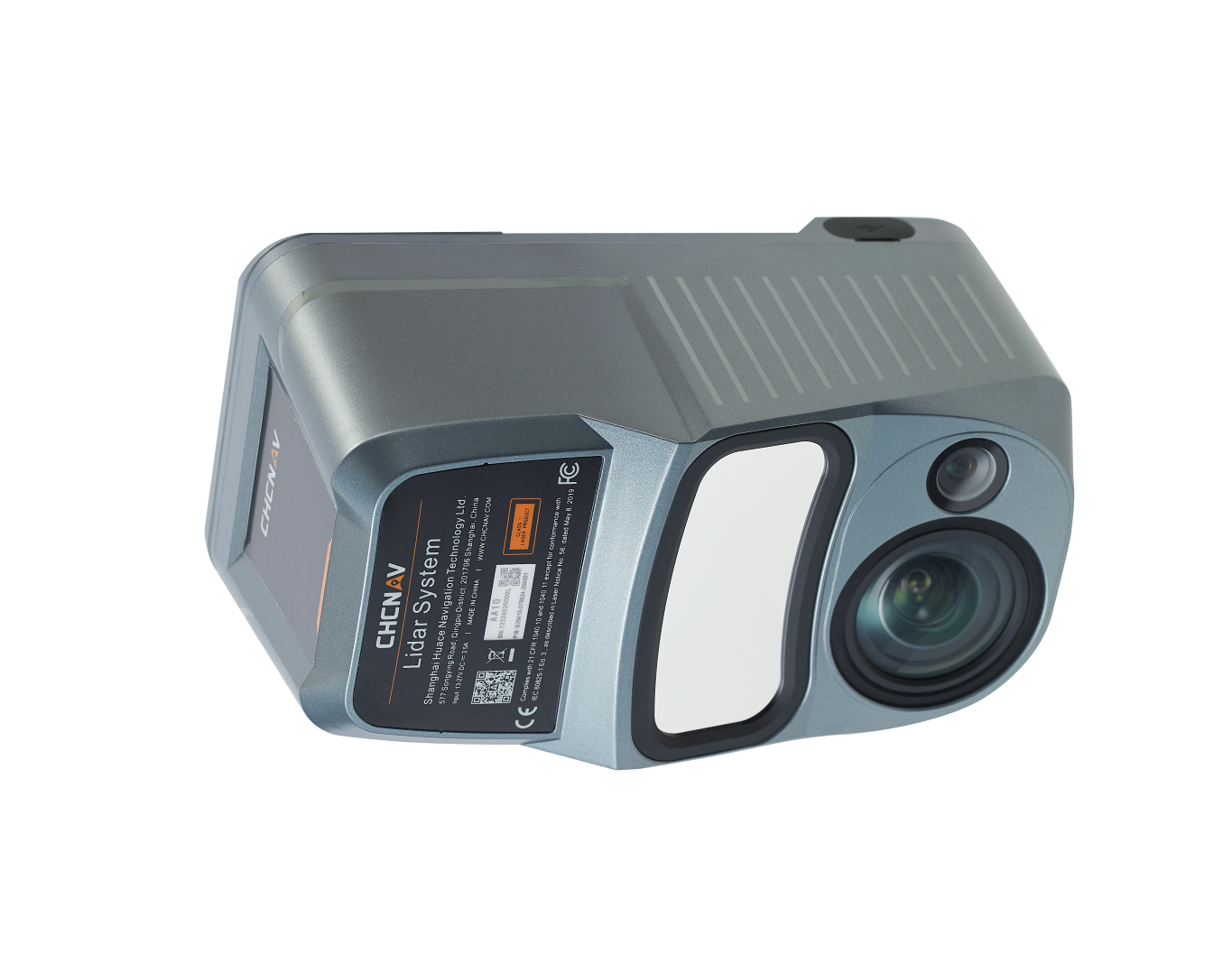

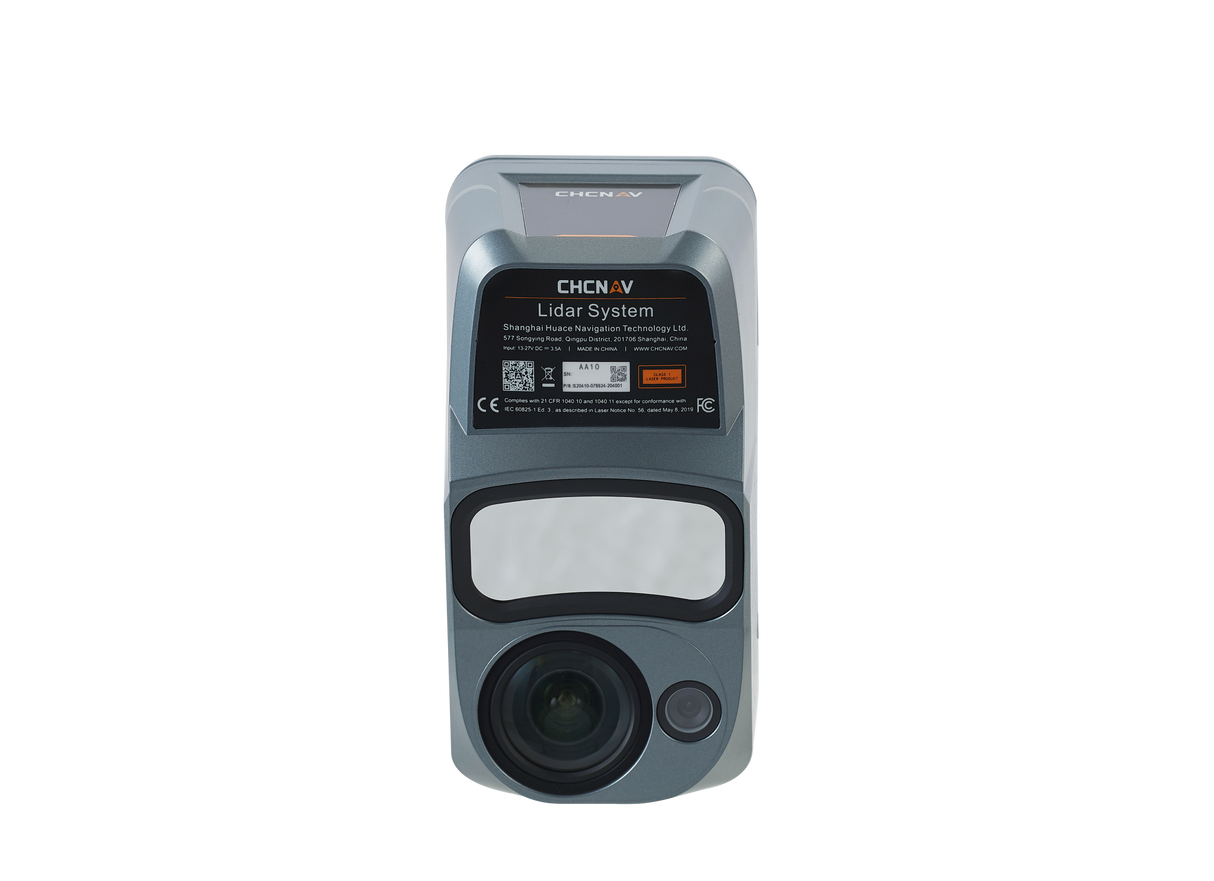

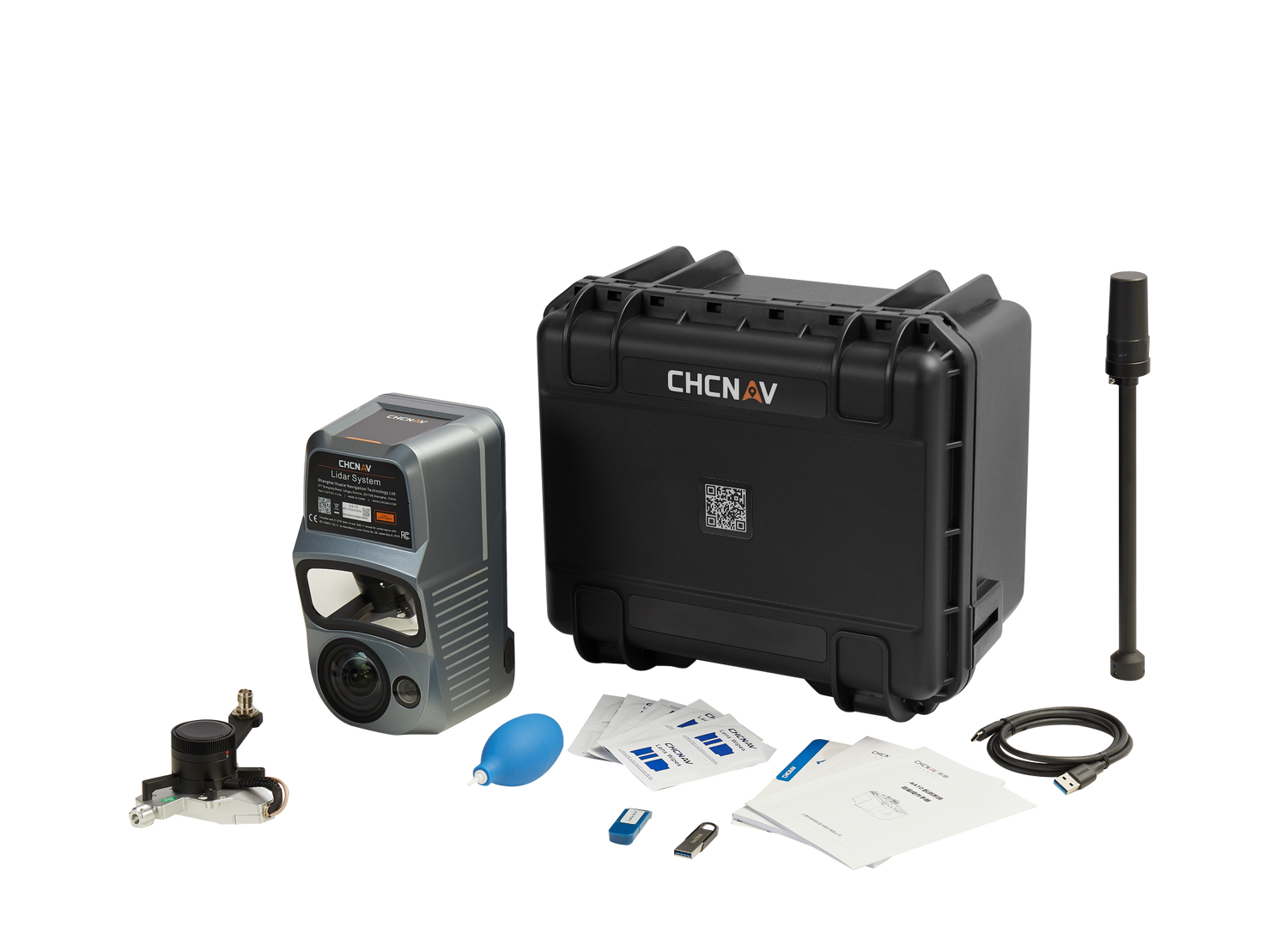

CHCNAV AlphaAir 10 Professional UAV LiDAR solution for corridor mapping and infrastructure inspection

Regular price $79,000.00

The AlphaAir 10 integrates a CHCNAV laser scanner, high-accuracy GNSS/IMU and an industrial full-frame orthophoto camera in a 1.55 kg payload.

In a single mission you capture a dense point cloud and 45 MP imagery for colourised clouds, DOMs and 3D meshes – 2–5 cm absolute accuracy.

Key features

  • Precision scanning – 15 mm accuracy, 5 mm precision at 150 m.
  • Long range – Up to 800 m range and 317 m AGL at 100 kHz.
  • Vegetation penetration – Up to 8 returns for accurate DEMs and DSMs.
  • Full-frame imaging – 45 MP orthophoto camera for DOMs and realistic colour.
  • Real-time view – Monitor capture live from the UAV controller.
  • Fits any UAV – DJI Matrice, CHCNAV BB4 and third-party drones; Alphaport one-click.

At a glance

  • 2–5 cm absolute H & Z
  • 800 m @80% · 400 m @20%
  • 500k pts/s, 250 scans/s
  • 8 returns, full waveform
  • 45 MP full frame, 21 mm
  • IP64 1.55 kg, 40 W

Order or rent the AA10 with a drone, training and processing support. Contact LATNET for pricing, training and support.


Technical Specification

CHCNAV AlphaAir 10 (AA10) Lidar

Professional airborne LiDAR + RGB

CHCNAV AlphaAir 10 – survey-grade LiDAR with a 45 MP full-frame camera

The AlphaAir 10 integrates a CHCNAV laser scanner, high-accuracy GNSS/IMU and an industrial full-frame orthophoto camera in a 1.55 kg payload.

In a single mission you capture a dense point cloud and 45 MP imagery for colourised clouds, DOMs and 3D meshes – 2–5 cm absolute accuracy.

800 m range45 MP full frame1.55 kg

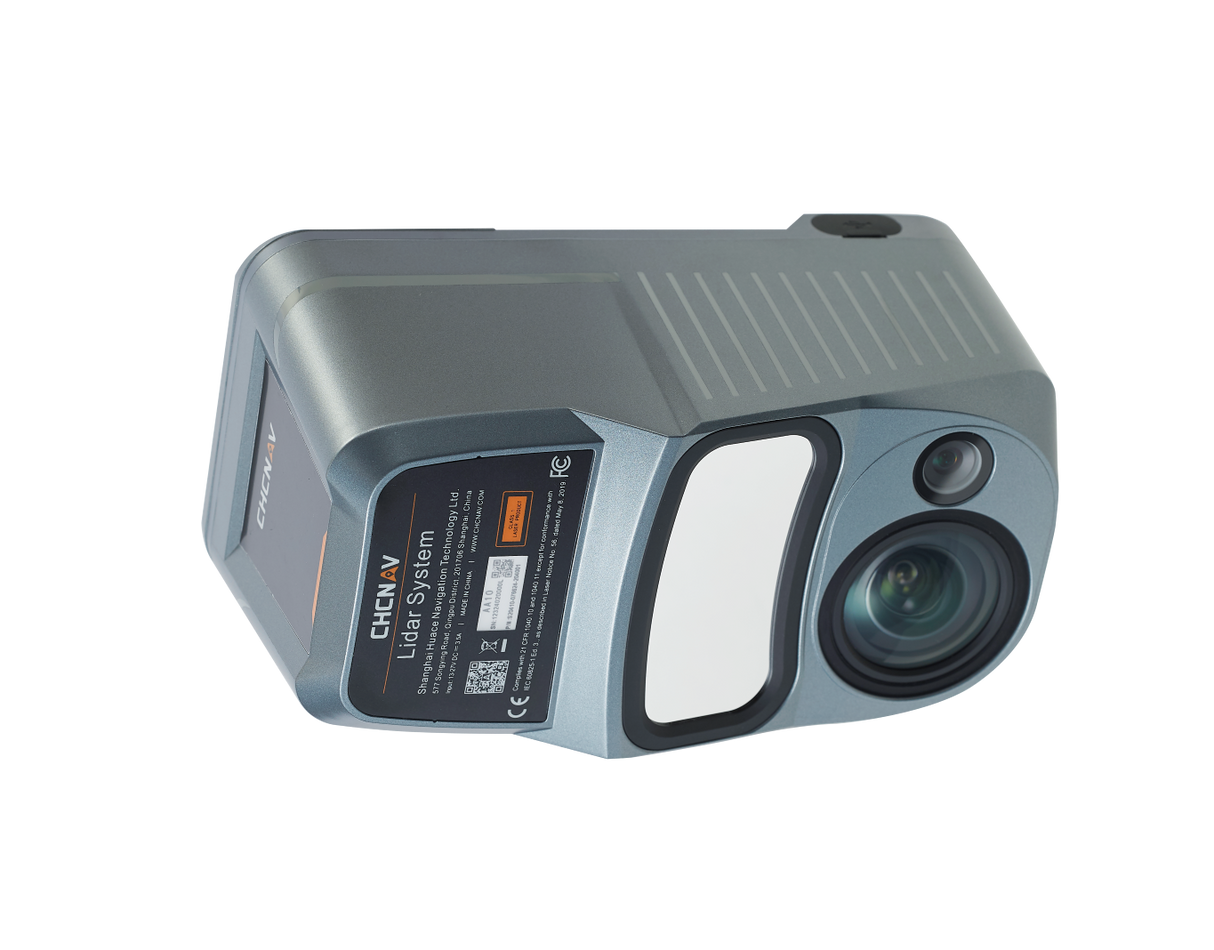

CHCNAV AlphaAir 10 UAV LiDAR and RGB system
LiDAR + photogrammetry in one flight

Survey-grade, efficient and cost-effective

The AA10 pairs 5 mm repeated ranging with CHCNAV’s navigation algorithm for 2–5 cm absolute accuracy even in complex environments. A rotating-mirror scanner at up to 500,000 pts/s and 250 scans/s, plus up to 8 returns, gives detailed ground models under vegetation. About 30 minutes of flight on a DJI M350.

2–5 cmabsolute H & Z
800 m@80% · 400 m @20%
500kpts/s, 250 scans/s
8returns, full waveform
45 MPfull frame, 21 mm
IP641.55 kg, 40 W
Key features

Why the AA10 is a workhorse

5mm

Precision scanning

15 mm accuracy, 5 mm precision at 150 m.

800

Long range

Up to 800 m range and 317 m AGL at 100 kHz.

8x

Vegetation penetration

Up to 8 returns for accurate DEMs and DSMs.

45MP

Full-frame imaging

45 MP orthophoto camera for DOMs and realistic colour.

Live

Real-time view

Monitor capture live from the UAV controller.

UAV

Fits any UAV

DJI Matrice, CHCNAV BB4 and third-party drones; Alphaport one-click.

High-precision LiDAR

5 mm ranging, 2–5 cm absolute

CHCNAV’s high-precision navigation (500 Hz IMU, 0.006° pitch/roll, 0.019° heading post-processed) combined with the CHCNAV scanner provides 5 mm repeated range accuracy and 2–5 cm absolute accuracy at 150 m AGL.

  • Accuracy 15 mm (1σ @150 m)
  • Precision 5 mm (1σ @150 m)
  • Test: 150 m AGL at 8 m/s

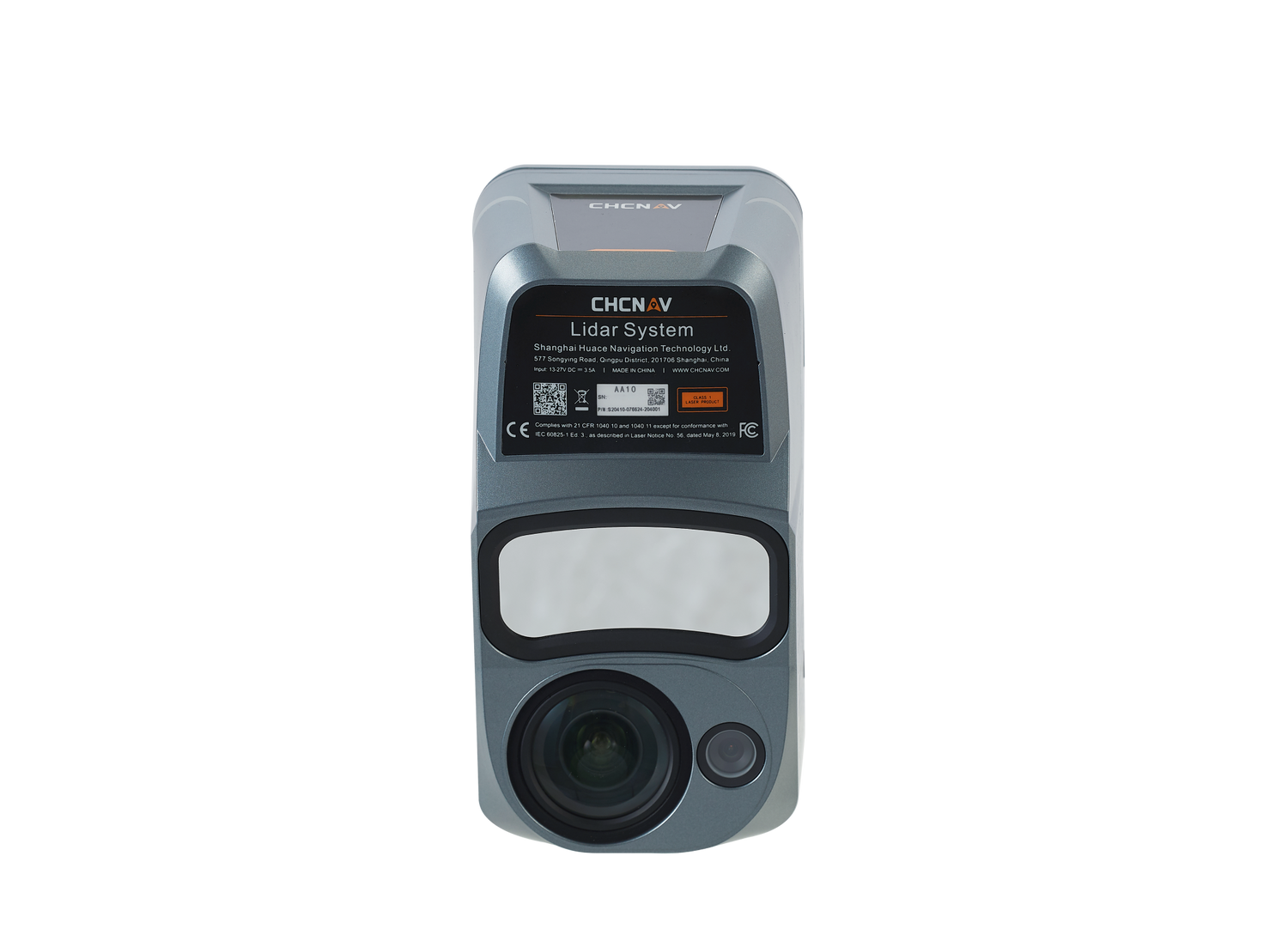

CHCNAV AlphaAir 10 high-precision LiDAR
CHCNAV AlphaAir 10 long-range scanning
CHCNAV AlphaAir 10 vegetation penetration
Long range, strong penetration

800 m range, up to 8 echoes

Long-range measurement up to 800 m, rapid scanning at 500,000 points per second and a continuously rotating mirror enhance mapping detail. Up to 8 target echoes per pulse penetrate dense vegetation for accurate ground surfaces.

800 m @80%317 m AGL @20%75° FOV
High-resolution imaging

45 MP full-frame orthophoto camera

An industrial 36 × 24 mm, 45 MP camera with a 21 mm lens captures 81.2° × 59.5° per frame, providing textures for realistic point-cloud colourisation, high-resolution DOMs and efficient 3D model reconstruction in CoPre.

CHCNAV AlphaAir 10 high-resolution imaging
CHCNAV AlphaAir 10 efficient workflow
Efficient workflow, any UAV

Light, quick to install, IP64

At 1.55 kg the AA10 mounts on the CHCNAV BB4, DJI Matrice and third-party UAVs. Alphaport provides one-click power and telemetry, and CoPre plus CoProcess streamline processing and feature extraction. Dual 512 GB storage keeps long days safe.

  • ~30 min on DJI M350
  • 2 × 512 GB storage
  • IP64, –20 °C to +50 °C

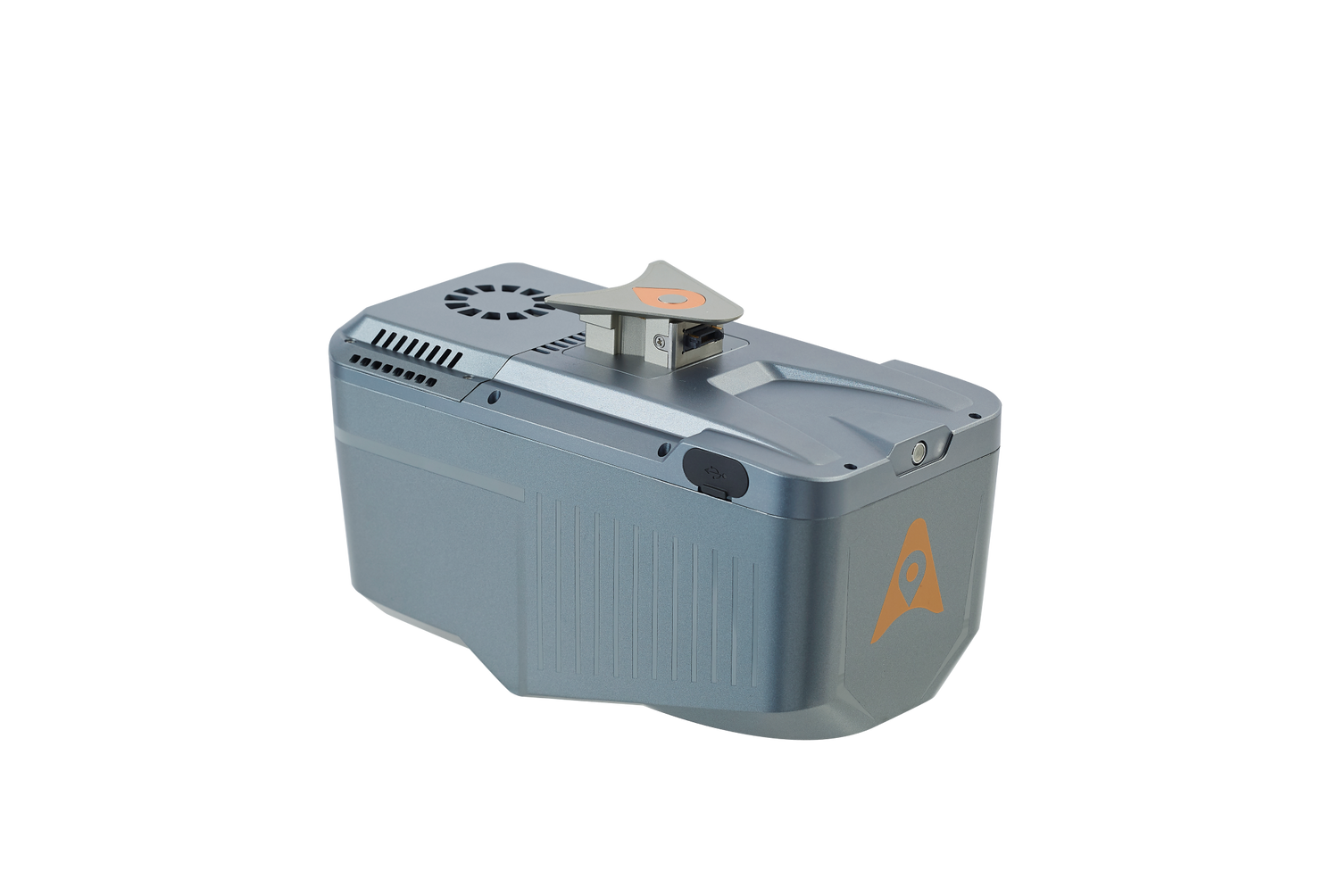

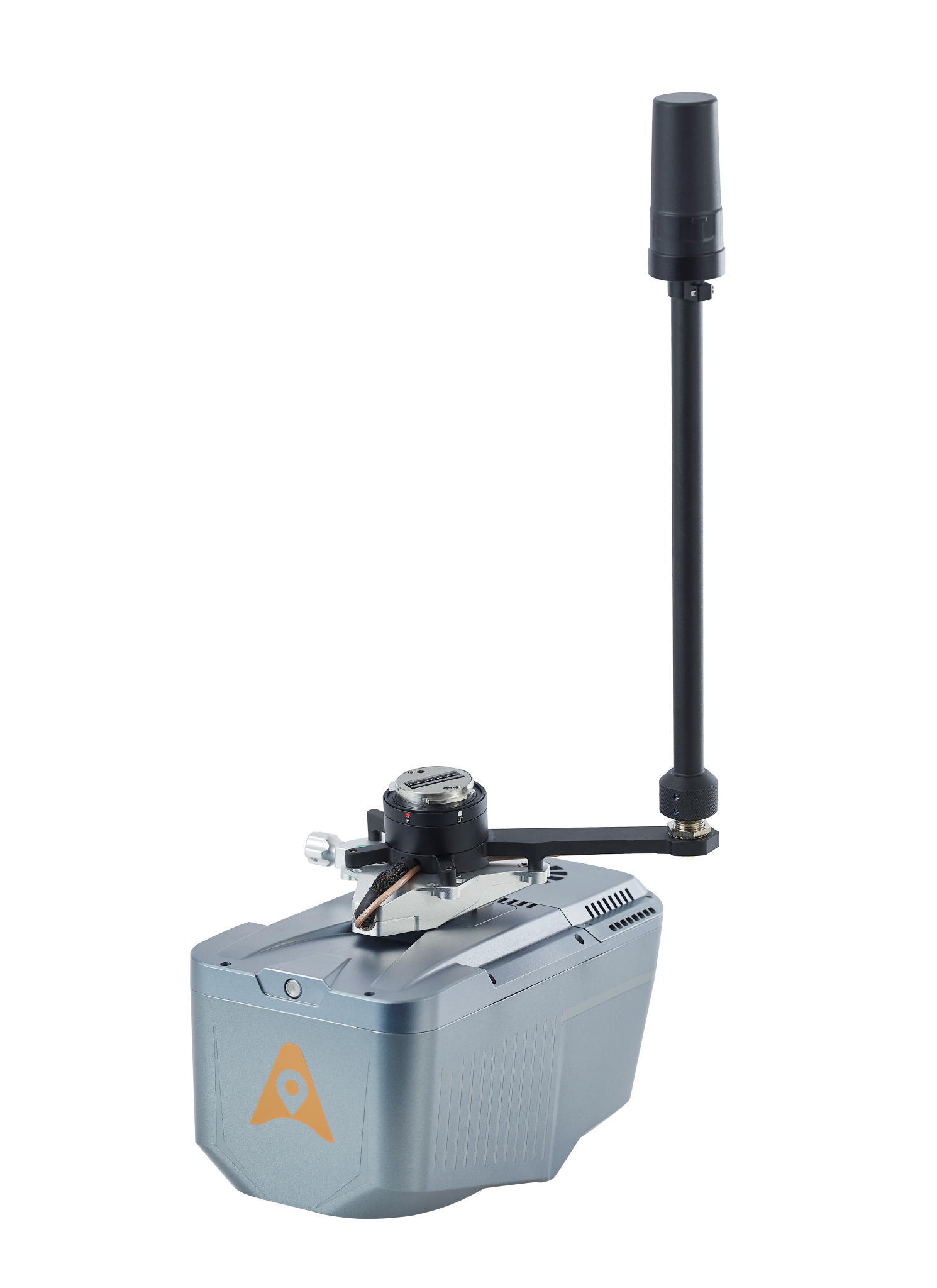

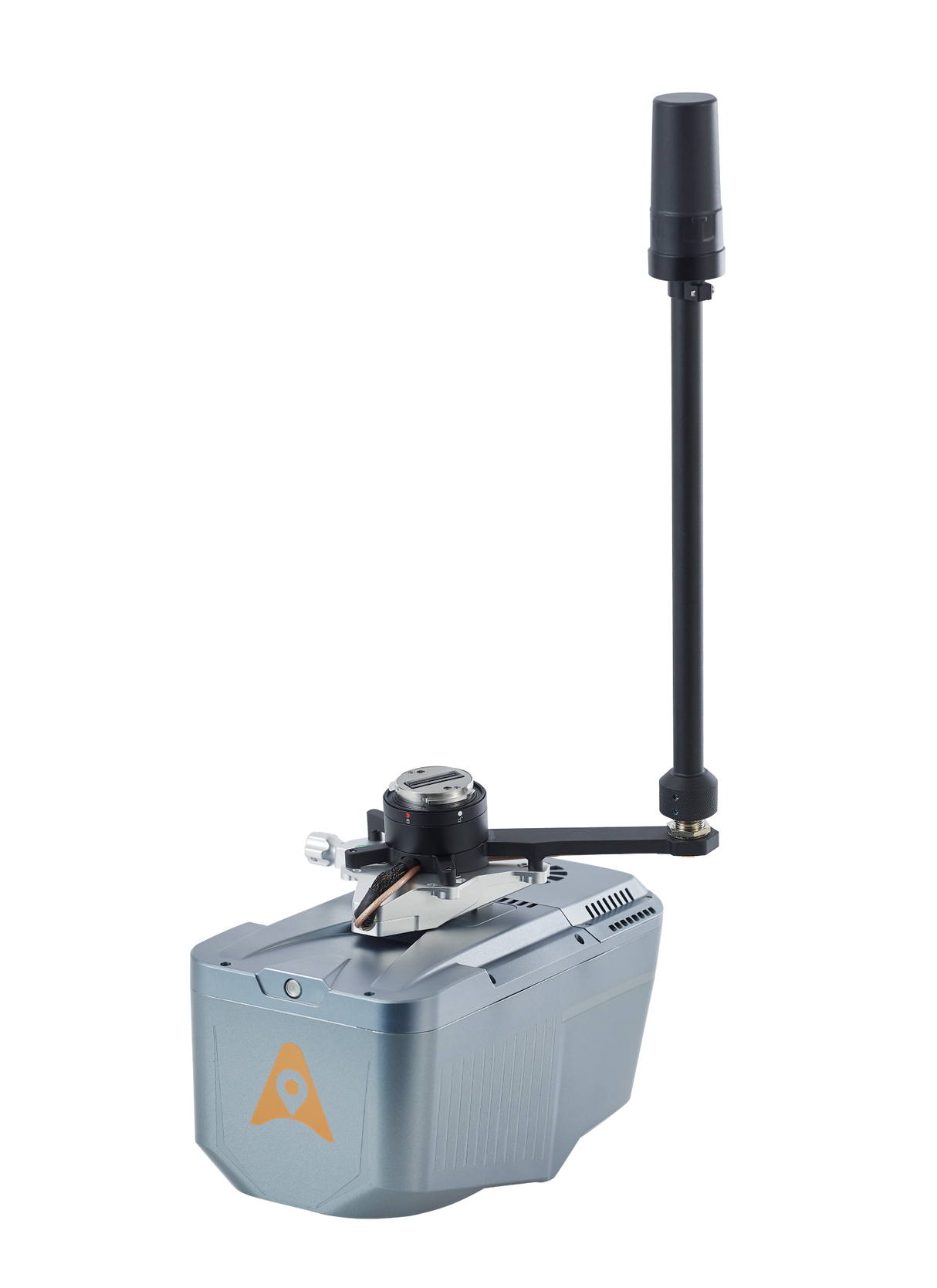

Lightweight CHCNAV AlphaAir 10

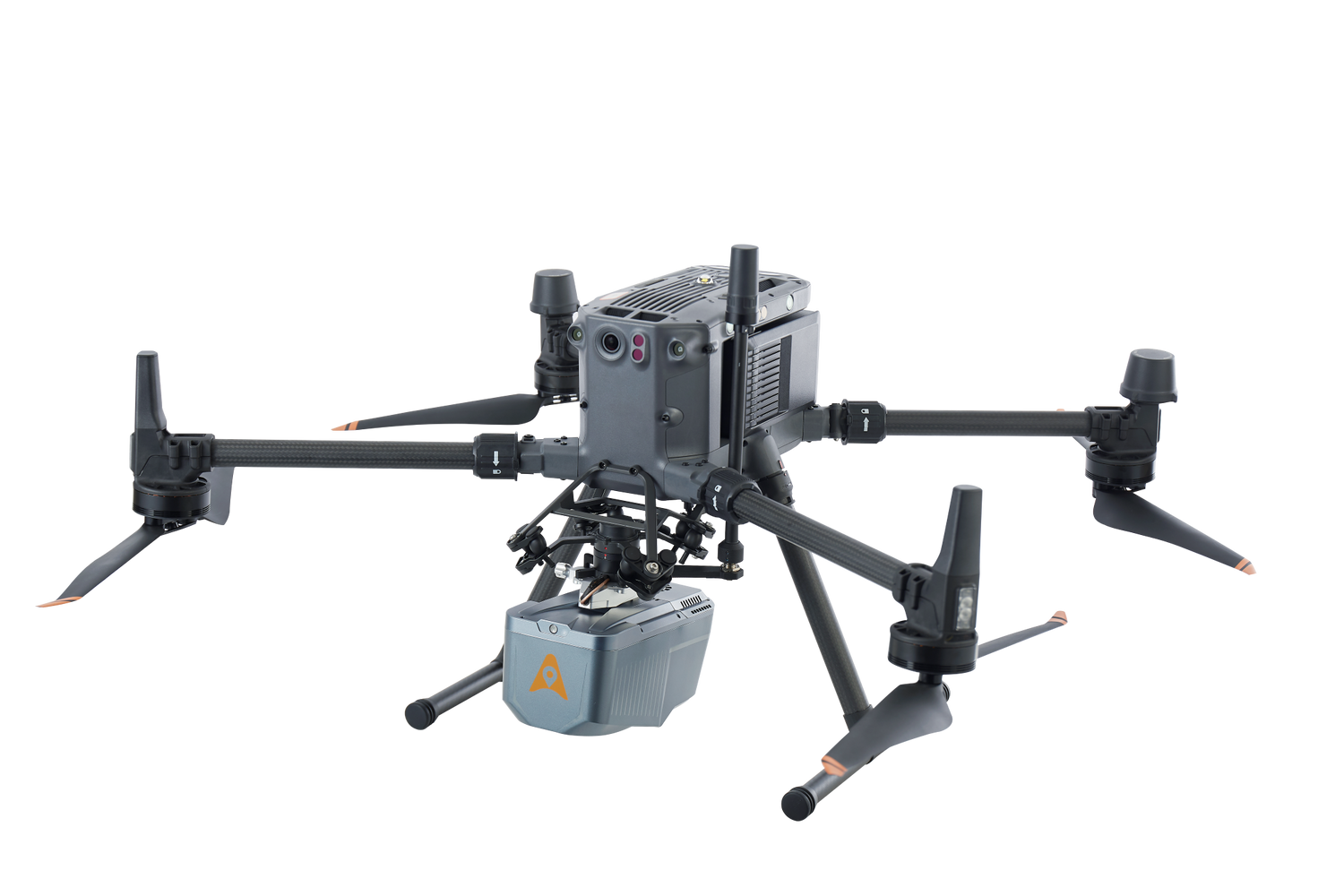

CHCNAV AlphaAir 10 on X500 UAV
Which AlphaAir?

Compare CHCNAV airborne LiDAR

Five CHCNAV airborne LiDAR systems, from entry-level drone mapping to manned-aircraft surveys. Pick by flying height, area and penetration.

AA450AA10AA6 / AA6DAA15AA15 Pro
Best forEntry drone mappingLiDAR + 45 MP RGBHigh-relief terrain, long flightsCorridors and dense dataLarge areas, manned aircraft
Max range @80%450 m800 m2,100 m1,800 m3,200 m
Point rate720k pts/s500k pts/s2M pts/s2M pts/s2.4M pts/s
Returns38161616
Typical AGL50–100 mup to 317 m100–600 mup to 700 m500–1,200 m
Weight0.95 kg1.55 kg1.35 kg (AA6D 1.85 kg)2.5 kg2.6 kg
Camera26 MP built-in45 MP full frame25/100 MP or 2×26 MPExternal 45/61 MP100 MP nadir / 300 MP oblique
AA450AA10AA6 / AA6DAA15AA15 Pro
Applications

Where the AA10 works best

Waterways and floodplains

Waterways and floodplains

Terrain and bank models for hydrology.

Power line inspection

Power line inspection

Conductor and clearance analysis.

Forestry

Forestry

Canopy height and ground under trees.

Topographic mapping

Topographic mapping

LiDAR + DOM from one mission.

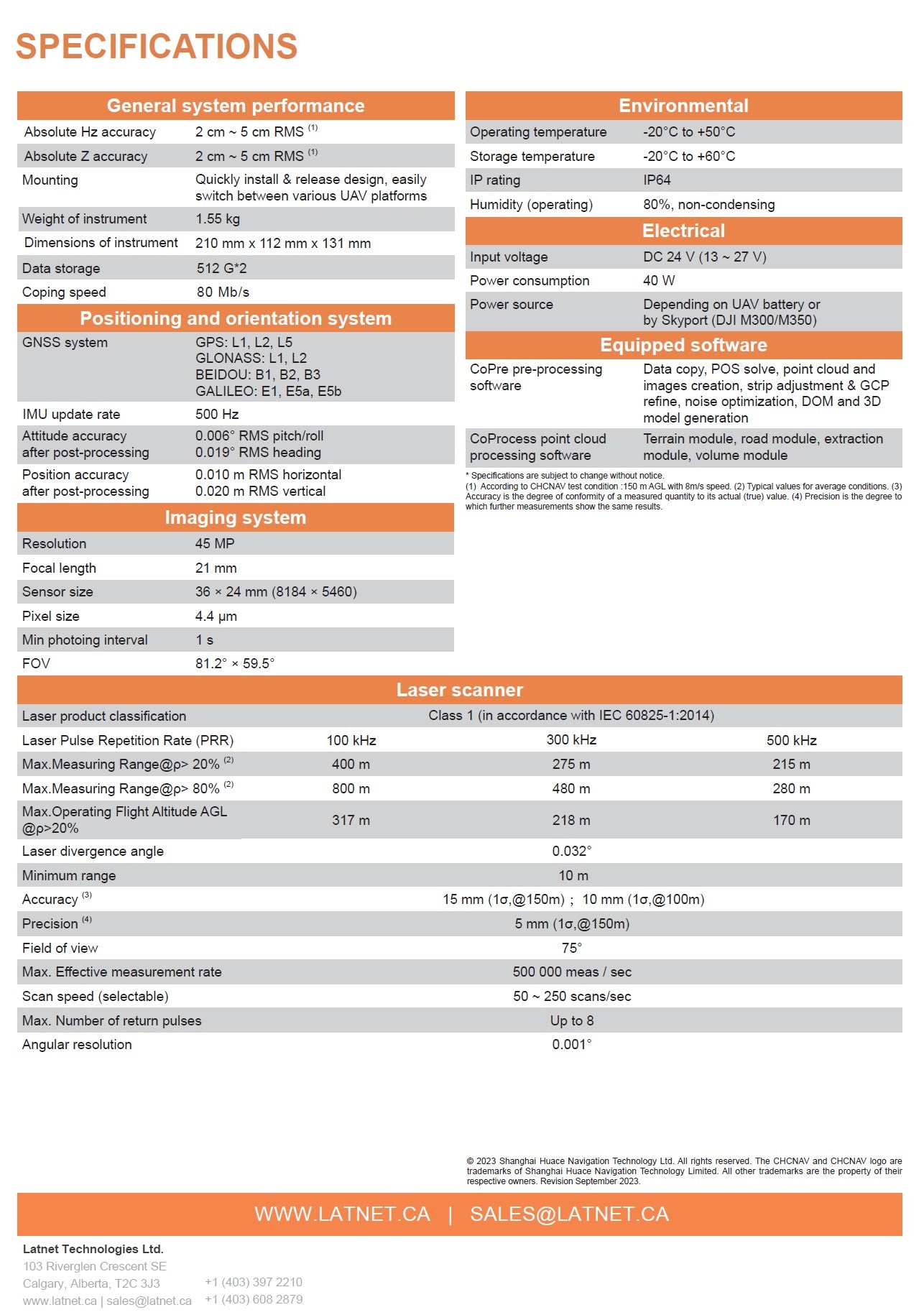

Datasheet

CHCNAV AlphaAir 10 technical specifications

Absolute accuracyH 2–5 cm RMS · Z 2–5 cm RMS (150 m AGL, 8 m/s)
MountingQuick install and release; switch between UAV platforms
Weight1.55 kg
Dimensions210 × 112 × 131 mm
Data storage2 × 512 GB, 80 Mb/s copy
Operating temperature–20 °C to +50 °C
ProtectionIP64
Humidity80%, non-condensing
Storage temperature–20 °C to +60 °C
Specifications from the CHCNAV datasheet and subject to change. Accuracy values were obtained under CHCNAV test conditions; range values are typical for average conditions. Actual results depend on platform, flight or walking speed, GNSS conditions and target reflectivity.
Questions

AlphaAir 10 FAQ

How long can I fly?

About 30 minutes on a DJI M350, depending on battery and conditions.

AA10 or AA450?

The AA10 has longer range (800 m vs 450 m), 8 returns instead of 3 and a 45 MP full-frame camera – better for vegetation and survey-grade deliverables. The AA450 is lighter and lower cost.

AA10 or AA6?

The AA6 adds 2,100 m range, 2M pts/s and 16 returns for high-relief terrain and larger areas.

What deliverables can I make?

Colourised point clouds, DEMs, DSMs, DOMs and textured 3D meshes from one flight using CoPre and CoProcess.
