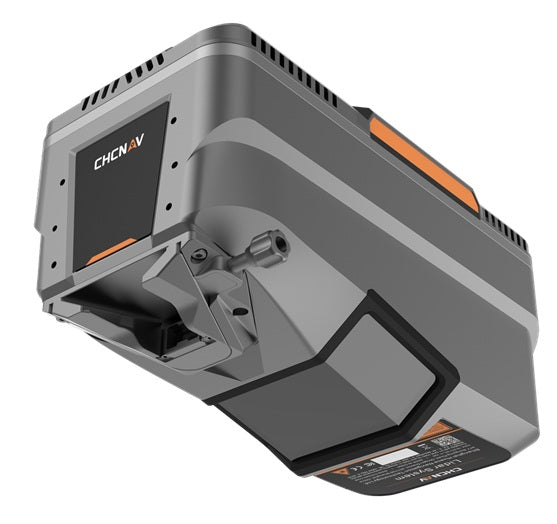

CHCNAV AlphaAir 15 Airborne LiDAR System for UAV & Aerial Mapping


The AlphaAir 15 combines long-range scanning, high accuracy and an extremely fast acquisition rate in a 2.5 kg design. It is ideal where high-density data is needed to extract buildings and roads, and for mountainous areas where ground must be detected at the bottom of valleys.

Mount it on light aircraft, helicopters or UAVs, with a choice of 45, 61 or 130 MP cameras.

Key features

  • High-accuracy capture – Tilted-prism technology: 15 mm accuracy, 5 mm precision.
  • Extended range – 1,800 m range and up to 700 m AGL.
  • Vegetation penetration – 16 returns per pulse and 7 multi-period zones.
  • Wide platform support – UAV, RPAS, light aircraft and helicopters via Alphaport.
  • High-density clouds – Up to 600 lines/s at 2M pts/s.
  • Imaging options – 45/61 MP full frame or 130 MP oblique; third-party cameras.

At a glance

  • 1,800 m @80% · 900 m @20%
  • 700 m max AGL
  • 2M pts/s, 50–600 lines/s
  • 16 returns, 7 zones
  • 2–5 cm absolute accuracy
  • 2.5 kg IP64, 60 W

Plan your AA15 platform, camera and processing workflow with our Calgary team. Contact LATNET for pricing, training and support.


Technical Specification

Alpha Air 15

Premium airborne LiDAR

CHCNAV AlphaAir 15 – fast, dense corridor mapping LiDAR

The AlphaAir 15 combines long-range scanning, high accuracy and an extremely fast acquisition rate in a 2.5 kg design. It is ideal where high-density data is needed to extract buildings and roads, and for mountainous areas where ground must be detected at the bottom of valleys.

Mount it on light aircraft, helicopters or UAVs, with a choice of 45, 61 or 130 MP cameras.

1,800 m range2M pts/s · 600 lines/s2.5 kg
CHCNAV AlphaAir 15 airborne LiDAR system
Efficient and powerful corridor mapping

High density from up to 700 m AGL

With 2 million points per second, a maximum range of 1,800 m and flying heights up to 700 m, the AA15 keeps point loss low over large areas – ideal for power lines, highways, railways, pipelines and urban mapping. CHCNAV’s patented tilted-prism technology delivers 15 mm accuracy at 150 m with echo digitisation and online waveform processing.

1,800 m@80% · 900 m @20%
700 mmax AGL
2Mpts/s, 50–600 lines/s
16returns, 7 zones
2–5 cmabsolute accuracy
2.5 kgIP64, 60 W
Key features

Why the AA15 suits big projects

15mm

High-accuracy capture

Tilted-prism technology: 15 mm accuracy, 5 mm precision.

1800

Extended range

1,800 m range and up to 700 m AGL.

16x

Vegetation penetration

16 returns per pulse and 7 multi-period zones.

Plat

Wide platform support

UAV, RPAS, light aircraft and helicopters via Alphaport.

600

High-density clouds

Up to 600 lines/s at 2M pts/s.

Cam

Imaging options

45/61 MP full frame or 130 MP oblique; third-party cameras.

Highest data quality

Tilted-prism accuracy

CHCNAV’s patented tilted-prism technology delivers 15 mm linear accuracy on long-range scans up to 150 m, with echo digitisation and online waveform processing. A continuously rotating polygon mirror reaches 600 lines per second.

  • Accuracy 15 mm, precision 5 mm (1σ @150 m)
  • 75° FOV, 0.032° divergence
  • Full waveform
CHCNAV AlphaAir 15 high-accuracy data capture
CHCNAV AlphaAir 15 extended range
CHCNAV AlphaAir 15 vegetation penetration
Range and penetration

1,800 m range, 16 returns

Up to 16 returns per pulse with 7-zone multi-period processing, combined with 2 million pulses per second, increases the chance of reaching the ground through vegetation – more ground points, better DTMs.

1,800 m @80%700 m AGL16 returns
Imaging quality

Point clouds and imagery in one flight

Choose CHCNAV 45 MP (C5) or 61 MP (C30) full-frame calibrated cameras, a 130 MP oblique camera, or third-party oblique and ortho cameras. Produce RGB point clouds, DOMs, DEMs and 3D models from a single flight, and build realistic meshes quickly in CoPre.

CHCNAV AlphaAir 15 advanced imaging options
CHCNAV AlphaAir 15 high-density point clouds
CHCNAV AlphaAir 15 comprehensive ecosystem
Complete ecosystem

Lightest in class, ready for any aircraft

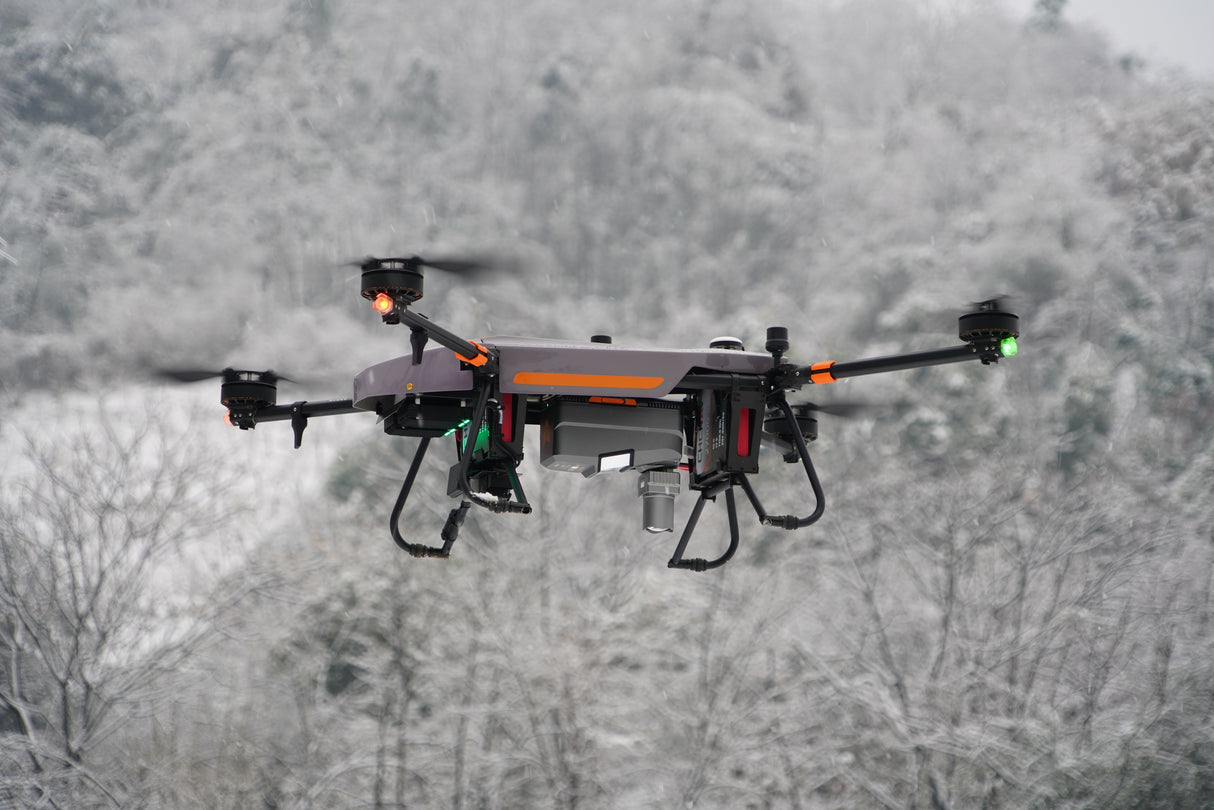

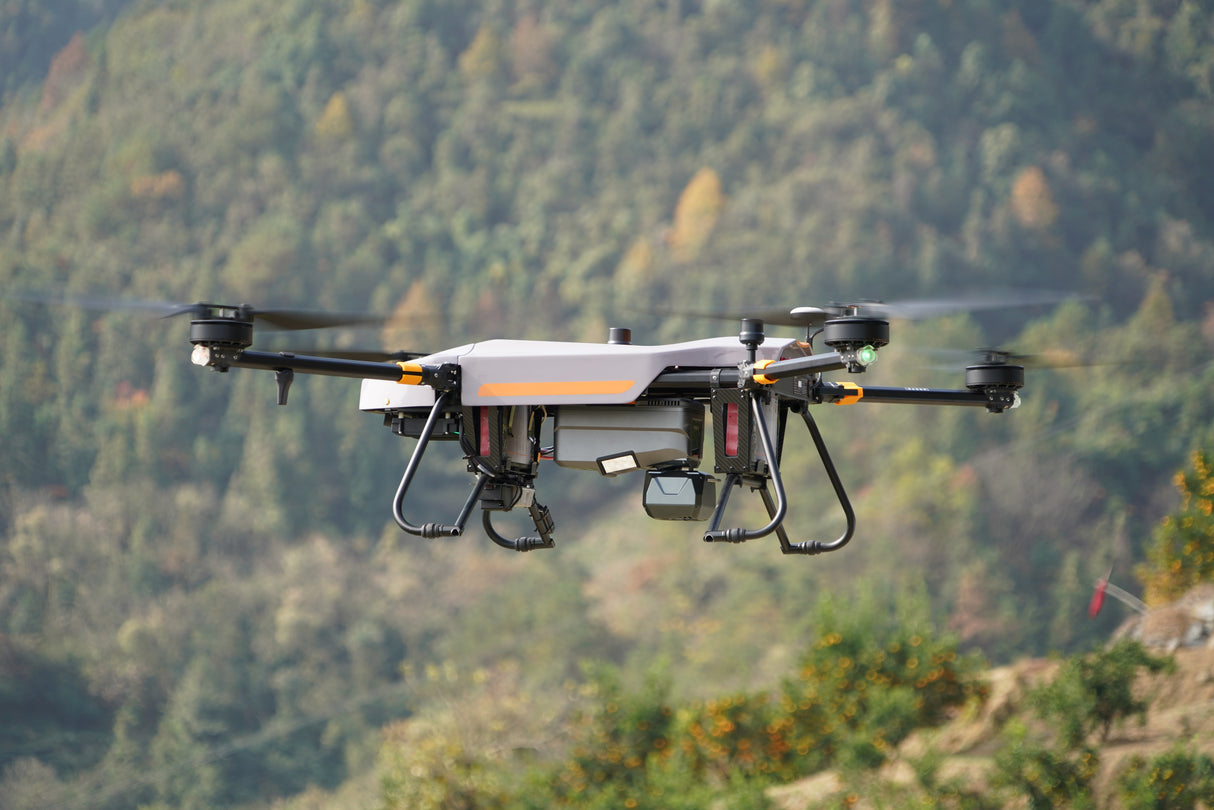

At 2.5 kg the AA15 is the lightest LiDAR in its class and can fly on DJI drones as well as RPAS, light aircraft and helicopters. Alphaport gives one-click power and camera connections; SmartGo automates capture and mission monitoring; CoProcess auto-detects railways, roads and buildings.

  • SmartGo · CoPre · CoProcess
  • 512 GB (1 TB optional)
  • IP64, 24 V, 60 W

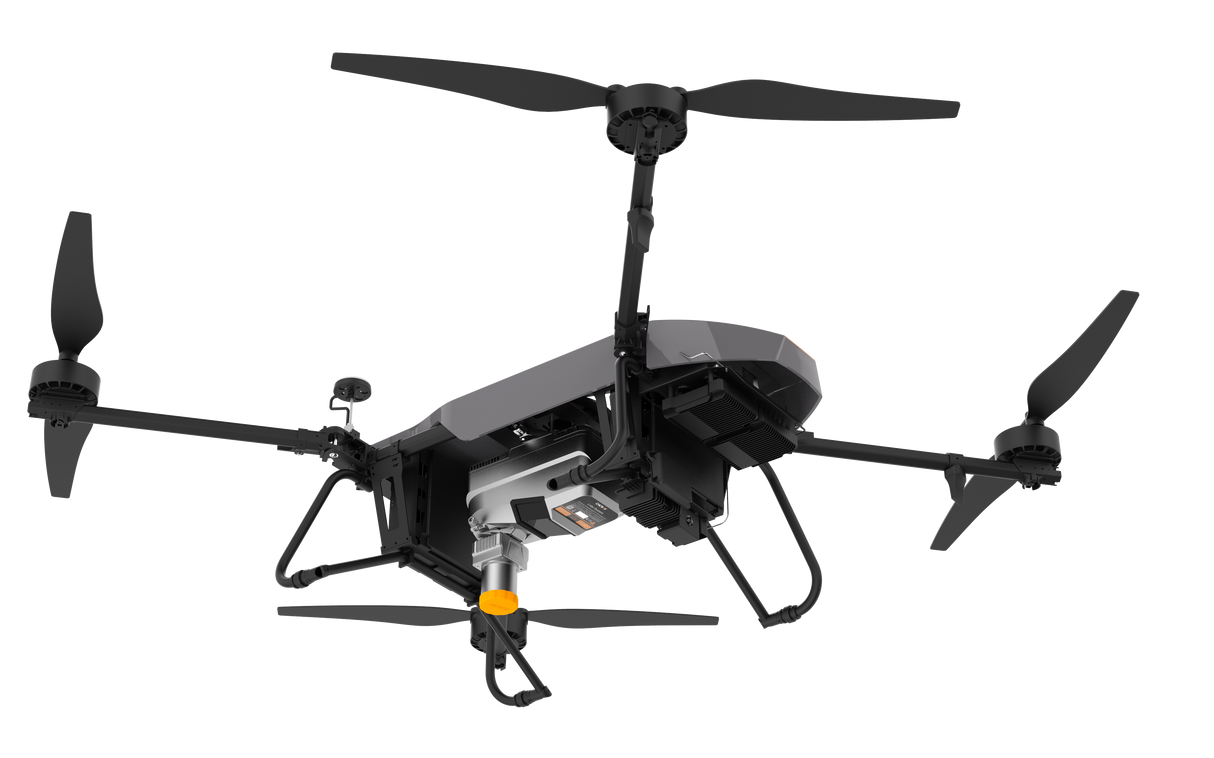

CHCNAV AlphaAir 15 platform compatibility

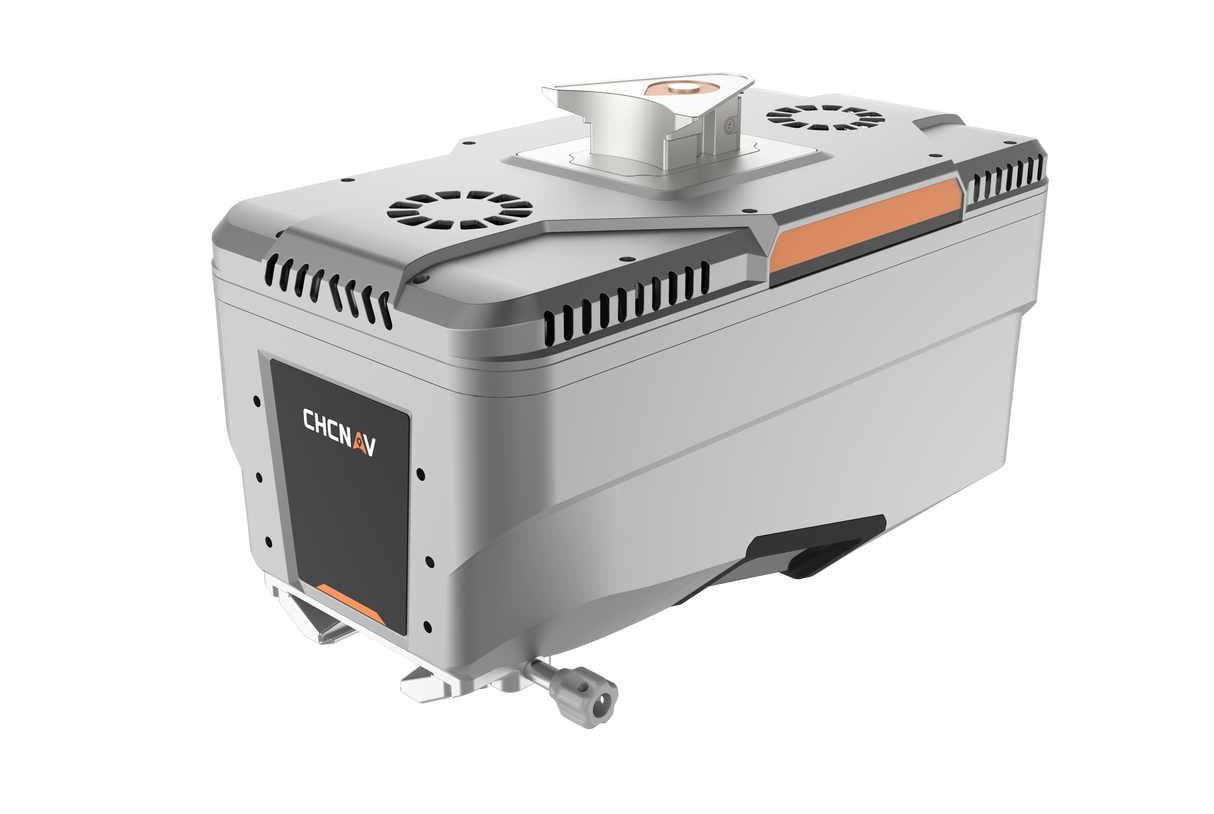

Rugged CHCNAV AlphaAir 15
Which AlphaAir?

Compare CHCNAV airborne LiDAR

Five CHCNAV airborne LiDAR systems, from entry-level drone mapping to manned-aircraft surveys. Pick by flying height, area and penetration.

AA450AA10AA6 / AA6DAA15AA15 Pro
Best forEntry drone mappingLiDAR + 45 MP RGBHigh-relief terrain, long flightsCorridors and dense dataLarge areas, manned aircraft
Max range @80%450 m800 m2,100 m1,800 m3,200 m
Point rate720k pts/s500k pts/s2M pts/s2M pts/s2.4M pts/s
Returns38161616
Typical AGL50–100 mup to 317 m100–600 mup to 700 m500–1,200 m
Weight0.95 kg1.55 kg1.35 kg (AA6D 1.85 kg)2.5 kg2.6 kg
Camera26 MP built-in45 MP full frame25/100 MP or 2×26 MPExternal 45/61 MP100 MP nadir / 300 MP oblique
AA450AA10AA6 / AA6DAA15AA15 Pro
Applications

Where the AA15 works best

Forestry mapping

Forestry mapping

Ground under dense canopy.

Road networks

Road networks

Dense corridors for engineering.

Bridges and structures

Bridges and structures

Detailed structure models.

Transportation corridors

Transportation corridors

Rail, highway and pipeline mapping.

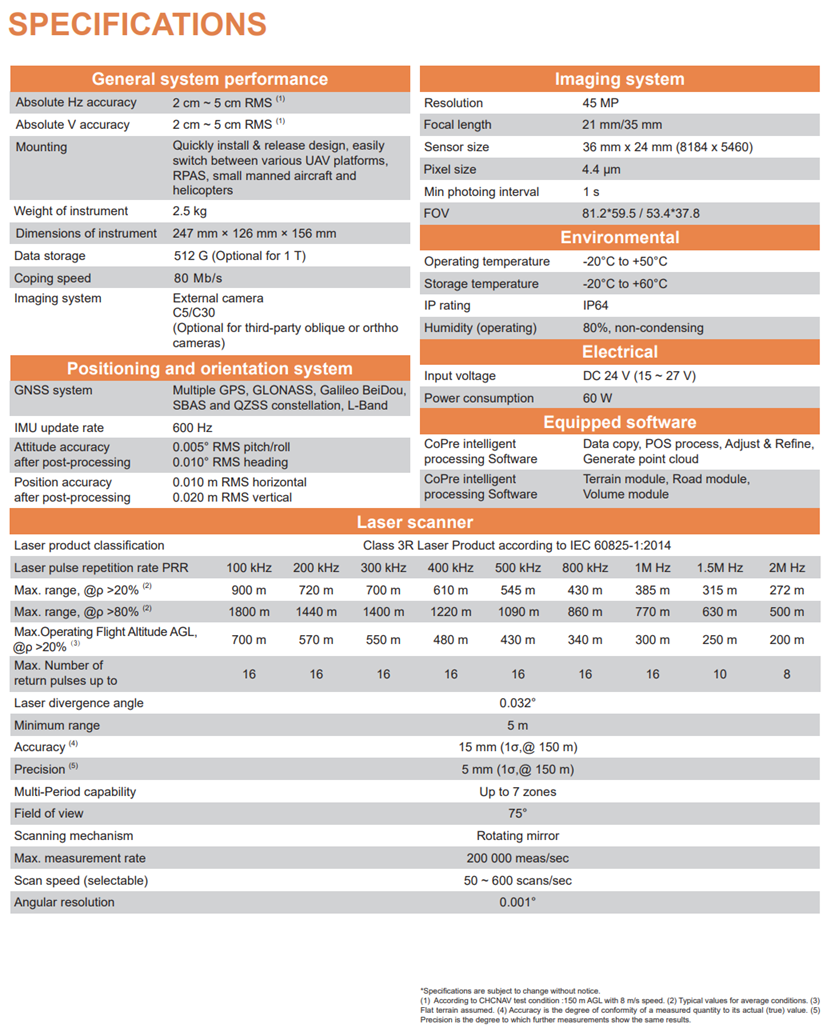

Datasheet

CHCNAV AlphaAir 15 technical specifications

Absolute accuracyH 2–5 cm RMS · V 2–5 cm RMS (150 m AGL, 8 m/s)
MountingQuick install and release; UAV, RPAS, small manned aircraft, helicopters
Weight2.5 kg
Dimensions247 × 126 × 156 mm
Data storage512 GB (1 TB optional), 80 Mb/s
Input voltage / powerDC 24 V (15–27 V) / 60 W
Operating temperature–20 °C to +50 °C
ProtectionIP64
Humidity80%, non-condensing
Storage temperature–20 °C to +60 °C
Specifications from the CHCNAV datasheet and subject to change. Accuracy values were obtained under CHCNAV test conditions; range values are typical for average conditions. Actual results depend on platform, flight or walking speed, GNSS conditions and target reflectivity.
Questions

AlphaAir 15 FAQ

Can the AA15 fly on a DJI drone?

Yes – at 2.5 kg it fits heavy-lift DJI and other UAVs, as well as RPAS, light aircraft and helicopters.

AA15 or AA15 Pro?

The AA15 Pro extends range to 3,200 m, raises the rate to 2.4M pts/s and supports 100 MP nadir and 300 MP oblique cameras for large-area manned surveys.

Which cameras are available?

CHCNAV C5 (45 MP) and C30 (61 MP) full-frame cameras, a 130 MP oblique camera, or third-party oblique/ortho cameras.

What is multi-period (MTA)?

It lets the scanner have several pulses in the air at once, so high PRR still works at long range. The AA15 supports up to 7 zones.
