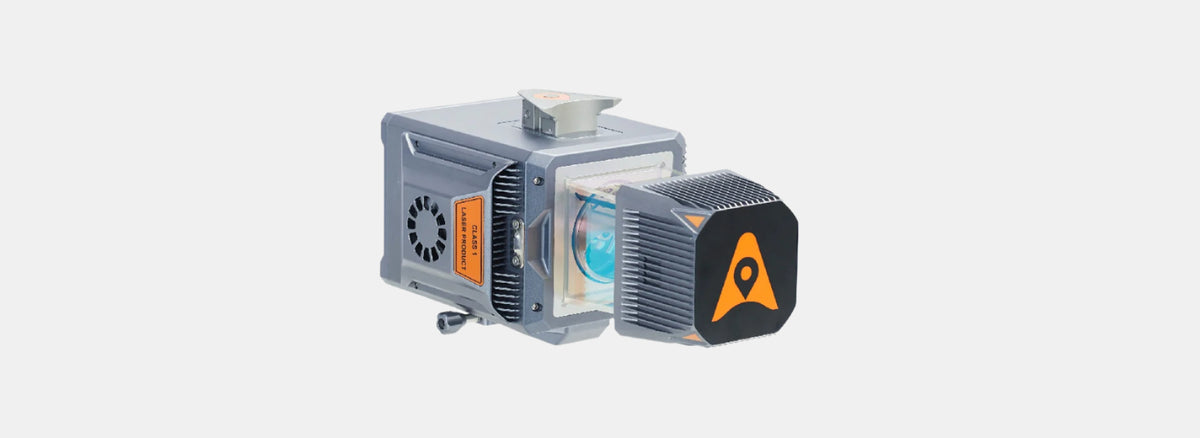

CHCNAV AlphaUni 20 (AU20) Multi-Platform LiDAR System
The AlphaUni 20 is a cost-effective, multi-platform mobile mapping system – the result of six years of CHCNAV LiDAR development. The same 2.82 kg scanner flies on drones, helicopters and aircraft, mounts on cars, boats and trains, or rides in a backpack.
A 1,450 m laser at up to 2 million points per second and 16 returns gives strong vegetation penetration in the air and dense, detailed roads on the ground.
Key features
- Outstanding accuracy – 5 mm repeated ranging and 20+ years of CHCNAV navigation algorithms: 2–5 cm absolute.
- Multi-platform design – Manned and unmanned aircraft, cars, boats, trains and backpacks.
- Premium laser – Up to 1,450 m, 2M pts/s and a rotating mirror at up to 200 scans/s.
- Strong penetration – Up to 16 echoes for accurate DEMs and DSMs under dense vegetation.
- Industrial reliability – IP64, –20 °C to +50 °C – ready for weather and site surprises.
- Highly integrated – Alphaport one-click power and camera connection; SmartGo + CoPre workflow.
At a glance
- 2–5 cm absolute, no control points
- 1,450 m range @80%
- 2M pts/s, 200 scans/s
- 16 returns, 7 MTA zones
- 2.6 kg UAV payload class
- IP64 2.82 kg, 60 W
Talk to us about AU20 airborne, vehicle and backpack configurations, training and processing support. Contact LATNET for pricing, training and support.
CHCNAV AlphaUni 20 (AU20) Multi-Platform LiDAR System is backordered and will ship as soon as it is back in stock.
- Authorized CHCNAV dealer in Canada
- Setup, training & local support from our Calgary geomatics team
- Shipped across Canada from Calgary
- See it before you buy – live demo or rental available
Technical Specification

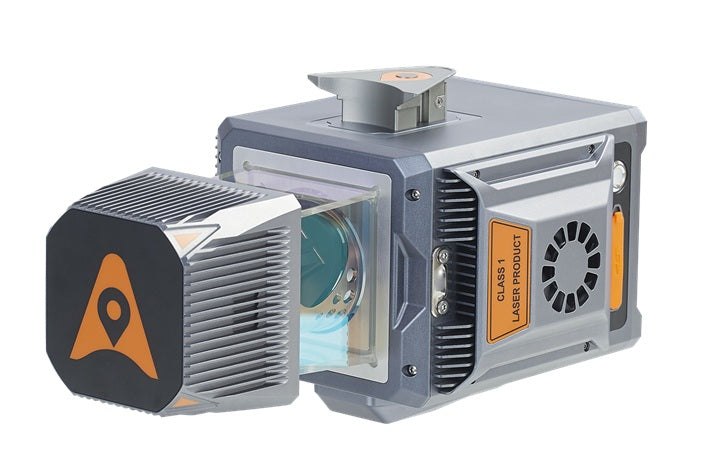

Alpha Uni 20
CHCNAV AlphaUni 20 (AU20) – one LiDAR for drone, car and backpack
The AlphaUni 20 is a cost-effective, multi-platform mobile mapping system – the result of six years of CHCNAV LiDAR development. The same 2.82 kg scanner flies on drones, helicopters and aircraft, mounts on cars, boats and trains, or rides in a backpack.
A 1,450 m laser at up to 2 million points per second and 16 returns gives strong vegetation penetration in the air and dense, detailed roads on the ground.

Switch platforms in minutes, keep the same data quality
In the air, the AU20 delivers superior data thanks to its vegetation penetration, range, accuracy and density. On the ground it captures accurate point clouds and immersive panoramic imagery for road surfaces, highway maintenance and asset management. For dedicated vehicle kits see the AU20 AP5 single head and the AU20 AP7 dual head.
Why the AU20 pays for itself
Outstanding accuracy
5 mm repeated ranging and 20+ years of CHCNAV navigation algorithms: 2–5 cm absolute.
Multi-platform design
Manned and unmanned aircraft, cars, boats, trains and backpacks.
Premium laser
Up to 1,450 m, 2M pts/s and a rotating mirror at up to 200 scans/s.
Strong penetration
Up to 16 echoes for accurate DEMs and DSMs under dense vegetation.
Industrial reliability
IP64, –20 °C to +50 °C – ready for weather and site surprises.
Highly integrated
Alphaport one-click power and camera connection; SmartGo + CoPre workflow.
Drones, helicopters and aircraft

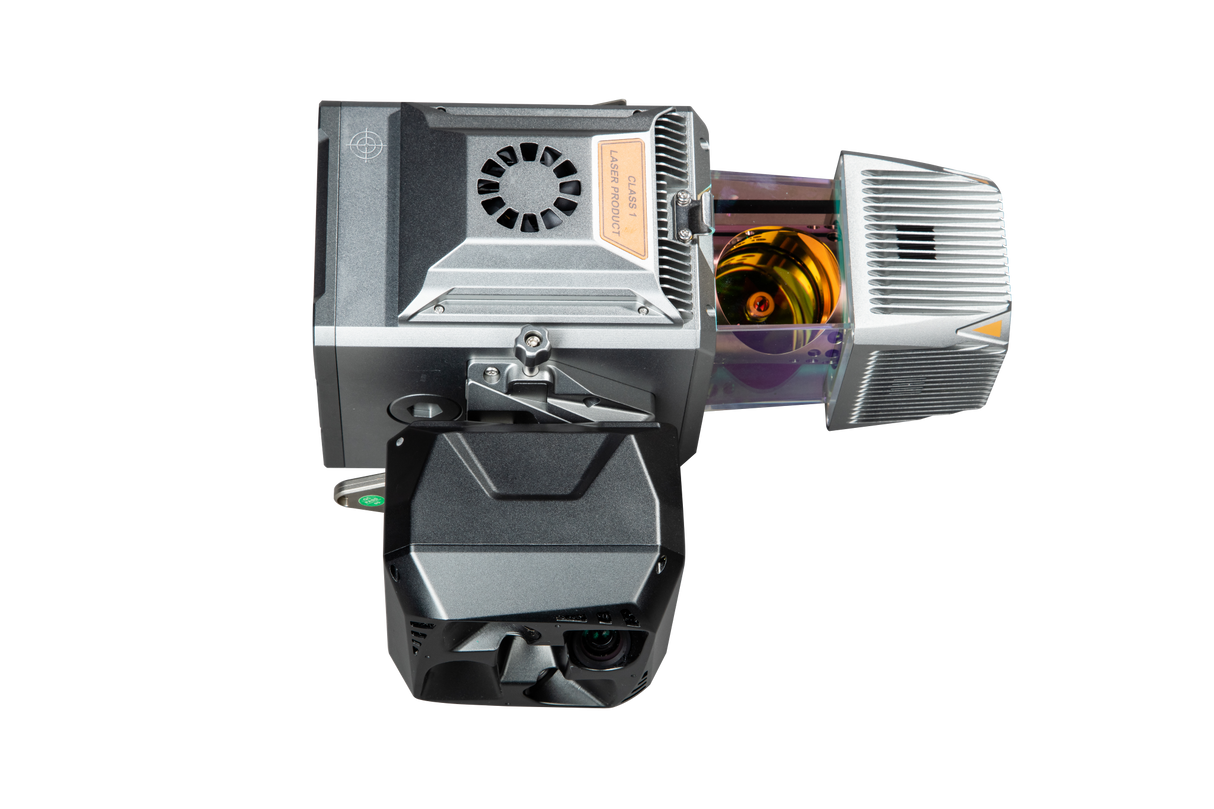

Install the AU20 on any aerial platform with a payload of up to 2.6 kg. 1,450 m range and up to 530 m AGL at 20% reflectivity mean fewer flight lines, and 16 returns per pulse capture the ground under canopy. Add a 45 MP full-frame camera or a calibrated 61 MP Sony α7R IV for colourised clouds and orthophotos.
- Accuracy 15 mm @150 m, 5 mm @30 m
- Up to 530 m AGL (100 kHz, 20%)
- 45 MP or 61 MP camera options

Simple vehicle mode or the advanced car kit

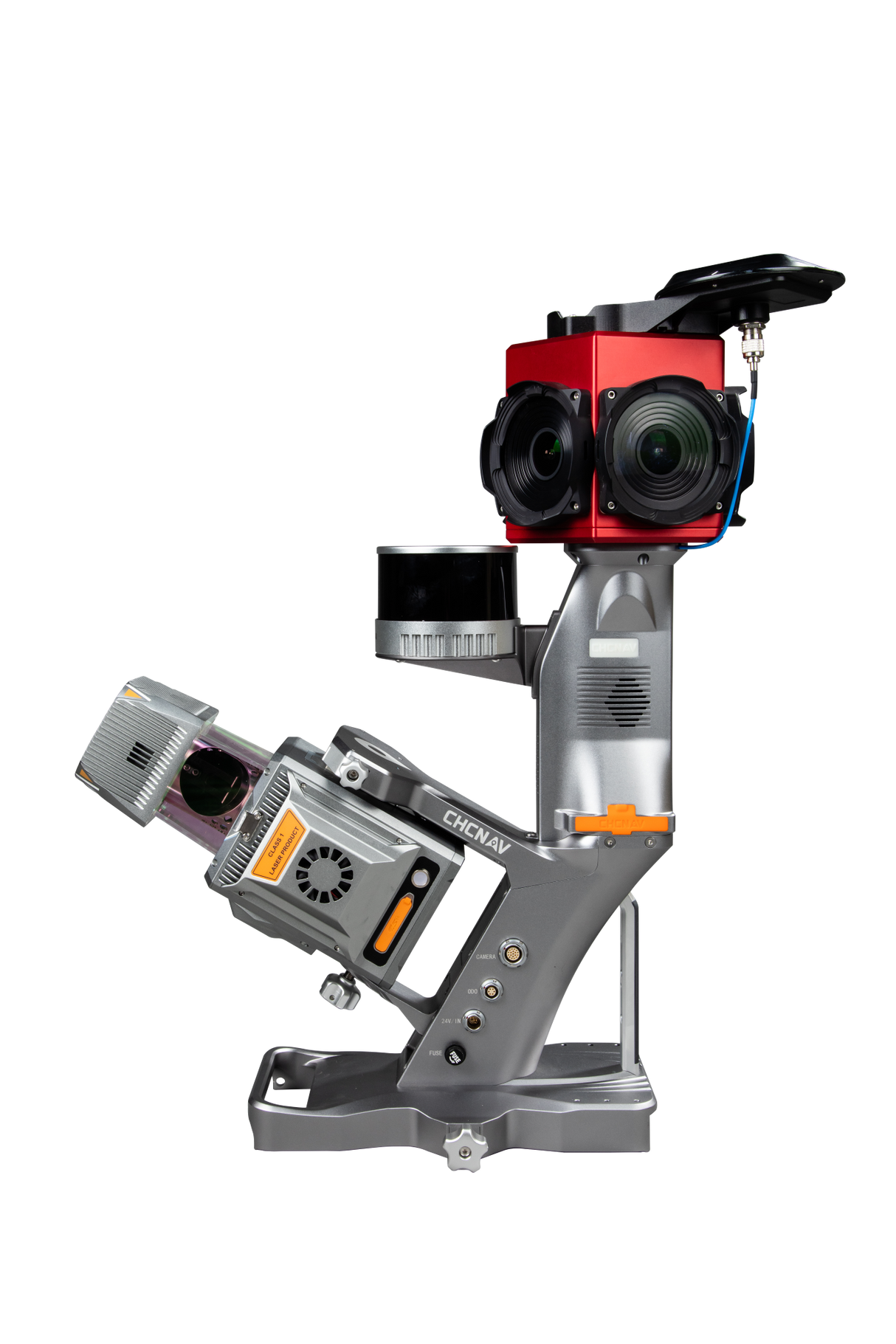

For road measurements and special tasks, switching the AU20 to vehicle mode takes about 5 minutes on any car. The advanced car kit adds the AlphaPano platform with a 360° panoramic camera and a SLAM scanner that keeps the trajectory accurate in urban canyons. With the latest car mount kit and a Ladybug5+, the total weight is only 10.7 kg.
- Simple vehicle mode in ~5 minutes
- AlphaPano: 30 MP 360° camera + SLAM
- Cars, boats and trains
Ready-made vehicle kits: AU20 AP5 single head · AU20 AP7 dual head.
AU20 multi-platform vs AP5 single head vs AP7 dual head
Every option uses the same AU20 laser scanner: 1,450 m range, 2M pts/s and 16 returns. Choose by platform and how much road you need to cover.
| AU20 multi-platform | AU20 AP5 single head | AU20 AP7 dual head | |
|---|---|---|---|
| Best for | Drone, car, boat and backpack | Roads, assets and streets with 360° imagery | Highways and high-density corridor mapping |
| Platforms | UAV, helicopter, aircraft, vehicle, backpack | Vehicle (AlphaPano AP5) | Vehicle (AlphaPano AP7) |
| Scanner heads | 1 | 1 | 2 |
| Panoramic camera | Optional | Ladybug5+ 30 MP + SLAM scanner | Ladybug5+ 30 MP or Ladybug6 72 MP |
| Cameras at once | 45 / 61 MP airborne | Panorama + options | Up to 8 |
| Accuracy | <2.5 cm @30 m, <5 cm @150 m | <2.5 cm @30 m, <5 cm @150 m | Hz 20 mm · V 10 mm (vehicle) |
| Density @60 km/h | — | — | 6,000 pts/m², 4 cm line spacing |
| Weight | 2.82 kg scanner | 10.97 kg platform | 16.8 kg dual head with Ladybug5+ |
| AU20 | AU20 AP5 | AU20 AP7 |

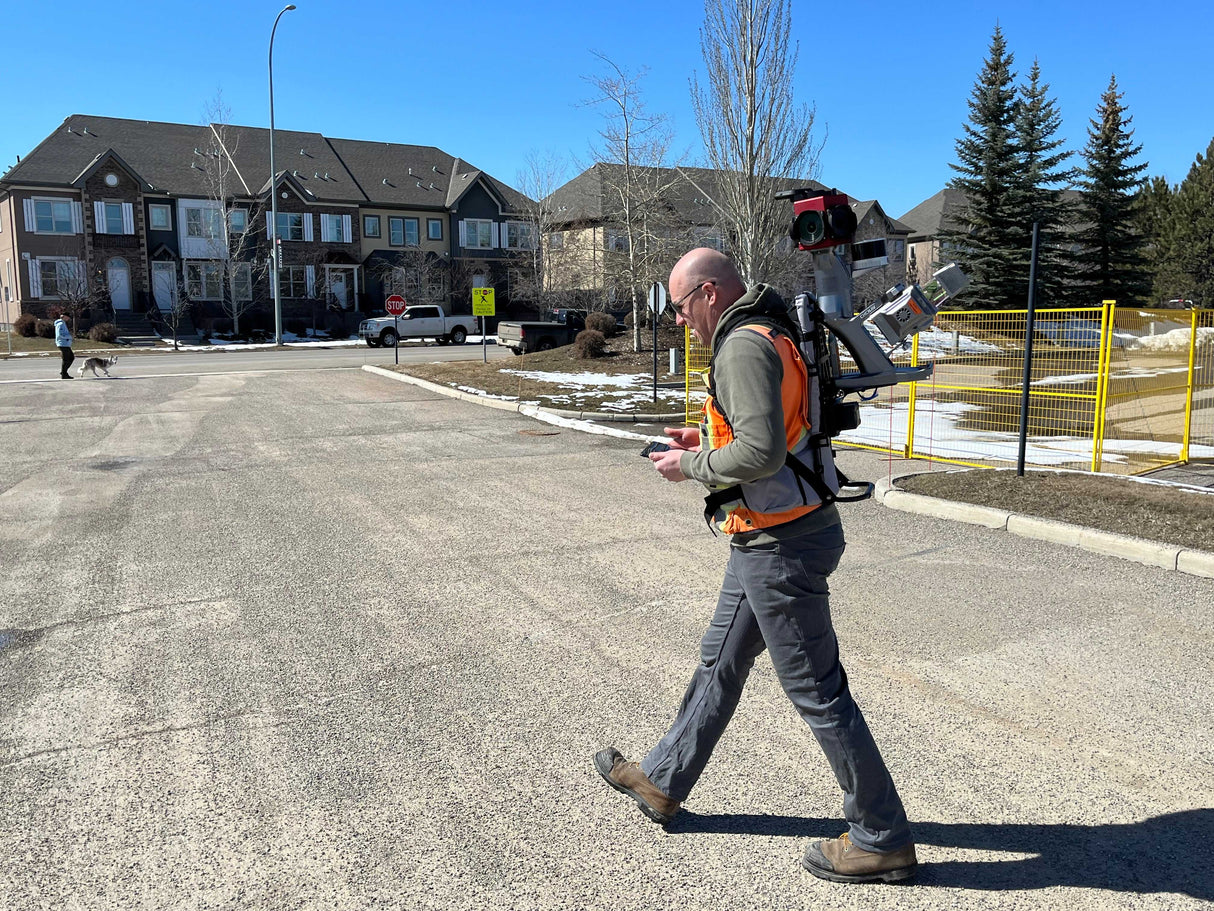

One AU20, four ways to work

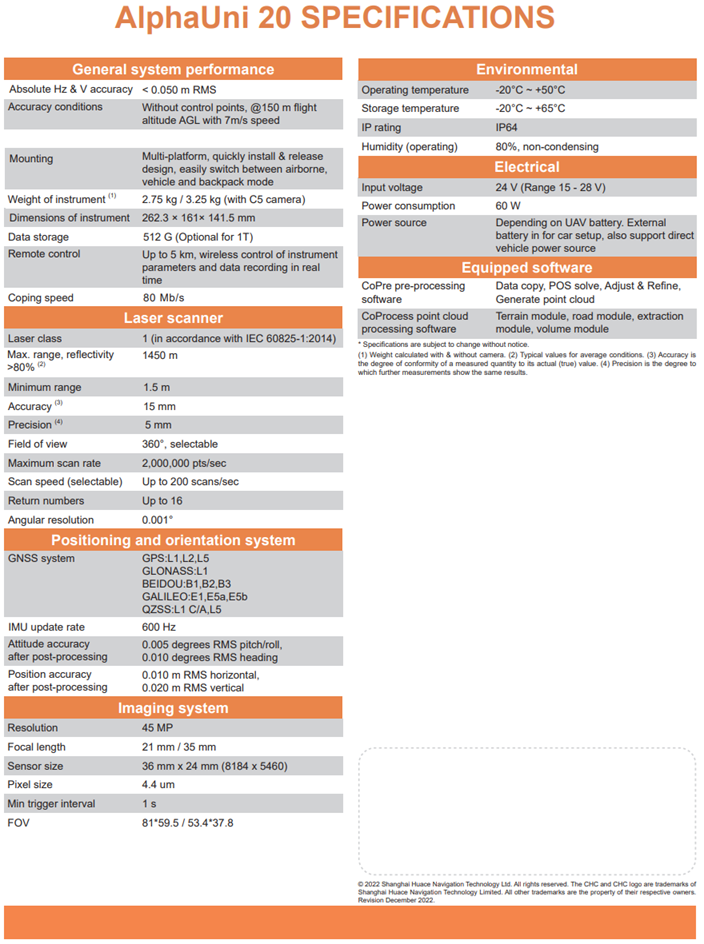

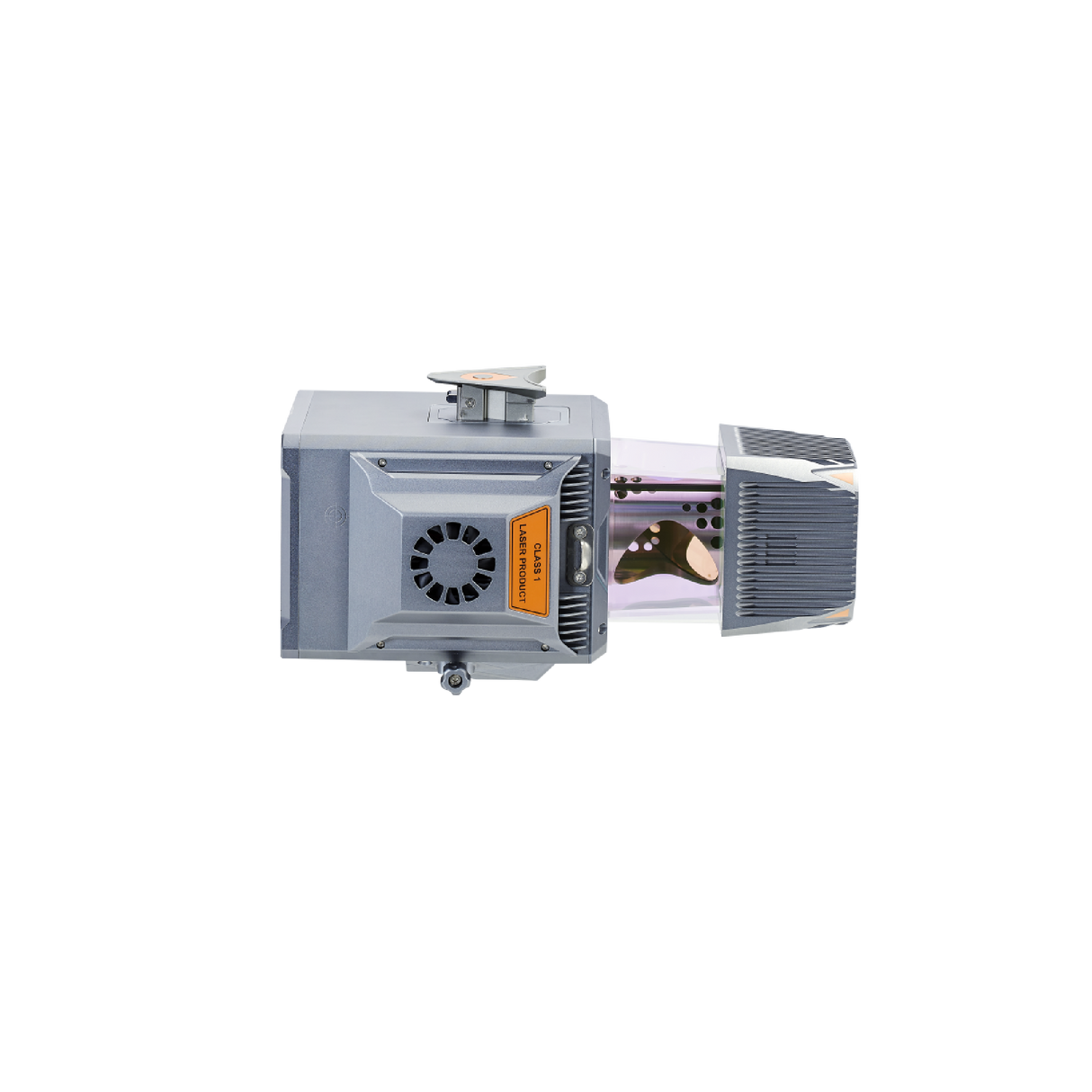

CHCNAV AlphaUni 20 technical specifications
| Absolute H & V accuracy | <0.025 m RMS @30 m · <0.050 m RMS @150 m |
|---|---|
| Accuracy conditions | No control points; UAV at 7 m/s; car at 9.7 m/s without DMI |
| Dimensions | 262.3 × 141.5 × 161 mm |
| Storage | 512 GB (1 TB optional), copy speed 80 Mb/s |
| Mounting | Multi-platform quick install and release; airborne, vehicle and backpack |
| Weight | 2.82 kg · 3.12 kg with C5 camera · 10.97 kg AlphaPano vehicle platform |
| SLAM | AlphaPano vehicle platform with panoramic camera and SLAM scanner for optimised trajectories |
| Input voltage | 24 V (15–27 V) |
| Operating / storage | –20 °C to +50 °C / –20 °C to +65 °C |
| Protection | IP64 |
| Humidity | 80%, non-condensing |
| Power source | UAV battery; external battery or vehicle power for car setup |
| Power | 60 W |
| Class | Class 1 (IEC 60825-1:2014) |
|---|---|
| Minimum range | 1.5 m |
| Accuracy | 15 mm (1σ @150 m) · 5 mm (1σ @30 m) |
| Precision | 5 mm (1σ @150 m) |
| Multi-period (MTA) | Up to 7 zones |
| Field of view | 360°, selectable; rotating mirror |
| Max. measurement rate | 2,000,000 meas./s (depending on mode) |
| Scan speed | 10–200 scans/s |
| Returns | Up to 16 |
| Angular resolution | 0.001° |
| Max. range @ρ>80% | 100 kHz: 1450 m · 200 kHz: 1320 m · 300 kHz: 1220 m · 400 kHz: 1120 m · 500 kHz: 1000 m · 800 kHz: 790 m · 1 MHz: 706 m · 1.5 MHz: 576 m · 2 MHz: 500 m |
| Max. range @ρ>20% | 100 kHz: 750 m · 200 kHz: 660 m · 300 kHz: 610 m · 400 kHz: 560 m · 500 kHz: 500 m · 800 kHz: 395 m · 1 MHz: 353 m · 1.5 MHz: 288 m · 2 MHz: 250 m |
| Max. flight altitude AGL @ρ>20% | 100 kHz: 530 m · 200 kHz: 467 m · 300 kHz: 431 m · 400 kHz: 396 m · 500 kHz: 354 m · 800 kHz: 354 m · 1 MHz: 279 m · 1.5 MHz: 204 m · 2 MHz: 177 m |
| GNSS | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, L-Band |
|---|---|
| IMU rate | 600 Hz |
| Attitude (post-processed) | 0.005° RMS pitch/roll · 0.010° RMS heading |
| Position (post-processed) | 0.010 m RMS H · 0.020 m RMS V |
| UAV camera | 45 MP full frame, 21/35 mm, 36 × 24 mm (8184 × 5460), 4.4 µm, 1 s interval |
|---|---|
| UAV camera FOV | 81.2° × 59.5° / 53.4° × 37.8° |
| Optional airborne camera | Calibrated Sony α7R IV, 61 MP (7952 × 5304), 10 fps |
| AlphaPano camera | 360° spherical (Ladybug5+), 6 sensors 2048 × 2448, 3.45 µm, 4.4 mm lens |
| Resolution | 30 MP (6 × 5 MP), 10 FPS, JPEG |
| Coverage / HDR | 90% of full sphere · 4 gain and exposure presets |
| AlphaPano dimensions | 530 × 214.5 × 592 mm with AU20 |
| CoPre | Data copy, POS solve, point cloud and image creation, strip adjustment and GCP refinement, noise optimisation, DOM and 3D model generation |
|---|---|
| CoProcess | Terrain, road, volume, road-extraction and building-extraction modules |
AlphaUni 20 FAQ
Can one AU20 really do air and ground?
Yes. The same scanner moves between UAV, vehicle and backpack mounts. Vehicle mode takes about 5 minutes to set up.
Which drones can carry it?

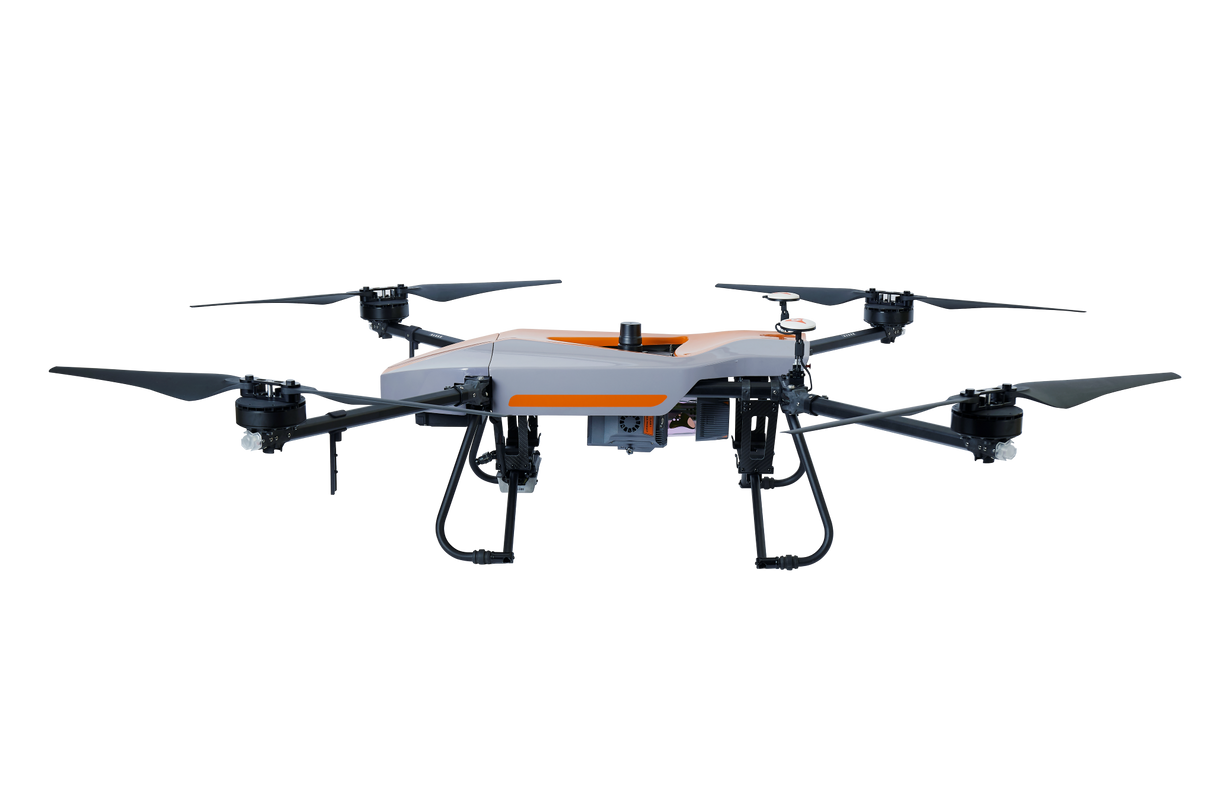

Any UAV, helicopter or aircraft with a payload capacity of about 2.6 kg or more, such as the DJI M350 or CHCNAV BB4.
What are AP5 and AP7?
Do I need ground control?
The specified 2–5 cm accuracy is without control points. Check points are still recommended for deliverables.
Get the AlphaUni 20 from LATNET
Talk to us about AU20 airborne, vehicle and backpack configurations, training and processing support.
