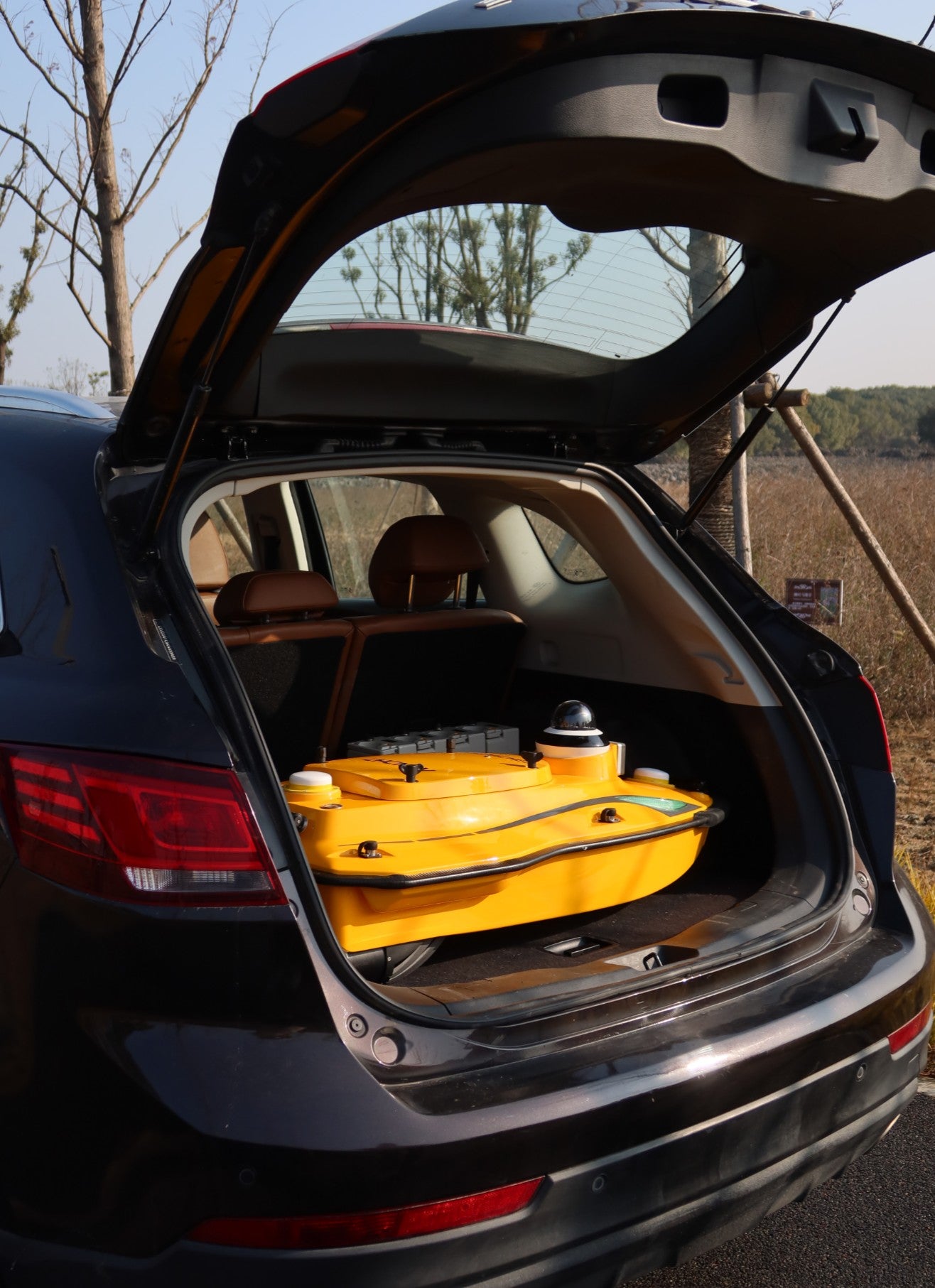

Single-Person Operation
Compact dimensions and low transport weight make the system easier to move, launch, and manage in remote or difficult access locations.
1
of
3
Loading...
CHCNAV | SKU:
CHCNAV Apache 3 Pro Single Beam Bathymetric Survey USV
Regular price
$1.00
Unit price

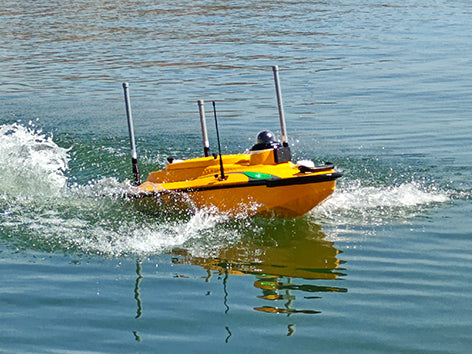

CHCNAV Apache 3 Pro - High Performance Single Beam Bathymetric Survey USV
CHCNAV Apache 3 Pro, a state-of-the-art Unmanned Surface Vehicle (USV) engineered for precise and efficient bathymetric surveys in shallow waters. Its robust double-layer carbon fiber hull ensures exceptional impact resistance and unsinkability, making it ideal for challenging aquatic environments.
Key Features:
- High-Precision Navigation: Equipped with an integrated GNSS RTK and Inertial Navigation System, the Apache 3 Pro maintains accurate positioning even when GNSS signals are temporarily lost, such as under bridges or in obstructed areas.
- Advanced Echosounder: The built-in D270 single-beam echosounder, complemented by a water temperature sensor, provides precise depth measurements ranging from 0.15 to 200 meters. This ensures reliable data collection for various hydrographic applications.
- Intelligent Obstacle Avoidance: Featuring a millimeter-wave radar system, the Apache 3 Pro detects obstacles within a 110° field of view and autonomously navigates around them, minimizing collision risks during operations.
- Lightweight and Portable: Weighing approximately 10 kg (excluding sensors), its macromolecular polyester carbon fiber and Kevlar composite hull design allows for easy single-operator deployment in diverse field conditions.
-
Seamless Data Communication: The USV offers reliable data transmission through integrated 4G and 2.4G networks, eliminating range limitations and facilitating effective data exchange in various operating environments. Applications:
-
Bathymetric Surveys: Accurately map underwater topography for environmental studies, dredging projects, and infrastructure development.
-
Navigation Channel Surveys: Ensure safe and efficient navigation by assessing and monitoring channel conditions.
- Riverbed Mapping: Collect detailed data on riverbed structures to support flood modeling, habitat studies, and sediment transport analysis.
The CHCNAV Apache 3 Pro combines cutting-edge technology with user-friendly features, delivering a comprehensive solution for professionals seeking high-precision and efficient hydrographic survey capabilities.
Why Choose the CHCNAV Apache 3 Pro?
The Apache 3 Pro offers an unparalleled combination of advanced obstacle avoidance, high-precision navigation, and lightweight design, making it the ultimate solution for autonomous bathymetric surveys. Whether in marine survey or construction applications, the Apache 3 Pro’s robust features and user-friendly operation ensure reliable and accurate data collection in any environment.
Enhance your marine survey capabilities with the CHCNAV Apache 3 Pro – the compact, advanced hydrographic drone for professional bathymetric surveys.

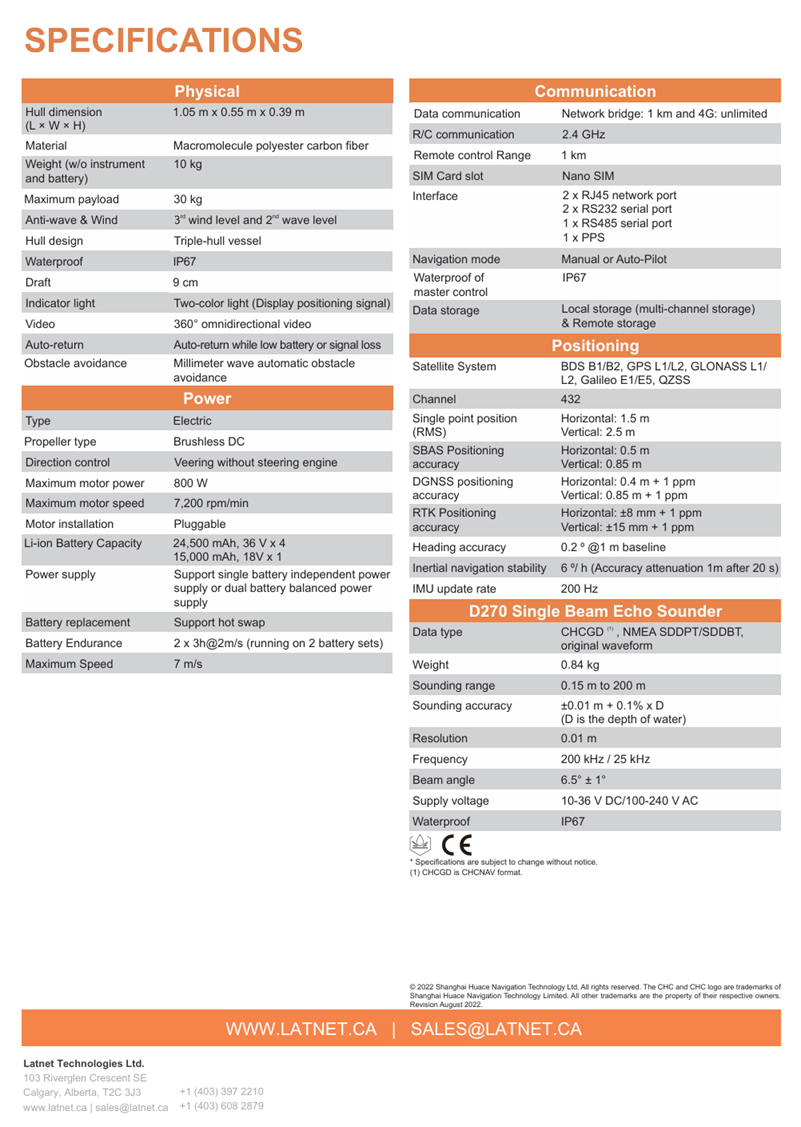

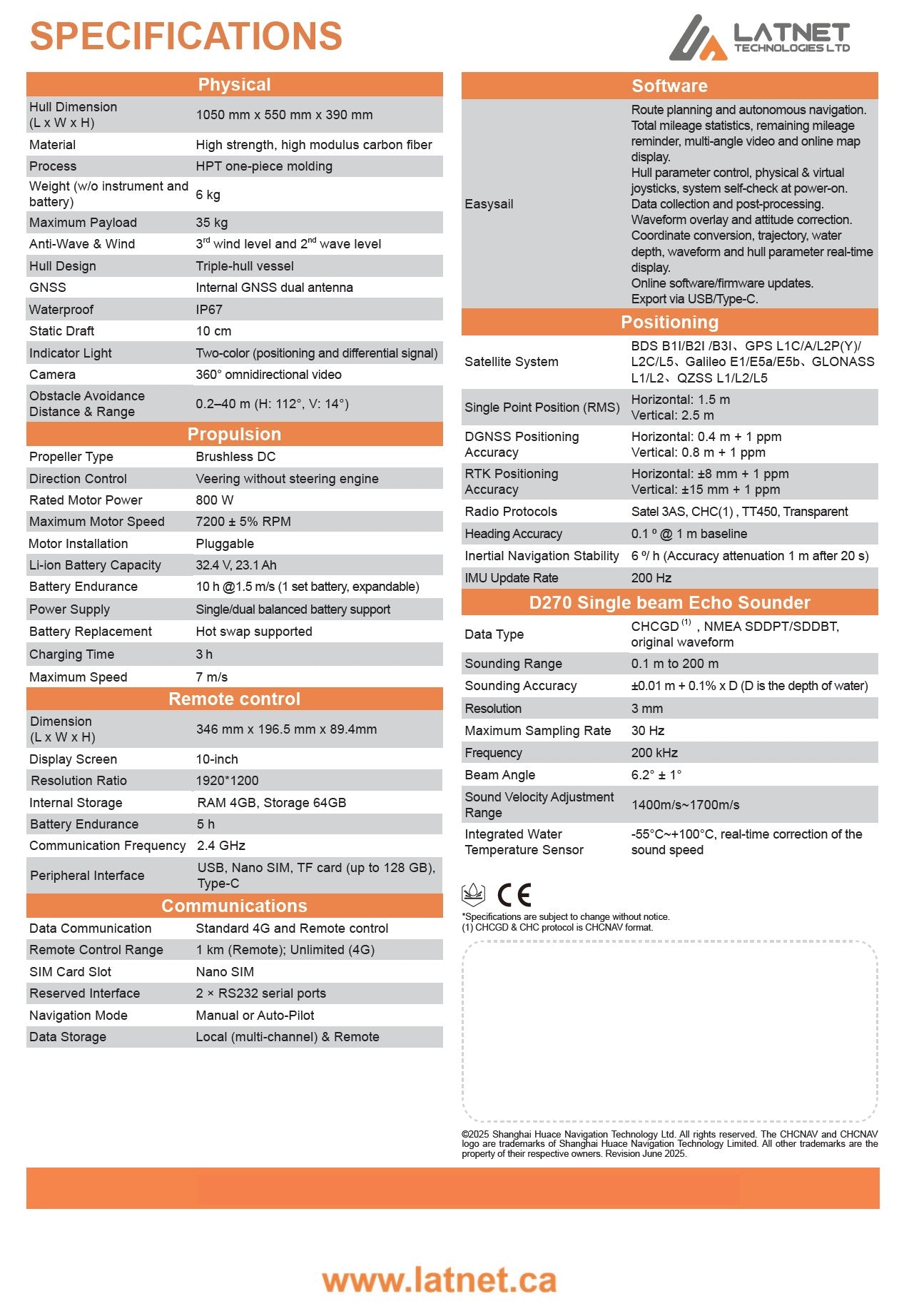

Technical Specifications & Features

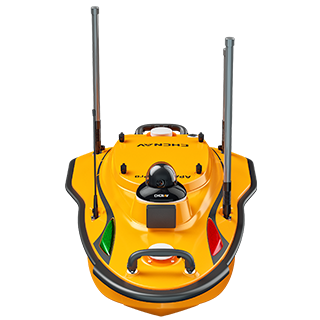

CHCNAV Apache 3 Pro USV
Click to enlarge
Compact Hydrographic Drone

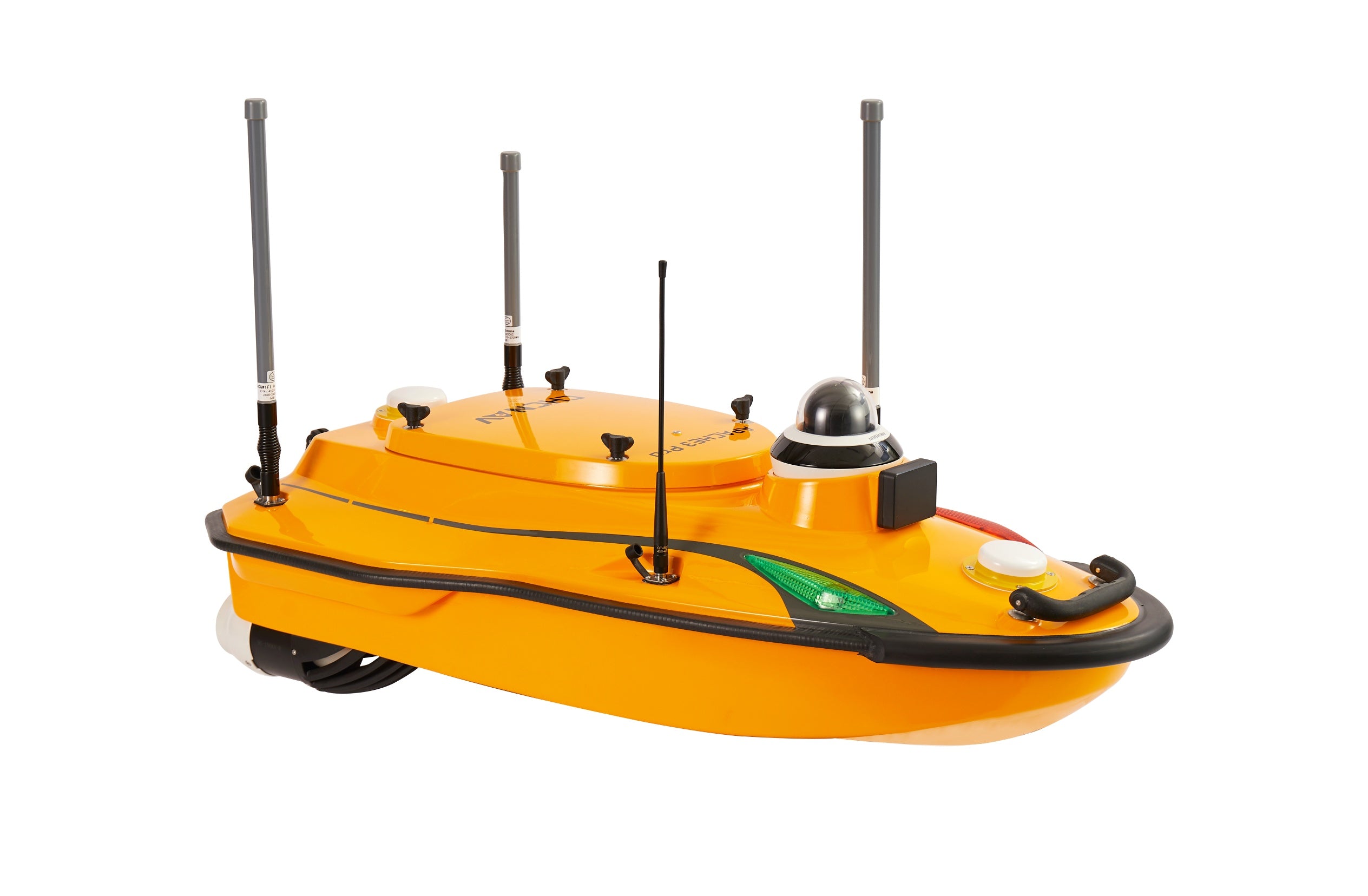

CHCNAV Apache 3 Pro USV for Shallow-Water Bathymetric Surveys
The CHCNAV Apache 3 Pro is a compact single-beam hydrographic USV designed for bathymetric surveys in shallow water, including rivers, channels, ponds, reservoirs, inland waterways, and near-shore environments.
Built as a highly integrated platform, it combines GNSS RTK + INS navigation, a CHCNAV D270 single-beam echosounder, obstacle avoidance radar, 360° video, onboard storage, and 4G / 2.4G communications in one portable survey system.
With its lightweight design, rugged hull, shallow draft, semi-embedded motor system, and autonomous survey capability, the Apache 3 Pro helps survey teams work more safely, move faster in the field, and complete hydrographic projects with less manpower.
Professional Bathymetric Survey Platform
Portable, autonomous, and built for real hydrographic fieldwork
Apache 3 Pro is designed for teams that need a practical hydrographic survey solution without moving to a larger and more complex vessel setup. It is especially attractive for shallow-water bathymetry, channel work, dredging support, river survey, bridge approaches, and water infrastructure projects.
Max Speed
6 m/s
Max Payload
30 kg
Draft
9 cm
Protection
IP67
Why It Stands Out

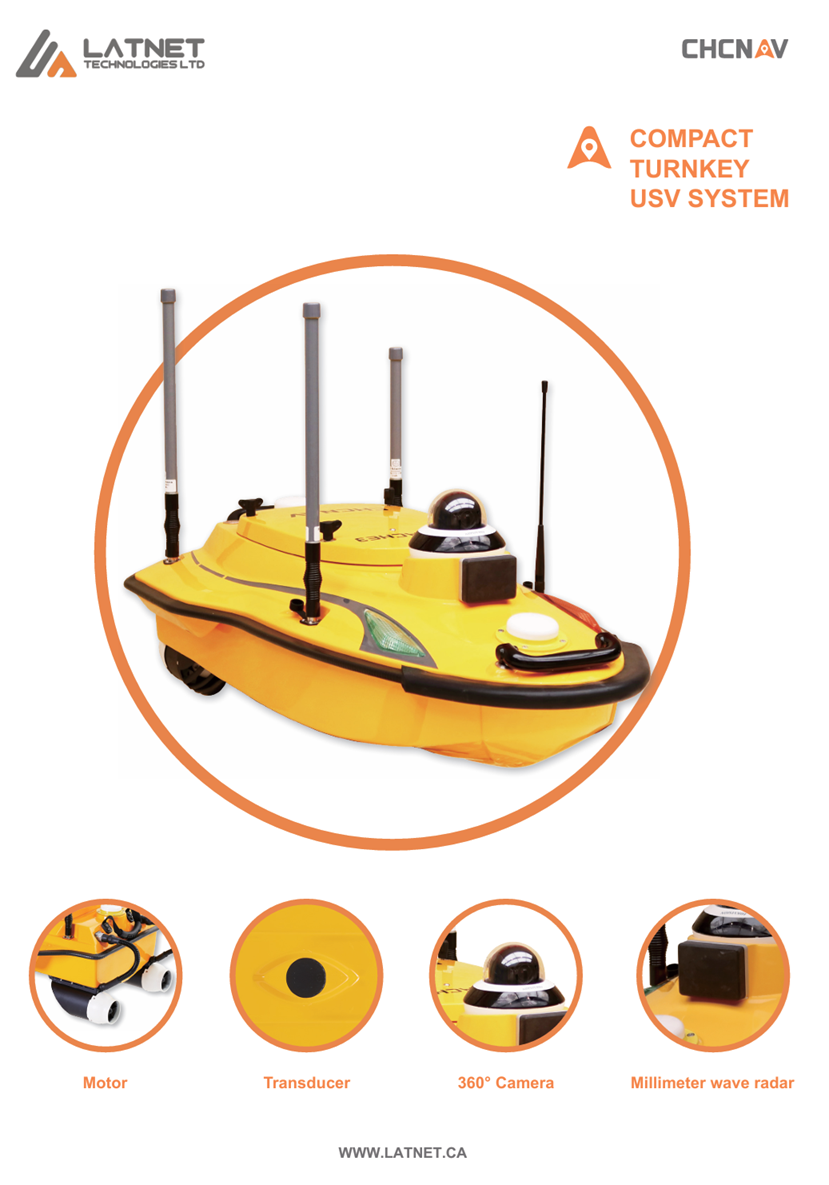

A compact turnkey USV system for efficient shallow-water hydrography
Apache 3 Pro is not just a small survey boat. It is a fully integrated hydrographic system designed to help operators launch faster, run autonomous missions, maintain measurement quality, and work safely from shore.
Its integrated navigation, built-in echosounder, autonomous route planning, obstacle avoidance, and real-time communications make it a strong option for organizations that need reliable bathymetric data without a large crew or a full-size survey vessel.
- Single-person transport and deployment
- Integrated D270 single-beam echosounder
- GNSS RTK + INS support for more stable navigation
- Millimeter-wave obstacle avoidance for safer autonomous work
Key advantages
Apache 3 Pro is designed to deliver practical field benefits for hydrographic surveyors, engineers, marine contractors, and environmental teams.
Integrated Survey Workflow
RTK positioning, INS, echosounder, camera, storage, and communications are combined into one professional USV platform.
Strong Shallow-Water Capability
The shallow draft and compact hull design help the Apache 3 Pro operate in environments where larger vessels are less practical.
Better Safety from Shore
Operators can perform bathymetric surveys remotely instead of placing crew directly in hazardous, narrow, or obstructed water areas.
Obstacle Avoidance Support

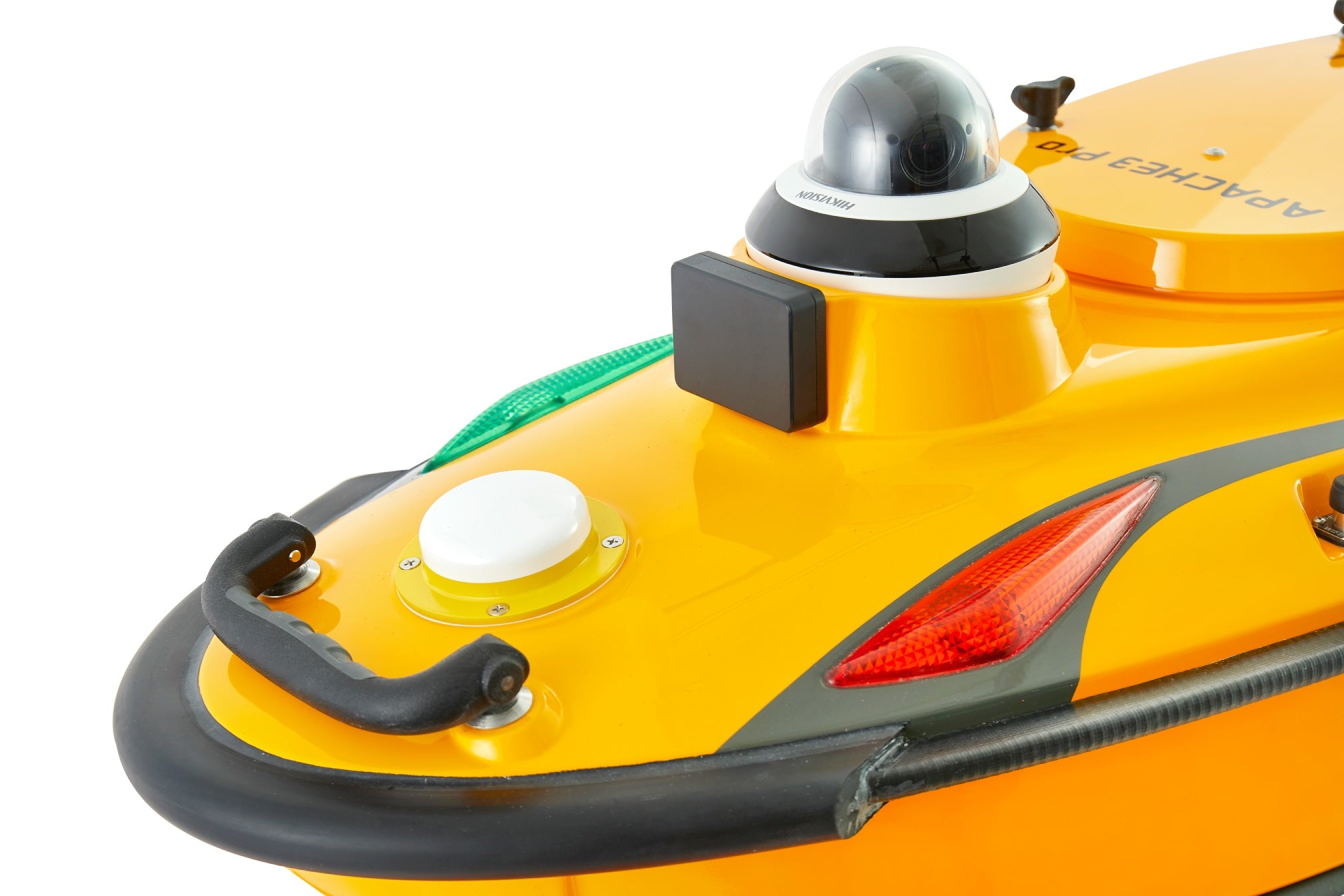

Built-in millimeter-wave radar helps detect obstacles ahead and supports safer autonomous navigation in survey missions.
Efficient Data Collection
EasySail software supports route planning, acquisition, and processing for a cleaner end-to-end workflow.

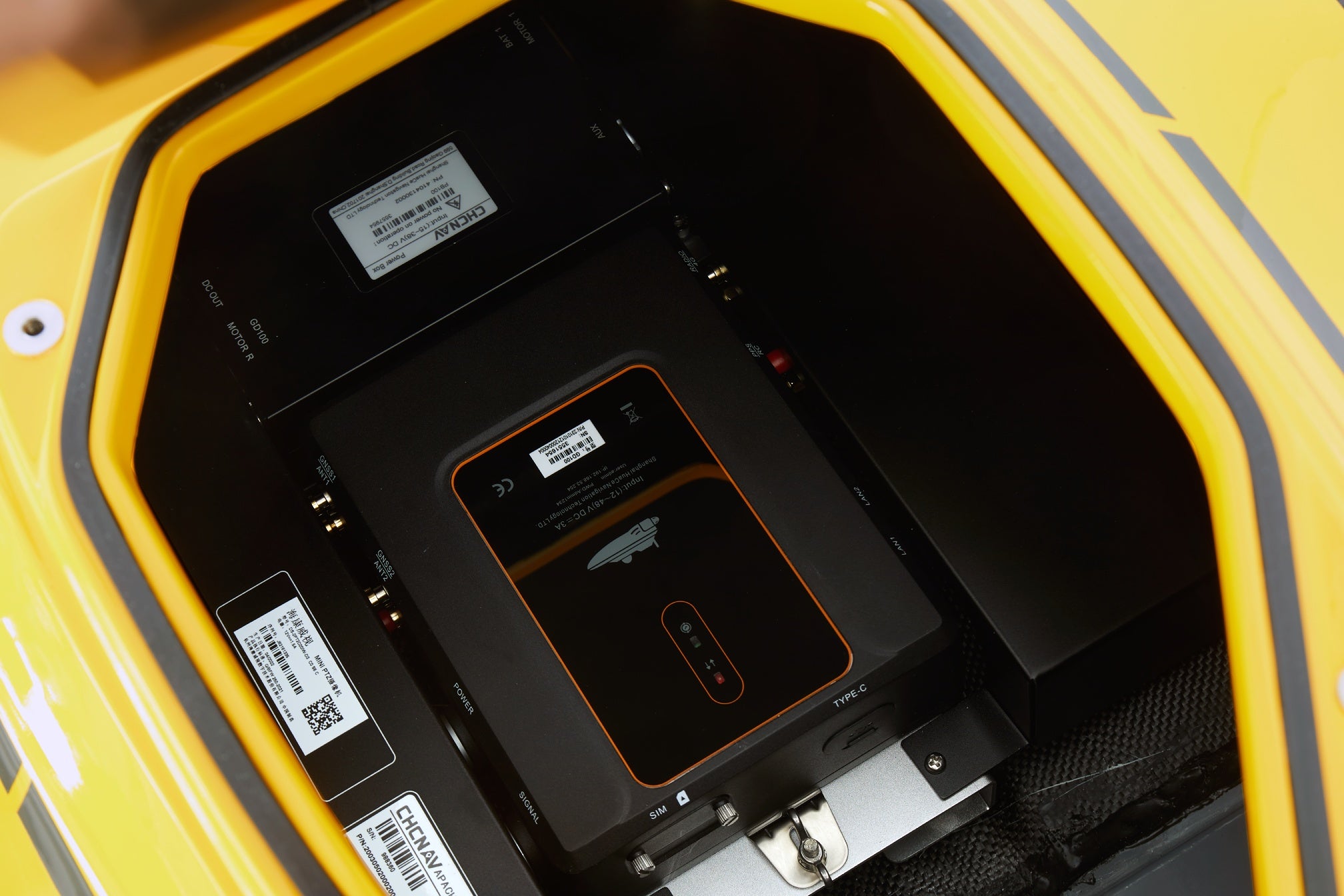

Integrated Hardware
Built-in technologies that improve productivity in the field
Apache 3 Pro combines multiple essential systems in one compact hydrographic platform so crews can work faster with fewer external components.
Smart Positioning and Navigation

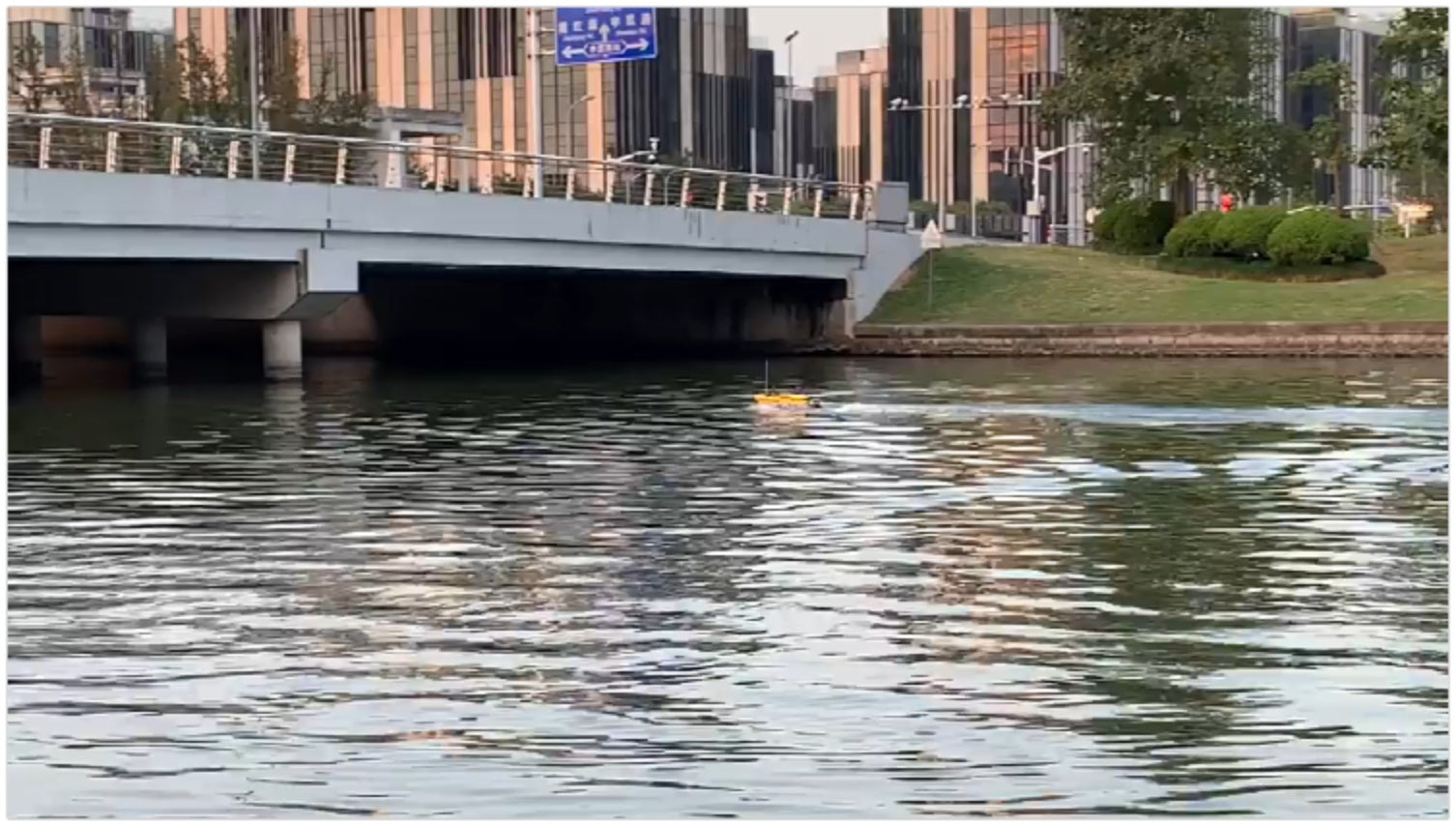

Better measurement continuity near structures and under bridges

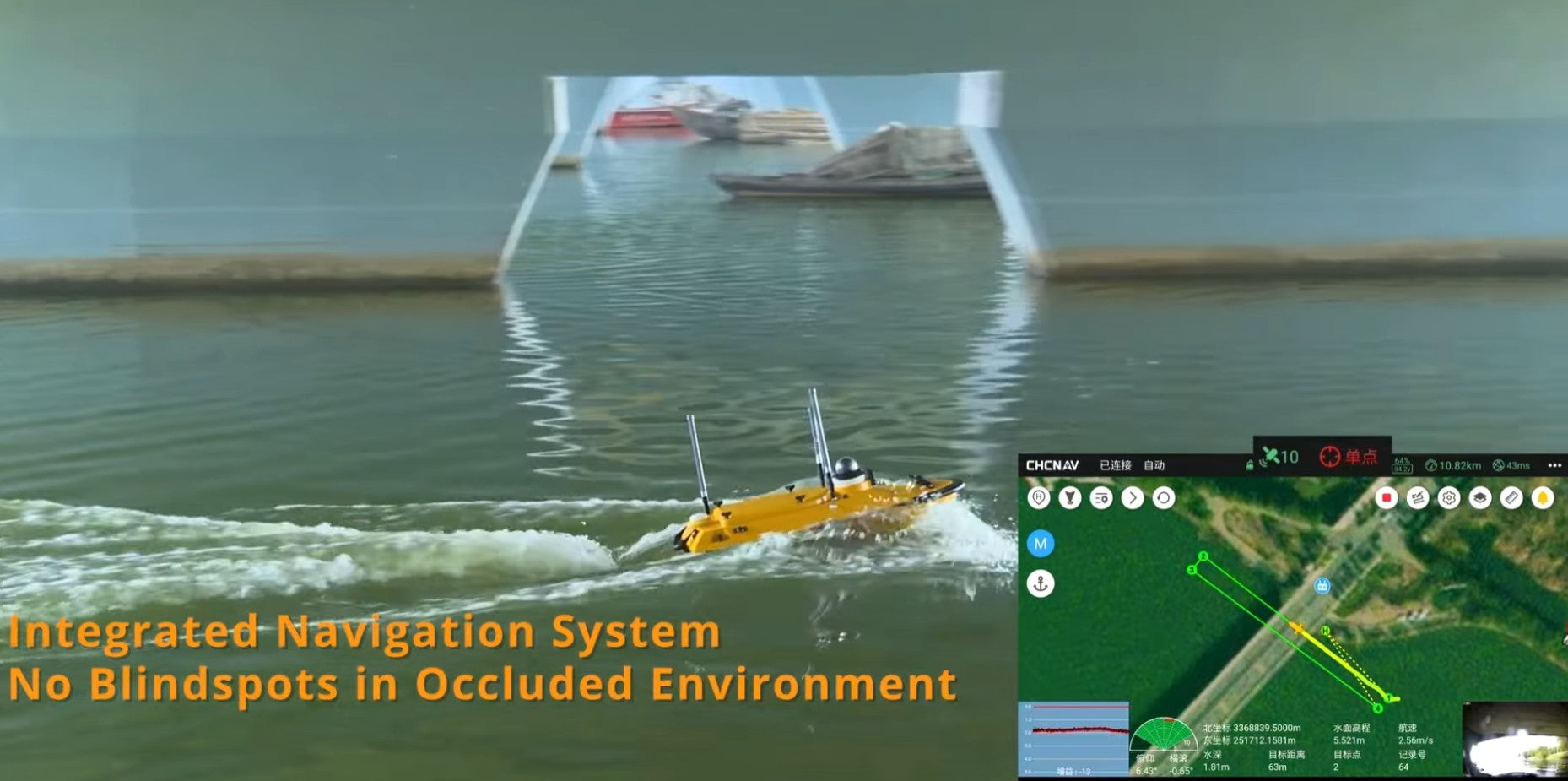

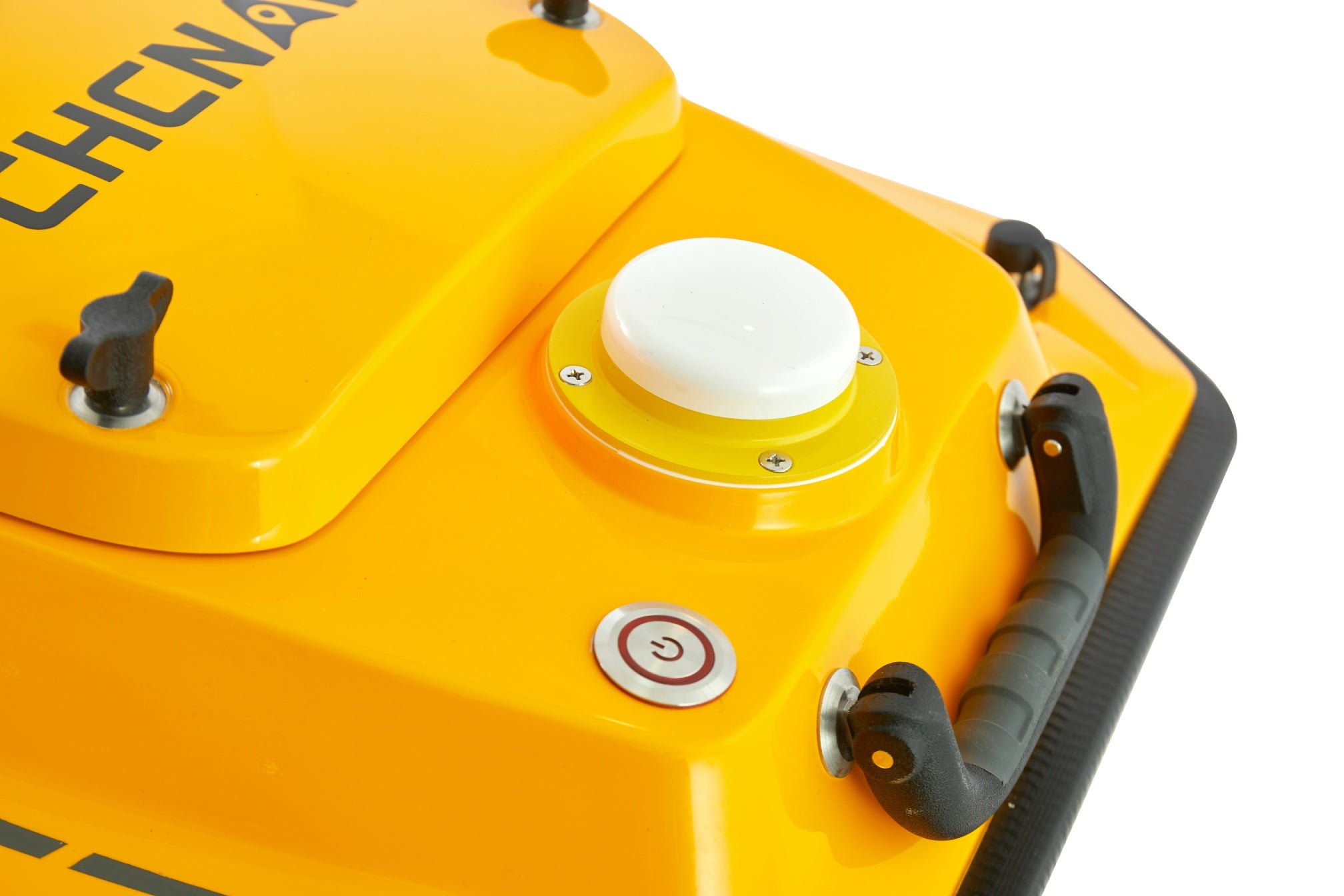

One of the main strengths of the Apache 3 Pro is its integrated GNSS RTK + INS navigation approach. This helps maintain more reliable course control and positioning continuity when satellite conditions are temporarily degraded.
That is especially useful in applications such as bridge approaches, channel crossings, culvert zones, infrastructure inspections, or operations near obstructions where conventional GNSS-only workflows can become less stable.
- Integrated positioning and heading
- INS support during temporary GNSS interruption
- Improved navigation stability for autonomous routes
- More reliable hydrographic data collection in difficult environments

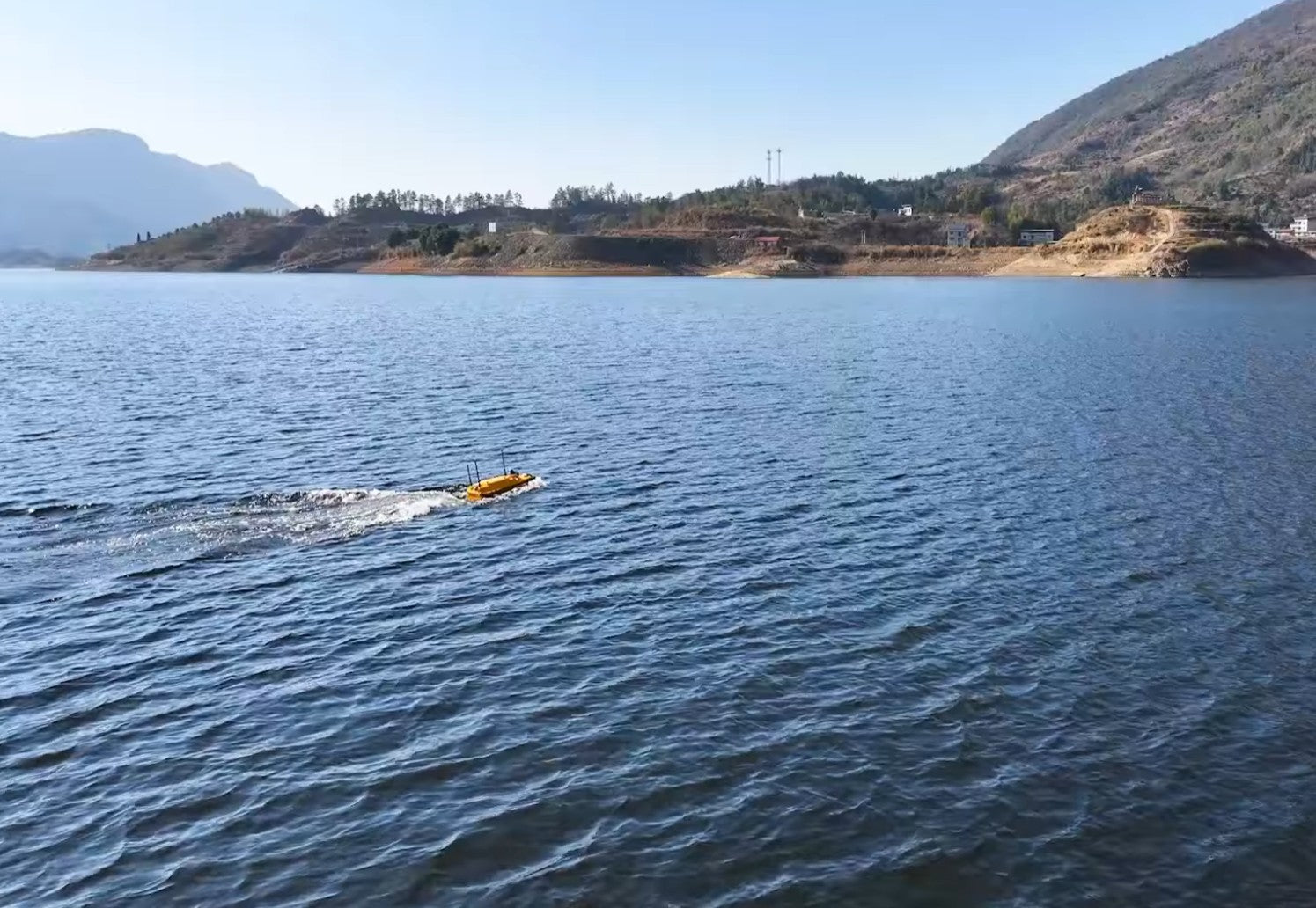

Typical applications
Apache 3 Pro is suitable for shallow-water hydrographic and bathymetric workflows where portability, safety, and autonomous operation matter.
Rugged Hull and Water-Ready Design
Built for demanding hydrographic environments
Apache 3 Pro is built around a rugged compact hull with strong emphasis on shallow-water performance, impact resistance, and operational reliability. Official materials highlight its IP67 protection, anti-collision thinking, and unsinkable double-layered carbon-fiber-based hull concept.

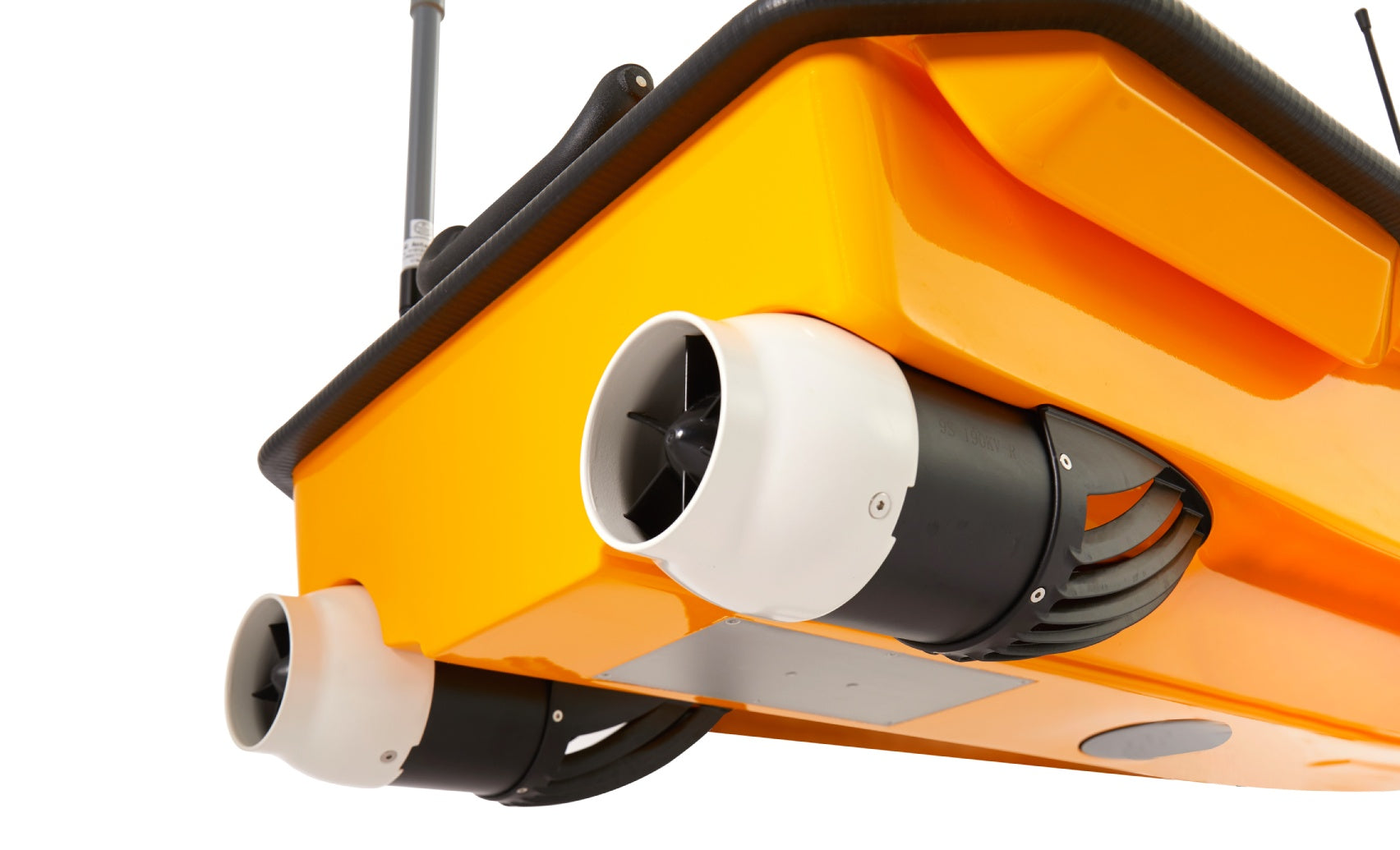

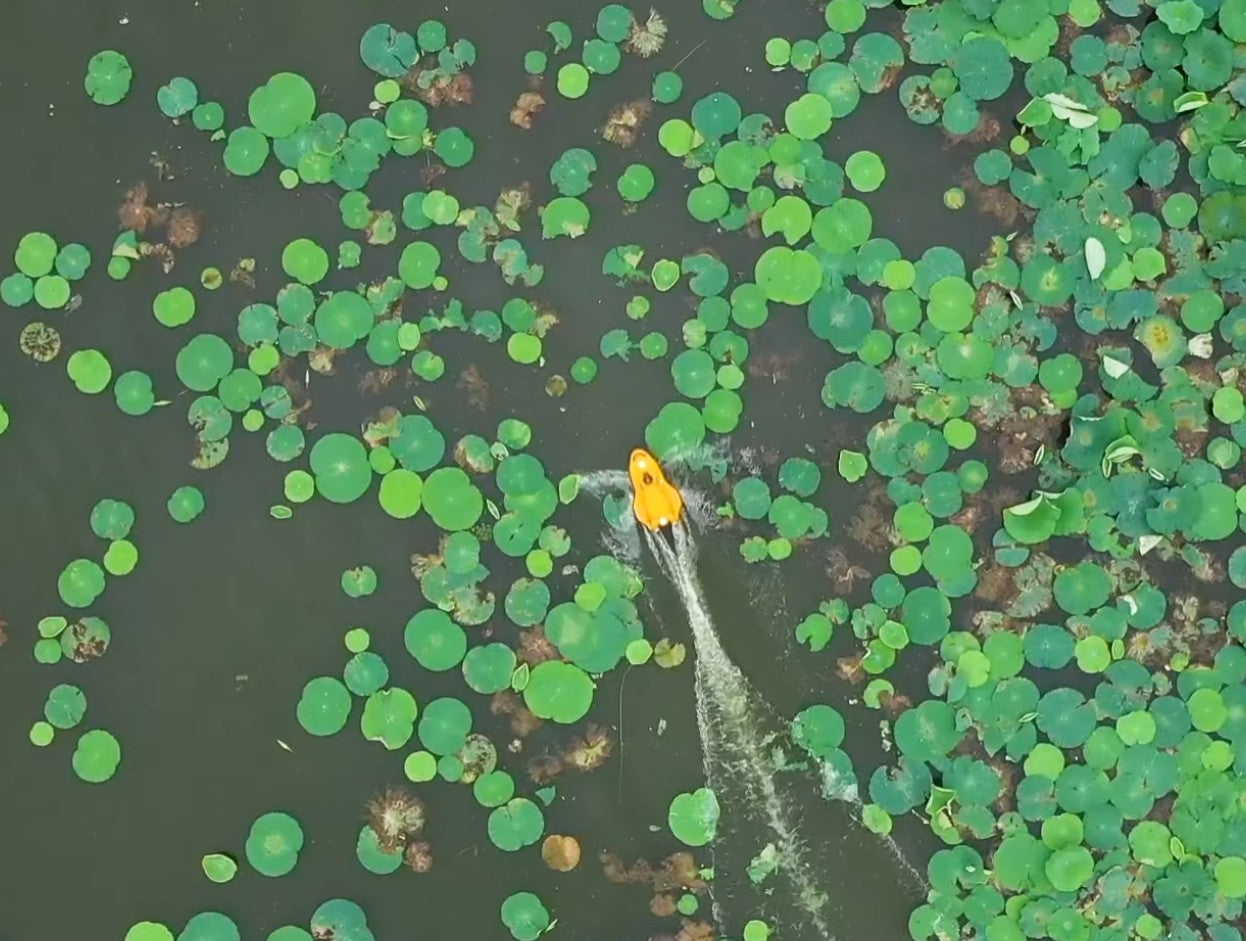

Its semi-embedded motor design is particularly valuable in real field conditions because it helps protect the propulsion system, improves behavior around vegetation, and supports efficient movement in different water conditions.
- IP67 protection for harsh field conditions
- Shallow draft for tighter and shallower areas
- Better motor protection in difficult water environments
- Compact hull for easier transport and faster launch
Software Workflow
Mission planning, acquisition, and processing in one workflow

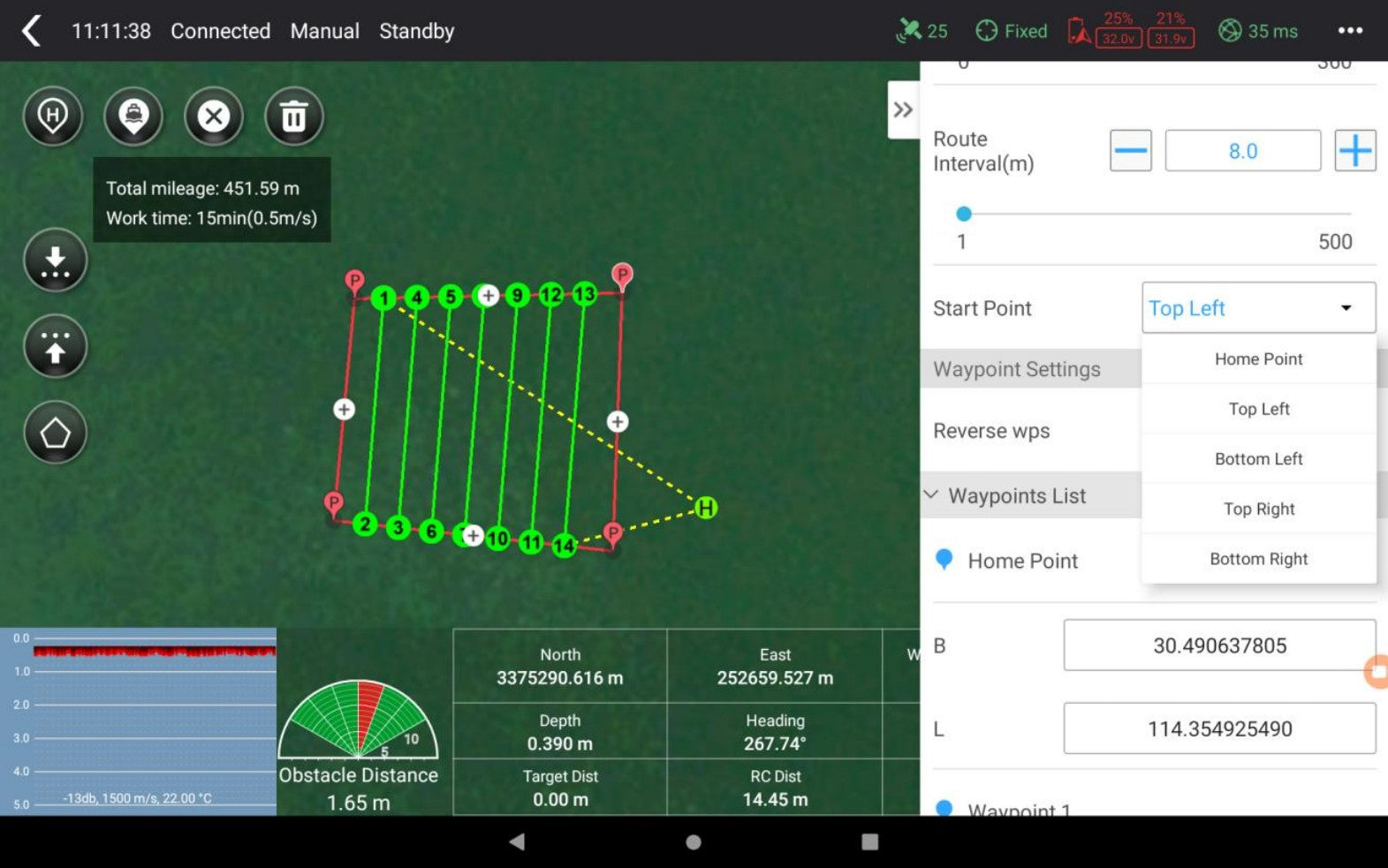

The Apache 3 Pro workflow is centered around EasySail for mission planning and autonomous control, and for sounding data recording and post-processing.
This helps operators plan areas, generate navigation paths, monitor missions in real time, manage sounding data, and export results for further use in third-party hydrographic or CAD/GIS workflows.
Apache 3 Pro FAQ
What is the CHCNAV Apache 3 Pro used for?

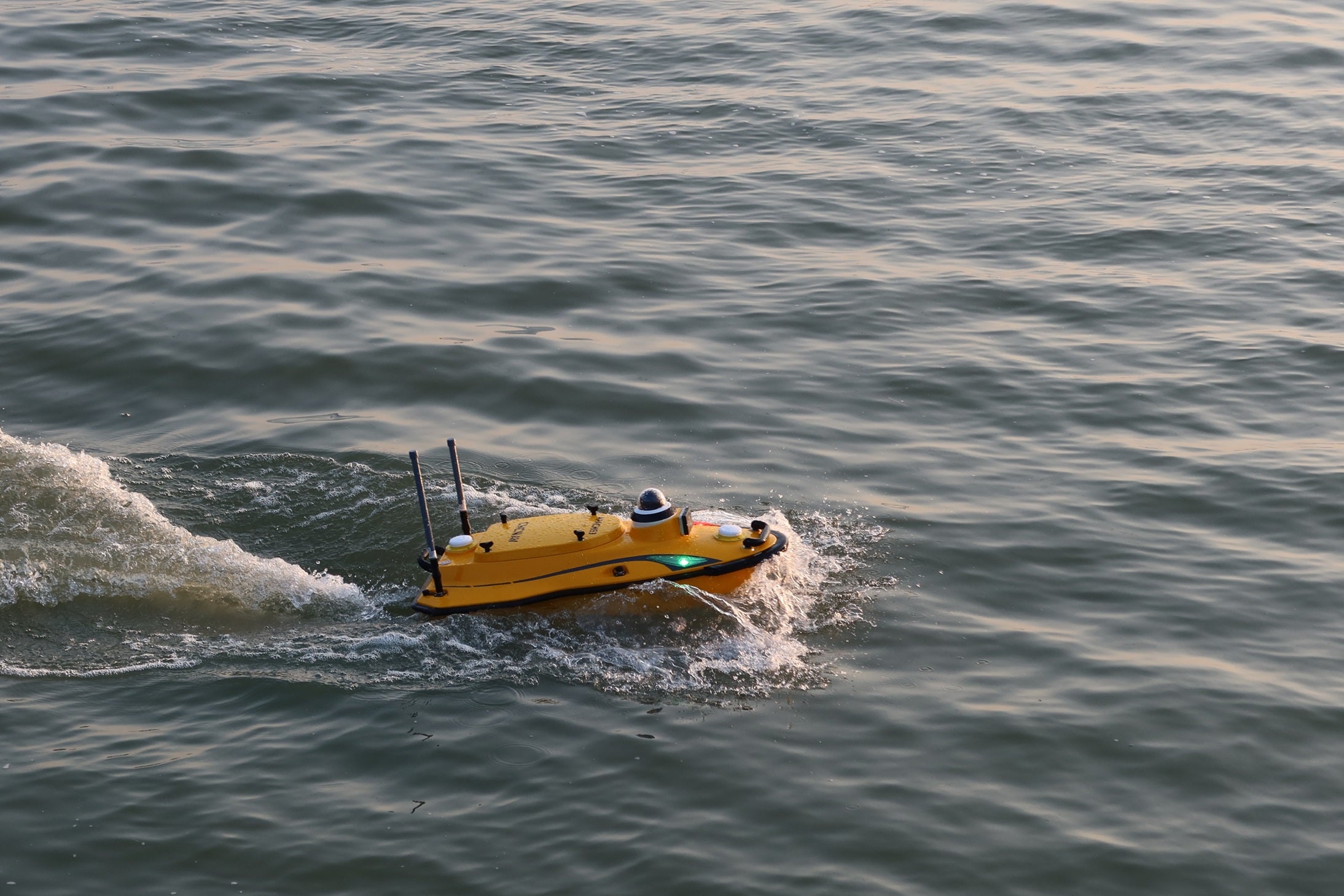

Apache 3 Pro is a compact unmanned surface vehicle designed for autonomous bathymetric surveys in shallow-water environments such as rivers, lakes, channels, reservoirs, and other inland hydrographic applications.
Does Apache 3 Pro include an echosounder?
Yes. Apache 3 Pro is typically equipped with the integrated CHCNAV D270 single-beam echosounder, which includes a water temperature sensor to support real-time sound speed correction.
Can Apache 3 Pro maintain positioning under bridges?
Apache 3 Pro uses integrated GNSS RTK and INS/IMU navigation to improve positioning continuity and navigation stability when GNSS conditions are temporarily obstructed, such as under bridges or near structures.
Does Apache 3 Pro support obstacle avoidance?
Yes. The system includes millimeter-wave radar obstacle avoidance to help detect obstacles ahead and support safer autonomous navigation.
Is Apache 3 Pro suitable for one-person deployment?
Yes. One of its main selling points is its compact, lightweight design, which makes transport, launch, and field handling much easier for a single operator.
What kinds of projects is Apache 3 Pro suitable for?

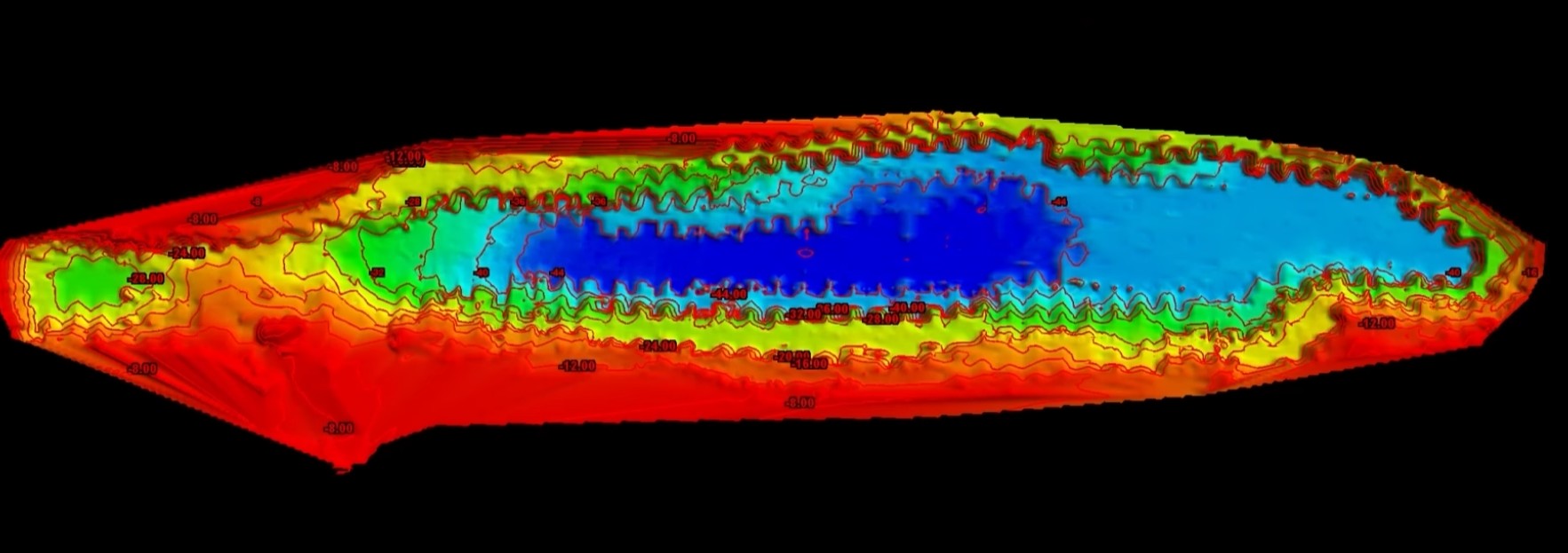

Typical projects include bathymetric mapping, channel surveys, river dredging support, bridge and infrastructure survey, dam or hydropower-related work, and underwater terrain mapping in shallow-water environments.
Build your Apache 3 Pro bathymetric survey solution
We can help configure the right Apache 3 Pro workflow for shallow-water hydrography, bathymetric mapping, dredging support, and infrastructure survey applications.

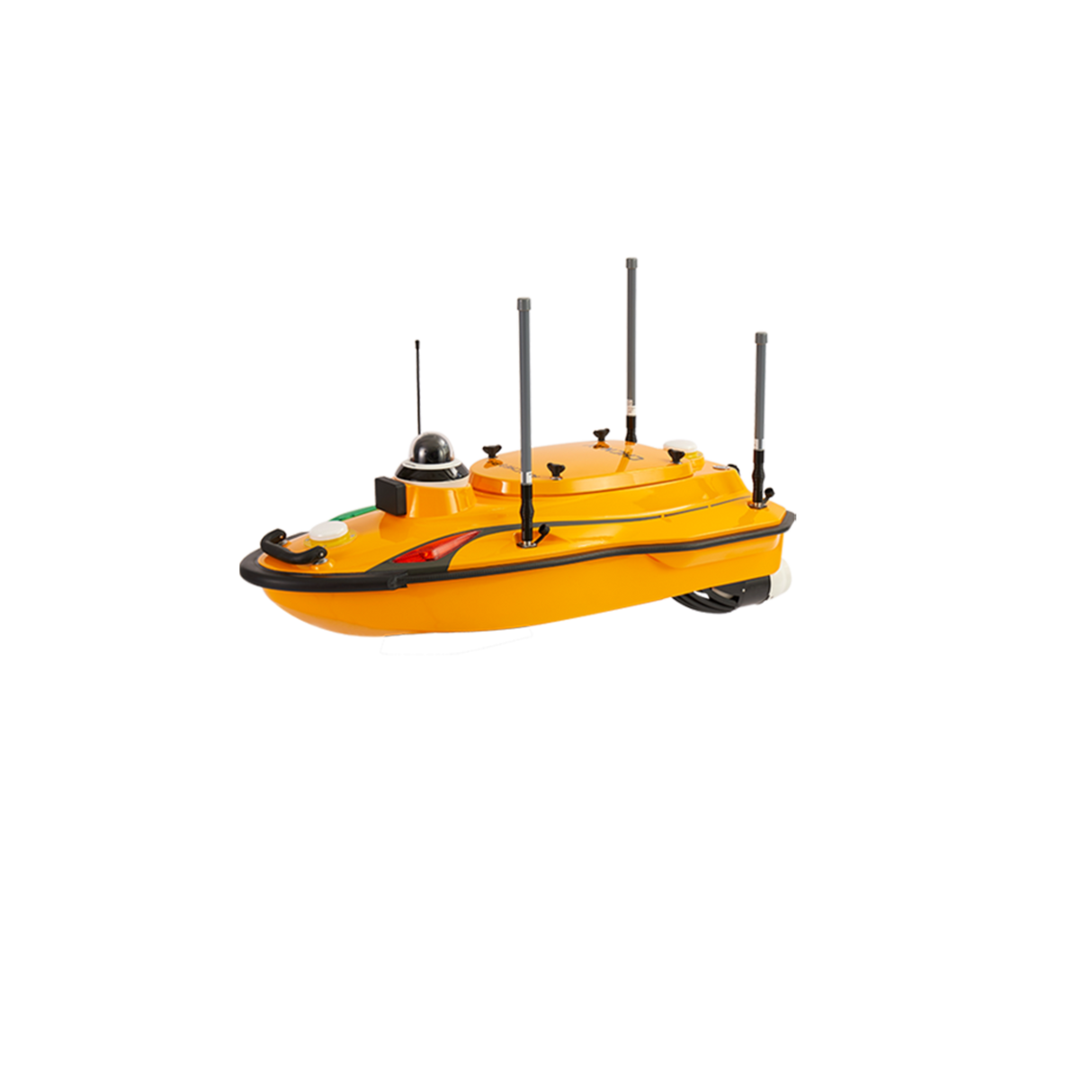

Apache 3 Pro USV
Compact, high-performance marine drone with single beam echosounder and GNSS/INS technology for a wide range of hydrographic survey applications.
