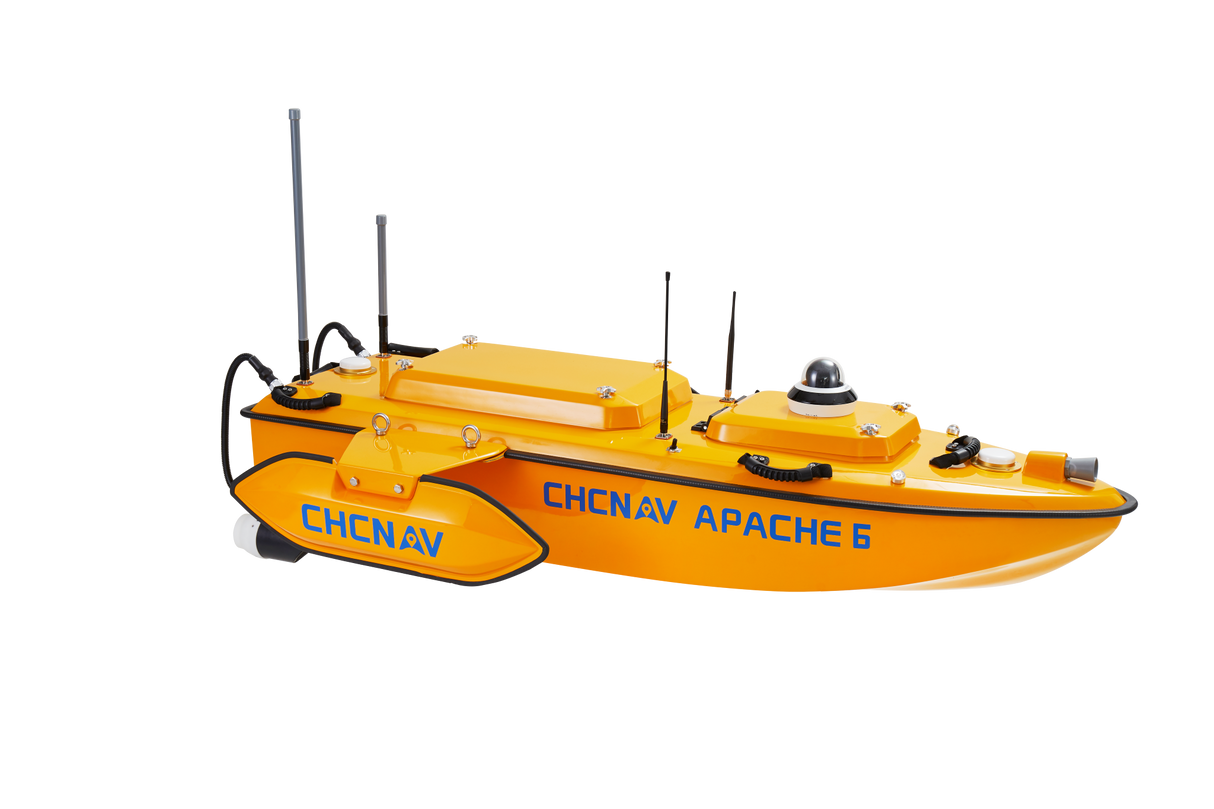

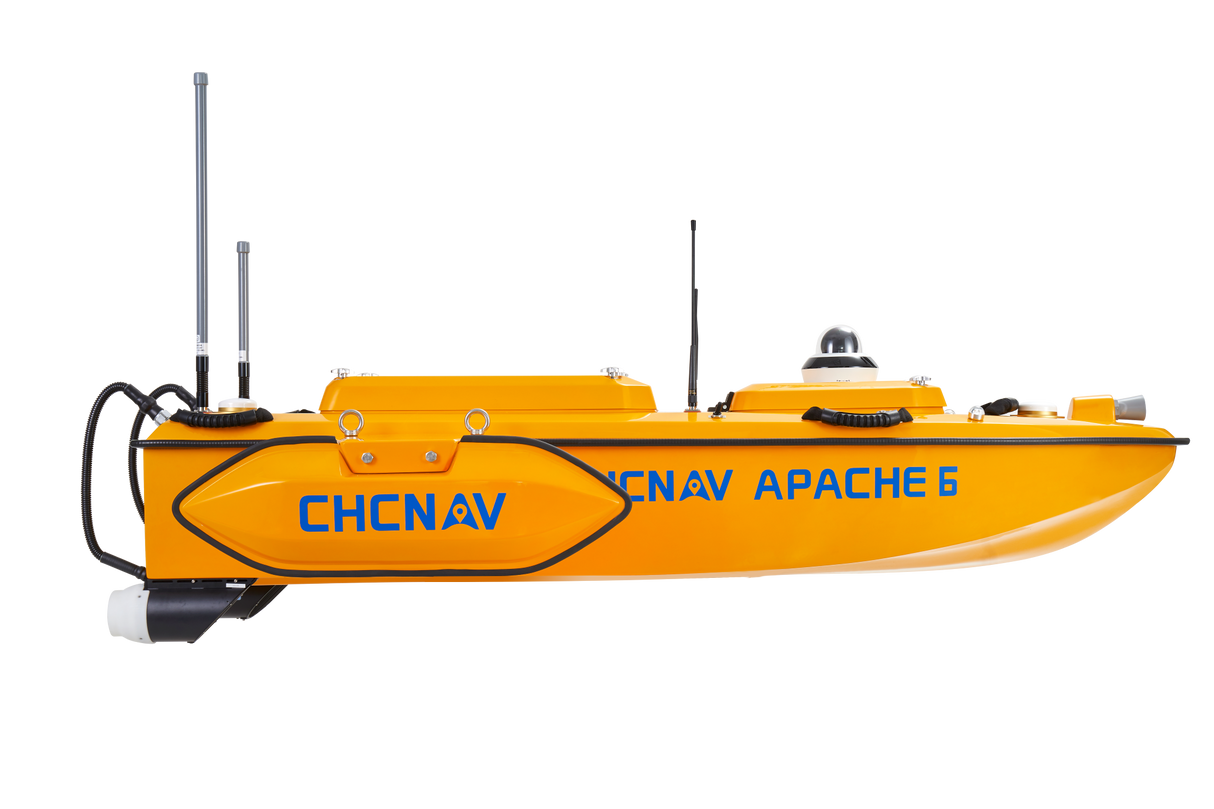

CHCNAV Apache 6 Multibeam Hydrographic Survey USV
The Apache 6 is an integrated platform for 3D bathymetry, underwater object positioning, offshore construction, archaeology and wreck search.
Its detachable triple hull is optimized for Norbit multibeam sonars, and CHCNAV’s absolute straight-line technology keeps it on line even in strong currents.
Key features
- Multifunctional platform – Multibeam and LiDAR for complete 3D data.

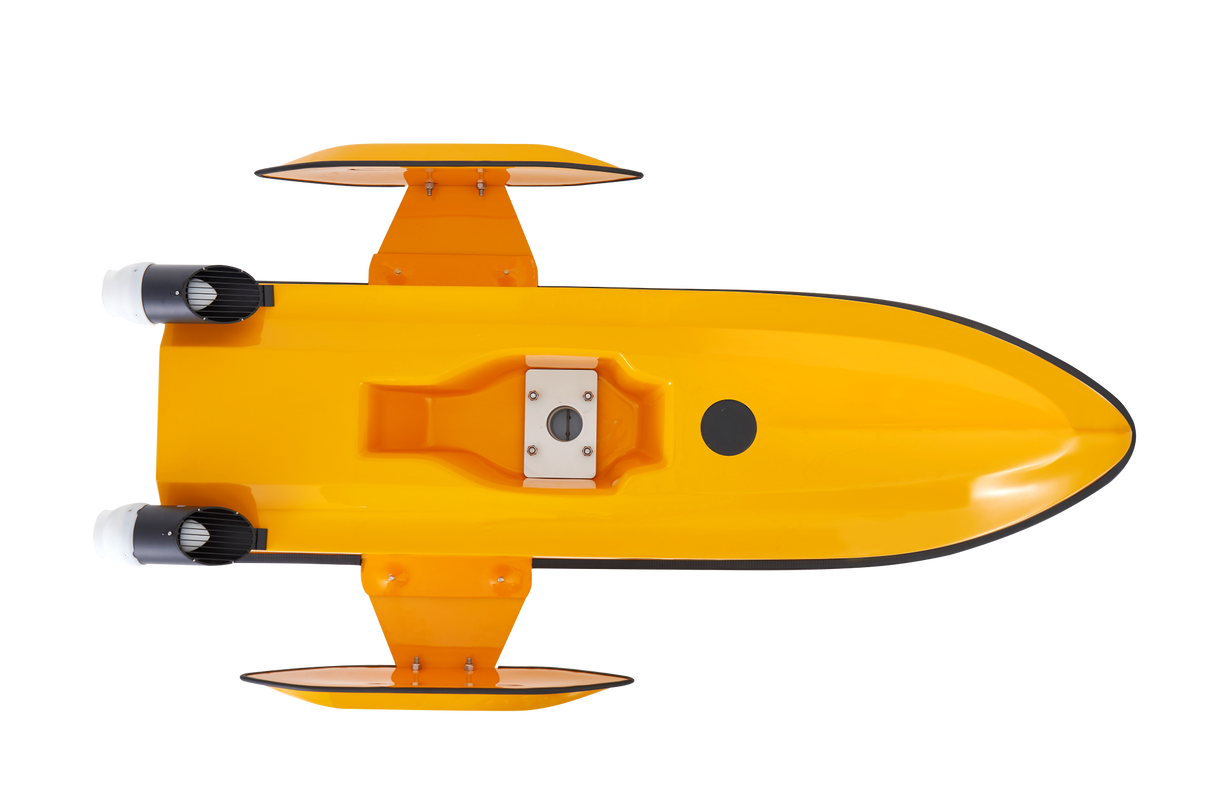

- Stable triple hull – Detachable floats for fast currents.
- Automated SVP – Sound-velocity profiles without stopping the job.
- Rotating thrusters – 2 m turning radius for narrow waterways.
- Smart remote – Android controller with 4G and radio links.
- Carbon fibre – Light, strong, easy to handle.
At a glance
- 60 kg payload
- 6 h @ 2 m/s (3 battery sets)
- 7.5 cm draft
- 2 m turning radius
- IP66 detachable triple hull
- 6 m/s top speed
Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.
- Authorized CHCNAV dealer in Canada
- Setup, training & local support from our Calgary geomatics team
- Shipped across Canada from Calgary
- See it before you buy – live demo or rental available
Technical Specifications & Features
CHCNAV Apache 6 USV

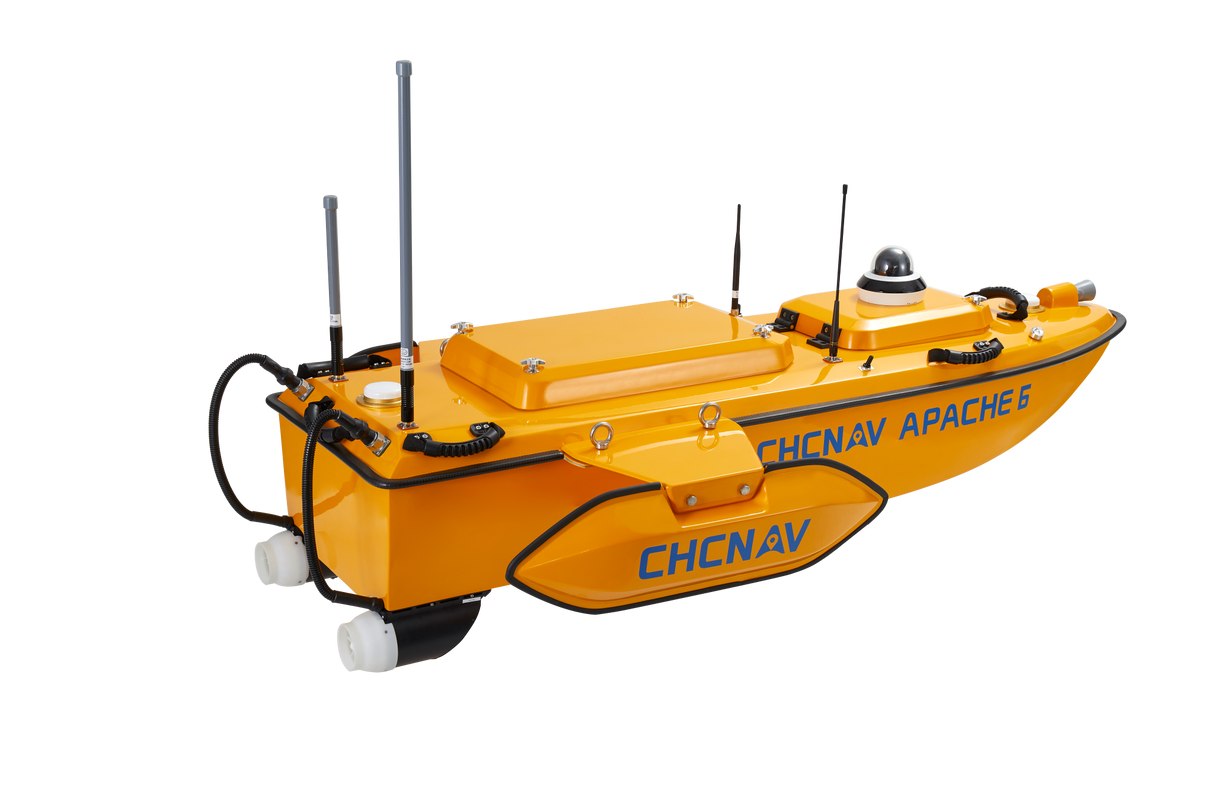

CHCNAV Apache 6 – multibeam and LiDAR survey boat for demanding water
The Apache 6 is an integrated platform for 3D bathymetry, underwater object positioning, offshore construction, archaeology and wreck search.
Its detachable triple hull is optimized for Norbit multibeam sonars, and CHCNAV’s absolute straight-line technology keeps it on line even in strong currents.

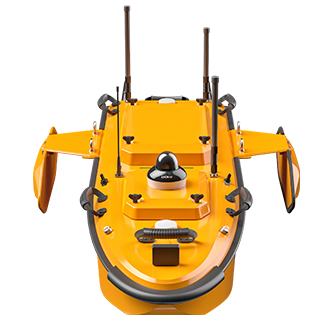

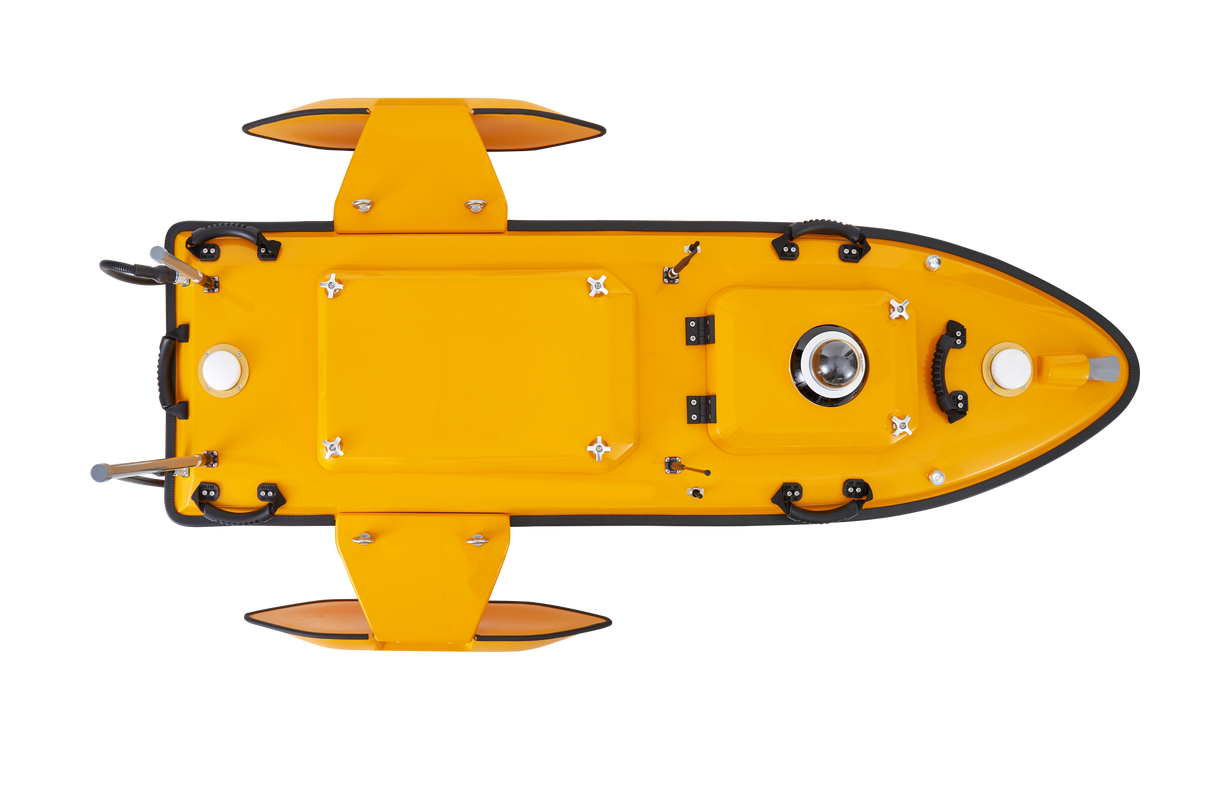

Stable, agile and ready for multibeam
A carbon-fibre, three-part detachable hull is easy to transport and stable in near-shore conditions. Titanium rotating thrusters turn in 2 m for narrow waterways, and an integrated SVP launcher completes multibeam surveys in one deployment. Optional iLiDAR maps above the water at the same time. See how single-beam, multibeam and ADCP surveys work in our 3D animations.
Why choose the Apache 6
Multifunctional platform
Multibeam and LiDAR for complete 3D data.
Stable triple hull
Detachable floats for fast currents.
Automated SVP
Sound-velocity profiles without stopping the job.
Rotating thrusters
2 m turning radius for narrow waterways.
Smart remote
Android controller with 4G and radio links.
Carbon fibre
Light, strong, easy to handle.

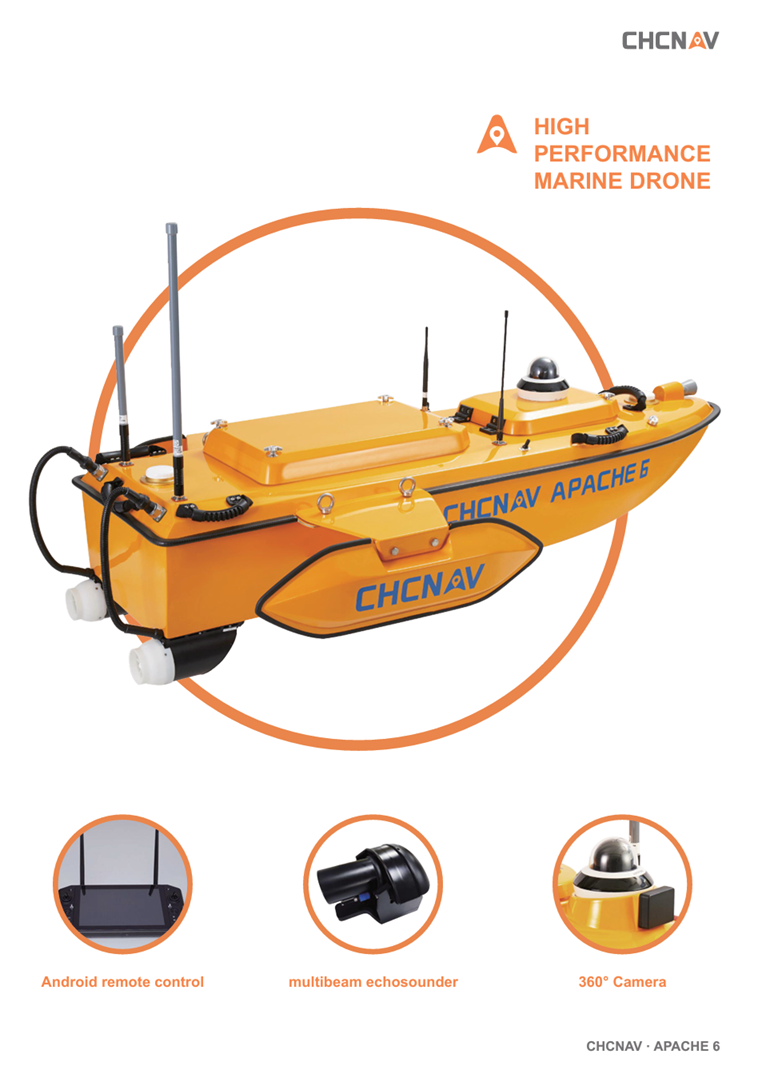

Multibeam and LiDAR in one mission
Fit optional multibeam echosounders and a LiDAR scanner to capture high-resolution data below and above the waterline for object location and offshore construction.

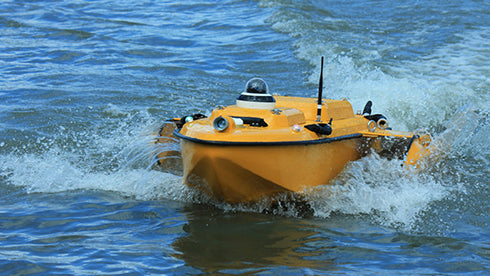

Steady in fast currents

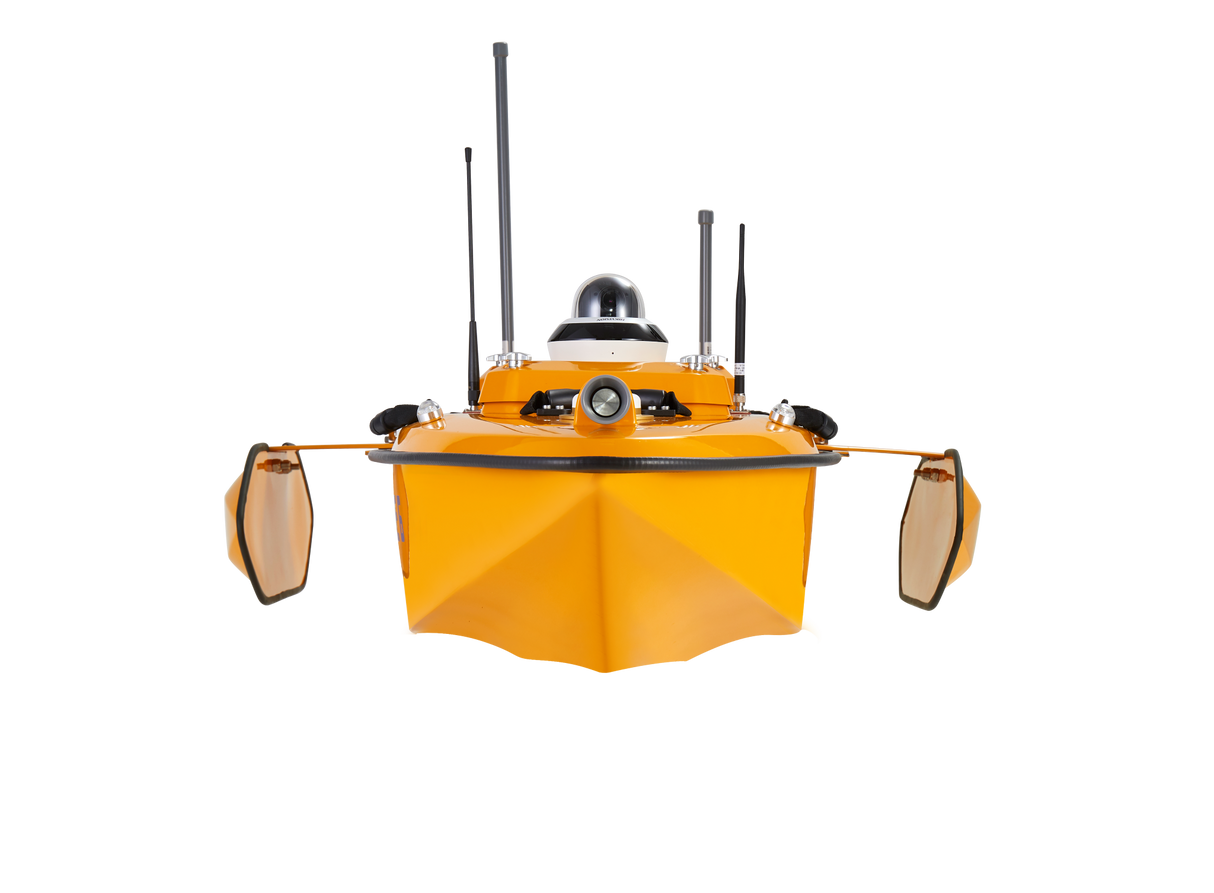

The tri-hull design and detachable side floats keep the boat stable and adaptable – rated for wind level 6 and wave level 4.
Complete multibeam solution
The optional automatic sound-velocity profiler is controlled from the remote and installs or removes in under a minute.
2-metre turning radius
Intelligent rotating propellers redirect the water flow for a 2 m turning radius in narrow waterways, and support both differential and servo steering for efficient multibeam lines.
Compare CHCNAV Apache survey boats (USVs)
Five carbon-fibre, triple-hull unmanned survey boats – from a one-person single-beam boat to a multibeam platform for near-shore work.
| Apache 3 | Apache 3 Pro | Apache 4 | Apache 4 Pro | Apache 6 | |
|---|---|---|---|---|---|
| Best for | Low-cost single-beam bathymetry | Single-beam under bridges, weedy water | ADCP discharge + multibeam | All-round: depth, flow, water quality | Multibeam + LiDAR, near-shore |
| Size | 1080 × 555 × 380 mm | 1080 × 555 × 380 mm | 1280 × 720 × 420 mm | 1280 × 720 × 420 mm | 1670 × 1000 × 510 mm |
| Weight / payload | 20 kg / 35 kg | 21 kg / 35 kg | 30 kg / 40 kg | 29.6 kg / 50 kg | 46.5 kg / 60 kg |
| Endurance | 7 h @ 1.5 m/s | 10 h @ 1.5 m/s | 10 h @ 1.5 m/s | 10 h @ 1.5 m/s | 6 h @ 2 m/s |
| Top speed | 6 m/s | 7 m/s | 6.5 m/s | 6.5 m/s | 6 m/s |
| Draft | 10 cm | 10 cm | 8.6 cm | 8.6 cm | 7.5 cm |
| Sensors | D270 single-beam | D270, GNSS RTK + INS | D270 + ADCP / HQ-400 / side-scan | D270 + ADCP / HQ-400 / SVP kit | D270 + Norbit multibeam / iLiDAR / SVP |
| Sea state | Wind 3, wave 2 | Wind 3, wave 2 | Wind 3, wave 2 | Wind 3, wave 2 | Wind 6, wave 4 |
| Apache 3 | Apache 3 Pro | Apache 4 | Apache 4 Pro | Apache 6 |
Where it works

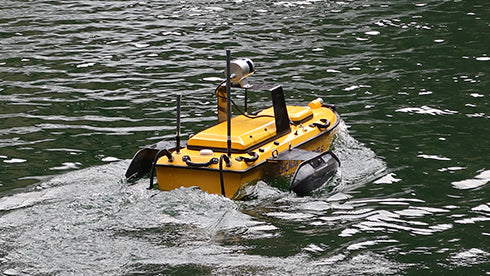

River and lake topography
Full-coverage 3D bathymetry.
Bridge and dam inspection
Scour and structure surveys.
Port surveys
Berths and approaches.
Dredging operations
Volumes and verification.

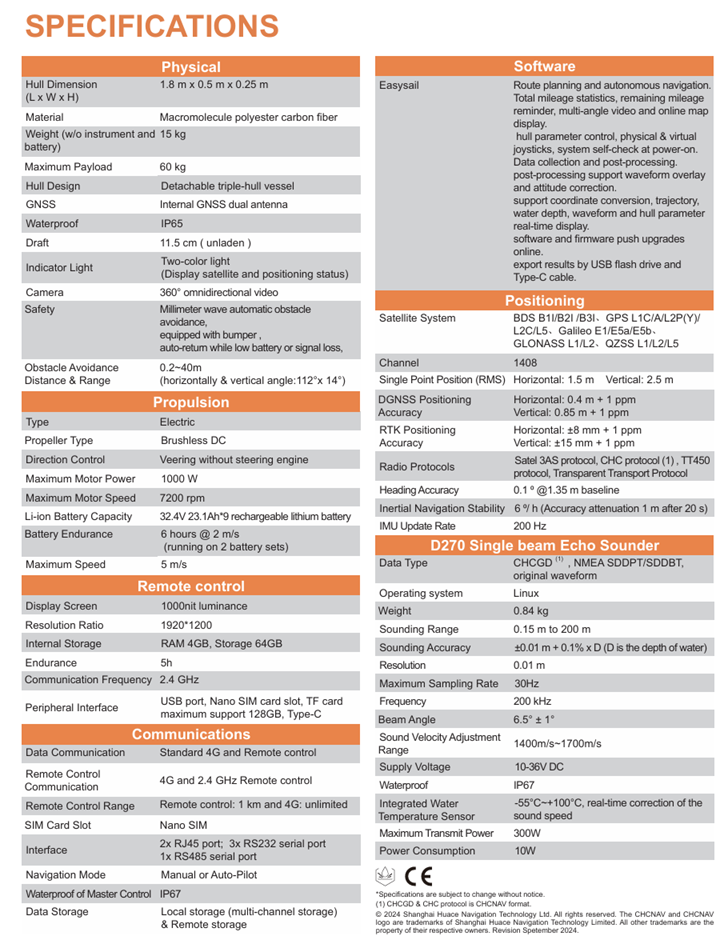

CHCNAV Apache 6 technical specifications
| Hull | Without floats 1670 × 610 × 510 mm · with floats 1670 × 1000 × 510 mm |
|---|---|
| Material | High-strength, high-modulus carbon fibre |
| Weight (no battery) | 46.5 kg with floats |
| Maximum payload | 60 kg |
| Hull design | Detachable M-type triple hull |
| Draft | 7.5 cm (unladen) |
| Waterproof | IP66 |
| Wind / wave | Level 6 wind, level 4 waves |
| Camera | 360° omnidirectional video |
| Obstacle avoidance | 0.2–40 m, 112° H × 14° V |
| Motor | Brushless DC, 1000 W, 7200 RPM; differential and servo steering |
|---|---|
| Battery | 32.4 V, 23.1 Ah Li-ion, hot-swap |
| Endurance | 6 h @ 2 m/s (3 battery sets, expandable) |
| Charging time | 3 h |
| Maximum speed | 6 m/s |
| GNSS | BDS B1I/B2I/B3I · GPS L1C/A/L2C/L5 · Galileo E1/E5a/E5b · GLONASS L1/L2 · QZSS L1/L2/L5 (internal dual antenna) |
|---|---|
| RTK accuracy | H ±(8 mm + 1 ppm) · V ±(15 mm + 1 ppm) |
| DGNSS / single point | H ±(0.4 m + 1 ppm) / 1.5 m · V ±(0.8 m + 1 ppm) / 2.5 m |
| Heading | 0.1° @ 1 m baseline |
| Inertial navigation | 6°/h; 200 Hz IMU (≈1 m drift after 20 s outage) |
| Radio protocols | Satel 3AS, CHC, TT450, Transparent |
| Echosounder | Integrated CHCNAV D270 single-beam, 200 kHz, 5° beam |
|---|---|
| Sounding range | 0.1–200 m |
| Accuracy | ±0.01 m + 0.1% × depth |
| Resolution | 3 mm |
| Sampling rate | 30 Hz |
| Sound velocity | 1400–1700 m/s, water temperature sensor –55 to +100 °C |
| Remote controller | 10″ 1920 × 1200 Android, 4 GB RAM / 64 GB, 5 h battery, 2.4 GHz |
|---|---|
| Communication | Standard 4G and remote control; 1.5 km radio, unlimited over 4G |
| Interfaces | 2 × RJ45, 2 × RS232, Nano SIM |
| Navigation | Manual or autopilot; local and remote data storage |
| Software | EasySail: route planning, autonomous navigation, 360° video, waveform overlay, attitude correction, export over USB/Type-C |
Apache 6 FAQ
Which multibeam does the Apache 6 use?
It is optimized for the Norbit multibeam series, and also carries other sonars, 3D laser scanners, side-scan and water-quality sensors.
How does it handle currents?
The triple hull with floats and CHCNAV absolute straight-line control keep it on line in strong currents.
Can it measure sound velocity automatically?
Yes – with the optional automatic SVP launcher, controlled from the remote.
