CHCNAV

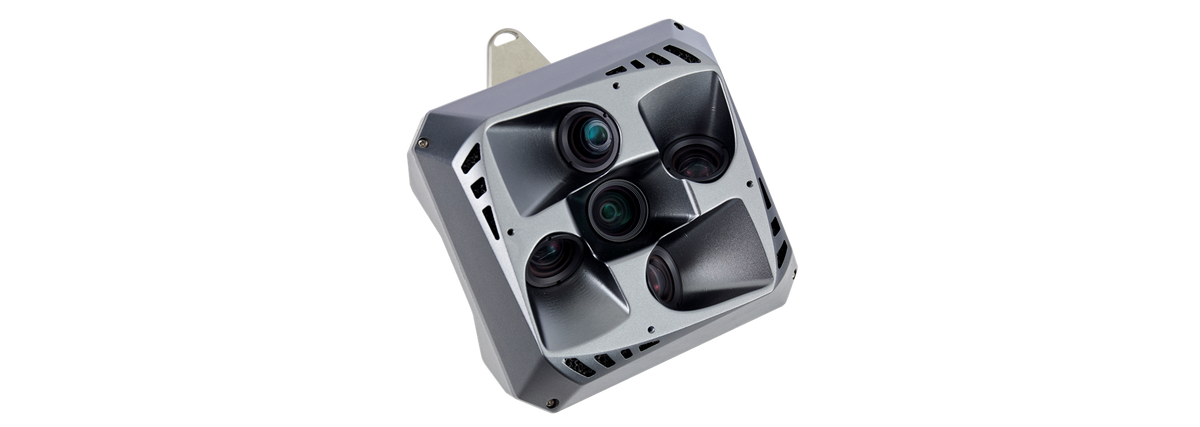

CHCNAV C30 130MP Oblique Photogrammetry Camera



The C30 is a professional oblique photogrammetry system: five 26 MP cameras capture one nadir and four 45° oblique views in every shot – 130 MP in total.

At 605 g it is among the smallest and lightest industrial oblique cameras, and it mounts on the CHCNAV X500, DJI M300/M350 RTK and fixed-wing UAVs.

Key features

  • Multi-angle capture – Five lenses capture nadir and 45° oblique views at once.
  • Light and compact – The smallest industrial-grade oblique camera in its class.
  • Versatile integration – X500, DJI M300/M350 RTK, P330 Pro and other UAVs via Alphaport.
  • Fast data management – 640 GB plug-in module, copy at up to 300 Mb/s.
  • Better aerotriangulation – Up to 10% higher AT pass rate with CHCNAV hardware + software.
  • Works with LiDAR – CoPre field-to-finish workflow with CHCNAV LiDAR.

At a glance

  • 130 MP 5 × 26 MP
  • 5 lenses, 25 / 35 mm
  • 0.8 s minimum interval
  • 605 g 110 × 108 × 85 mm
  • 640 GB plug-in storage
  • 300 Mb/s data copy speed

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.



Technical Specifications & Features

CHCNAV C30 Aerial Oblique Camera System

Aerial oblique camera

CHCNAV C30 – 130 MP five-lens oblique camera for 3D models

The C30 is a professional oblique photogrammetry system: five 26 MP cameras capture one nadir and four 45° oblique views in every shot – 130 MP in total.

At 605 g it is among the smallest and lightest industrial oblique cameras, and it mounts on the CHCNAV X500, DJI M300/M350 RTK and fixed-wing UAVs.

130 MP (5 × 26 MP)45° / 90° views640 GB, 300 Mb/s605 g
CHCNAV C30 five-lens oblique camera

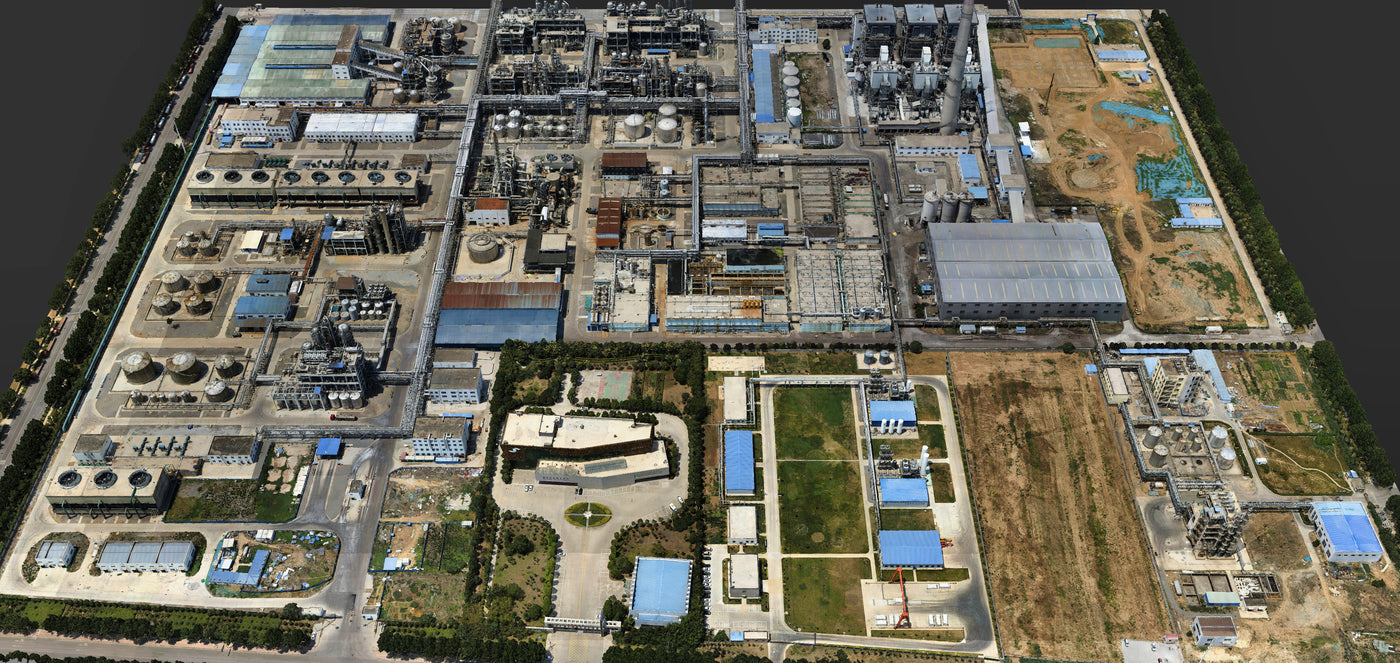

Facades, roofs and terrain in one flight

Complete 3D reality capture

Oblique imagery shows building sides and structures that nadir photos miss, producing realistic 3D meshes for urban planning, inspections and digital twins. The C30 can fly independently on RTK drones or be mounted on CHCNAV AlphaUni LiDAR, and CoPre handles copy, aerotriangulation and modelling.

130 MP5 × 26 MP
5lenses, 25 / 35 mm
0.8 sminimum interval
605 g110 × 108 × 85 mm
640 GBplug-in storage
300 Mb/sdata copy speed
Key features

Why choose the C30

5x

Multi-angle capture

Five lenses capture nadir and 45° oblique views at once.

605

Light and compact

The smallest industrial-grade oblique camera in its class.

UAV

Versatile integration

X500, DJI M300/M350 RTK, P330 Pro and other UAVs via Alphaport.

300

Fast data management

640 GB plug-in module, copy at up to 300 Mb/s.

AT

Better aerotriangulation

Up to 10% higher AT pass rate with CHCNAV hardware + software.

LiDAR

Works with LiDAR

CoPre field-to-finish workflow with CHCNAV LiDAR.

Multi-angle high-resolution capture

Five views in every exposure

A 25 mm nadir lens and four 35 mm lenses at 45° capture 6252 × 4168 px each, giving the coverage needed for detailed 3D models and complex mapping projects with fewer flight lines.

26 MP × 50.8 s intervalF5.6, ISO 100–3200

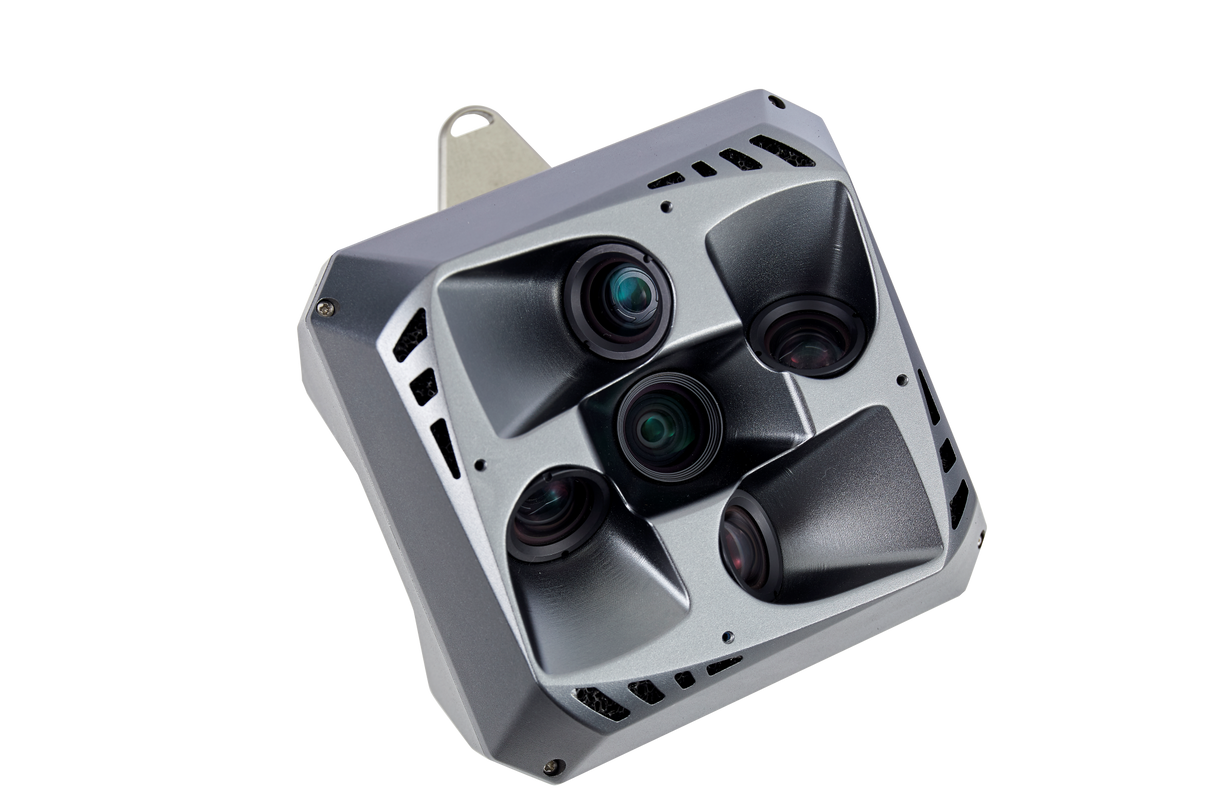

CHCNAV C30 multi-angle capture
CHCNAV C30 UAV integration
Versatile integration

Fits the X500, DJI and fixed-wing UAVs

The Alphaport quick-release interface carries power and data and converts to DJI Skyport. Fly the C30 on the CHCNAV X500, a DJI M300/M350 RTK, or long-range fixed-wing VTOLs.

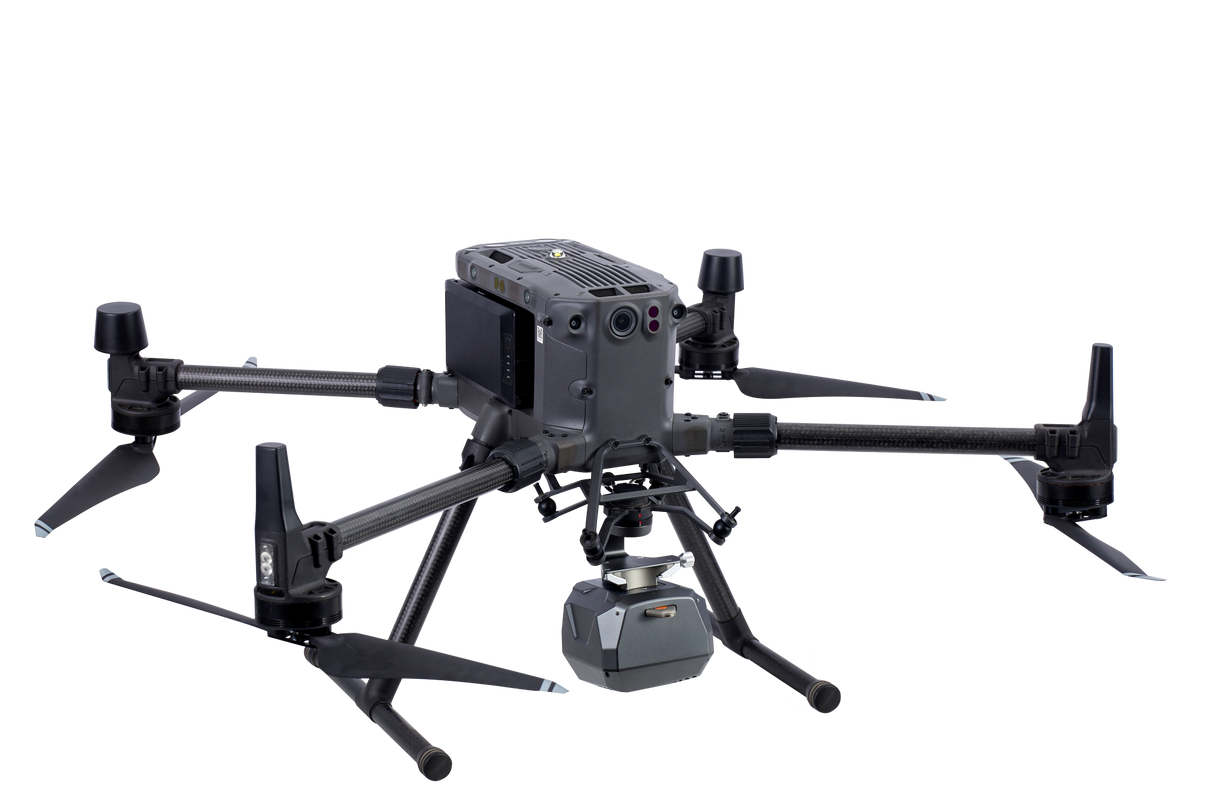

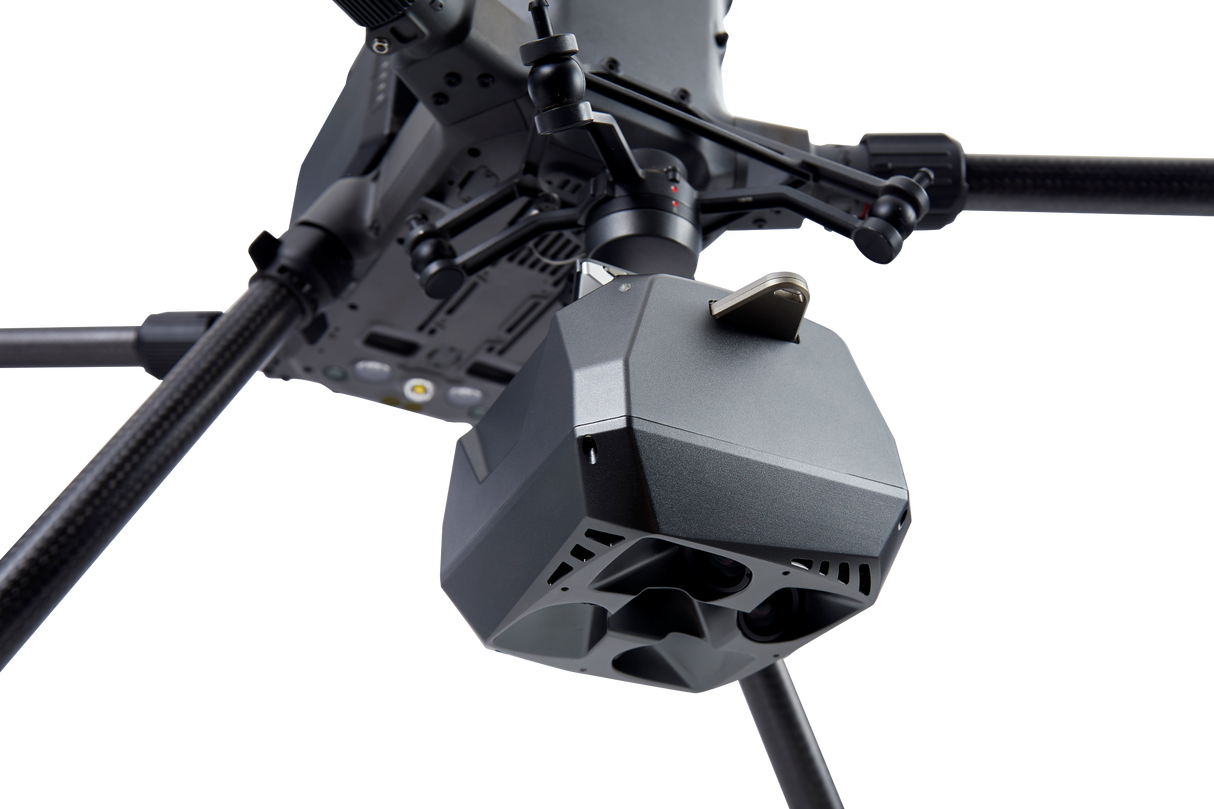

CHCNAV C30 mounted on a DJI M300

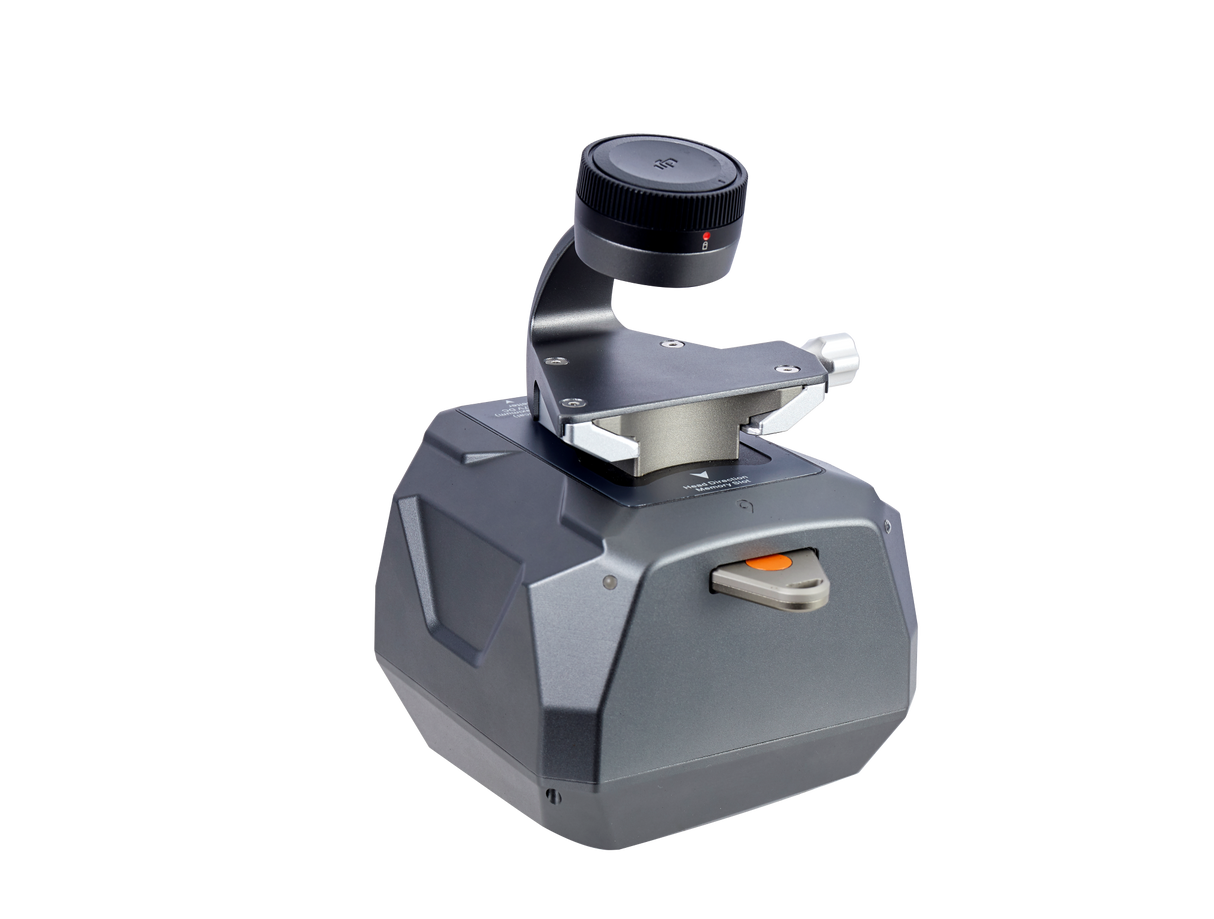

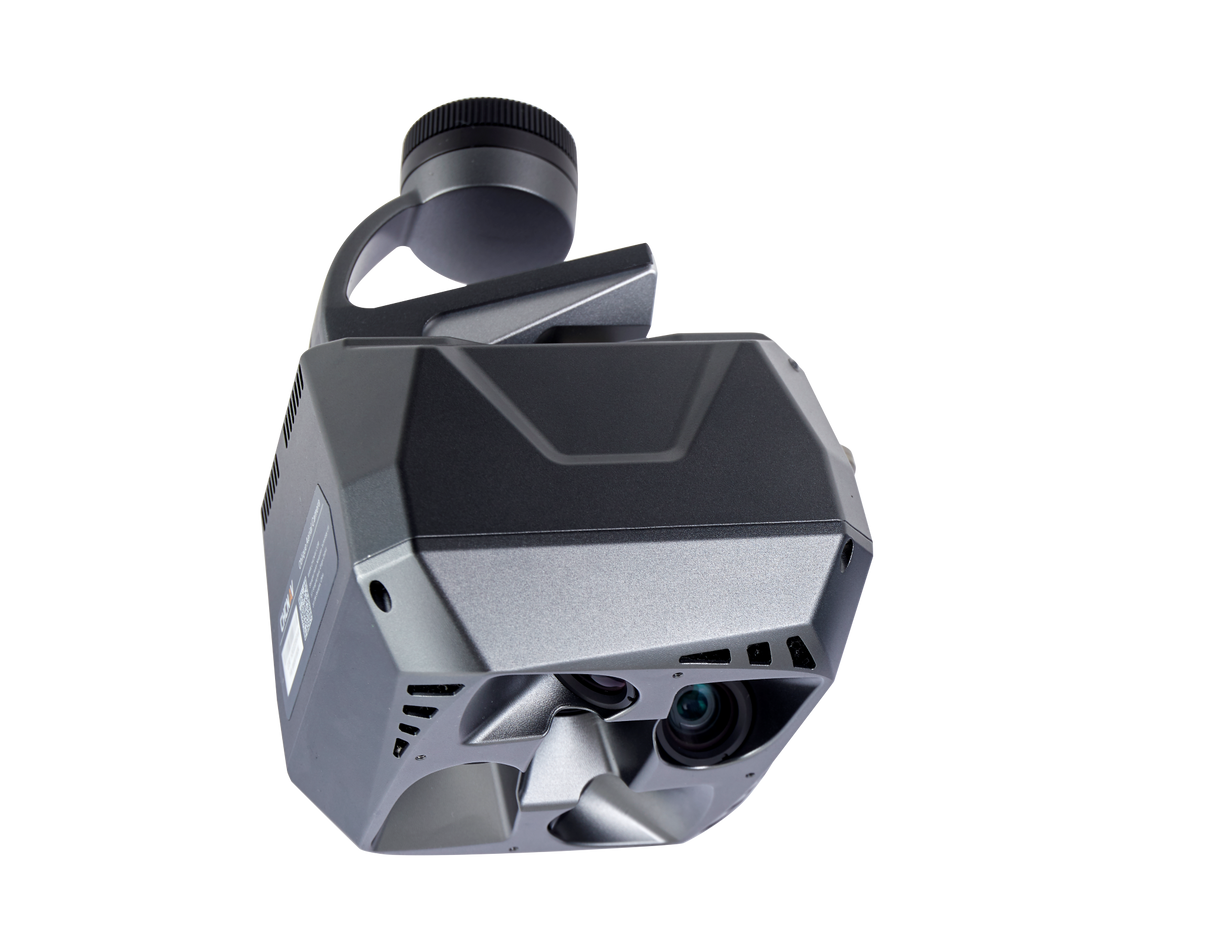

CHCNAV C30 with Skyport connection
Working efficiency

Up to 1.1 km² per multirotor flight

CHCNAV test data on a DJI M300 RTK at 8 m/s (28 min flight): 0.33 km² at 1.5 cm GSD from 100 m, 0.6 km² at 3 cm from 200 m and 1.1 km² at 5 cm from 332 m. On a fixed-wing VTOL at 21 m/s (86 min), a single flight covers 3.2 km² at 3 cm and 5.73 km² at 5 cm GSD.

  • 1.5 cm GSD – 100 m AGL – 0.33 km²
  • 3 cm GSD – 200 m AGL – 0.6 km² (3.2 km² fixed-wing)
  • 5 cm GSD – 332 m AGL – 1.1 km² (5.73 km² fixed-wing)
CHCNAV C30 field-to-finish workflow
CHCNAV C30 data management
Robust data management

640 GB plug-in module, 300 Mb/s

All five cameras write to one external storage module (5 × 128 GB). Pull it out and copy straight to your computer at up to 300 Mb/s – no waiting on the drone.

Which camera?

Compare CHCNAV aerial mapping cameras

Two full-frame nadir cameras and a five-lens oblique system – pick by deliverable, drone and workflow.

C5C504C30
TypeOrthographic (nadir)Orthographic on 3-axis gimbalOblique, 5 lenses
Resolution45 MP full frame45 MP full frame130 MP (5 × 26 MP)
Sensor36 × 24 mm, 4.4 µm36 × 24 mm, 4.4 µm23.5 × 15.7 mm, 3.76 µm
Lens35 mm, 54.3° × 37.8°40 mm (56 mm option)25 mm nadir / 35 mm oblique at 45°
Weight290 g280 g (650 g with gimbal)605 g
Storage256 GB internal, 80 Mb/s512 GB640 GB plug-in module, 300 Mb/s
MountAlphaport / DJI Skyport, on AlphaUni LiDARCHCNAV X500 gimbal interfaceAlphaport / DJI Skyport, on AlphaUni LiDAR
Best forOrthophotos, colour for LiDARX500 2D/3D mapping, high-rise3D city models, facades
C5C504C30
Applications

Where the C30 works

Urban planning and 3D cities

Urban planning and 3D cities

Realistic meshes and digital twins.

Road network planning

Road network planning

Corridors in full 3D.

Asset inspection

Asset inspection

See facades and structures from every side.

Power lines and solar farms

Power lines and solar farms

Context for design and maintenance.

Datasheet

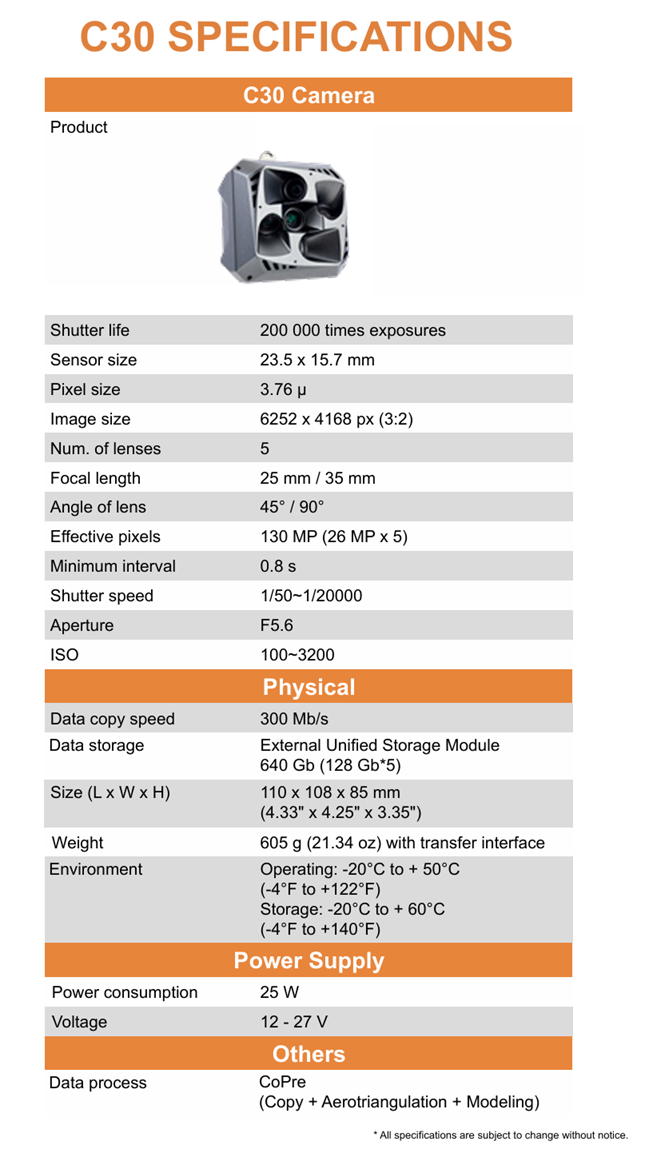

CHCNAV C30 technical specifications

Lenses5
Effective pixels130 MP (26 MP × 5)
Sensor23.5 × 15.7 mm per camera
Pixel size3.76 µm
Image size6252 × 4168 px (3:2)
Focal length25 mm (nadir) / 35 mm (oblique)
Lens angle90° / 45°
ApertureF5.6
Shutter speed1/50 – 1/2000 s
ISO100 – 3200
Minimum interval0.8 s
Shutter life200,000 exposures
Specifications from the CHCNAV datasheet and subject to change without notice. Coverage and flight figures were measured by CHCNAV under test conditions; results vary with platform, altitude, overlap and weather.
Questions

C30 FAQ

Why use an oblique camera?

Oblique views capture building facades and vertical structures, producing complete, realistic 3D models that nadir-only imagery cannot.

How much area can I cover?

CHCNAV measured 0.33–1.1 km² per 28-minute DJI M300 flight at 1.5–5 cm GSD, and up to 5.73 km² per 86-minute fixed-wing flight at 5 cm GSD.

Is it useful for construction monitoring?

Yes – repeated oblique flights give 3D progress models, inspections and volumes for site management.

How do I get the data off?

Remove the 640 GB storage module and copy at up to 300 Mb/s.

C30 or C5?

The C30 is for 3D models and facades; the C5 is lighter and best for orthophotos and colourising LiDAR.
