Bohnenstingl

Cone Adapter



Survey Cone Adapter B60

The Cone Adapter B60 is designed for the precise measurement of the axis position of circular objects, such as boreholes, bolts, bolt heads, and nuts. It is an essential tool for achieving accurate measurements in various applications.

Key Features and Functions

Versatile Measurement: The Cone Adapter B60 can be used to determine the position of both vertically drilled holes and vertically inserted bolts. Depending on the requirement, the adapter can be rotated 180° to suit the specific measurement needs.

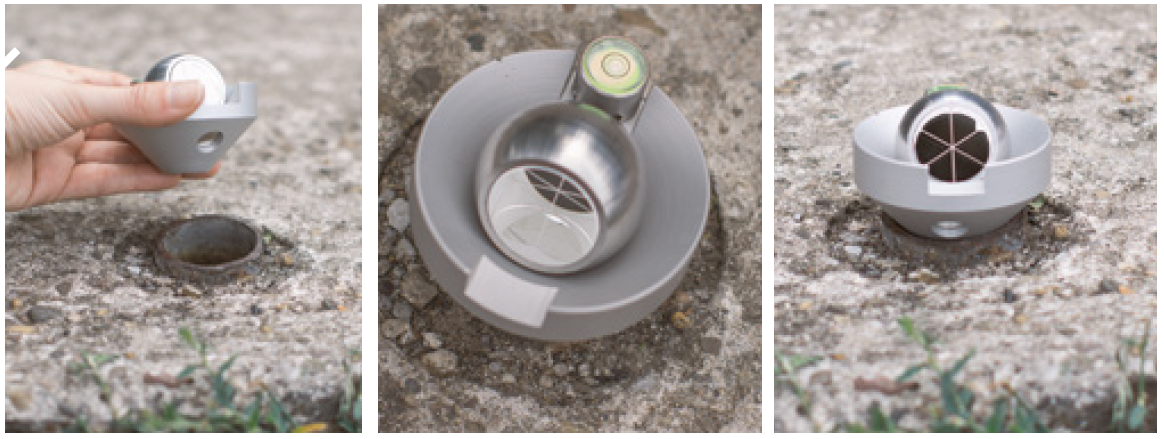

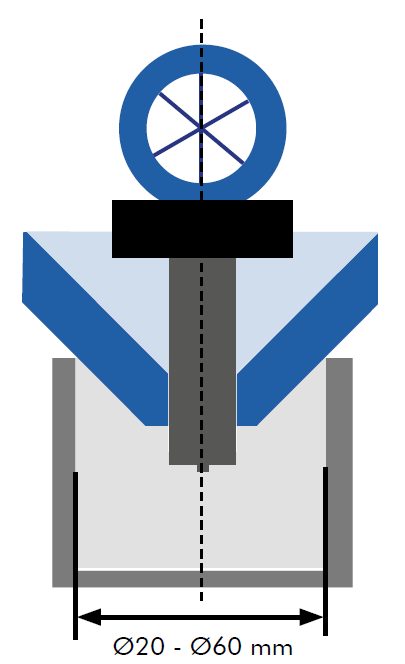

Determining the Center of Boreholes:

  • Insert the Ø12 mm stainless steel axis pin with a prism into the cone adapter.
  • Place the adapter over the drill hole.
  • Use the circular level to ensure perpendicular alignment.
  • Conduct the measurement.

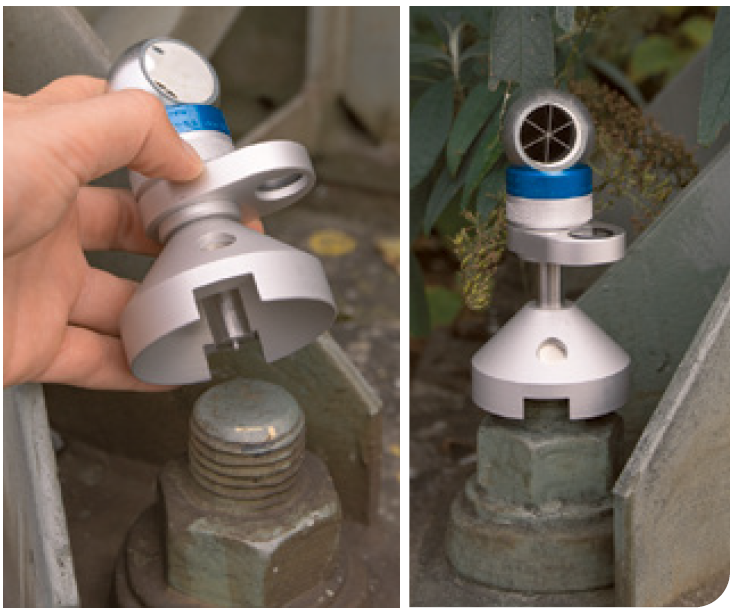

Determining the Center and Height of Bolts/Cylinders:

  • Insert the Ø12 mm axis pin with a prism into the cone adapter.
  • Position the adapter on the bolt or cylinder.
  • Use the circular level to set the adapter perpendicular.
  • Conduct the measurement.

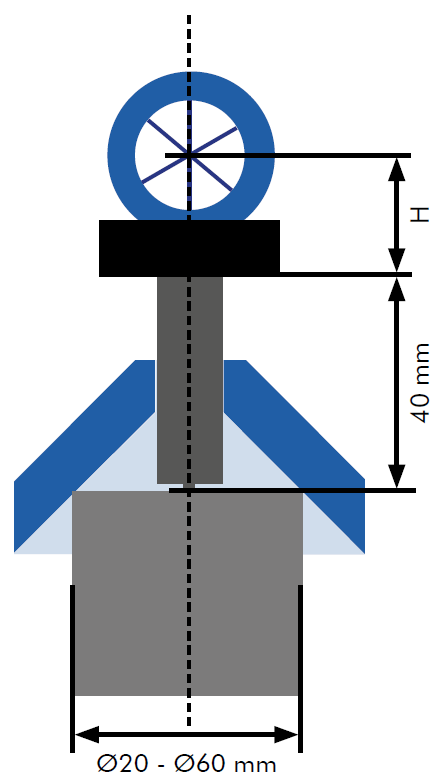

Measurement Considerations: The length of the axis pin (40 mm) and the height (H) of the prism and adapter must be added to the measured Z coordinate to obtain the accurate position.

Additional Features

  • Construction: Made of anodized aluminum, providing durability and lightweight handling.
  • Magnetic Hold: Three integrated magnets ensure the cone adapter remains securely attached to magnetic parts.
  • Axial Bore: Features a Ø12 mm axial bore for the axis pin.
  • Circular Level Compatibility: Recesses on both sides accommodate an optional circular level, ensuring the unit remains perpendicular during measurements.

Circular Level "Integral"

If the prism or carrier lacks an integrated circular level, the Circular Level Integral can be mounted on either side of the Cone Adapter B60. This ensures the entire unit is perfectly perpendicular, enhancing measurement accuracy.

The Cone Adapter B60 is an invaluable tool for precise measurement tasks involving boreholes and cylindrical objects, providing reliable and accurate results in various industrial and surveying applications.

Ball base Ø 1.5“ with magnet & M8-thread

• Magnetic holding force towards hemisphere: around. 6 kg
• Offset of ball center/target center from back of base (without M8 thread) = 50 mm
• Tilting range: ± 35°

Circular level for thread base

• Transparent glass bubble, accuracy 30‘. Also visible from below
• Can be attached to all our ball bases with thread connection

Axis pin M8, without flange

For quick and frequent switching between the measuring of drill holes and the measuring
of bolts. Depending on the application, the axis pin is inserted into the cone adapter from one side or the other.
• Stainless steel cylinder Ø12 x 40 mm
• Ball segment on underside to be placed on top of the bolt
• M8 inner thread for screwing on adapters/prisms



Description

Circular level „integral“ (ID 1580)
See-through circular level (glass) for thread base, accuracy 30‘ (ID 1466.B)
Cone adapter B60 for bore holes and bolts, Ø20 to 60 mm (ID 1481)
Bagnet. base, M8 outer thread, (ID 1466.08a)
Axis pin Ø12x40 mm, M8, without flange, L = 40 mm (ID 1482)
