CHCNAV i93 Visual IMU-RTK GNSS Receiver
The i93 combines 1892-channel GNSS, AUTO-IMU and star-level dual cameras with 4G and 2 W UHF modems. Stake out in 3D AR, measure points from video, build 3D models and work base-free with PointSky – from one receiver.
Smart power management gives up to 34 hours as a network rover, so it lasts the longest field day.
Key features
- 3D visual stakeout – Directional arrow, live distance and a ground-marked point – one-step stakeout up to 50% faster.
- Visual survey – Survey-grade coordinates from video in seconds, 60% more productive with panoramic capture.
- 3D modelling – Dynamic panoramic video capture for models of buildings and monuments.
- PointSky – Centimetre RTK via satellite, cellular or IP – no base, no VRS.
- Hybrid GNSS engine – Narrow-band interference mitigation lifts tracking and data quality by over 20%.
- Fully connected – 4G, 2 W UHF, Wi-Fi, Bluetooth, NFC and up to 34 h battery.
At a glance
- 1892 channels + iStar
- 3 cm PointSky H (CEP95)
- 2–4 cm visual survey, 2–15 m
- 4G + 2 W built-in modems
- 34 h network rover
- IP68 2 m pole drop
Order the i93 as a rover, base + rover set or complete kit with controller, LandStar and RTK or PointSky access. Demos in Calgary. Contact LATNET for pricing, kits and RTK network access.
Videos
See it in action
Short clips
- Authorized CHCNAV dealer in Canada
- Setup, training & local support from our Calgary geomatics team
- Shipped across Canada from Calgary
- See it before you buy – live demo or rental available
Technical Specifications & Features

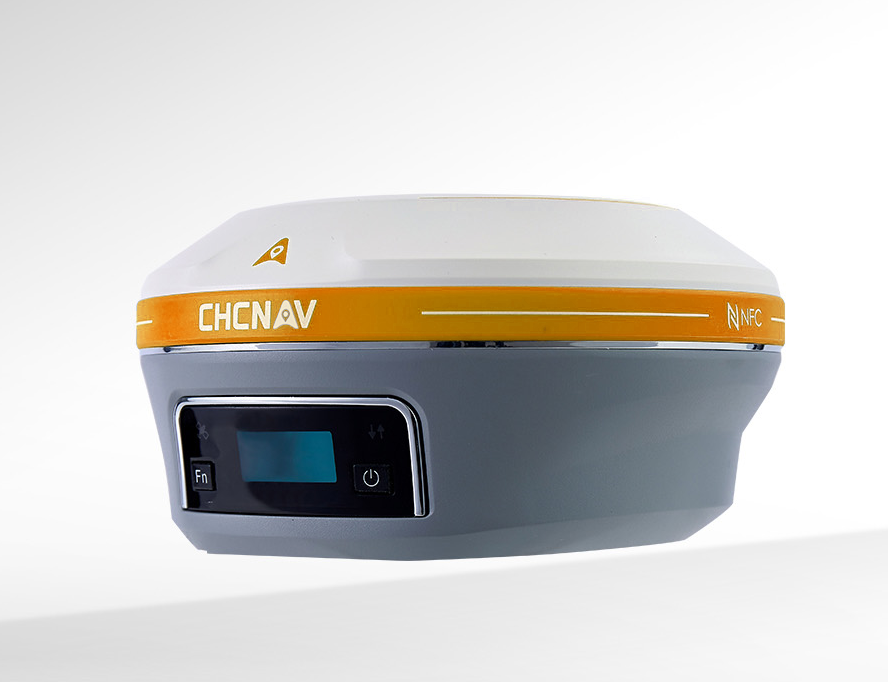

CHCNAV i93 Visual GNSS Receiver
CHCNAV i93 – the do-everything visual GNSS
The i93 combines 1892-channel GNSS, AUTO-IMU and star-level dual cameras with 4G and 2 W UHF modems. Stake out in 3D AR, measure points from video, build 3D models and work base-free with PointSky – from one receiver.
Smart power management gives up to 34 hours as a network rover, so it lasts the longest field day.

One receiver for every survey mode

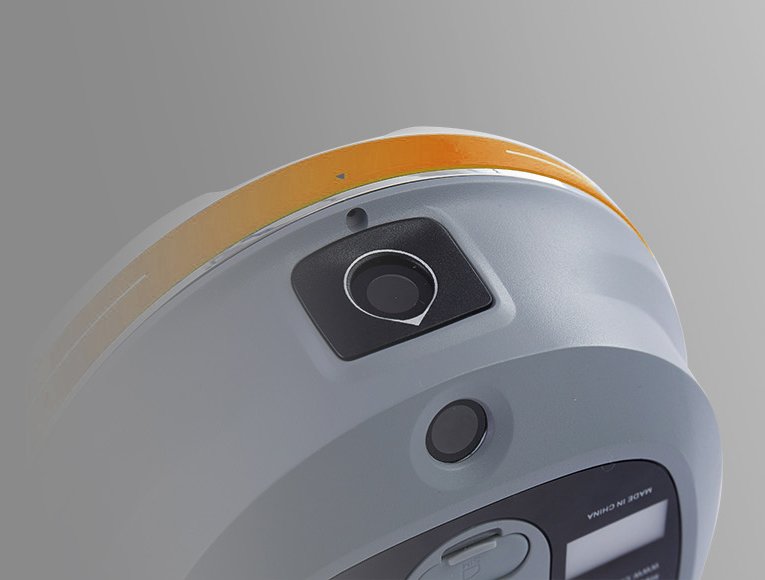

The i93 is CHCNAV’s flagship visual receiver. iStar, a hybrid engine and an RF-SoC give a 15% boost in RTK performance and over 20% better tracking in difficult environments. Starlight-grade cameras keep full colour down to 0.01 lux for visual work at dawn, dusk and under cover.

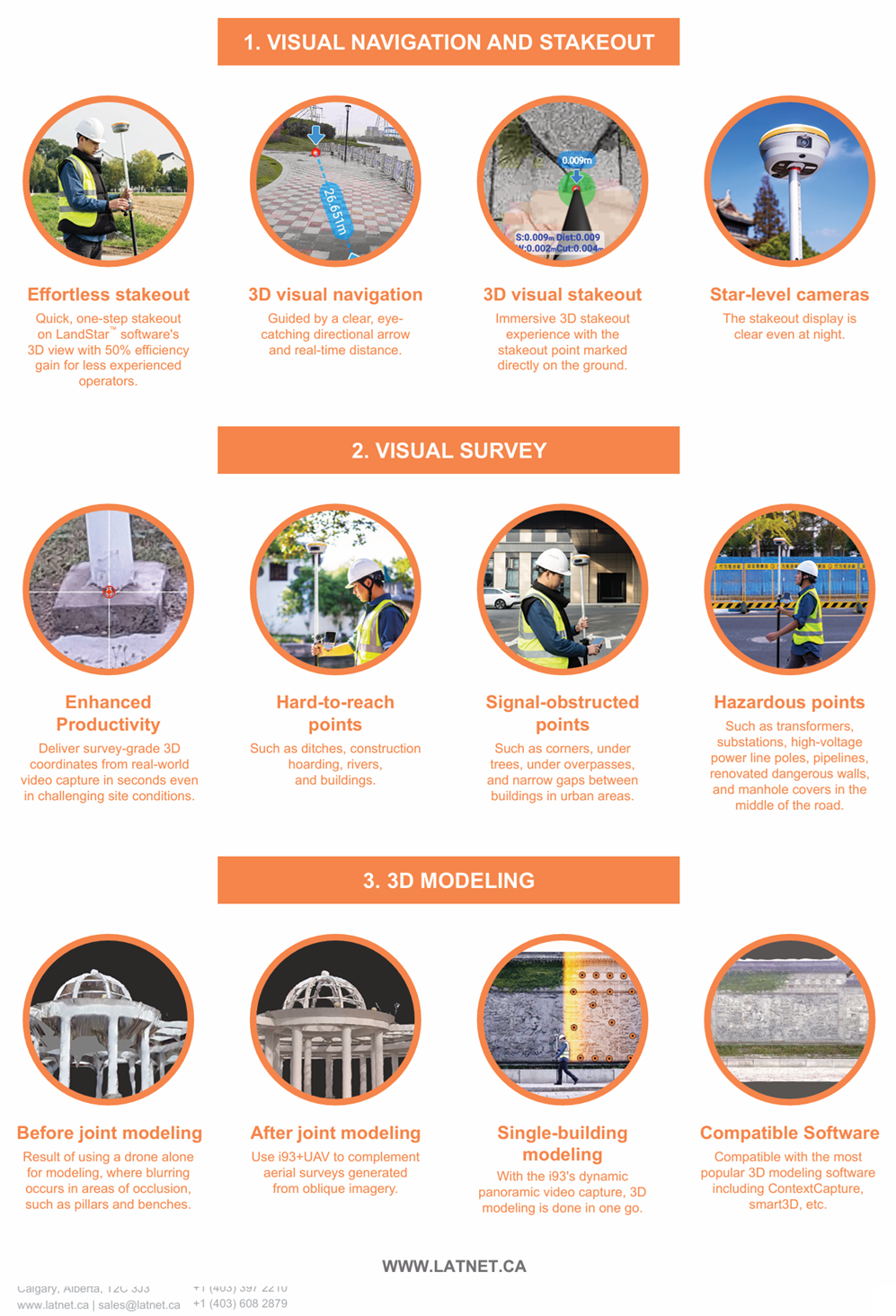

Visual stakeout, laser survey and visual survey
CHCNAV’s visual IMU-RTK receivers add cameras, an IMU and – on the i85 – a green laser to centimetre RTK. You see design points in augmented reality on the controller, measure points you can’t stand on, and capture whole facades in seconds. Pick a mode to see how each one speeds up the job.
Visual stakeout (AR)
The receiver’s camera shows the site live on the controller with the design point, CAD lines and a guidance arrow drawn on the ground. Walk straight to the point instead of zig-zagging on ΔN / ΔE numbers – stakeout accuracy stays RTK-grade (8 mm + 1 ppm).
Laser survey
Tilt the pole, aim with the on-screen crosshair and fire the class 3R green laser. Building corners, points across a busy road or behind a fence are measured from where you stand – 3 cm within 5 m, 5 cm within 10 m.
Visual survey
Walk past a structure while the camera records an image group (typically 2 Hz). Back at the desk or in the field, pick points straight from the photos – typical 2–4 cm at 2–15 m range. Less time on site, and nothing gets missed.
How it speeds up the job
- Fewer steps per stake: the arrow and target ring on the live view replace the walk-check-correct routine of number-only stakeout.
- No levelling the bubble: the 200 Hz IMU compensates pole tilt up to 60°, so you measure as soon as the tip is on the point.
- No second instrument: laser and visual measurement cover corners, walls and hazards that used to need a total station or offset tape.
- Safer work: measure across roads, ditches and live equipment without stepping into them.
Illustration of LandStar workflows. Accuracy figures from CHCNAV datasheets; laser and visual results depend on range, lighting and target surface.
Why the i93 is the flagship
3D visual stakeout
Directional arrow, live distance and a ground-marked point – one-step stakeout up to 50% faster.
Visual survey
Survey-grade coordinates from video in seconds, 60% more productive with panoramic capture.
3D modelling
Dynamic panoramic video capture for models of buildings and monuments.
PointSky
Centimetre RTK via satellite, cellular or IP – no base, no VRS.
Hybrid GNSS engine
Narrow-band interference mitigation lifts tracking and data quality by over 20%.
Fully connected
4G, 2 W UHF, Wi-Fi, Bluetooth, NFC and up to 34 h battery.
Stake out at a glance
Star-level cameras create an immersive 3D stakeout view in LandStar: a clear directional arrow, real-time distance and the stakeout point marked on the ground. Line and CAD stakeout are supported, making complex layouts easier for every skill level.
- Visual stakeout H 8 mm + 1 ppm
- Full colour down to 0.01 lux
- Up to 24 h with cameras on
Points and models from video
IMU-aided video photogrammetry delivers survey-grade 3D coordinates of hard-to-reach, signal-blocked and hazardous points. Dynamic panoramic capture and automatic image matching with 85% overlap boost productivity by 60%, and the same data builds 3D models.
Untethered surveying – no base station
PointSky delivers real-time centimetre accuracy via L-band satellite, cellular or IP without local base stations or VRS: 3 cm horizontal and 7 cm vertical (CEP95) after a typical 1–10 minute convergence. Skip base procurement, transport and setup and finish large topographic, cadastral and staking jobs with one receiver and one operator.
- Dual-link: L-band + internet
- 300 s uptime during interruption
- Ideal where cellular is patchy

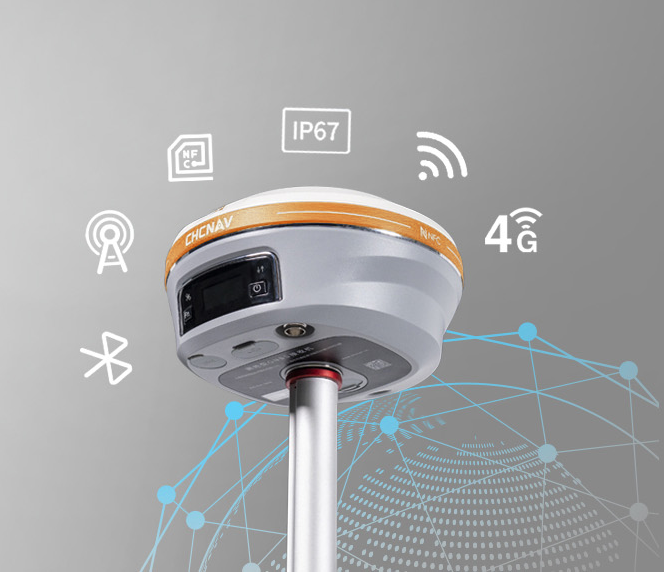

Every radio, every mode, all day
The 200 Hz AUTO-IMU, Wi-Fi, Bluetooth, NFC, 4G and a 0.5–2 W UHF radio support every RTK mode – network rover on the LATNET RTK network, UHF base or rover, or PointSky. Smart power management gives up to 34 hours without a spare battery, in a shock-, dust- and water-resistant magnesium-alloy body.
- 4G LTE + UHF 0.5–2 W, up to 15 km
- 32 GB + 128 GB expansion
- External power 9–28 V DC
CHCNAV i93 technical specifications
| Channels | 1892 |
|---|---|
| GPS | L1C/A, L1C, L2C, L5 |
| GLONASS | G1, G2, L1OC*, L2OC*, L3OC* |
| Galileo | E1C, E5a, E5b, E5 AltBOC, E6 |
| BeiDou | B1I, B2I, B3I, B1C, B2a, B2b |
| QZSS | L1C/A(B), L1C, L2C, L5, L6D/E* |
| NavIC / IRNSS | L5 |
| SBAS | EGNOS (L1, L5) |
| PPP | B2b-PPP, E6B-HAS (H 10 cm · V 20 cm) |
| L-band | CHCNAV PointSky |
| Positioning rate | 1, 5 and 10 Hz |
| Time to first fix | Cold <45 s · hot <10 s · re-acquisition <1 s |
| RTK | H: 8 mm + 1 ppm RMS · V: 15 mm + 1 ppm RMS Initialization <10 s, reliability >99.9% |
|---|---|
| PPK | H: 3 mm + 1 ppm RMS · V: 5 mm + 1 ppm RMS |
| High-precision static | H: 2.5 mm + 0.1 ppm RMS · V: 3.5 mm + 0.4 ppm RMS |
| Static and rapid static | H: 2.5 mm + 0.5 ppm RMS · V: 5 mm + 0.5 ppm RMS |
| Code differential | H: 0.4 m RMS · V: 0.8 m RMS |
| PointSky | H 3 cm · V 7 cm (CEP95); convergence <10 min standard, <3 min some regions, <1 min optimal; 300 s uptime during interruption |
| Autonomous | H: 1.5 m RMS · V: 2.5 m RMS |
| Visual survey | Typical 2–4 cm, range 2–15 m |
| Visual stakeout | H: 8 mm + 1 ppm RMS · V: 15 mm + 1 ppm RMS |
| IMU | 200 Hz AUTO-IMU; e-bubble |
| Tilt | 0–60°; typically <8 mm + 0.7 mm/° tilt to 30° |
| Cameras | Global shutter 2 MP & 5 MP; 75° FOV; 25 fps; starlight-grade, OmniPixel®-GS, full colour to 0.01 lux |
|---|---|
| Image group capture | Video photogrammetry, typically 2 Hz (up to 25 Hz); max 60 s, ~60 MB |
| 4G modem | TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM; nano-SIM |
| UHF radio | Rx/Tx 410–470 MHz, 0.5–2 W; CHC, Transparent, TT450, Satel; typical 3–5 km, up to 15 km |
| Wi-Fi | 802.11 a/b/g/n/ac, AP mode |
| Bluetooth | 5.0 and 4.2 + EDR |
| NFC | Tap-to-pair |
| Ports | 1 × 7-pin LEMO (RS-232); 1 × USB-C; 1 × UHF antenna (TNC female) |
| Data formats | RTCM 2.x/3.x, CMR in/out; HCN, RINEX 2.11/3.02; NMEA 0183; NTRIP client and caster |
| Storage | 32 GB internal + 128 GB external |
| Size | Φ5.98 × 3.19 in (Φ152 × 81 mm) |
|---|---|
| Weight | 1.15 kg (2.54 lb) |
| Front panel | 1.1″ colour OLED, 2 LEDs, 2 buttons |
| Operating / storage | –40 °C to +65 °C / –40 °C to +85 °C |
| Protection | IP68 (IEC 60529), 2 m pole drop, MIL-STD-810H vibration |
| Power | Typical 2.8 W (rover), 4 W (visual); external 9–28 V DC |
| Operating time | UHF/4G rover w/o camera up to 34 h · visual stakeout/survey up to 24 h |
i93 FAQ
What is the difference between the i93 and i89?
The i93 adds 1892 channels, PointSky, a 4G modem, a 2 W radio, starlight cameras, 32 GB storage and up to 34 h battery. The i89 is lighter (750 g) and simpler.
Can I work without a base or RTK network?
Yes, with PointSky: 3 cm H / 7 cm V (CEP95) after convergence, via L-band satellite. Coverage and subscriptions vary – ask us for Canadian availability.
Does it have a 4G modem?
Yes – insert a nano-SIM and connect directly to the LATNET RTK network or any NTRIP caster.
Do the cameras work in low light?
Yes. The starlight-grade camera with OmniPixel®-GS keeps full colour down to 0.01 lux.
How long does the battery last?
Up to 34 h as a network rover without cameras and up to 24 h with visual stakeout or survey.
Get the i93 from LATNET
Order the i93 as a rover, base + rover set or complete kit with controller, LandStar and RTK or PointSky access. Demos in Calgary.
