Bohnenstingl

Levelling Adapter



The Levelling Adapter Ø1.5" (38.1 mm)

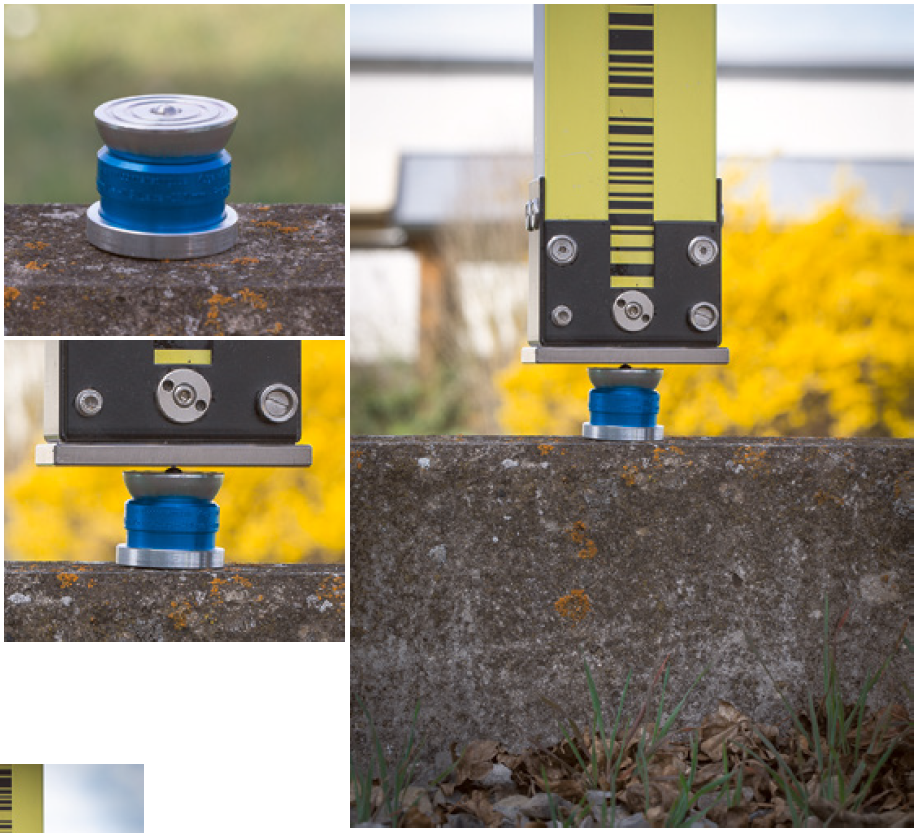

The Levelling-Adapter Ø1.5" (38.1 mm) is designed to integrate levelitic height  measurement with tachymetric 3D measurement. The adapter fits onto a horizontally mounted base for a ball with a diameter of Ø1.5" (38.1 mm). The leveling staff's contact point on the adapter aligns perfectly with the center of an inserted ball prism of the same diameter, ensuring consistent measurement accuracy.

Key Features:

  • Hemisphere Material: Ø38.1 mm galvanized hemisphere
  • Central Component: Made of stainless steel, providing a stable surface for placing the leveling rod

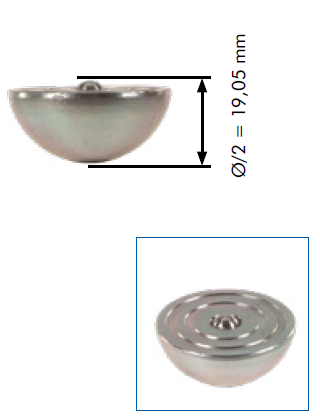

  • Adapter Height: 19.05 mm (half of the diameter, Ø/2)

This design ensures that the height measurement from the leveling staff is precisely aligned with the center of the ball prism, making it ideal for accurate and reliable 3D measurement applications.

The leveling staff can also be placed directly on a ball prism. Then the radius (19.05 mm) must be taken into account mathematically.

Description

ID 6155.41
