CHCNAV

CHCNAV NX510 Pro RTK Auto Steering System for Tractors


Regular price $13,900.00
Shipping calculated at checkout.

The NX510 Pro retrofits new and older tractors with a compact, all-in-one auto-steering system that works in all visibility conditions.

Its L-band receiver adds Trimble RTX™ satellite corrections, so you keep centimetre steering even where there is no RTK network or UHF base.

Key features

  • Extended GNSS RTK – RTK plus Trimble RTX™ where there is no network or base.
  • Terrain compensation – GNSS+INS for ±2.5 cm in tough terrain.
  • Versatile compatibility – Retrofits new and old machines; moves between tractors.
  • Robust design – IP65 display and IP67 receiver.
  • AgNav software – AB, A+, circle, free curve and headland turn patterns.
  • Seamless connectivity – CAN, serial, Wi-Fi/Bluetooth, 4G and ISOBUS.

At a glance

  • ±2.5 cm pass-to-pass
  • RTX L-band satellite corrections
  • <10 s RTK initialization
  • 0.007 m/s velocity accuracy
  • 10.1″ AgNav display
  • 7.5 N·m steering torque

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.


Technical Specification

NX510 Pro Autosteering System

Auto-steering with Trimble RTX

CHCNAV NX510 Pro – ±2.5 cm auto-steering with RTK and Trimble RTX™

The NX510 Pro retrofits new and older tractors with a compact, all-in-one auto-steering system that works in all visibility conditions.

Its L-band receiver adds Trimble RTX™ satellite corrections, so you keep centimetre steering even where there is no RTK network or UHF base.

±2.5 cmRTK + RTXISOBUSIP67 receiver

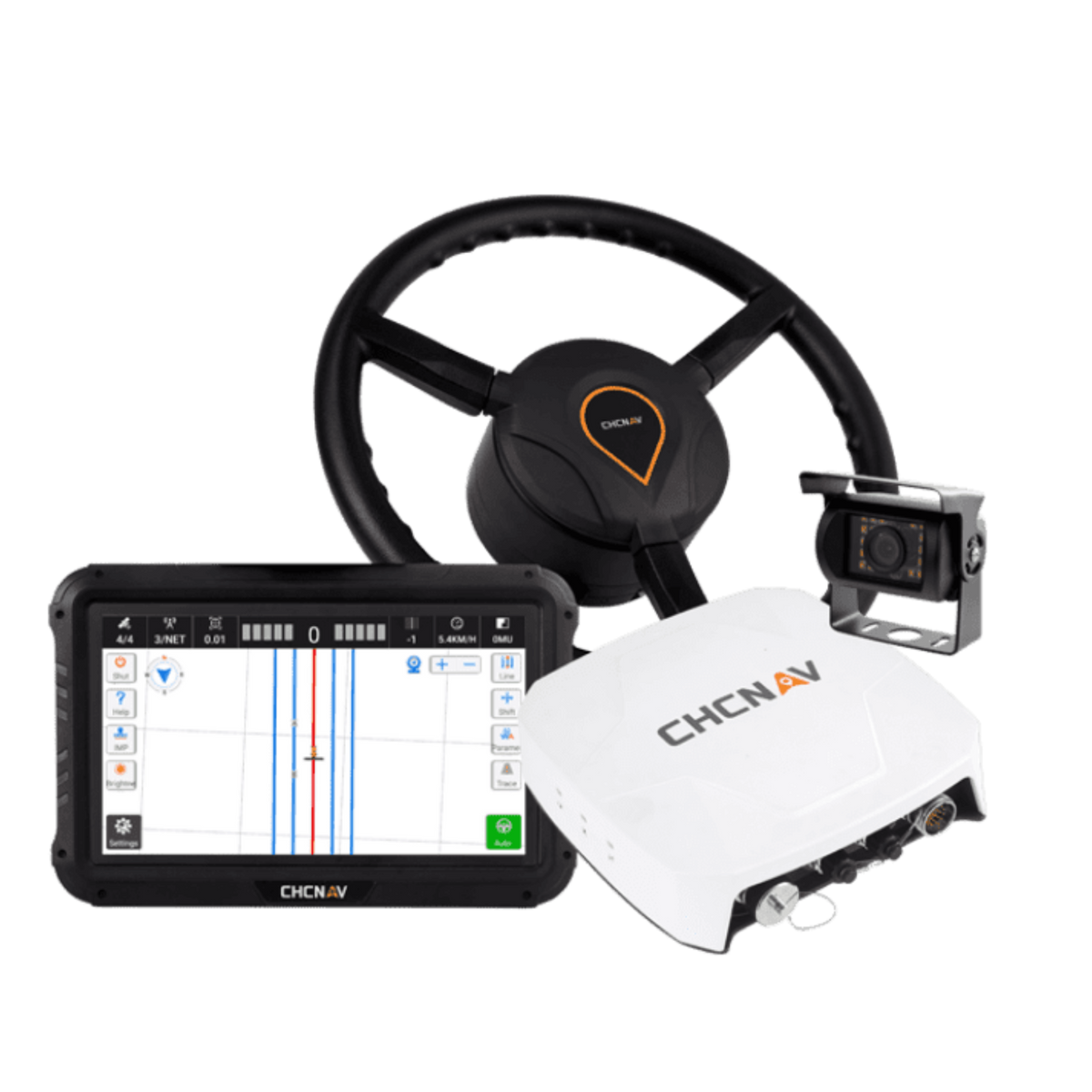

CHCNAV NX510 Pro automated steering system
Accuracy beyond the base station

When the network ends, RTX keeps you steering

Five constellations and multiple correction sources – RTK over 4G, external radio or RTX via L-band – give consistent guidance across every field. GNSS+INS terrain compensation keeps passes within ±2.5 cm. In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

±2.5 cmpass-to-pass
RTXL-band satellite corrections
<10 sRTK initialization
0.007m/s velocity accuracy
10.1″AgNav display
7.5 N·msteering torque
Key features

Why choose the NX510 Pro

RTX

Extended GNSS RTK

RTK plus Trimble RTX™ where there is no network or base.

INS

Terrain compensation

GNSS+INS for ±2.5 cm in tough terrain.

Fit

Versatile compatibility

Retrofits new and old machines; moves between tractors.

IP

Robust design

IP65 display and IP67 receiver.

UI

AgNav software

AB, A+, circle, free curve and headland turn patterns.

CAN

Seamless connectivity

CAN, serial, Wi-Fi/Bluetooth, 4G and ISOBUS.

Extended GNSS RTK

RTK and Trimble RTX™ in one receiver

The NX510 Pro tracks GPS, GLONASS, Galileo, BeiDou and QZSS plus L-band, so it can use network RTK or RTX satellite corrections for consistent accuracy and reliable navigation where no RTK network or UHF base is available.

CHCNAV NX510 Pro pass-to-pass accuracy
±2.5 cm pass-to-pass

Terrain compensation for tough ground

GNSS+INS terrain compensation keeps hands-free driving accurate to within centimetres when planting, tilling or harvesting on rolling ground.

Versatile and robust

Retrofit, move and rely on it

The compact all-in-one design installs quickly on new and older machinery and transfers between tractors. An IP65 display and IP67 receiver stand up to dust, water and vibration, and the high-torque electric wheel gives fast line acquisition.

CHCNAV NX510 Pro installation
CHCNAV NX510 Pro rugged design
CHCNAV NX510 Pro AgNav software
CHCNAV NX510 Pro connectivity
Seamless connectivity

CAN, serial, Wi-Fi, 4G and ISOBUS

Multiple CAN and serial ports, Wi-Fi/Bluetooth and an integrated 4G modem connect the NX510 Pro to implements and RTK sources. It accepts CMR, CMR+, RTCM 2.x and 3.x; an external UHF radio can be added.

Which CHCNAV system?

Compare CHCNAV tractor guidance and auto-steering

From an entry-level guidance display to a 12-inch flagship and harvester row guidance – all supplied, installed and supported by LATNET in Calgary.

Guide 10NX510 SENX510 ProNX510 Steer ReadyNX610NX612HG100
TypeManual guidanceElectric-wheel auto-steerElectric-wheel auto-steerUses tractor’s OEM valveElectric-wheel auto-steerElectric-wheel auto-steerHarvester row guidance
AccuracySub-metre±2.5 cm±2.5 cm±2.5 cm±2.5 cm±2.5 cm±8 cm to the row
Display10.1″10.1″10.1″10.1″10.1″ HD12.1″ HDWith NX600 series
CorrectionsGNSS / SBASRTK (4G + UHF), H-PPPRTK + Trimble RTXRTK (4G + UHF)RTK + PointSkyRTK + PointSkyCrop-row sensors
Working speed—Up to 30 km/h—0.1–30 km/h0.1–30 km/h0.1–30 km/hUp to 15 km/h
ISOBUS—YesYesVT / TC-SCUT, TC-BAS/SC/GEOUT, AUX-N, TC-BAS/SC/GEO—
Best forUpgrade path on a budgetBest valueNo base or network nearbySteer-ready tractorsMixed fleets, 3D viewsLarge farms, sprayersCorn and row-crop harvest
Guide 10NX510 SENX510 ProNX510 SRNX610NX612HG100
Applications

Where the NX510 Pro works

Precision seeding

Precision seeding

Even spacing and straight rows.

Tillage

Tillage

Repeatable lines.

Fertilizer application

Fertilizer application

Accurate bout widths.

Harvesting

Harvesting

Hands-free passes.

Datasheet

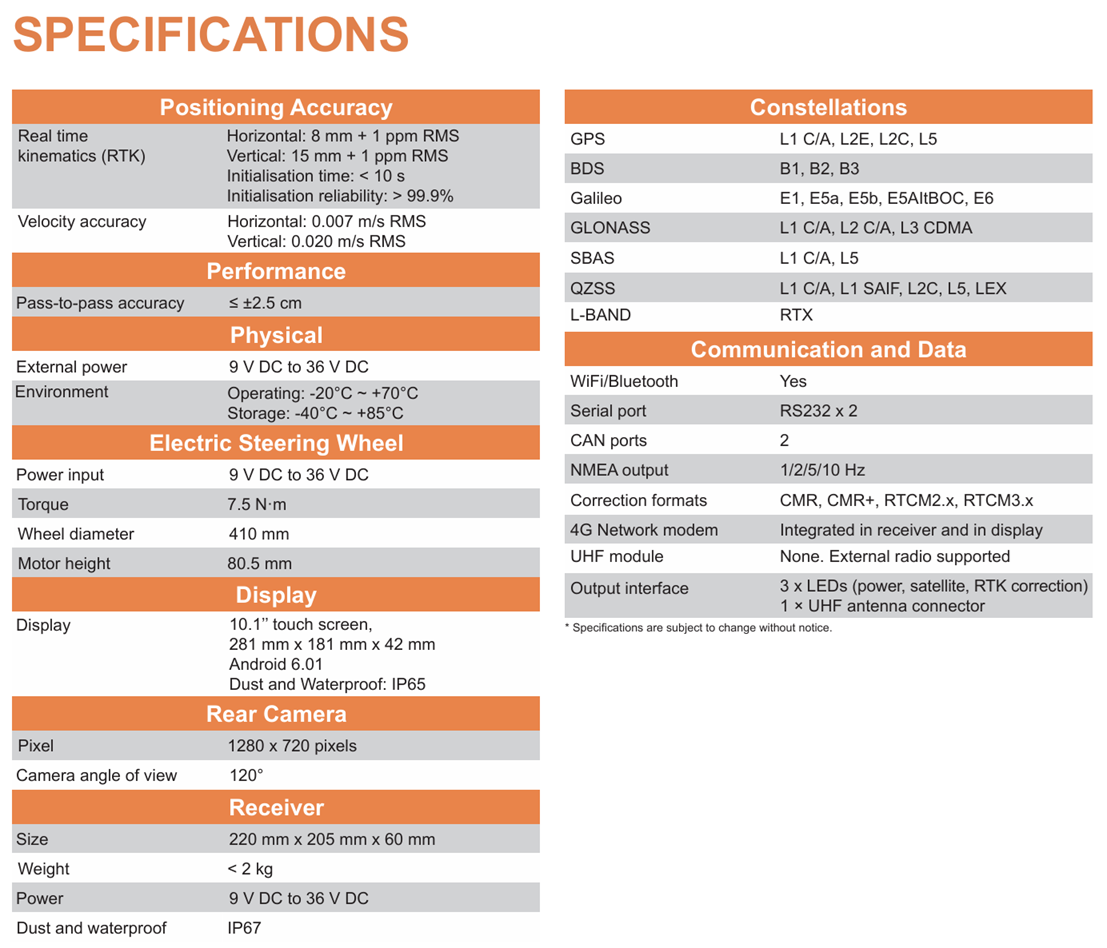

CHCNAV NX510 Pro technical specifications

RTK accuracyHorizontal 8 mm + 1 ppm RMS · Vertical 15 mm + 1 ppm RMS
Initialization< 10 s, reliability > 99.9%
Velocity accuracyH 0.007 m/s · V 0.020 m/s RMS
Pass-to-pass accuracy≤ ±2.5 cm
GNSSGPS L1 C/A, L2E, L2C, L5 · BDS B1, B2, B3 · Galileo E1, E5a, E5b, E5 AltBOC, E6 · GLONASS L1 C/A, L2 C/A, L3 CDMA · SBAS L1 C/A, L5 · QZSS L1 C/A, L1 SAIF, L2C, L5, LEX
L-bandTrimble RTX™
Specifications from the CHCNAV datasheet and subject to change without notice. Pass-to-pass accuracy depends on correction source, satellite conditions, vehicle, implement and calibration.
Questions

NX510 Pro FAQ

What makes the Pro different?

L-band Trimble RTX™ support, so you keep centimetre steering without an RTK network or base station. RTX is a paid subscription service.

Which constellations are supported?

GPS, GLONASS, Galileo, BeiDou and QZSS, plus SBAS and L-band RTX.

Can it operate in harsh conditions?

Yes – IP65 display, IP67 receiver and a rugged design for dust, water and vibration.

What power does it need?

9–36 V DC, compatible with most agricultural machinery without adapters.

Can I use the LATNET RTK network?

Yes, via the integrated 4G modem. An external radio can also receive corrections from an iBase Ag base.

Authorized CHCNAV dealer · Calgary, Alberta

Get the NX510 Pro from LATNET

Supply, installation, RTK or RTX setup and in-season support from our Calgary team.

Request a quoteAll precision ag products
