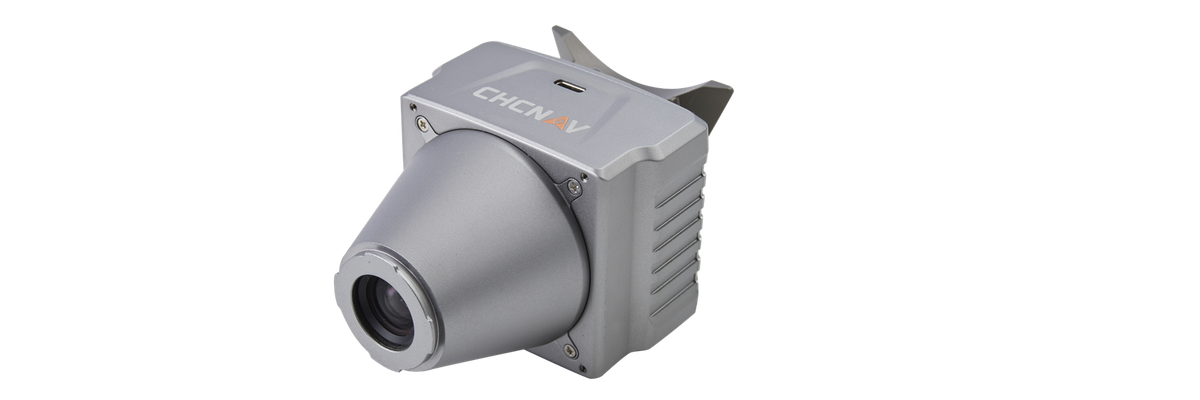

CHCNAV C5 45MP Orthographic Mapping Camera


The C5 is a full-frame, fixed-focus aerial survey camera. Its large 36 × 24 mm sensor covers more ground per photo, and the low-distortion survey lens produces sharper, more accurate orthophotos.

At only 290 g it barely touches flight time – fly it on its own for photogrammetry, or mount it on a CHCNAV AlphaUni LiDAR to colourise point clouds.

Key features

  • High-resolution imaging – 45 MP full-frame sensor for detailed, accurate orthophotos.
  • Compact and lightweight – Only 290 g – longer flights and easy integration.
  • Wide UAV compatibility – X500, DJI M300/M350 RTK and other rotor and fixed-wing drones.
  • Quick-release Alphaport – Power and data in one connector; converts to DJI Skyport.
  • Efficient data transfer – 256 GB internal memory, up to 80 Mb/s over USB-C.
  • LiDAR-ready – Mount on AlphaUni LiDAR to colourise point clouds.

At a glance

  • 45 MP 8184 × 5460 px
  • 36 × 24 mm full-frame sensor
  • 35 mm low-distortion lens
  • 290 g 75 × 63.5 × 102.5 mm
  • 1 s minimum interval
  • 256 GB internal, 80 Mb/s

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.



Technical Specifications & Features

CHCNAV C5 Aerial Camera

Aerial orthographic camera

CHCNAV C5 – 45 MP full-frame mapping camera in 290 grams

The C5 is a full-frame, fixed-focus aerial survey camera. Its large 36 × 24 mm sensor covers more ground per photo, and the low-distortion survey lens produces sharper, more accurate orthophotos.

At only 290 g it barely touches flight time – fly it on its own for photogrammetry, or mount it on a CHCNAV AlphaUni LiDAR to colourise point clouds.

45 MP full frame290 g256 GB, 80 Mb/sAlphaport / Skyport

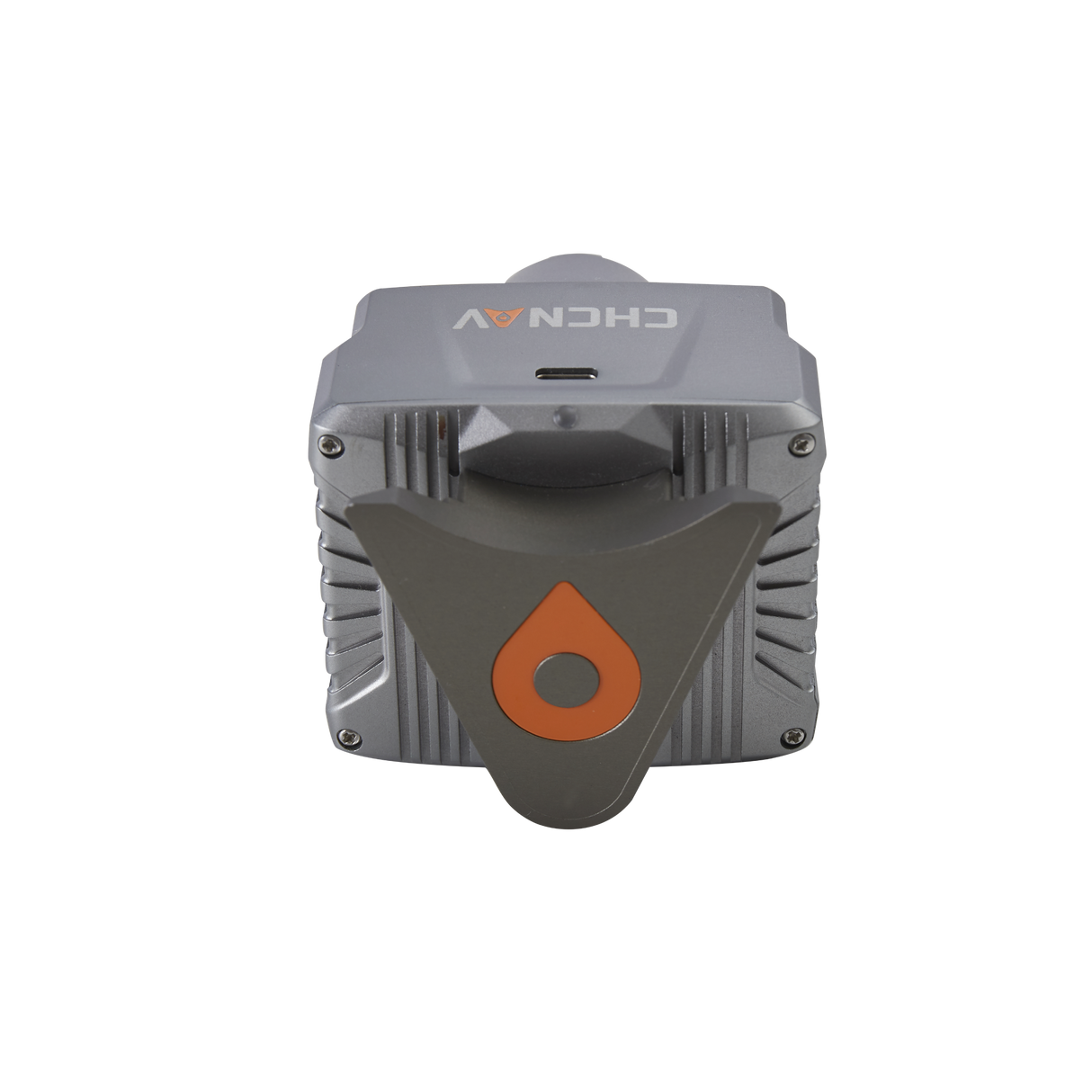

CHCNAV C5 aerial orthographic camera
Orthophotos and colour for LiDAR

Big sensor, small payload

The C5 fits the CHCNAV X500, DJI M300/M350 RTK and other rotor and fixed-wing UAVs through the Alphaport quick-release interface, which converts to a DJI Skyport. It can also be mounted directly on AlphaUni 20 LiDAR for true-colour point clouds. CoPre handles copy, aerotriangulation and DOM generation.

45 MP8184 × 5460 px
36 × 24mm full-frame sensor
35 mmlow-distortion lens
290 g75 × 63.5 × 102.5 mm
1 sminimum interval
256 GBinternal, 80 Mb/s
Key features

Why choose the C5

45

High-resolution imaging

45 MP full-frame sensor for detailed, accurate orthophotos.

290

Compact and lightweight

Only 290 g – longer flights and easy integration.

UAV

Wide UAV compatibility

X500, DJI M300/M350 RTK and other rotor and fixed-wing drones.

A

Quick-release Alphaport

Power and data in one connector; converts to DJI Skyport.

USB

Efficient data transfer

256 GB internal memory, up to 80 Mb/s over USB-C.

LiDAR

LiDAR-ready

Mount on AlphaUni LiDAR to colourise point clouds.

High-resolution imaging

Full-frame detail for survey-grade orthophotos

The 45 MP, 36 × 24 mm sensor with 4.4 µm pixels captures crisp images over a 54.3° × 37.8° field of view. A low-distortion aerial survey lens and optimized sharpness improve aerotriangulation – CHCNAV reports up to a 10% higher AT pass rate with its connected hardware and software.

8184 × 5460 pxF5.6, 1/50–1/2000 sISO 100–3200

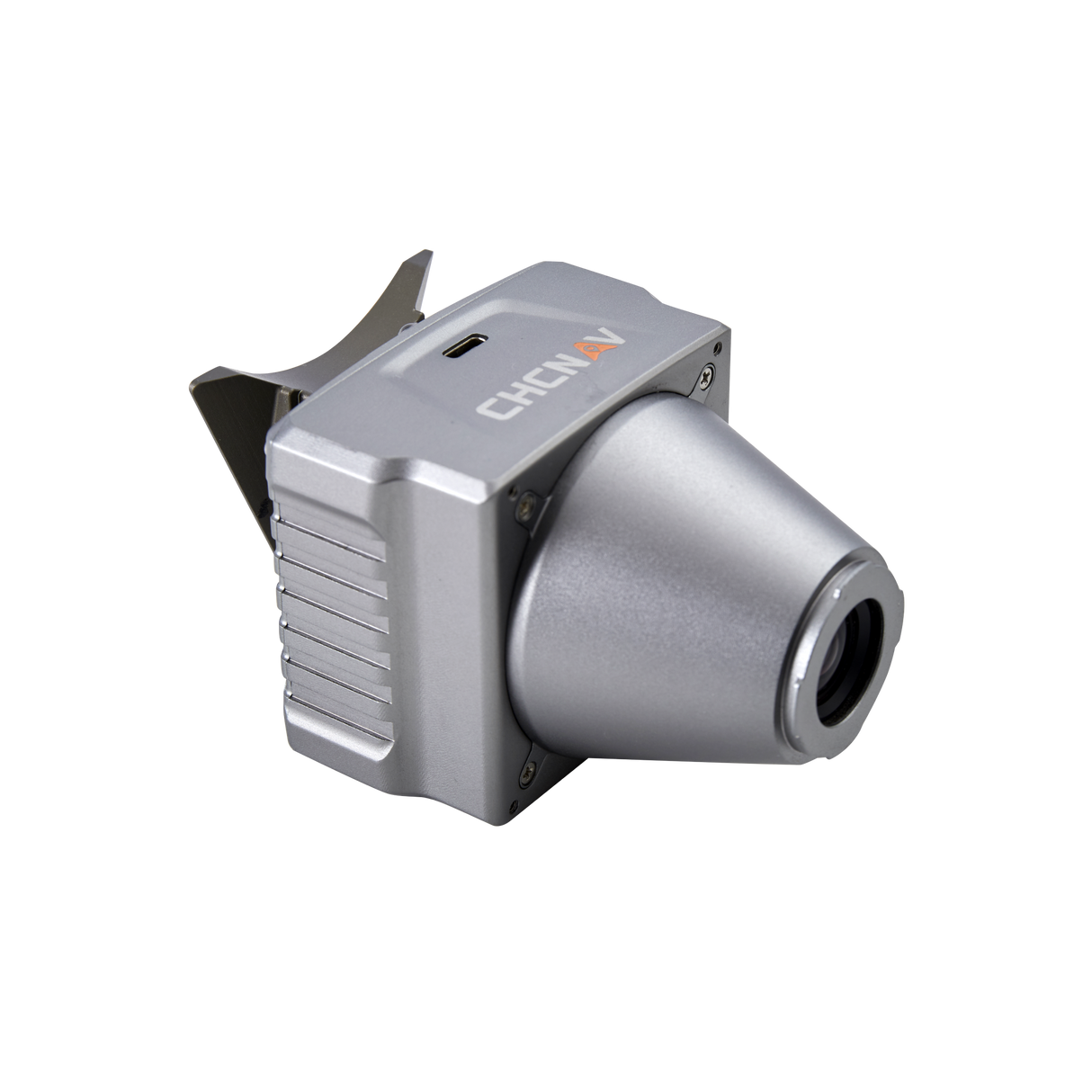

CHCNAV C5 high-resolution imaging

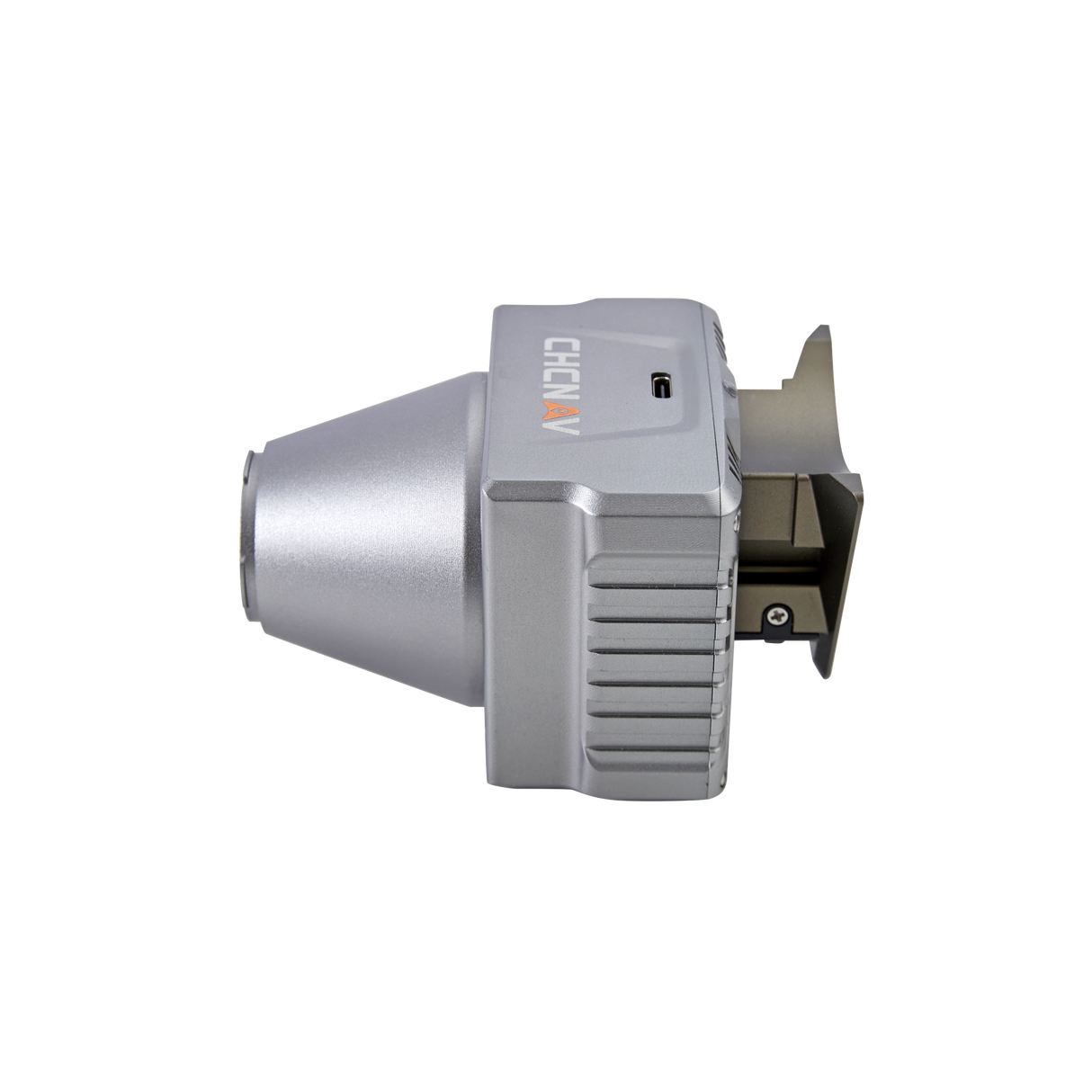

CHCNAV C5 compact and lightweight design
Compact and lightweight

290 grams – more flight, more area

At 290 g and 75 × 63.5 × 102.5 mm, the C5 leaves more payload and battery for flying. It suits small multirotors as well as the long-endurance fixed-wing VTOLs used for large-area mapping.

Wide UAV compatibility

Alphaport quick-release, Skyport ready

The Alphaport interface mounts and releases the camera without tools and carries power and data in one connector, so wiring stays simple and secure in rough weather. Convert it to a DJI Skyport for M300/M350 RTK drones, or fly it on the CHCNAV X500.

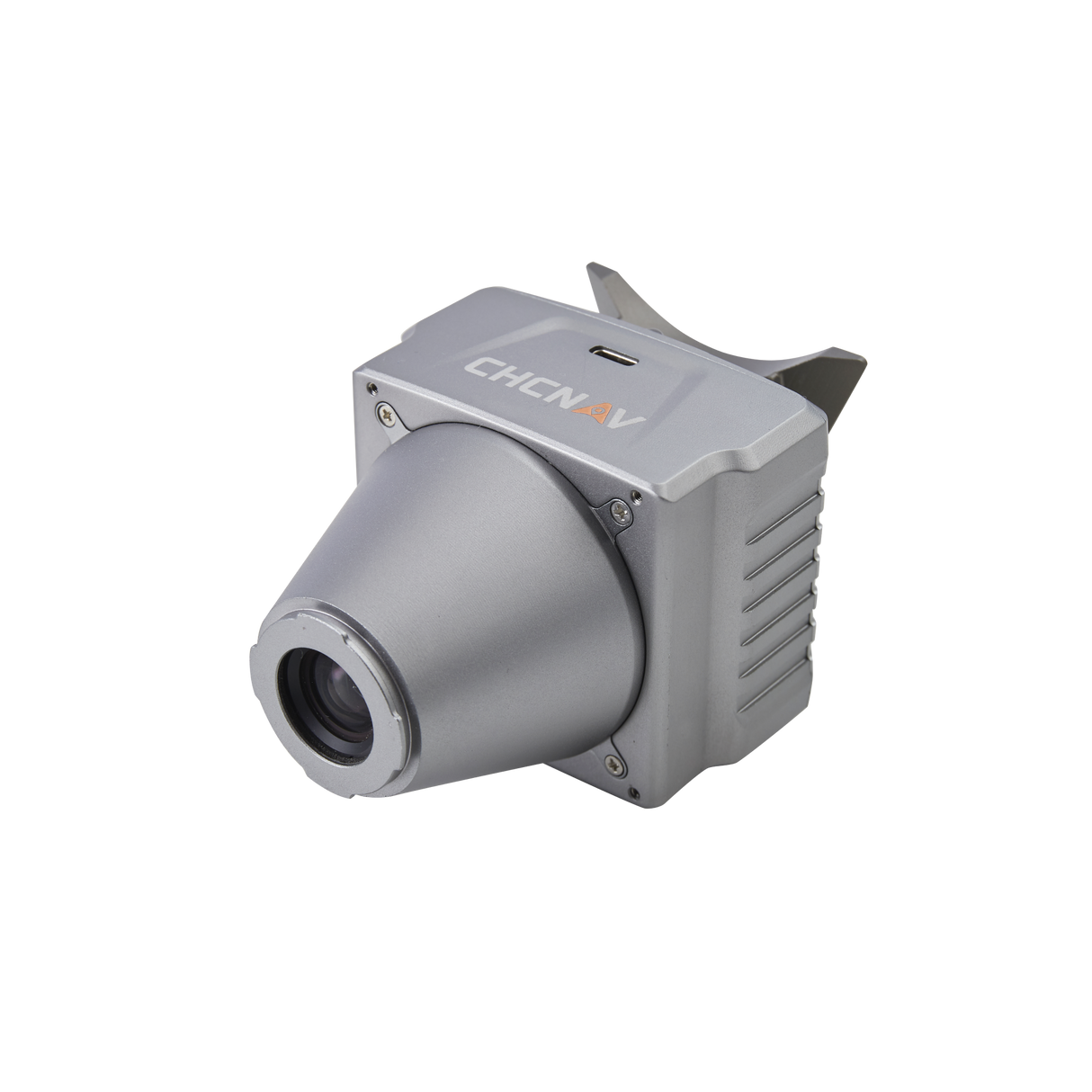

CHCNAV C5 UAV compatibility
CHCNAV C5 data transfer
Efficient data transfer

256 GB on board, USB-C download

Images are stored on 256 GB of internal memory and copied over USB-C at up to 80 Mb/s. CoPre takes them from copy through aerotriangulation to DOM, and the same software processes CHCNAV LiDAR from the same flight.

CHCNAV C5 aerial orthographic camera system
Which camera?

Compare CHCNAV aerial mapping cameras

Two full-frame nadir cameras and a five-lens oblique system – pick by deliverable, drone and workflow.

C5C504C30
TypeOrthographic (nadir)Orthographic on 3-axis gimbalOblique, 5 lenses
Resolution45 MP full frame45 MP full frame130 MP (5 × 26 MP)
Sensor36 × 24 mm, 4.4 µm36 × 24 mm, 4.4 µm23.5 × 15.7 mm, 3.76 µm
Lens35 mm, 54.3° × 37.8°40 mm (56 mm option)25 mm nadir / 35 mm oblique at 45°
Weight290 g280 g (650 g with gimbal)605 g
Storage256 GB internal, 80 Mb/s512 GB640 GB plug-in module, 300 Mb/s
MountAlphaport / DJI Skyport, on AlphaUni LiDARCHCNAV X500 gimbal interfaceAlphaport / DJI Skyport, on AlphaUni LiDAR
Best forOrthophotos, colour for LiDARX500 2D/3D mapping, high-rise3D city models, facades
C5C504C30
Applications

Where the C5 works

Aerial orthophotography

Aerial orthophotography

Survey-grade orthomosaics and DSMs.

Cadastral mapping

Cadastral mapping

Sharp boundaries and features.

Bridges and waterways

Bridges and waterways

Infrastructure and corridor mapping.

Real estate and development

Real estate and development

Up-to-date base maps for planning.

Datasheet

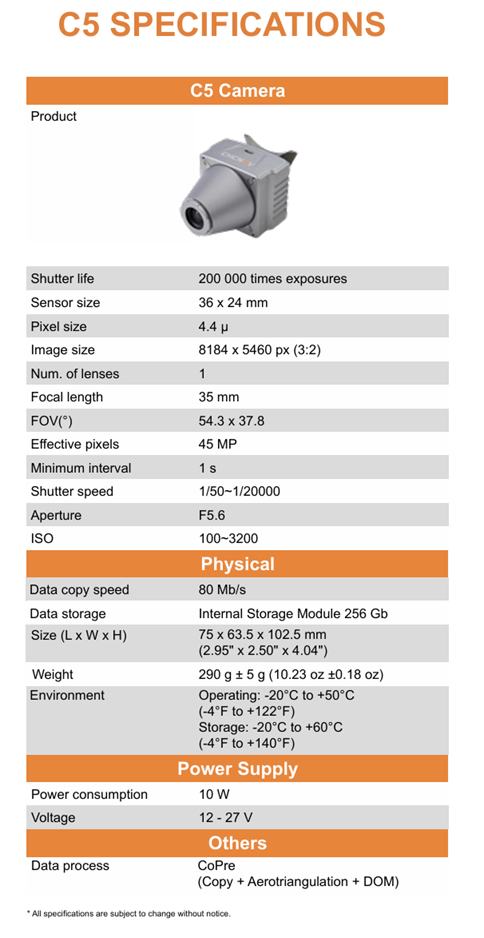

CHCNAV C5 technical specifications

SensorFull frame, 36 × 24 mm
Pixel size4.4 µm
Image size8184 × 5460 px (3:2), 45 MP
Lens1 × 35 mm, FOV 54.3° × 37.8°
ApertureF5.6
Shutter speed1/50 – 1/2000 s
ISO100 – 3200
Minimum interval1 s
Shutter life200,000 exposures
Specifications from the CHCNAV datasheet and subject to change without notice. Coverage and flight figures were measured by CHCNAV under test conditions; results vary with platform, altitude, overlap and weather.
Questions

C5 FAQ

What is the C5 used for?

Nadir (orthographic) photogrammetry – orthomosaics, DSMs and base maps – and adding true colour to LiDAR point clouds.

Which drones does it fit?

The CHCNAV X500, DJI M300/M350 RTK via Skyport, and other fixed-wing and rotor UAVs through the Alphaport interface.

Can I mount it on a LiDAR?

Yes – it mounts directly on CHCNAV AlphaUni series LiDAR such as the AlphaUni 20 to colourise point clouds from the same flight.

C5 or C30?

Choose the C5 for orthophotos and the lightest payload; choose the C30 for oblique imagery and 3D city models.

C5 or C504?

Both have 45 MP full-frame sensors. The C504 comes on a 3-axis gimbal made for the X500, with 512 GB storage and IP53.
