CHCNAV AlphaAir 6 UAV LiDAR System


Regular price $21,900.00

The AlphaAir 6 is built for efficient aerial surveys over complex, high-relief terrain. Next-generation prism scanning and a high-grade INS give up to 2,100 m range and typical flights from 100 to 600 m AGL.

Its 4/3″ camera shoots 25 MP and can switch to 100 MP. Need wider photo coverage? See the dual-camera AlphaAir 6D.

Key features

  • Upgraded laser + INS – High-grade IMU with 0.3°/h bias instability for reliable accuracy.
  • Higher density – 5th-gen waveform processing doubles point density.
  • Greater penetration – Up to 16 returns, 7 zones, smaller spot.
  • 100 MP imaging – 4/3″ CMOS, 25 MP switchable to 100 MP, 74° FOV.
  • Ultra-light – 1.35 kg for up to 50 minutes of flight.
  • Open platform – Open interfaces for multirotor and fixed-wing UAVs.

At a glance

  • 2,100 m range @80%
  • 100–600 m typical AGL
  • 2M pts/s, 400 lines/s
  • 25 / 100 MP 4/3″ camera
  • 15 km² per flight on X500
  • 1.35 kg IP64

Order the AA6 with UAV integration, training and processing support. Contact LATNET for pricing, training and support.



Technical Specifications

AlphaAir 6 UAV LiDAR System Specifications

Flagship airborne LiDAR · single camera

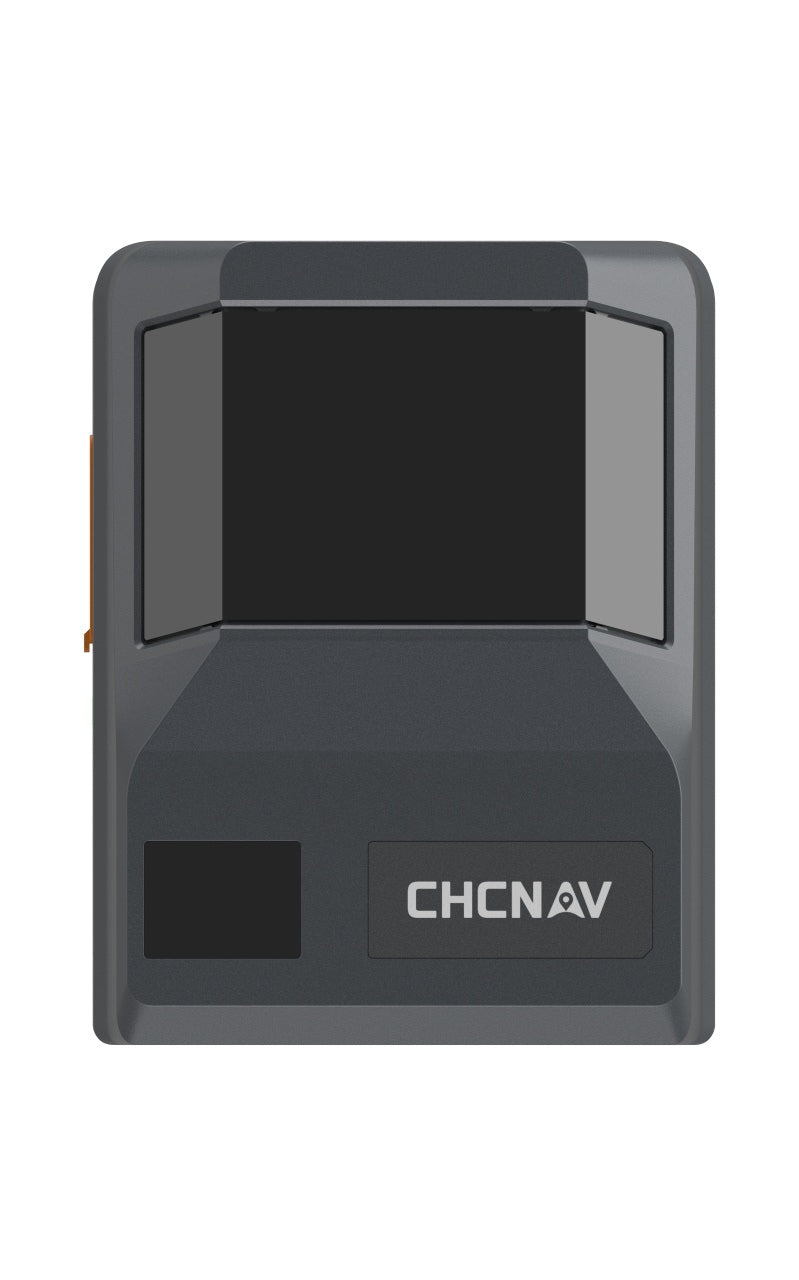

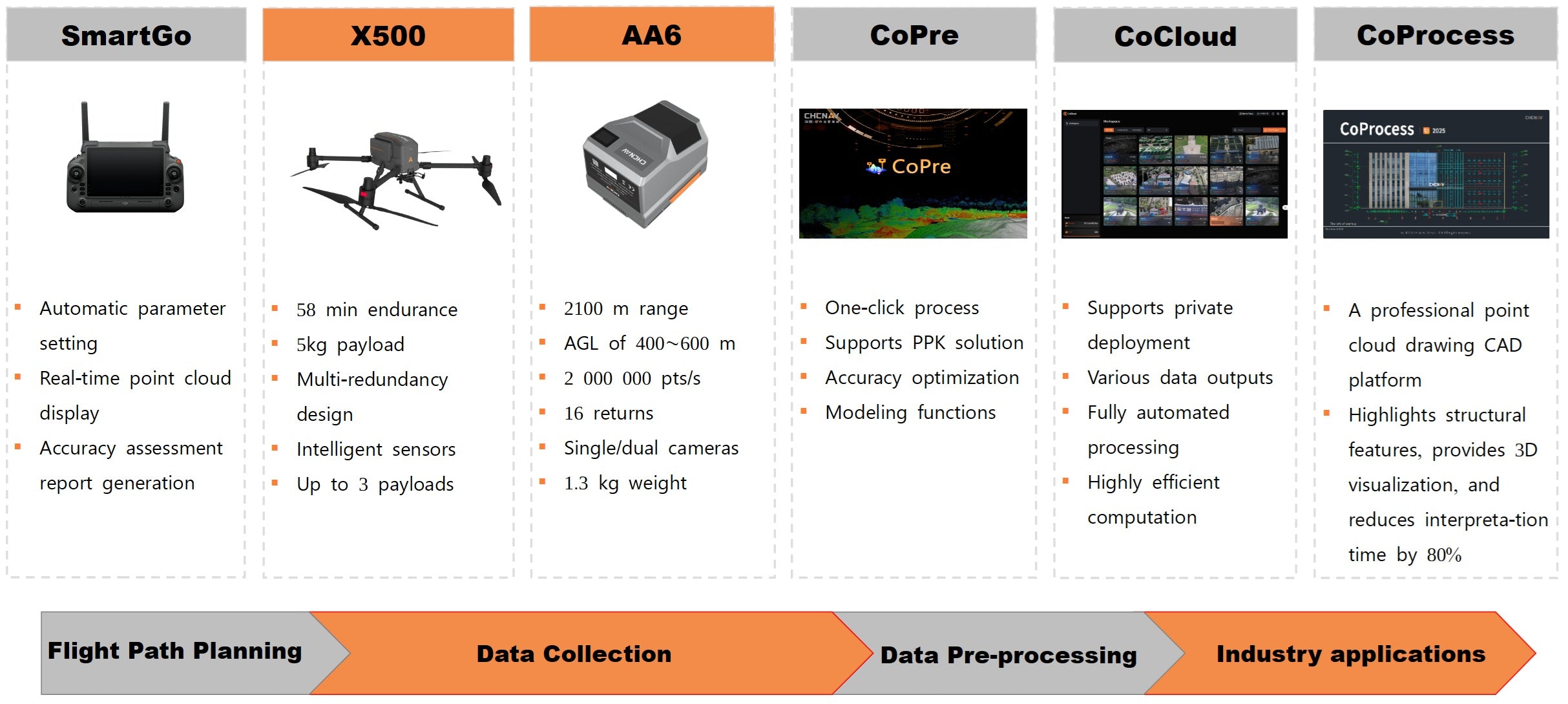

CHCNAV AlphaAir 6 – 2,100 m LiDAR in a 1.35 kg payload

The AlphaAir 6 is built for efficient aerial surveys over complex, high-relief terrain. Next-generation prism scanning and a high-grade INS give up to 2,100 m range and typical flights from 100 to 600 m AGL.

Its 4/3″ camera shoots 25 MP and can switch to 100 MP. Need wider photo coverage? See the dual-camera AlphaAir 6D.

2,100 m range2M pts/s · 16 returns1.35 kg · 50 min

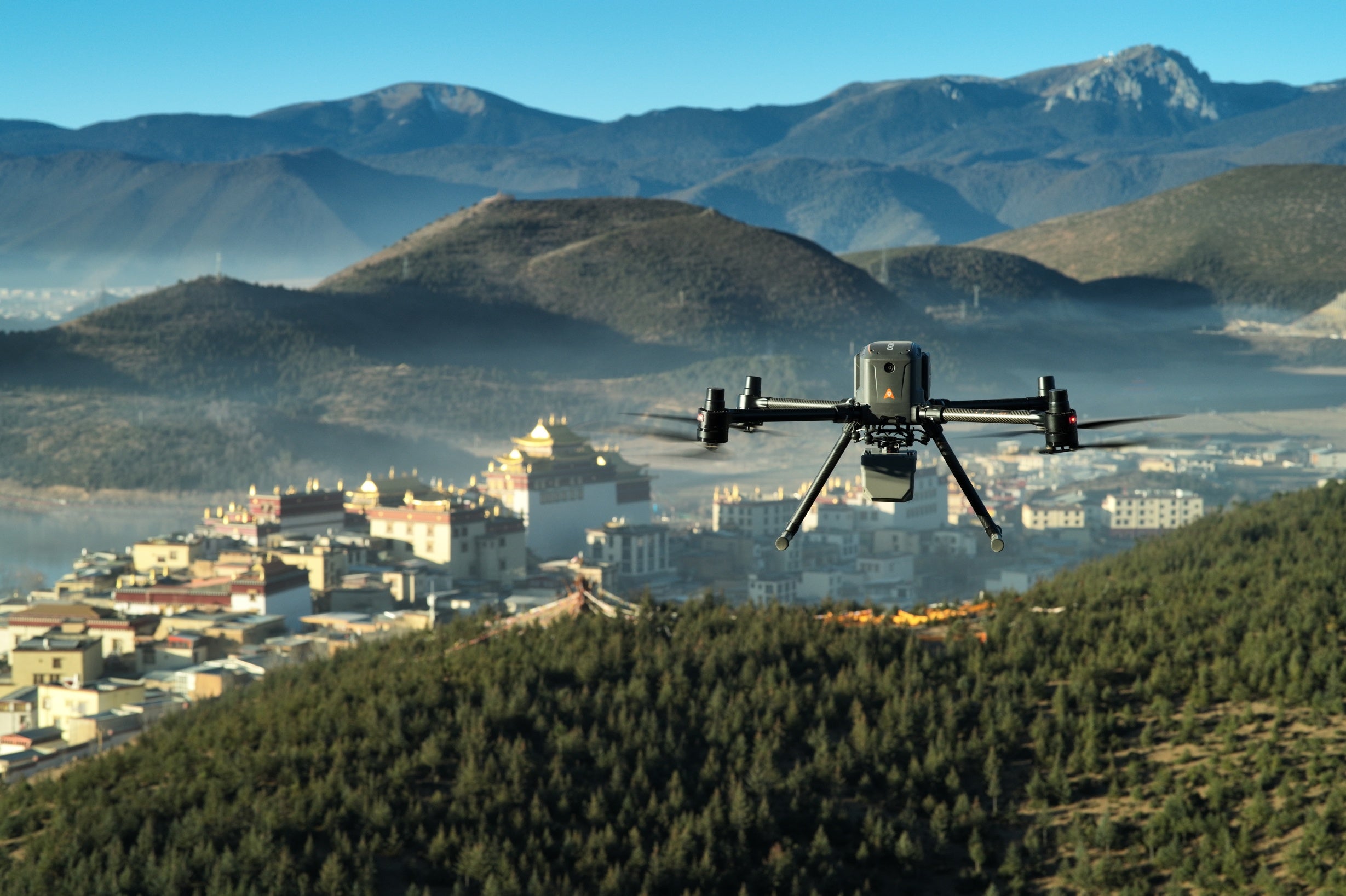

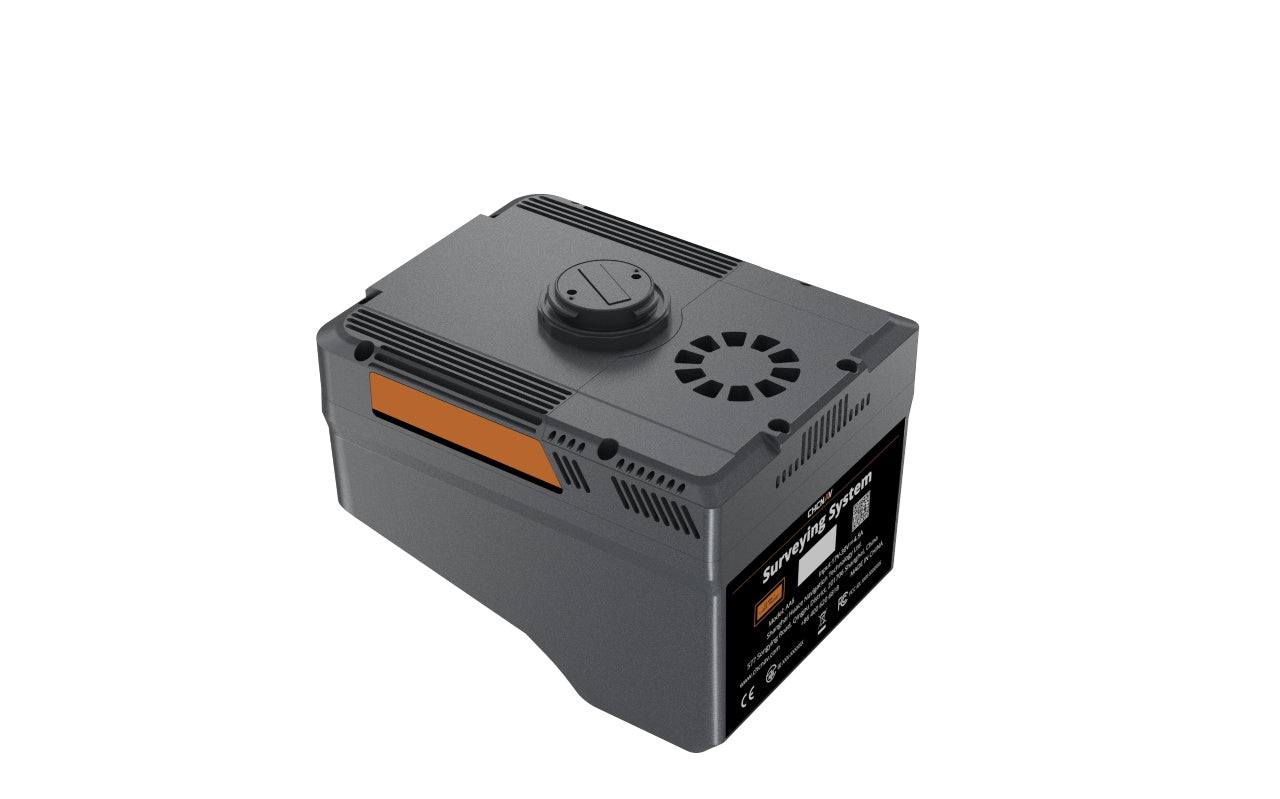

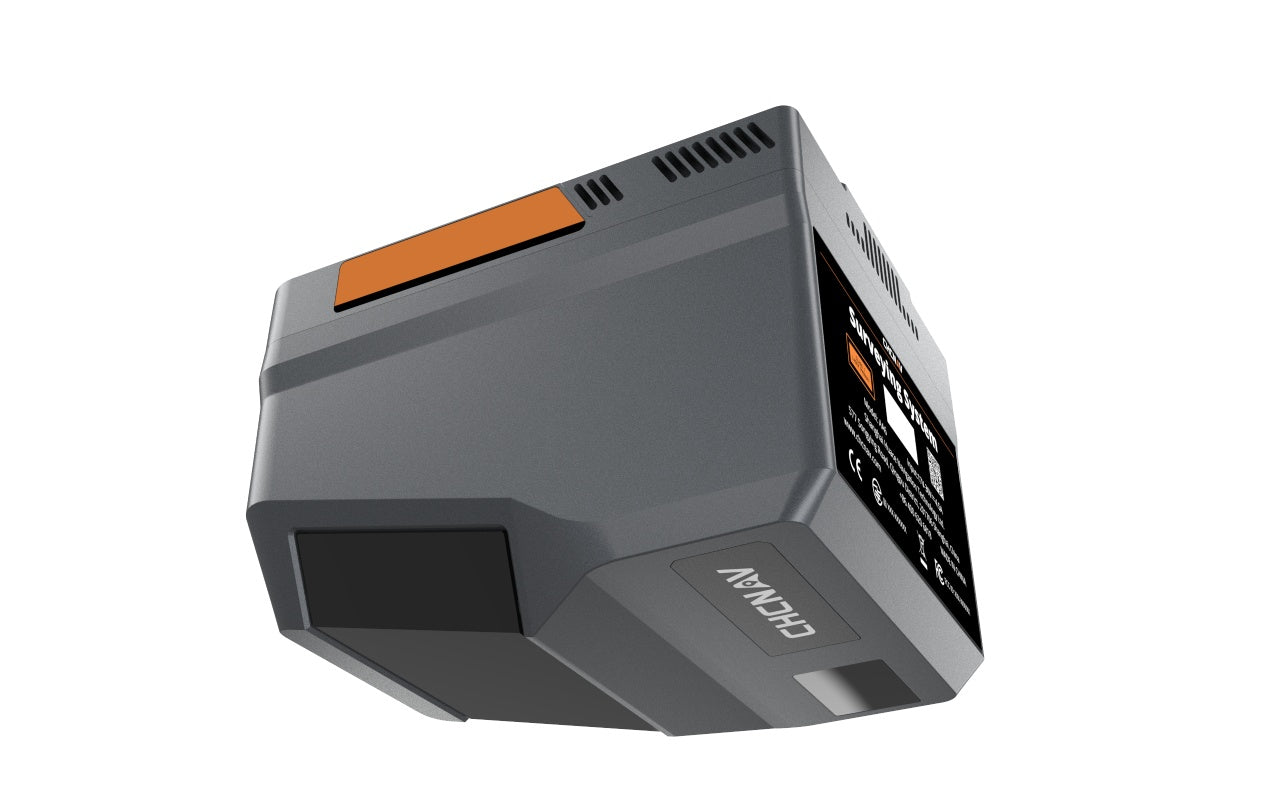

CHCNAV AlphaAir 6 airborne LiDAR system
5th-generation waveform technology

Double the density, greater penetration

Real-time waveform processing with 7 multi-period zones doubles point-cloud density over the previous generation – 220 pts/m² at 120 m AGL with 1M pts/s, or 13 pts/m² at 400 m with 200k pts/s. A higher-power, smaller laser spot penetrates vegetation better, and real-time point clouds are supported even at 2,000 kHz PRR. On a CHCNAV X500 it flies up to 50 minutes and covers up to 15 km² per mission.

2,100 mrange @80%
100–600 mtypical AGL
2Mpts/s, 400 lines/s
25 / 100 MP4/3″ camera
15 km²per flight on X500
1.35 kgIP64
Key features

Why the AA6 covers more ground

IMU

Upgraded laser + INS

High-grade IMU with 0.3°/h bias instability for reliable accuracy.

2x

Higher density

5th-gen waveform processing doubles point density.

16x

Greater penetration

Up to 16 returns, 7 zones, smaller spot.

100

100 MP imaging

4/3″ CMOS, 25 MP switchable to 100 MP, 74° FOV.

1.35

Ultra-light

1.35 kg for up to 50 minutes of flight.

Open

Open platform

Open interfaces for multirotor and fixed-wing UAVs.

Next-generation laser + high-grade IMU

Reliable accuracy at high altitude

An upgraded 1535 nm core laser reaches 2,100 m at 80% reflectivity and supports typical operating altitudes of 100–600 m AGL. The high-grade IMU (0.3°/h bias instability, 500 Hz) delivers 0.006° pitch/roll and 0.015° heading after post-processing.

  • Accuracy ±15 mm, precision 5 mm (1σ)
  • 90° FOV, up to 400 lines/s
  • Class 3R, 1535 nm

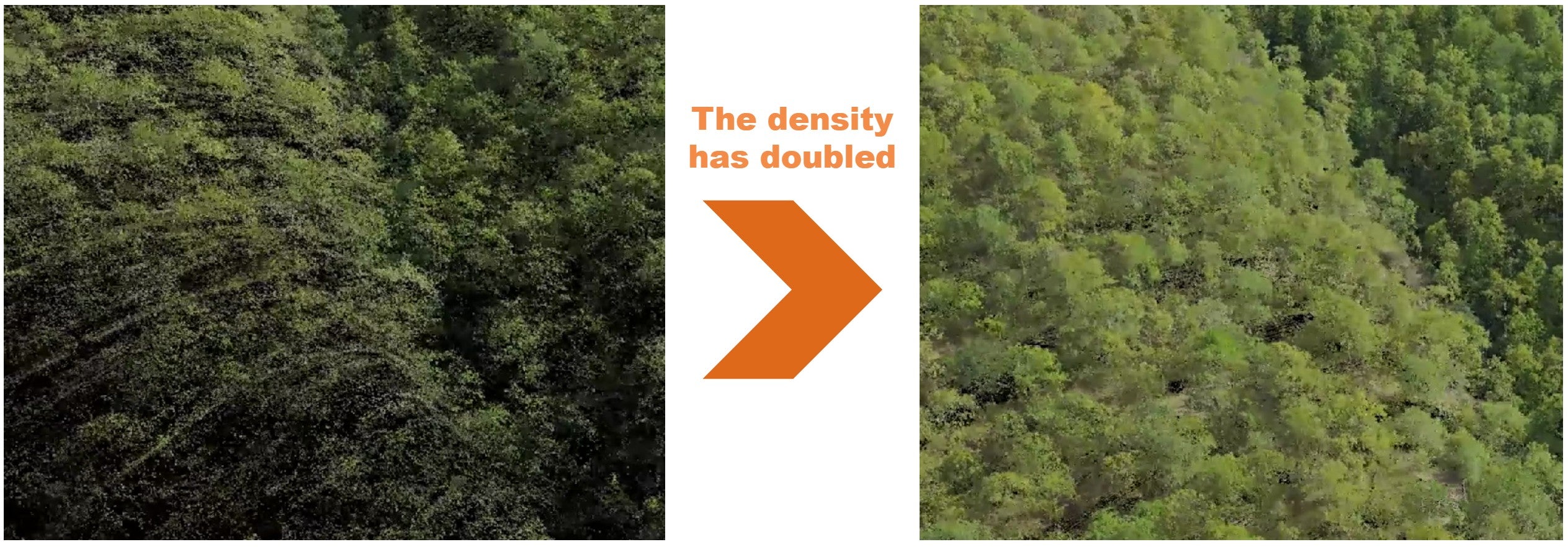

High point-cloud density

More points, more ground

5th-generation RWP real-time waveform processing and an innovative multi-period algorithm increase density by 100% and penetrate canopy better. Choose PRR from 100 kHz to 2 MHz to balance altitude against density.

220 pts/m² @120 m13 pts/m² @400 mUp to 16 returns
100 MP imaging

One camera, up to 100 MP

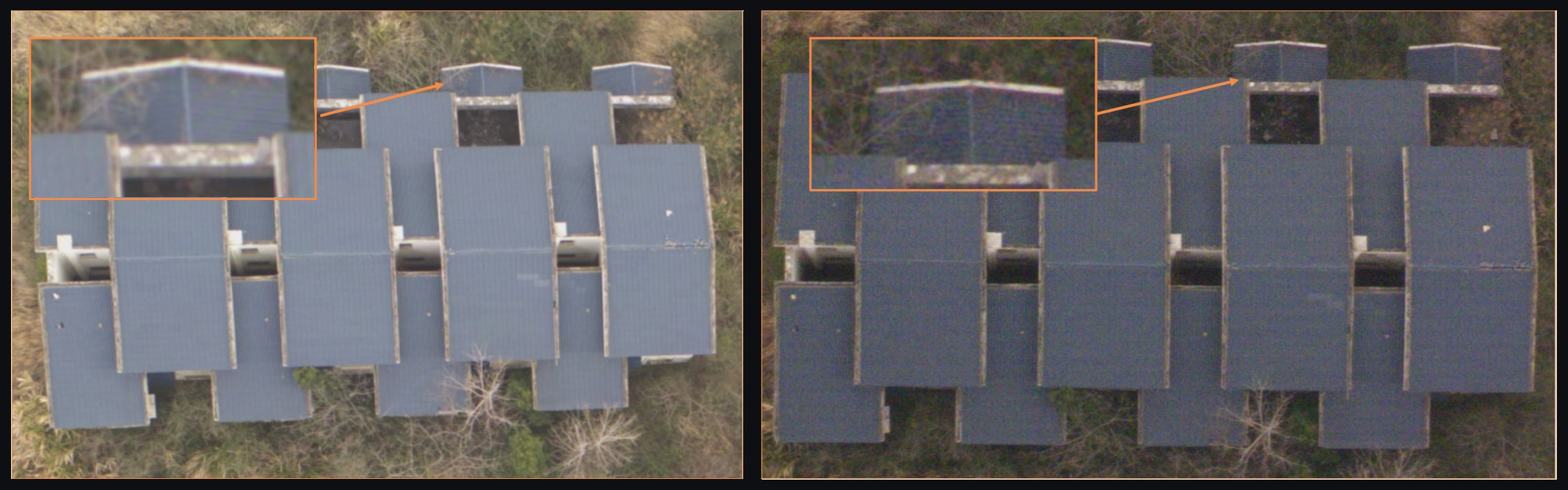

The AA6 camera uses a 4/3″ CMOS sensor with a 12 mm lens and a 74° field of view. Shoot 25 MP (6144 × 4096) at a 0.5 s interval for fast mapping, or switch to 100 MP (12288 × 8192) for maximum detail.

Light, open platform

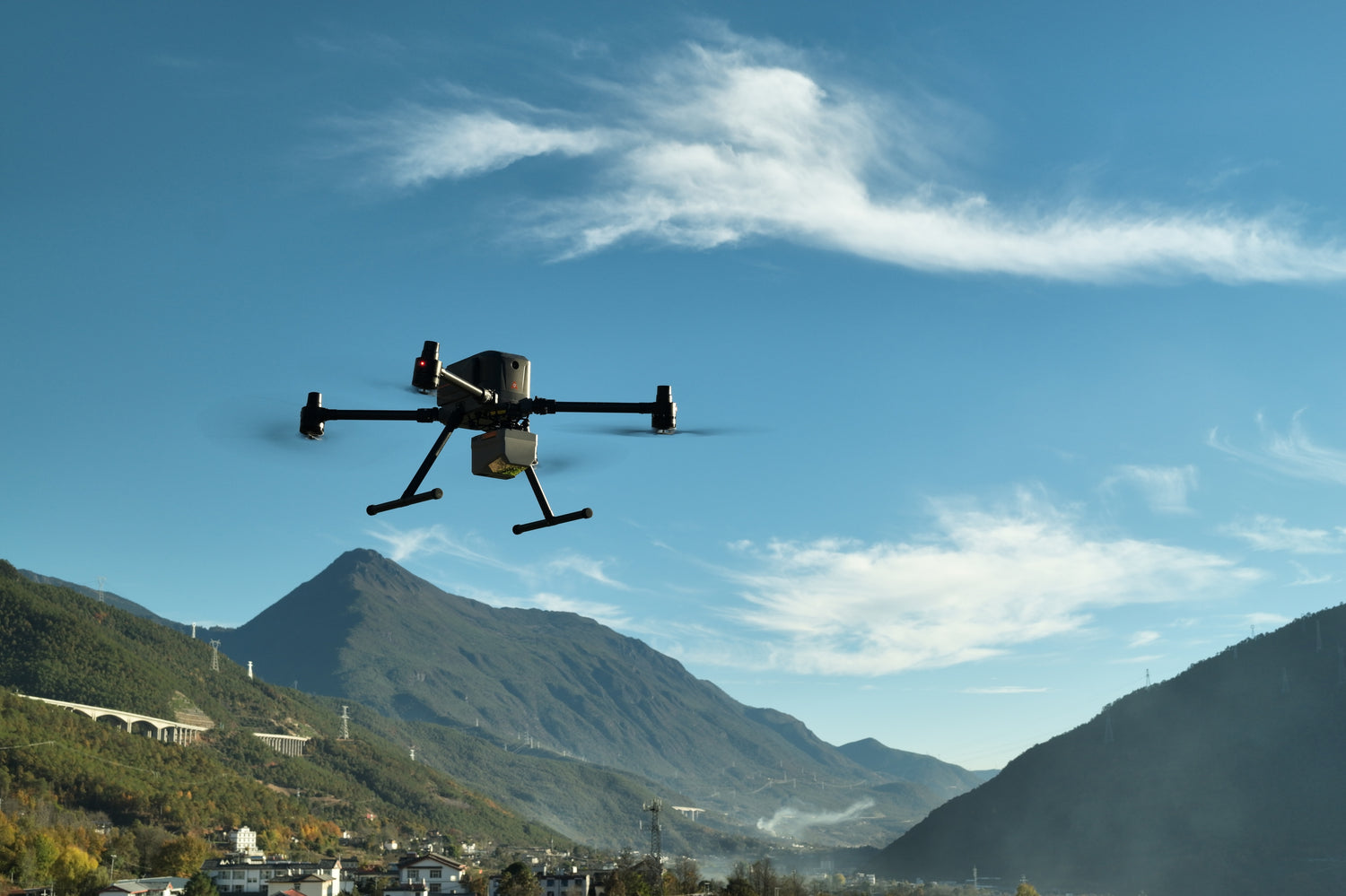

Up to 50 minutes and 15 km² per flight

At only 1.35 kg, the AA6 extends flight endurance – up to 50 minutes on the CHCNAV X500 and up to 15 km² per mission at 400 m AGL with 20% overlap. Open interface protocols integrate it with mainstream multirotor and fixed-wing UAVs, and 512 GB storage copies at 200 MB/s.

  • Up to 50 min on X500
  • 512 GB, 200 MB/s
  • Wi-Fi 2.4/5 GHz

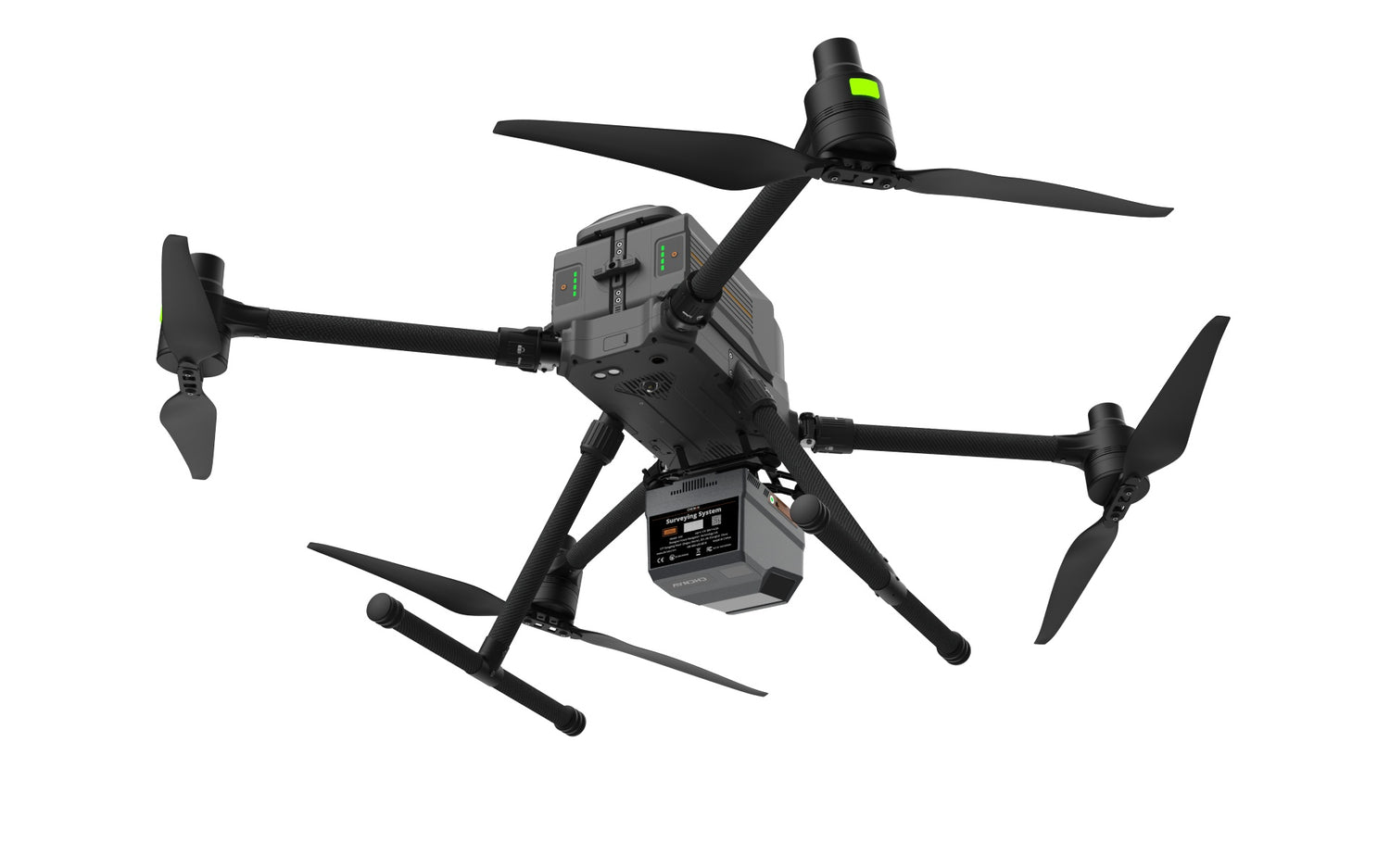

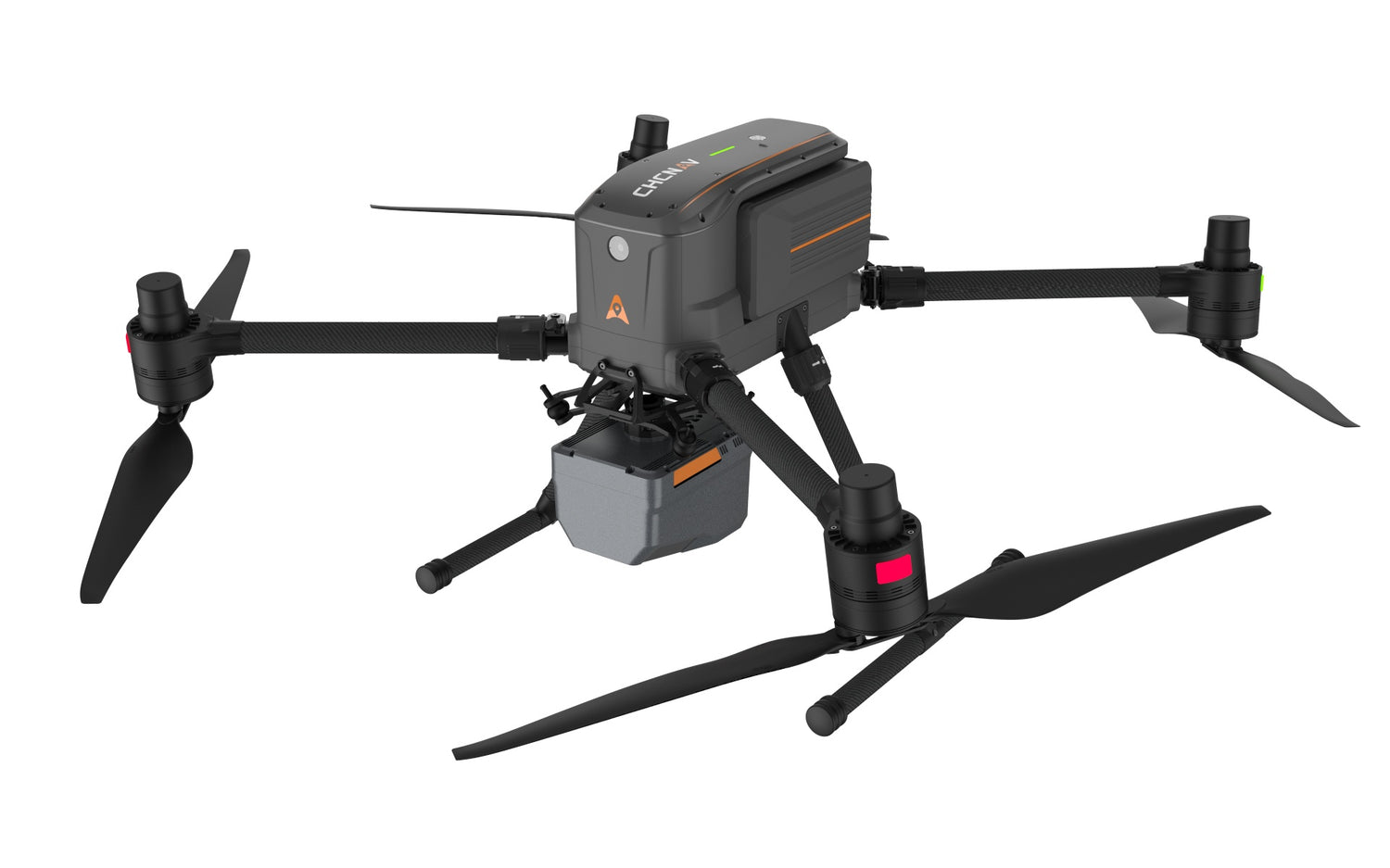

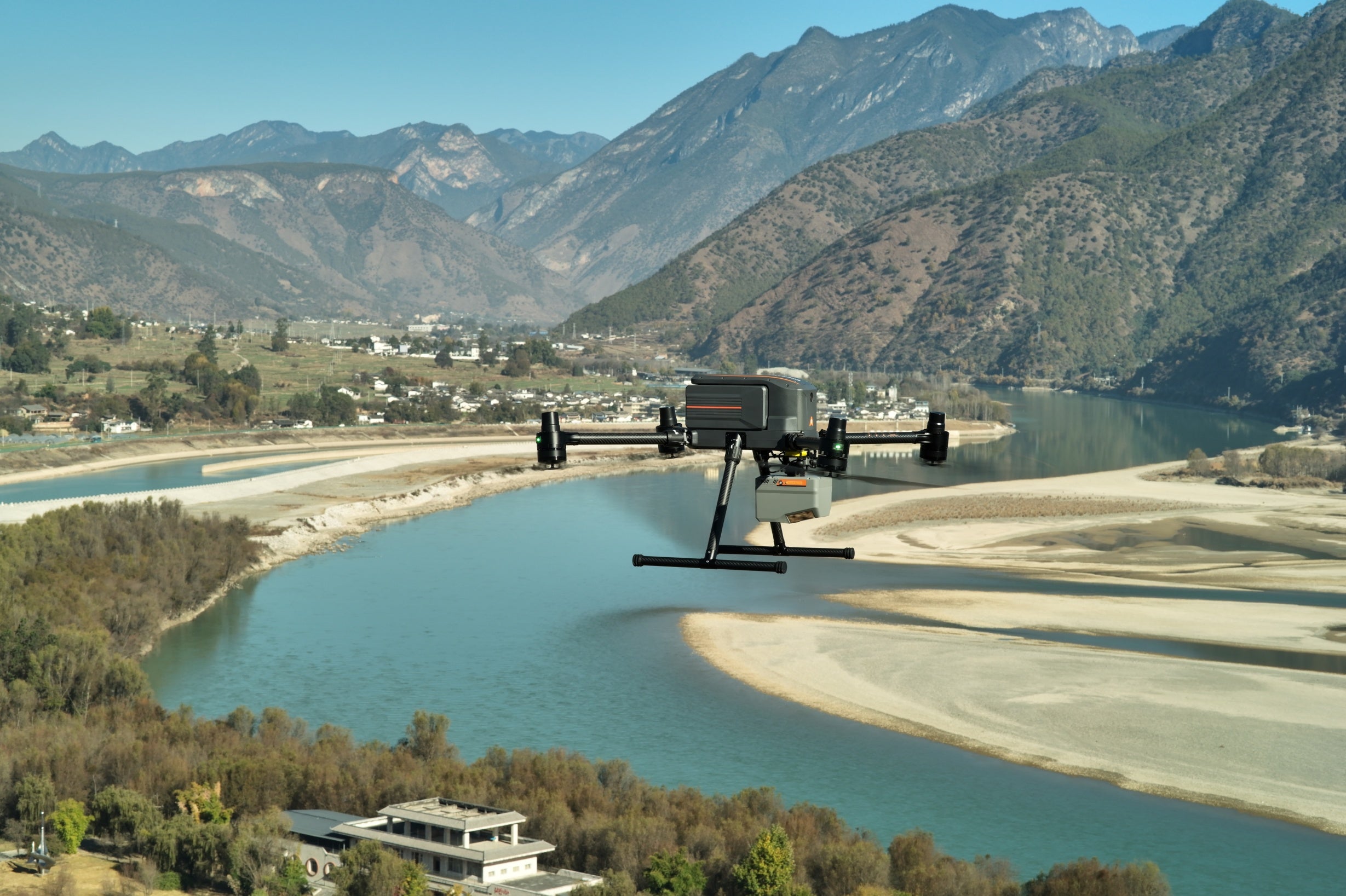

AlphaAir 6 river mapping on X500

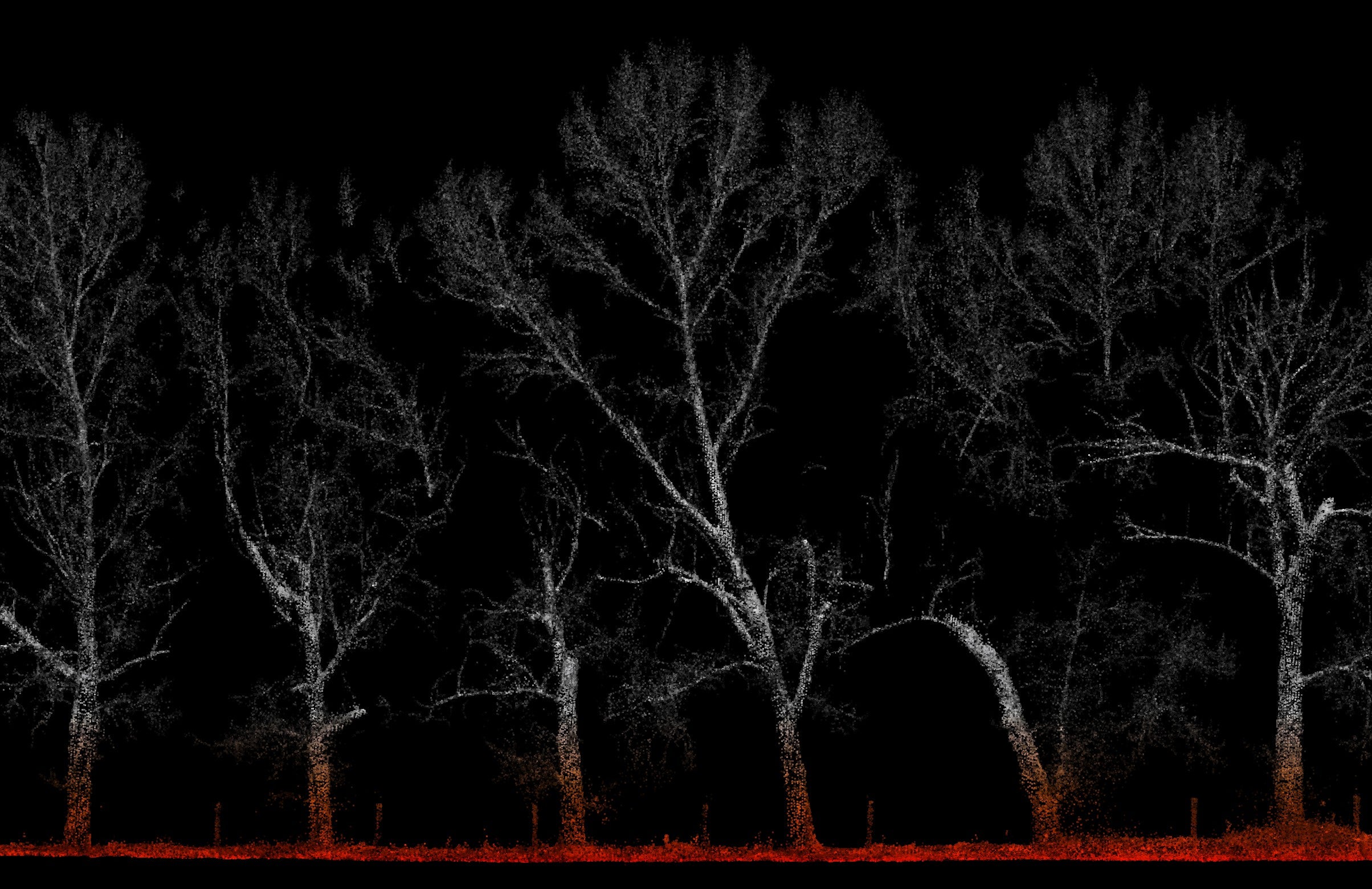

AlphaAir 6 forestry surveying

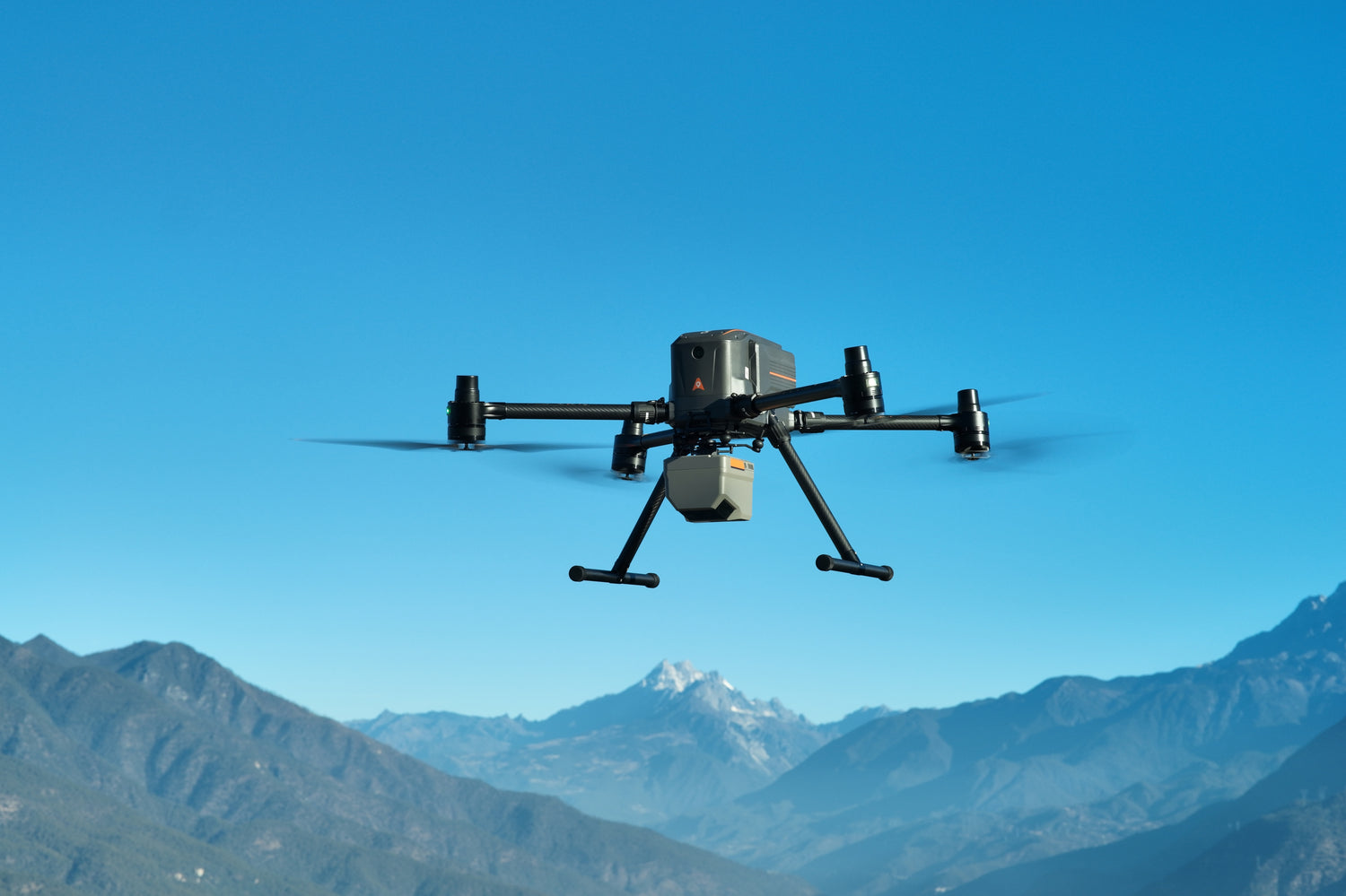

AlphaAir 6 on a manned aircraft platform
AA6 or AA6D?

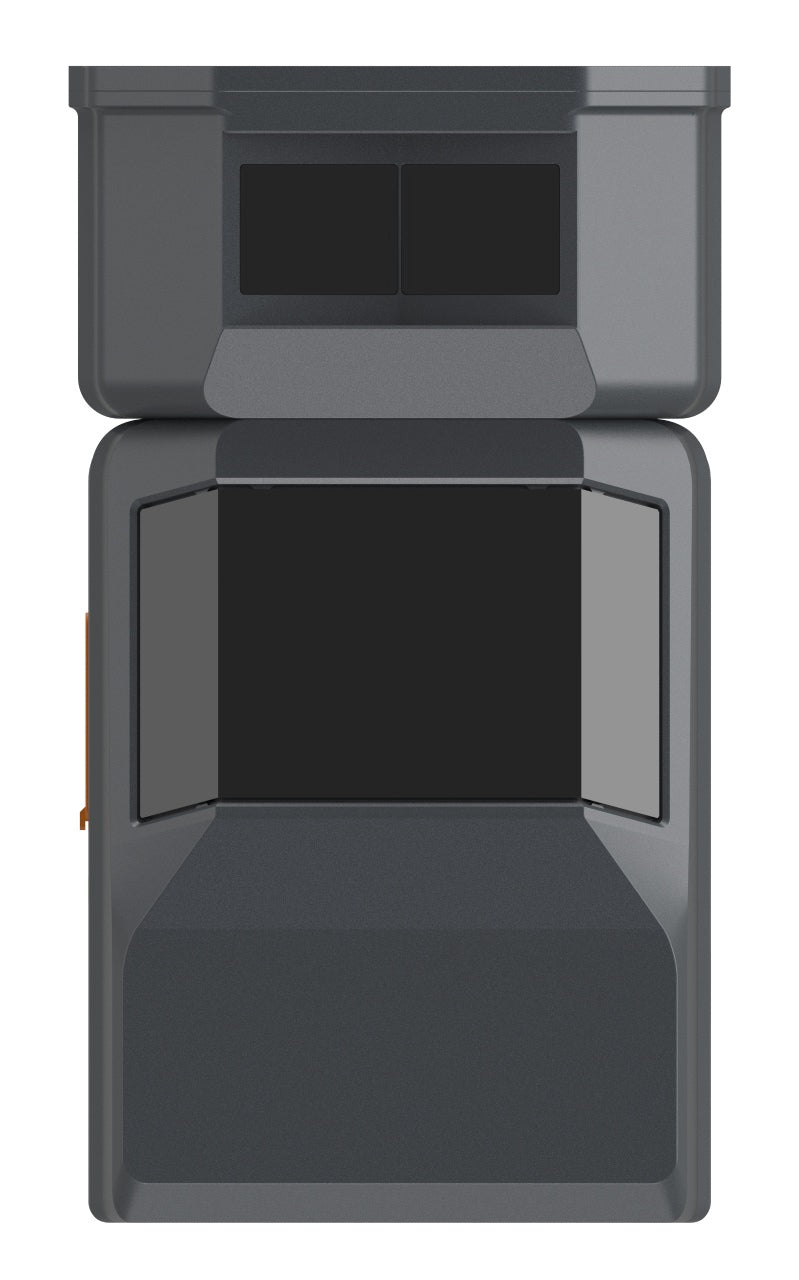

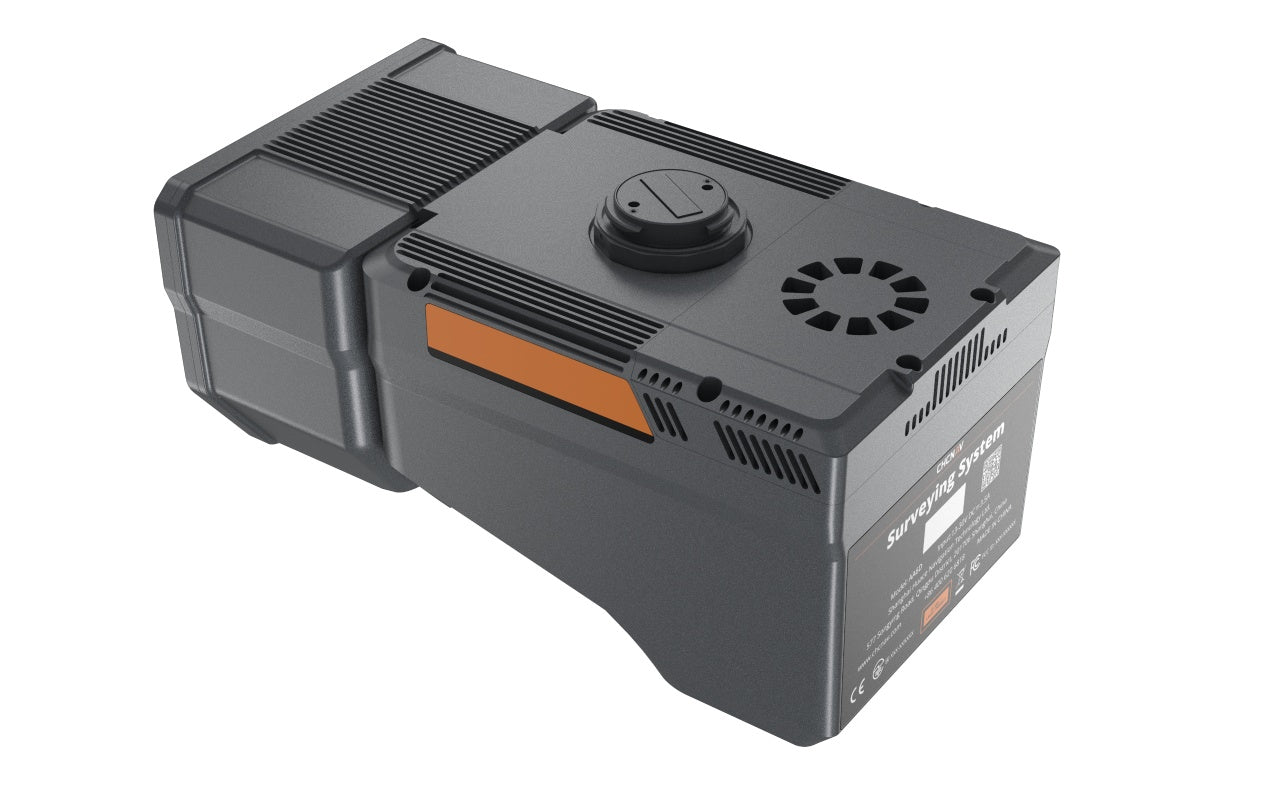

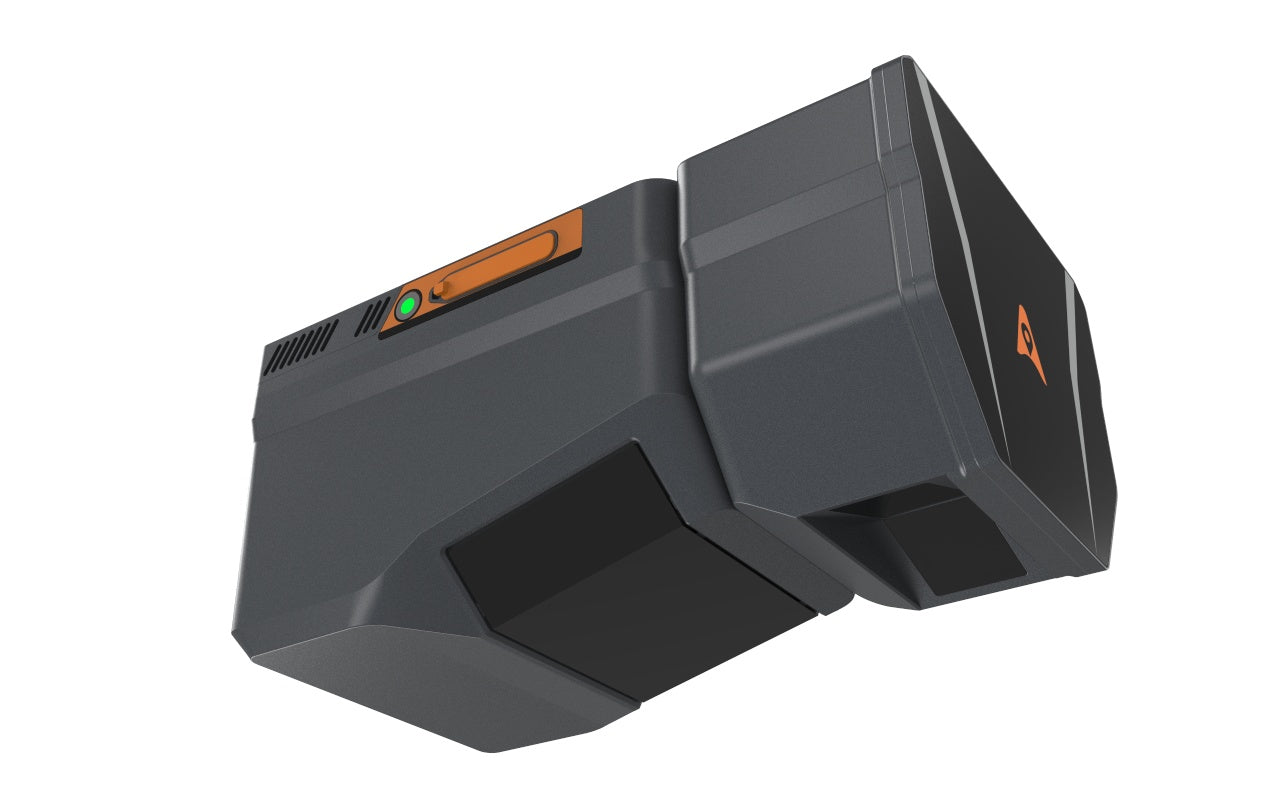

AlphaAir 6 vs AlphaAir 6D

Same laser, IMU and range. The difference is the camera.

AlphaAir 6AlphaAir 6D
Best forLiDAR first, high-res nadir photosLiDAR + large-area photogrammetry
Camera1 × 4/3″, 25 MP (up to 100 MP)2 × APS-C, 26 MP each
Photo FOV74°110° (only 20% side overlap)
Weight1.35 kg1.85 kg
Typical power40 W50 W
Photo efficiency—Up to 30% higher
AA6AA6D
Applications

Where the AA6 works best

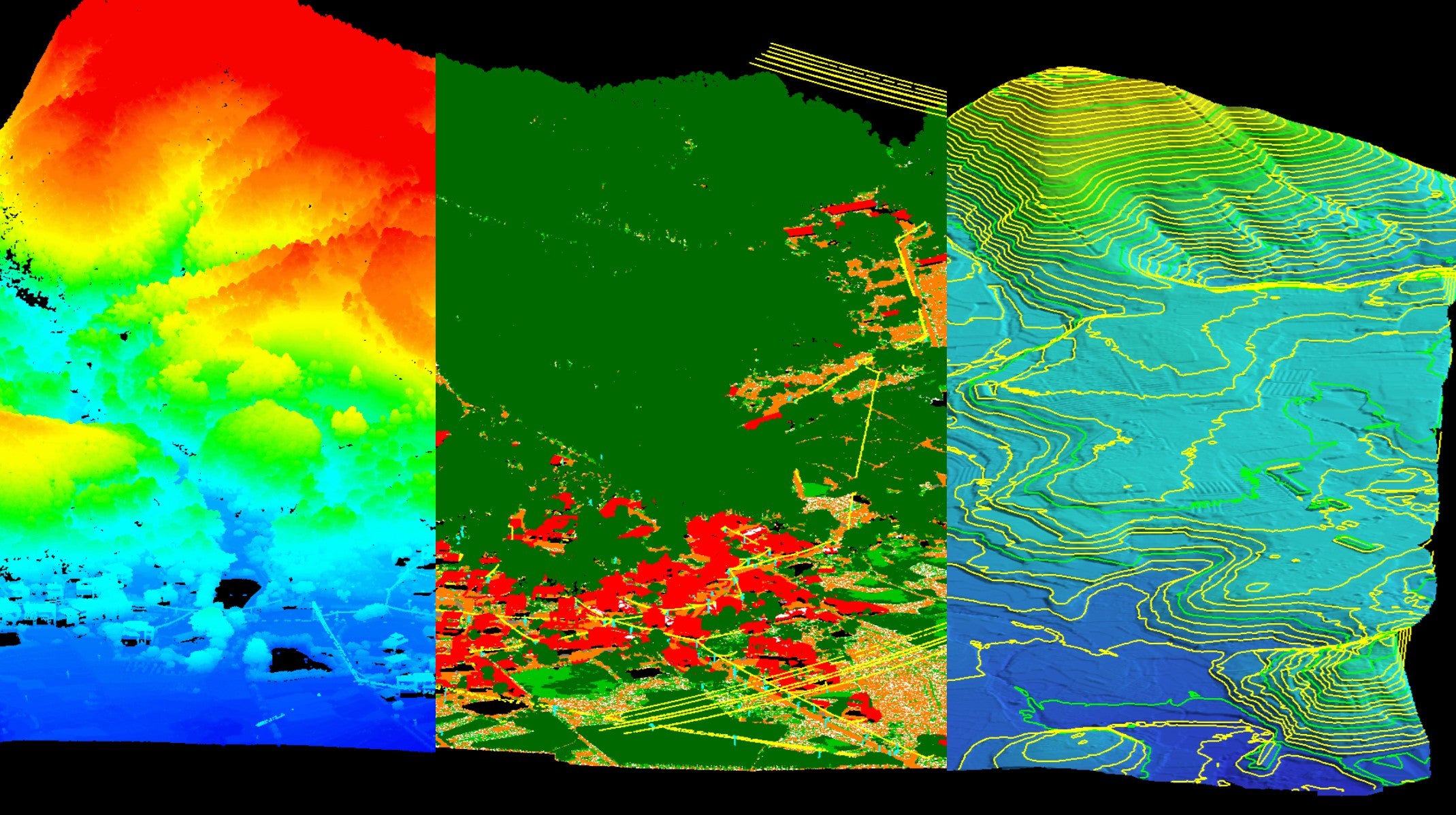

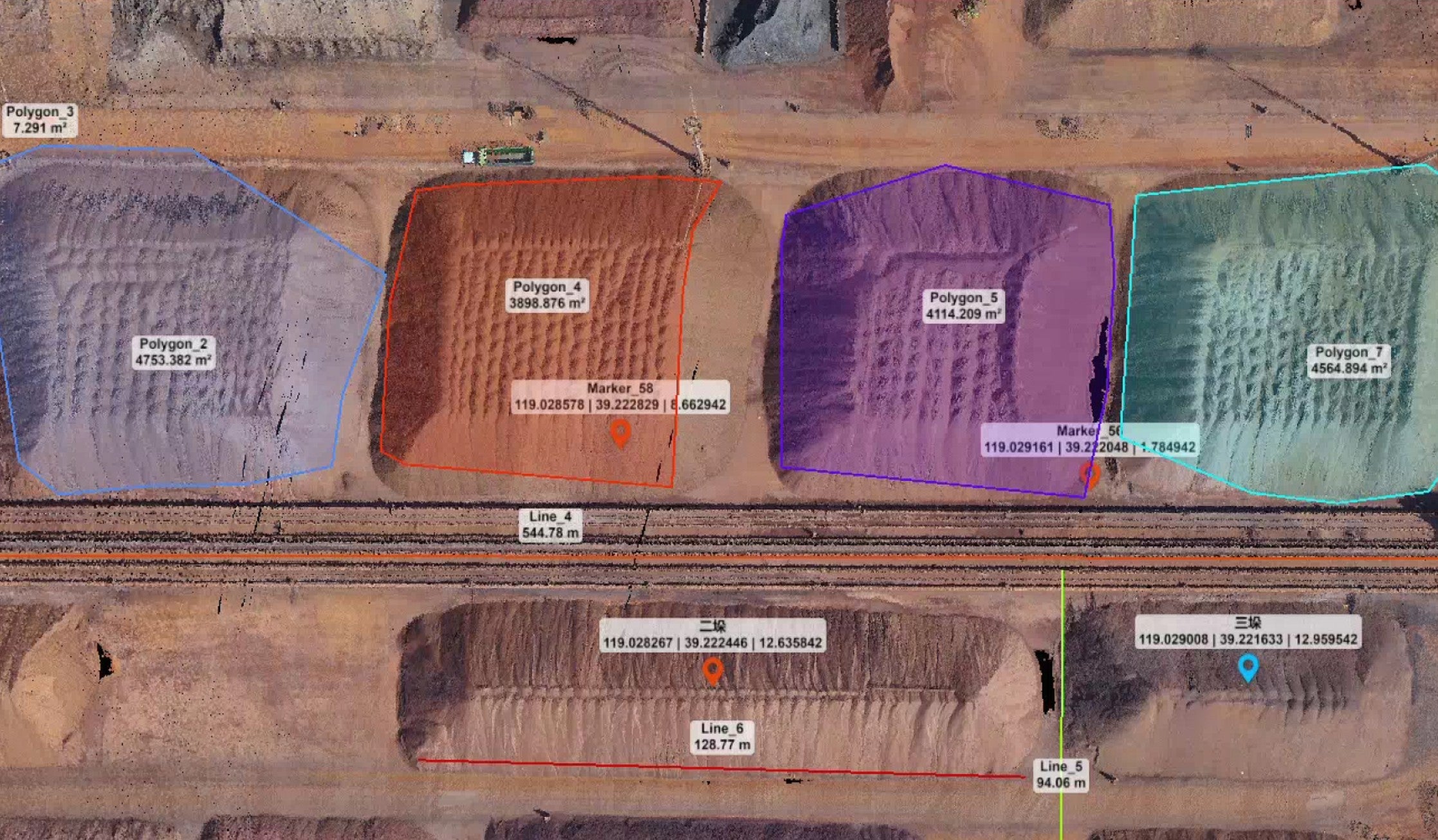

Land surveying

Land surveying

Large-area topography in high-relief terrain.

Forestry survey

Forestry survey

Ground and canopy under dense forest.

Road and highway survey

Road and highway survey

Long corridors in fewer flights.

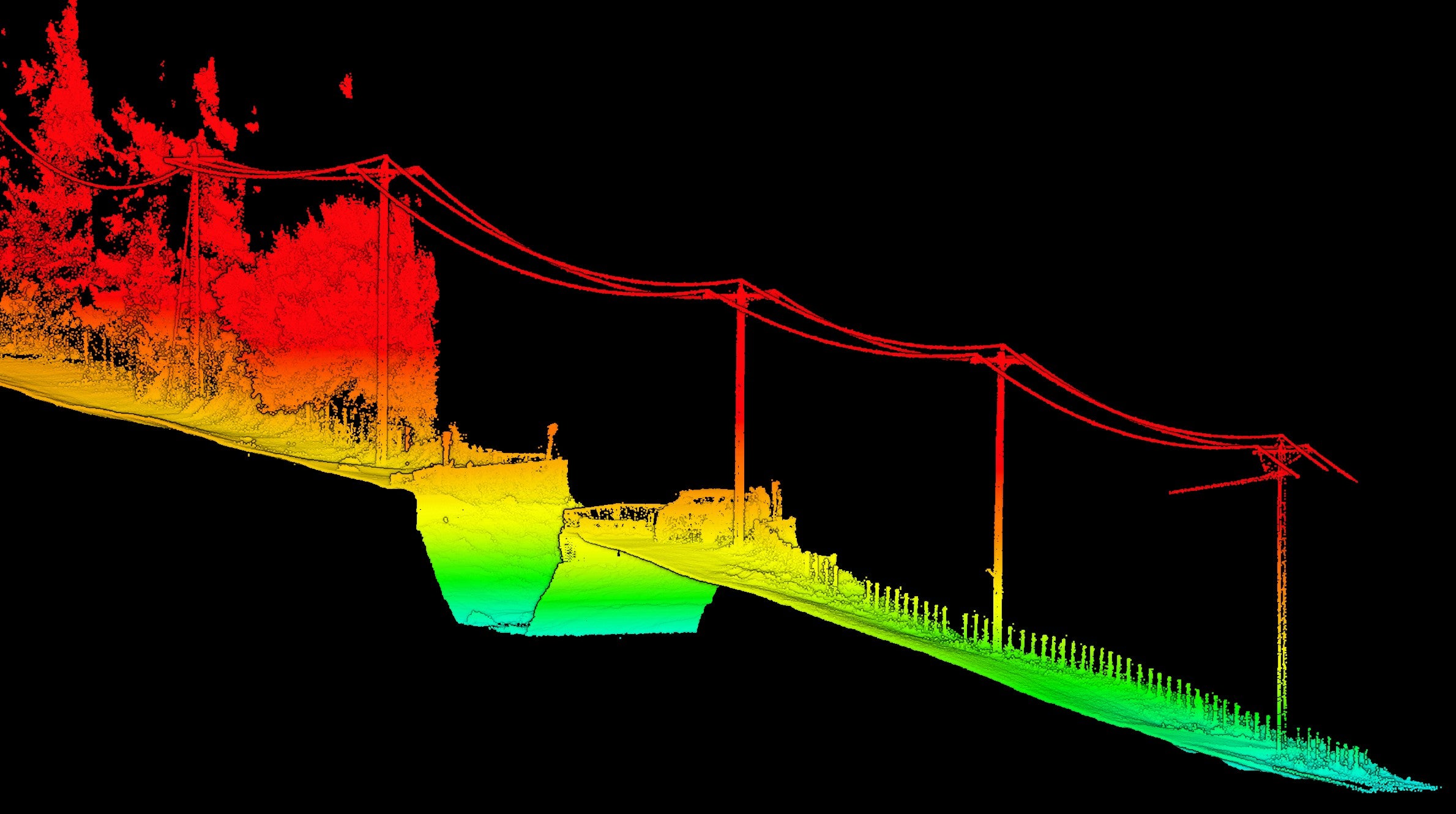

Power line inspection

Power line inspection

Conductors, towers and clearances.

Datasheet

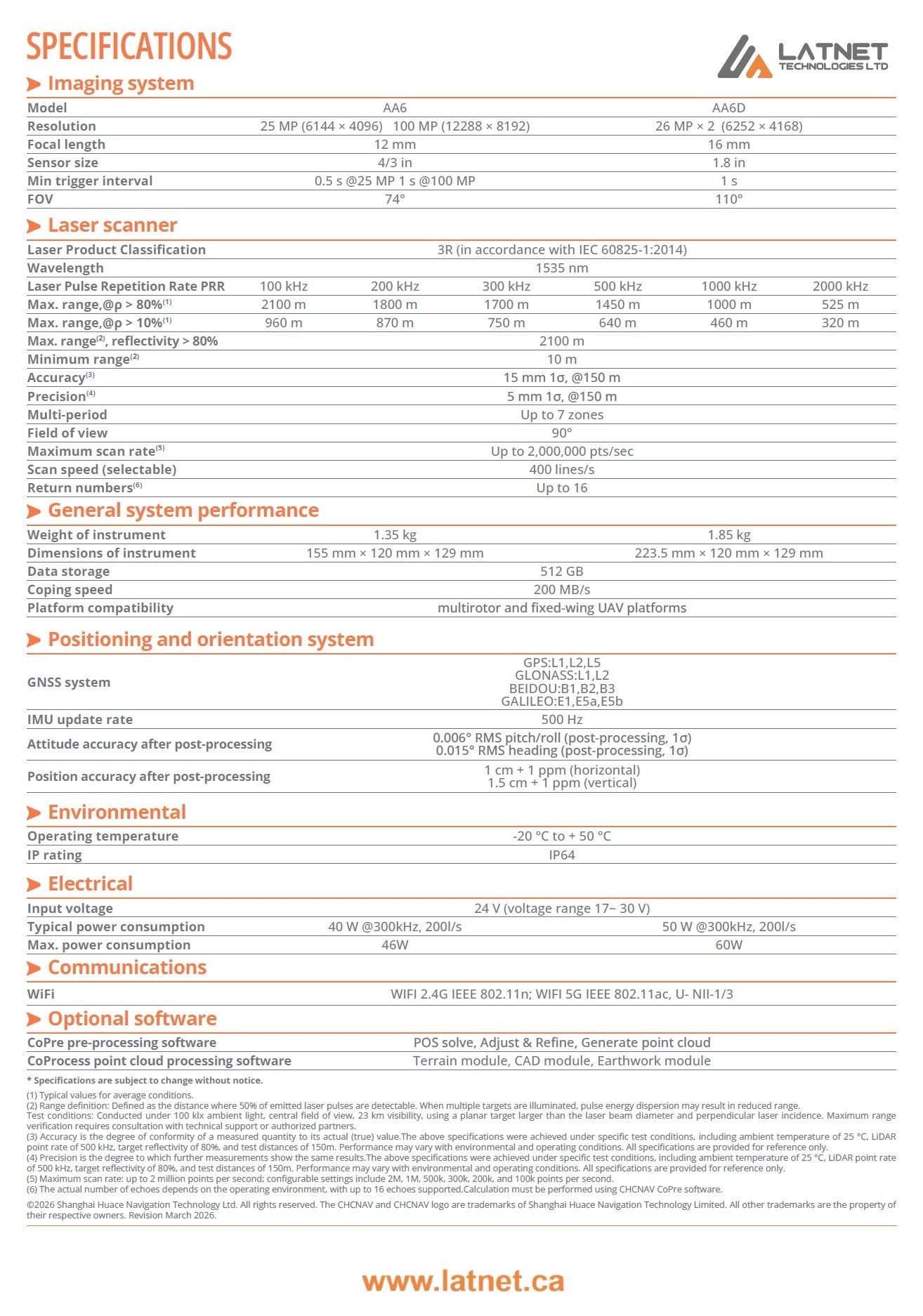

CHCNAV AlphaAir 6 technical specifications

Class / wavelength3R (IEC 60825-1:2014) · 1535 nm
Max. range2,100 m @ρ>80%
Minimum range10 m
Accuracy / precision±15 mm / 5 mm 1σ
Multi-periodUp to 7 zones
Field of view90°
Max. scan rateUp to 2,000,000 pts/s (2M, 1M, 500k, 300k, 200k, 100k)
Scan speed400 lines/s
ReturnsUp to 16
Max. range @ρ>80%100 kHz: 2100 m · 200 kHz: 1800 m · 300 kHz: 1700 m · 500 kHz: 1450 m · 1000 kHz: 1000 m · 2000 kHz: 525 m · 1000 kHz (low): 700 m
Max. range @ρ>10%100 kHz: 960 m · 200 kHz: 870 m · 300 kHz: 750 m · 500 kHz: 640 m · 1000 kHz: 460 m · 2000 kHz: 320 m · 1000 kHz (low): 300 m
Specifications from the CHCNAV datasheet and subject to change. Accuracy values were obtained under CHCNAV test conditions; range values are typical for average conditions. Actual results depend on platform, flight or walking speed, GNSS conditions and target reflectivity.
Questions

AlphaAir 6 FAQ

AA6 or AA6D?

Both share the same laser. The AA6 has one 4/3″ camera (25 MP, switchable to 100 MP). The AA6D has two 26 MP APS-C cameras with a 110° FOV that needs only 20% side overlap.

How high can I fly?

Typical operating altitudes are 100–600 m AGL; PRR selection balances altitude and density.

Which UAVs are supported?

Open interfaces support mainstream multirotor and fixed-wing UAVs, including the CHCNAV X500 and P35.

AA6 or AA15?

The AA6 is lighter with longer range per kilogram. The AA15 scans up to 600 lines/s and accepts more external camera options for dense corridor work.

Authorized CHCNAV dealer · Calgary, Alberta

Get the AlphaAir 6 from LATNET

Order the AA6 with UAV integration, training and processing support.

Request a quoteAll LiDAR systems

AlphaAir 6 video

Setting up the AlphaAir 6

Watch how the AlphaAir 6 is mounted and prepared on the CHCNAV X500 drone.

  • 4:42SetupAlphaAir 6 setup on the X500 droneHow to mount, connect and prepare the AlphaAir 6 LiDAR on the CHCNAV X500 drone.
