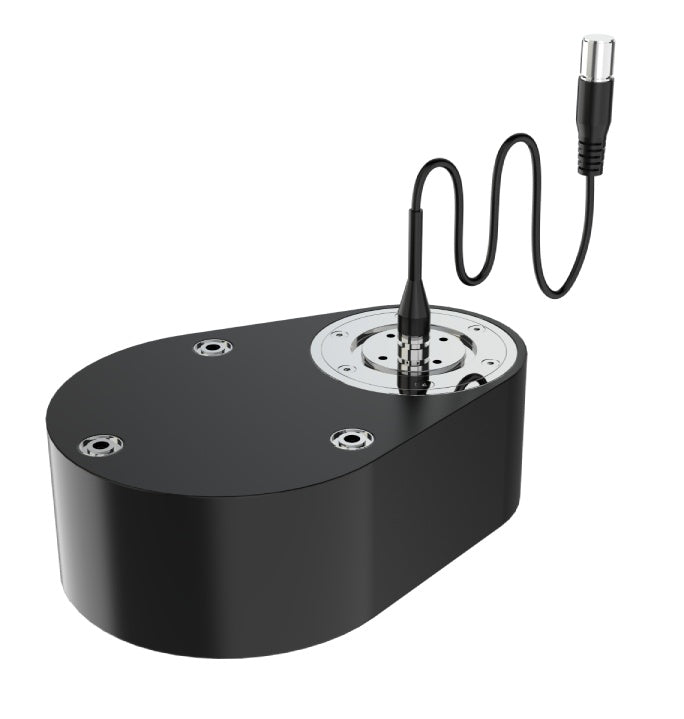

CHCNAV D60 Dual-Frequency Echo Sounder

Name: CHCNAV D60 Dual-Frequency Echo Sounder
Brand: CHCNAV
Availability: InStock

$1.00

The D60 is an integrated dual-frequency echosounder designed for USVs. The 200 kHz channel gives precise depths, while 33 kHz penetrates soft sediment to the harder layer below.

Built-in attitude and temperature sensors compensate in real time, and adaptive algorithms tune gain and range automatically – no manual settings.

Key features

Dual frequency – Accuracy at 200 kHz, penetration at 33 kHz.
Ultra-compact – Main unit 16.2 × 12.1 × 6.4 cm.
Calibration-free IMU – Attitude compensation on every depth at 100 Hz.
Intelligent auto-tuning – Gain and range optimized within 0.2 s.
EasySail workflow – Acquire, display, process and export on Android.
Sound velocity – Real-time correction from water temperature.

At a glance

200 kHz 0.2–250 m, ±1 cm + 0.1% h
33 kHz 0.8–1000 m
50 Hz ping rate
±0.1° roll / pitch
1.2 kg main unit
IP67 aluminium

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.

D60 Dual-Frequency Echosounder Brochure

Technical Specifications

D60 Dual-frequency Echosounder

Dual-frequency echosounder

CHCNAV D60 – 200 kHz + 33 kHz echosounder that finds the true bottom

The D60 is an integrated dual-frequency echosounder designed for USVs. The 200 kHz channel gives precise depths, while 33 kHz penetrates soft sediment to the harder layer below.

Built-in attitude and temperature sensors compensate in real time, and adaptive algorithms tune gain and range automatically – no manual settings.

200 + 33 kHzto 1000 mIMU 100 HzAuto-tuning 0.2 s

Request a quote Full specifications

Soft bottoms and sediment thickness

Measure the water depth and the mud

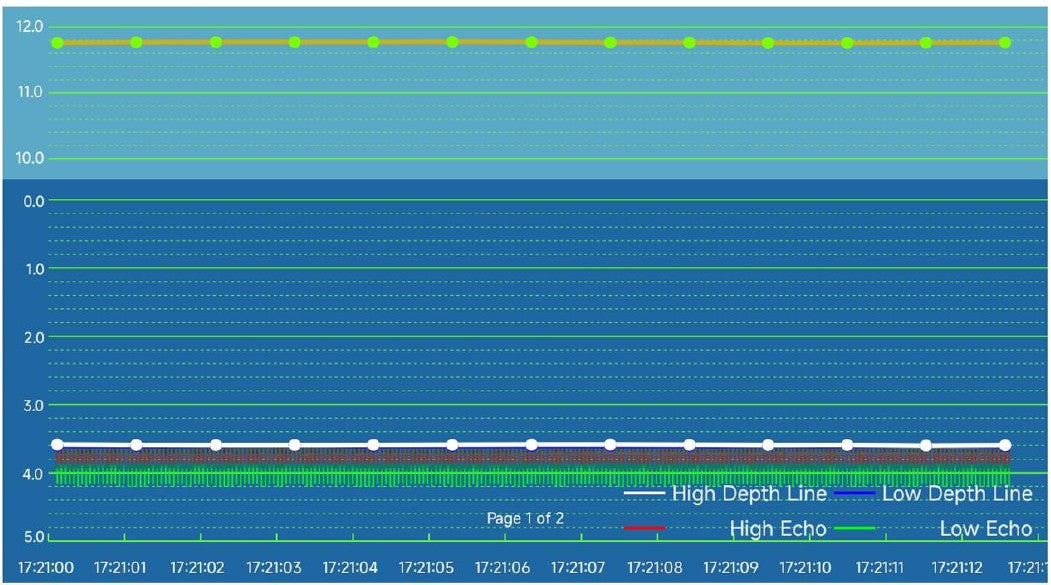

Comparing 200 kHz and 33 kHz returns shows sediment thickness for dredging, ponds and reservoirs. The D60 fits the Apache 4 and Apache 4 Pro directly (and the Apache 6 with a bracket), and a manned-boat kit is available. See how single-beam, multibeam and ADCP surveys work in our 3D animations.

200 kHz0.2–250 m, ±1 cm + 0.1% h

33 kHz0.8–1000 m

50 Hzping rate

±0.1°roll / pitch

1.2 kgmain unit

IP67aluminium

How it works · 3D

Two frequencies, one survey: how the D60 finds the true bottom

The D60 sends 200 kHz and 33 kHz pings at the same time. The narrow 200 kHz beam gives centimetre-level depth to the first strong surface – the top of soft mud. The wide, low-frequency 33 kHz pulse loses less energy in mud, weeds and turbid water, so it reaches the harder layer below. Comparing the two gives sediment thickness on every ping.

● Soft sediment

● Weed bed

● Turbid water

━ 200 kHz · mud surface
━ 33 kHz · hard bottom
■ sediment thickness

IMU 100 Hz · Roll 0.0° · Pitch 0.0°
✓ every ping attitude-corrected

Drag to rotate

Live D60 readings

Zone: –
Depth · 200 kHz: –
Depth · 33 kHz: –

Sediment thickness–

Sediment in profile: 0 m²

Auto-tuning gain

200 kHz – precision

Narrow 6° beam, 0.2–250 m, ±1 cm + 0.1% of depth. Maps the water–sediment surface in detail – the surface you navigate over and dredge to.

33 kHz – penetration

Wide 18° beam, 0.8–1000 m. Lower frequencies lose less energy in soft mud, weeds and particle-laden water, so the echo comes from the firmer layer underneath.

Where the D60 shines

Dredging, settling ponds, lagoons and reservoir sedimentation
Weedy lakes and canals where single-frequency sounders read the weed tops

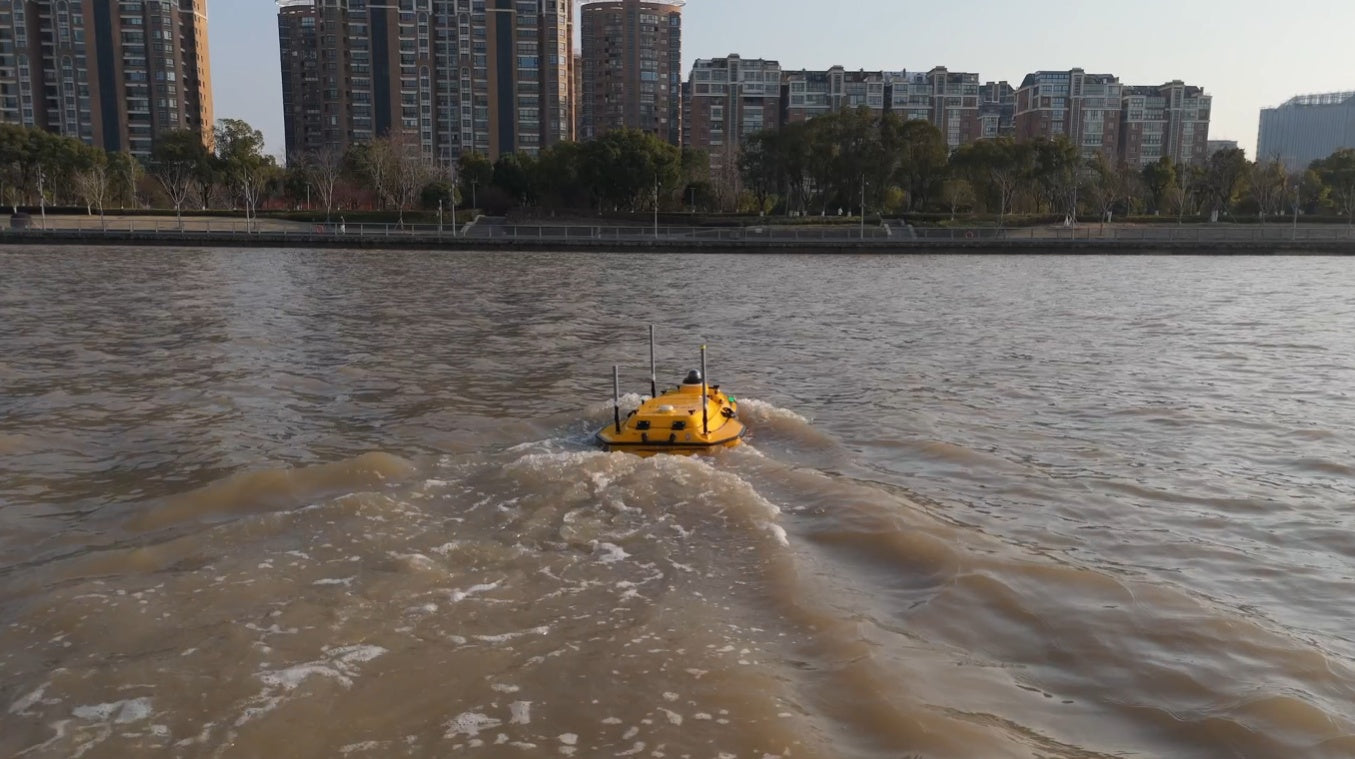

Turbid or rough water – auto-tuning in 0.2 s and a 100 Hz IMU

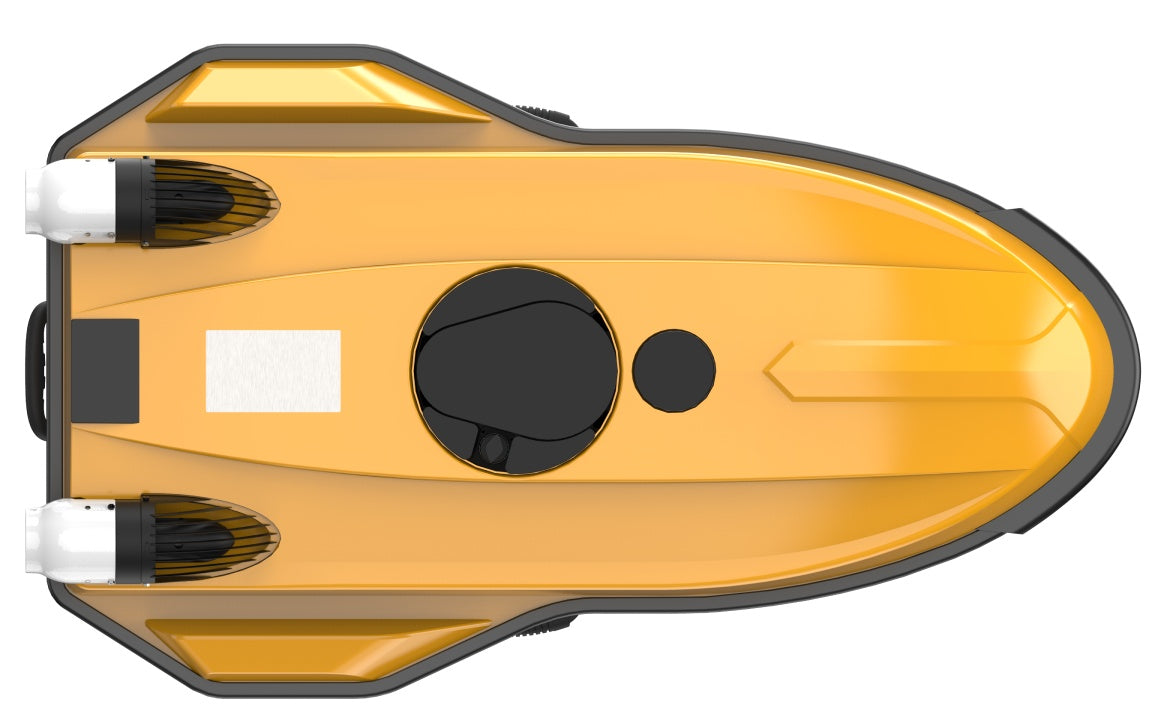

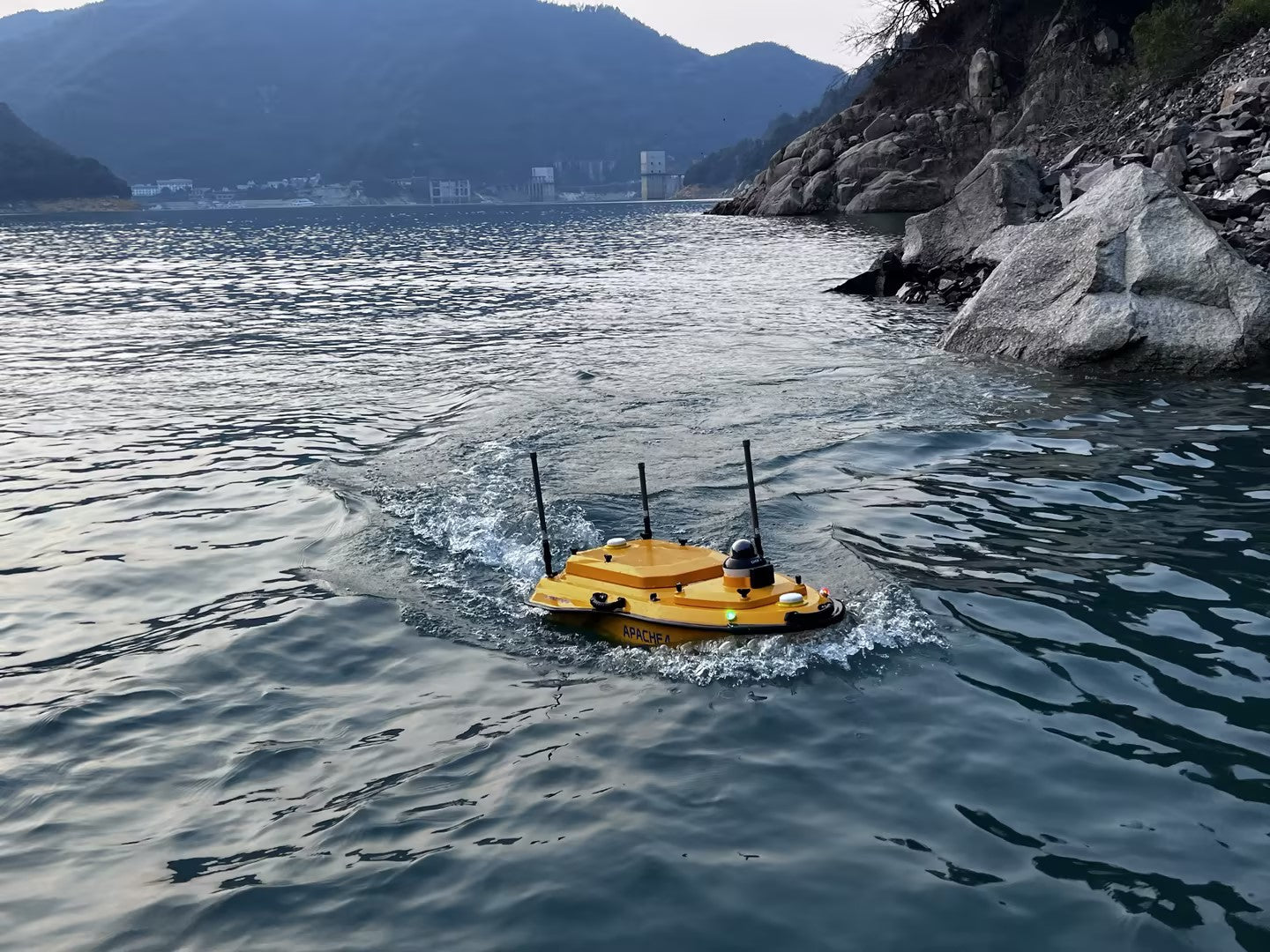

Mounts on the Apache 4 and Apache 4 Pro

Illustration with vertical scale exaggerated. How deep 33 kHz penetrates depends on sediment type, density, gas content and water mineralization – confirm thickness with a probe or core at a few points.

Key features

Why choose the D60

Dual frequency

Accuracy at 200 kHz, penetration at 33 kHz.

50%

Ultra-compact

Main unit 16.2 × 12.1 × 6.4 cm.

IMU

Calibration-free IMU

Attitude compensation on every depth at 100 Hz.

Auto

Intelligent auto-tuning

Gain and range optimized within 0.2 s.

App

EasySail workflow

Acquire, display, process and export on Android.

Temp

Sound velocity

Real-time correction from water temperature.

Ultra-compact design

Half the size of a typical dual-frequency system

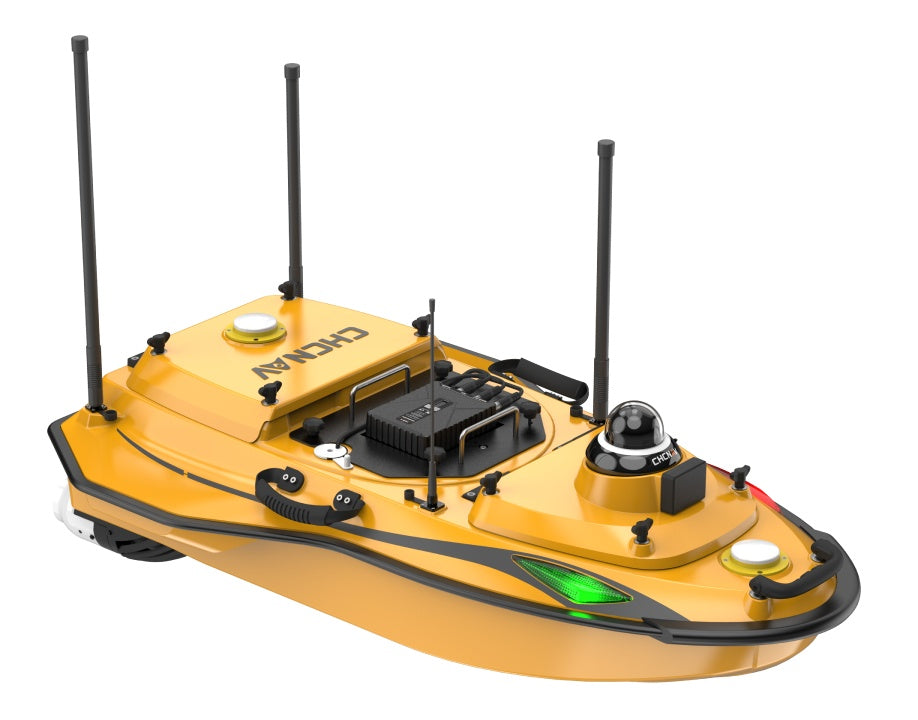

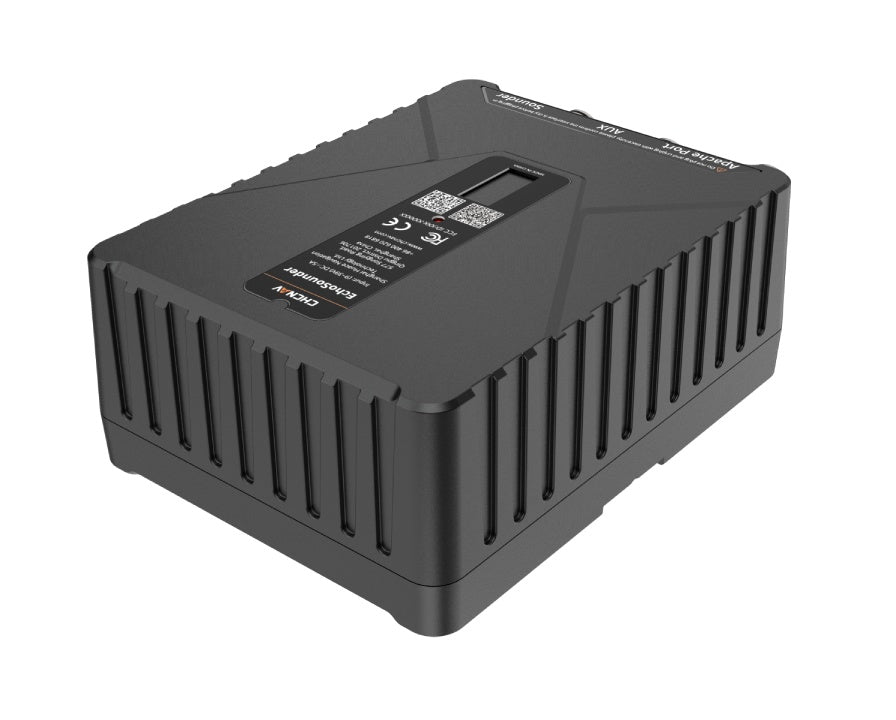

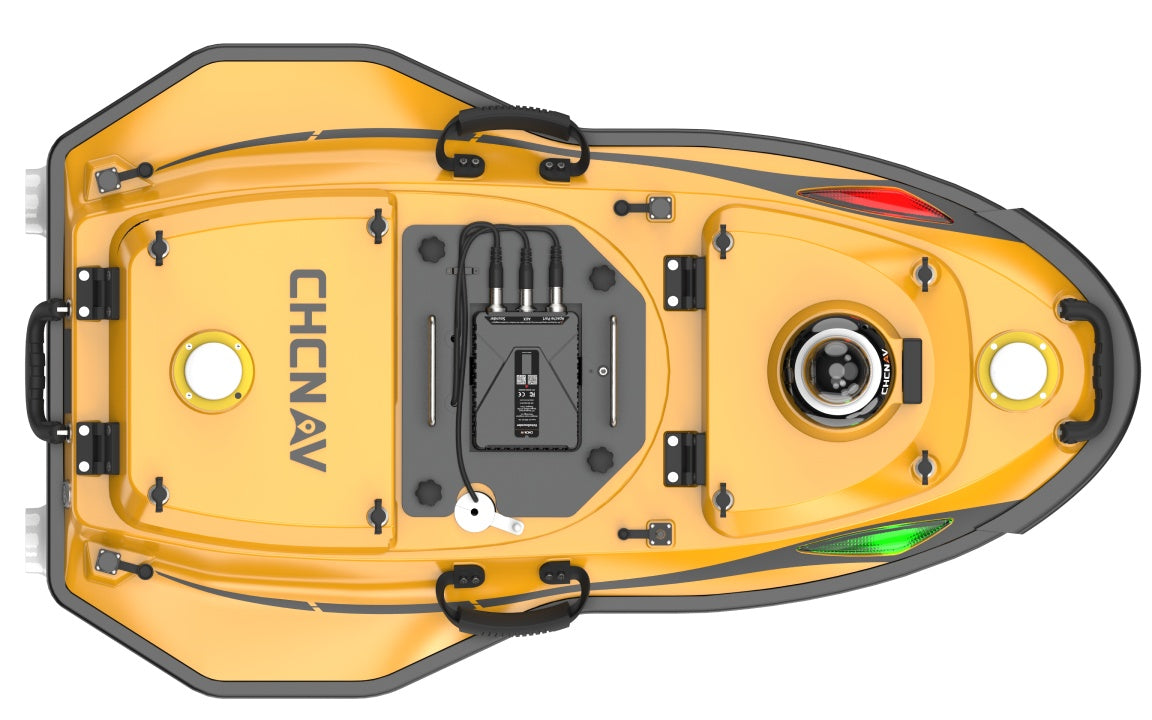

The integrated design shrinks the main unit to 16.2 × 12.1 × 6.4 cm and installs quickly on CHCNAV Apache USVs – one operator, one boat, one remote.

Calibration-free IMU

Every ping attitude-corrected

A high-precision IMU (roll and pitch ±0.1°, 20 ms latency) paired with the transducer compensates every depth at 100 Hz – stable even with instantaneous roll or pitch beyond 30°.

Intelligent auto-tuning

Reliable depths without expert settings

Adaptive algorithms read echo strength and depth in real time and correct gain and range within 0.2 s – ideal for turbid water and rapid depth changes.

Streamlined operation

One app from field to results

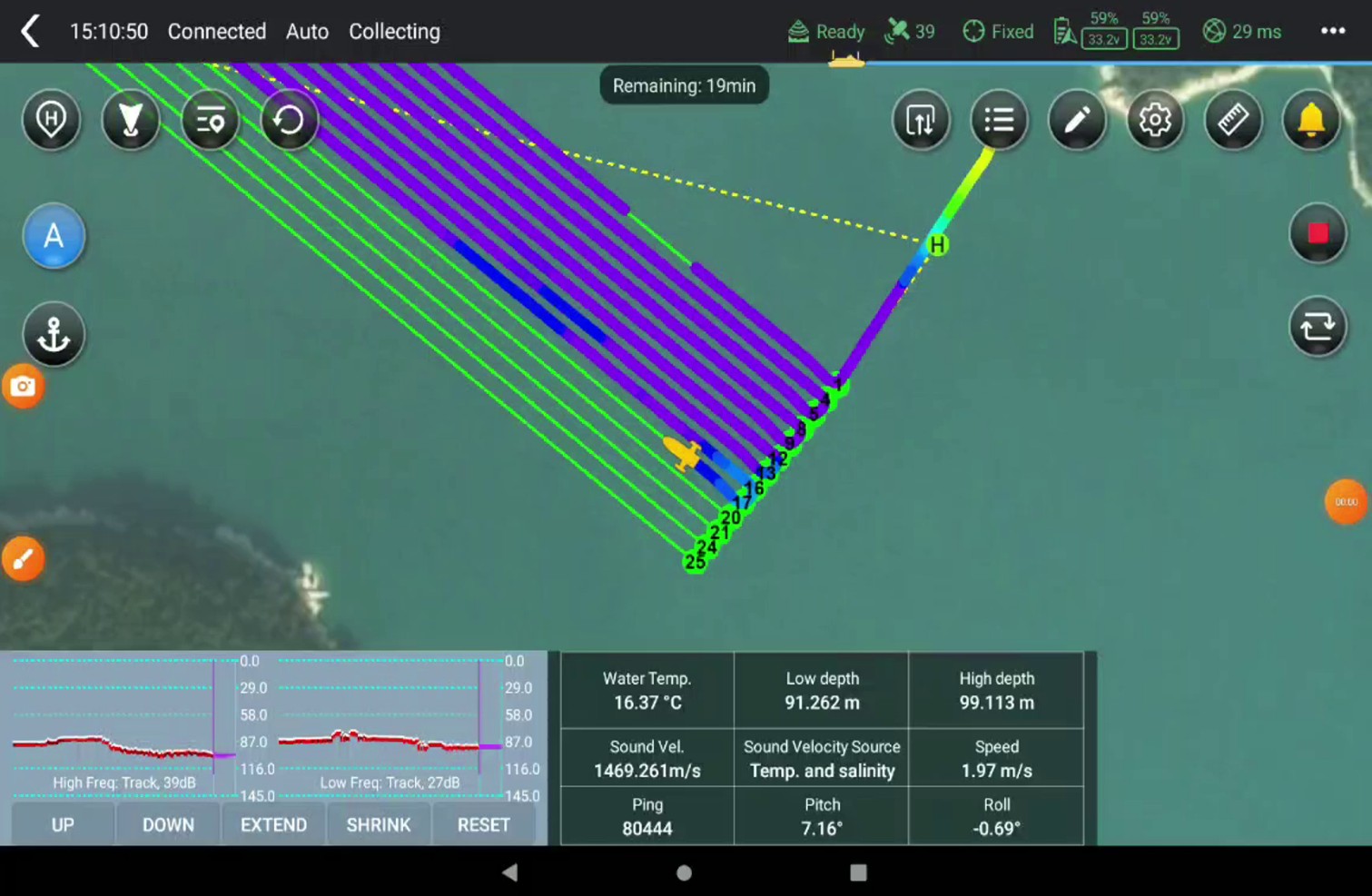

EasySail on the Android controller handles acquisition, real-time display, post-processing and export – no laptop required.

Which echosounder?

Compare CHCNAV echosounders

Single-beam sounders measure one depth under the boat; multibeam sounders map a full swath of the bottom on every pass.

	D270	D390	D60	HQ-400	HN-400M
Type	Single-beam	Single-beam, all-in-one PC	Dual-frequency single-beam	Integrated multibeam	Dual-frequency multibeam
Frequency	200 kHz	200 kHz	200 kHz + 33 kHz	400 kHz	400 / 550 kHz
Depth range	0.15–200 m	0.15–300 m	0.2–250 m / 0.8–1000 m	0.2–150 m	0.2–200 m
Accuracy / beams	±1 cm + 0.1% D	±1 cm + 0.1% D	±1 cm + 0.1% h (200 kHz)	512 beams (1024), 140°	512 beams, 145° (6× depth)
Motion sensor	Temp. sensor	Serial inputs	IMU 100 Hz	Built-in IMU + GNSS	INS, 0.03° roll/pitch
Weight	0.84 kg + 2.15 kg	4.7 kg	1.2 kg + 4 kg	2.7 kg	3.5 kg
Best for	Boat or USV, cross-sections	Manned boats, one screen	Soft bottoms, deep or turbid water	Full-coverage rivers and lakes	Ports, dredging, turbid water
	D270	D390	D60	HQ-400	HN-400M

Applications

Where it works

Channel dredging

Water depth and sediment.

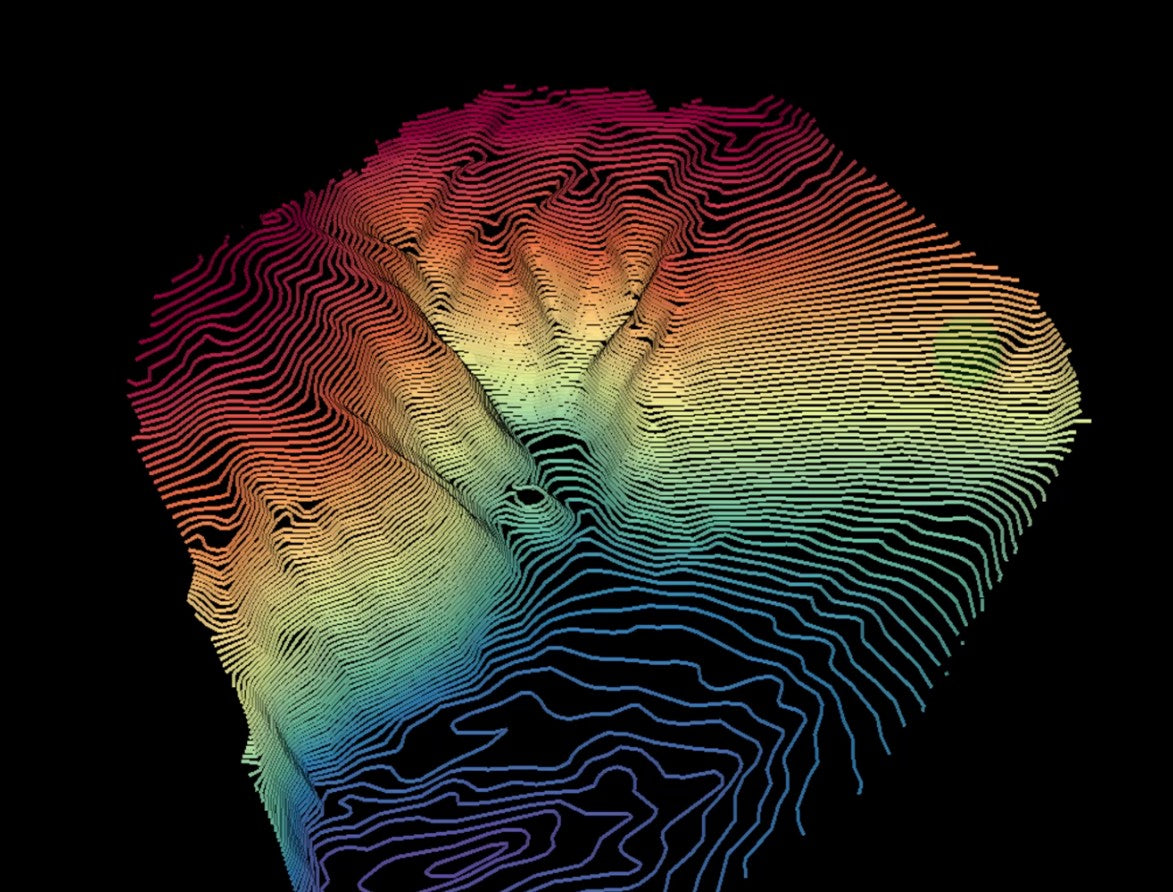

Reservoirs with rapid depth change

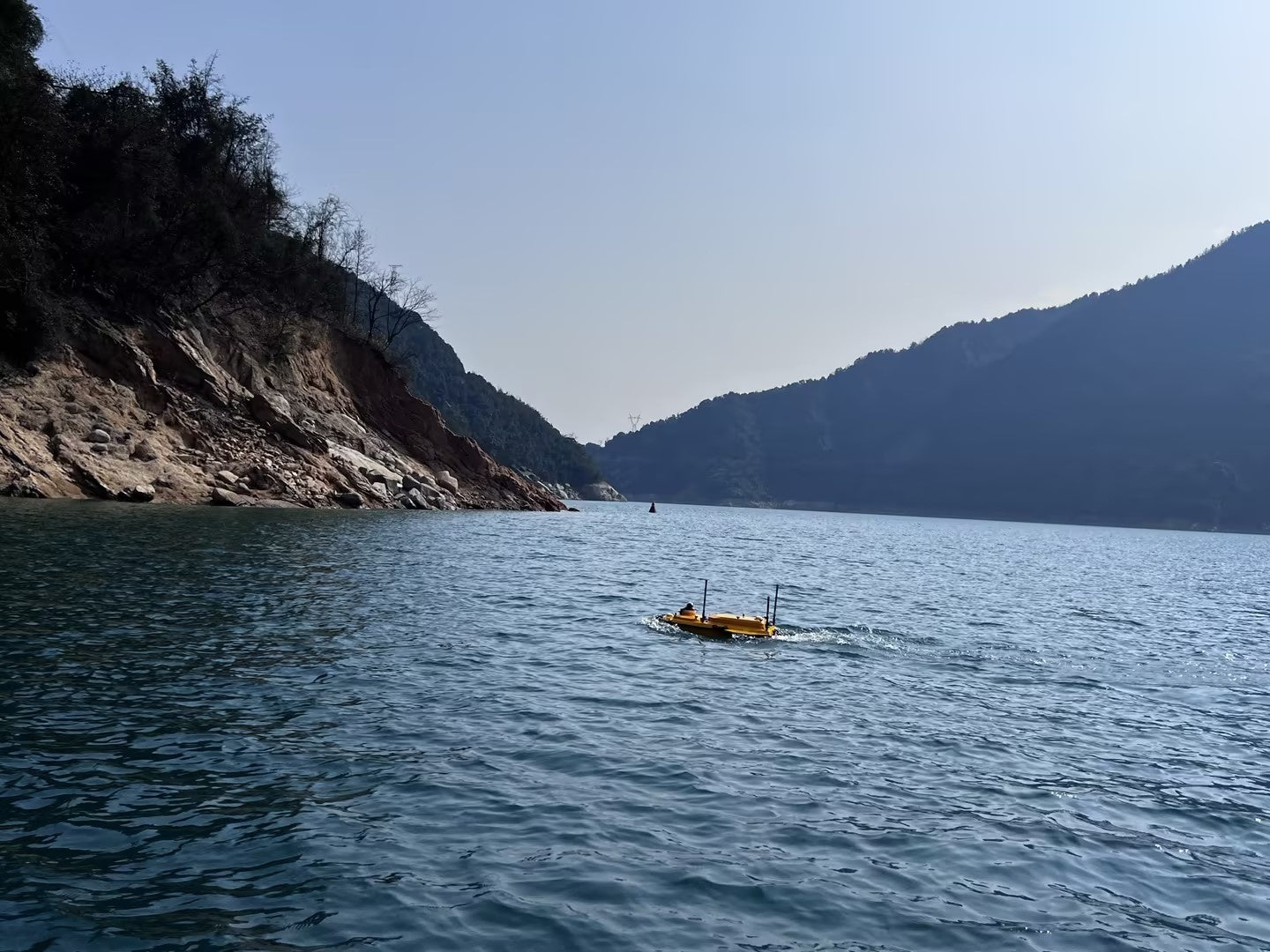

Continuous measurement.

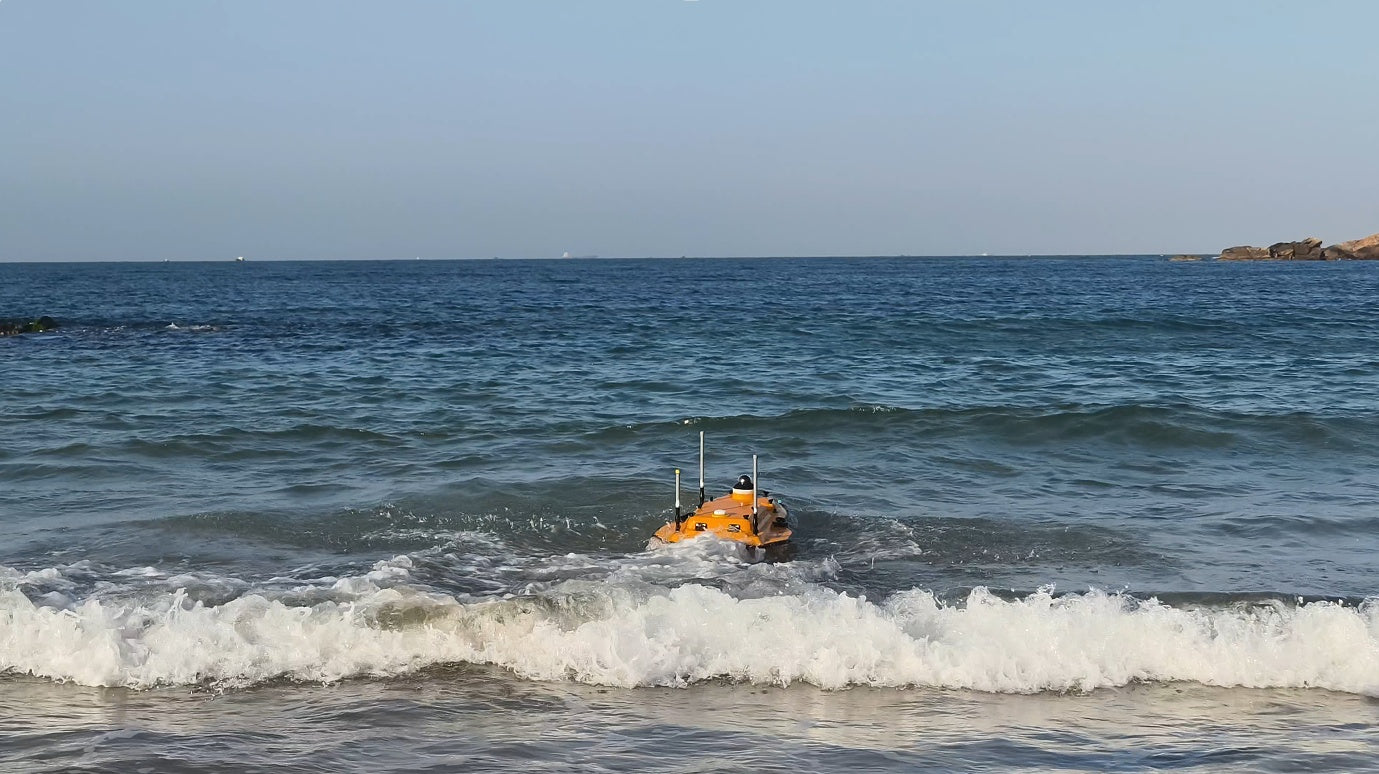

Estuaries

Turbid water surveys.

Flood emergencies

Fast deployment.

Datasheet

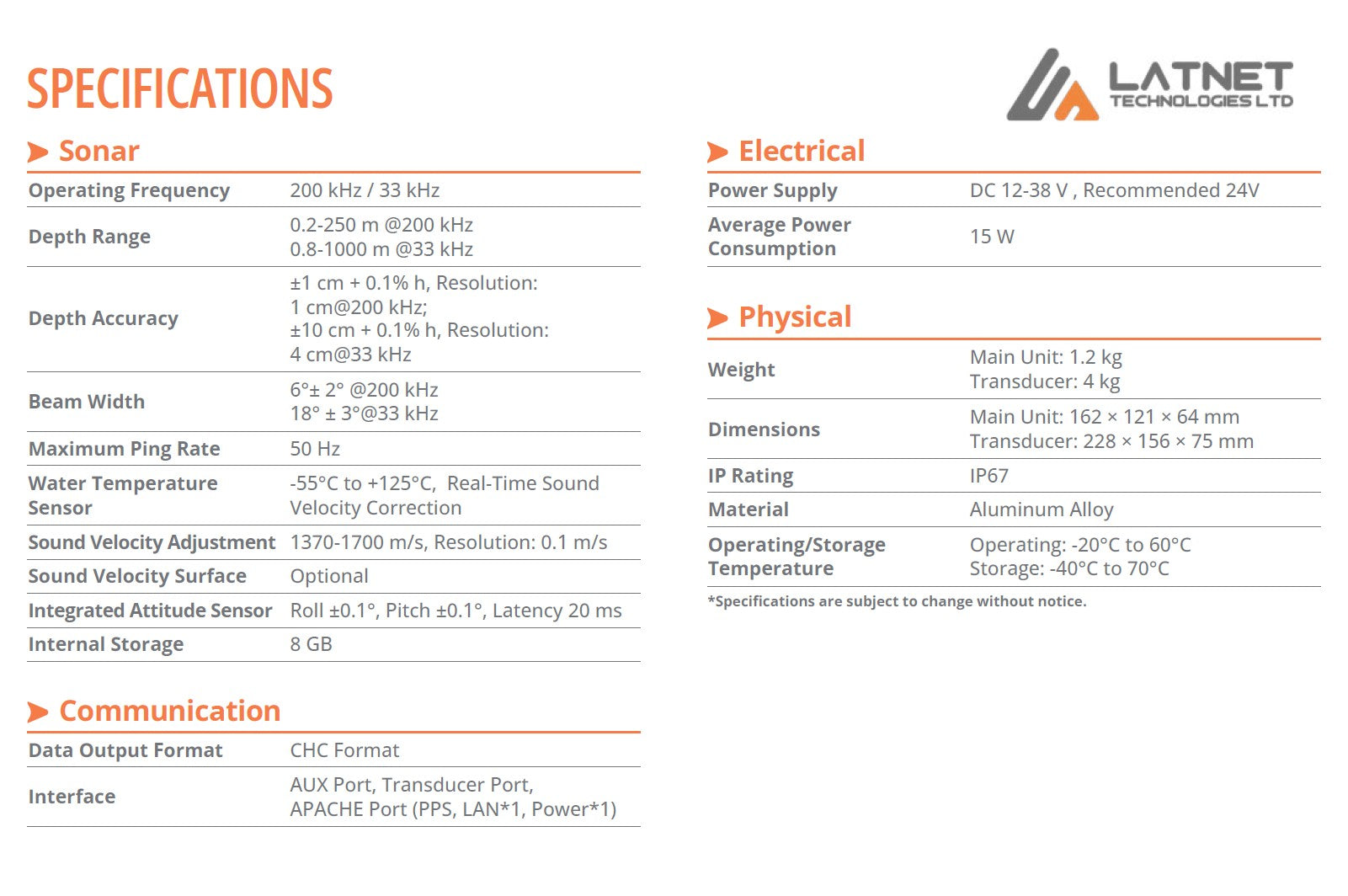

CHCNAV D60 technical specifications

Frequency	200 kHz / 33 kHz
Depth range	0.2–250 m @ 200 kHz · 0.8–1000 m @ 33 kHz
Accuracy	±1 cm + 0.1% h (1 cm res.) @ 200 kHz · ±10 cm + 0.1% h (4 cm res.) @ 33 kHz
Beam width	6° ± 2° @ 200 kHz · 18° ± 3° @ 33 kHz
Ping rate	50 Hz
Water temperature	–55 to +125 °C, real-time sound velocity
Sound velocity	1370–1700 m/s, 0.1 m/s; surface SV optional
Attitude sensor	Roll ±0.1°, pitch ±0.1°, 20 ms latency
Storage	8 GB
Output	CHC format
Interfaces	AUX, transducer, APACHE port (PPS, LAN, power)

Power	DC 12–38 V (24 V recommended), 15 W
Weight	Main unit 1.2 kg · transducer 4 kg
Dimensions	Main unit 162 × 121 × 64 mm · transducer 228 × 156 × 75 mm
Protection	IP67, aluminium alloy
Temperature	Operating –20 to +60 °C · storage –40 to +70 °C

Specifications from the CHCNAV datasheet and subject to change without notice. Ranges and endurance depend on water conditions, temperature, salinity, payload and speed.

Questions

D60 FAQ

What is the D60 used for?

Bathymetry in turbid or variable-depth water and sediment-thickness surveys – 200 kHz finds the water–sediment surface and 33 kHz the harder bottom beneath.

Which USVs fit the D60?

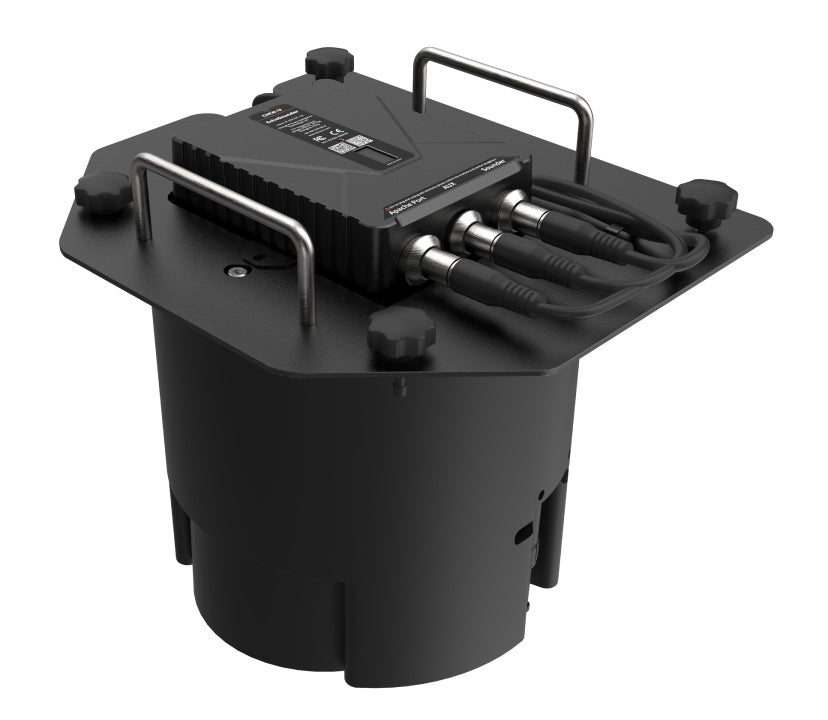

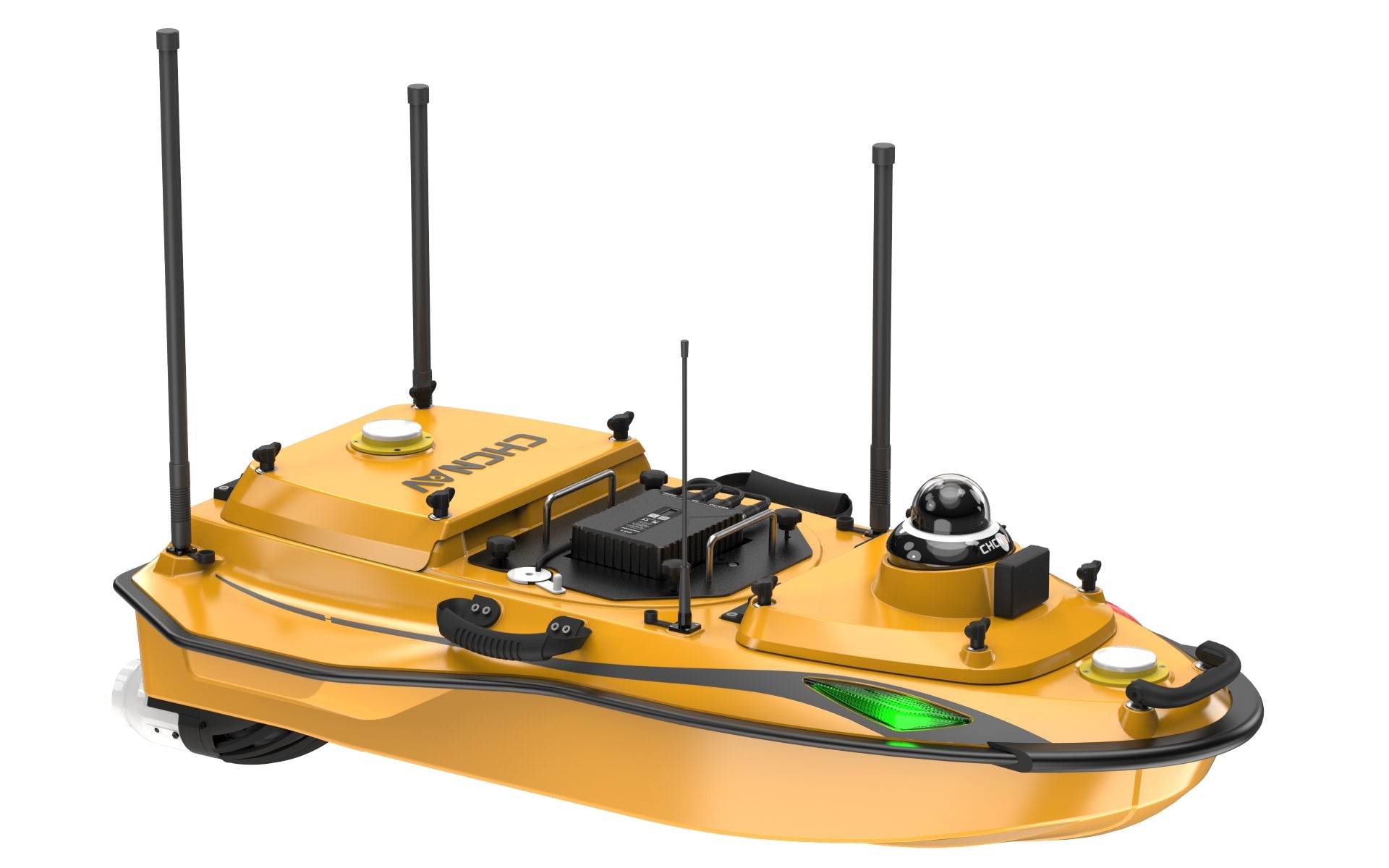

The Apache 4 and Apache 4 Pro directly; the Apache 6 with a custom bracket. A manned-boat kit is also available.

Single-beam or multibeam?

The D60 is a single-beam, dual-frequency sounder. For swath mapping see the HQ-400 or HN-400M.

Authorized CHCNAV dealer · Calgary, Alberta

Get the D60 from LATNET

Add the D60 to an Apache USV or survey boat – supplied and supported by LATNET in Calgary.

Request a quote All hydrographic products
