CHCNAV D390 Integrated Single-Beam Echosounder
The D390 is a rugged, cost-effective bathymetric system combining a 200 kHz, 500 W echosounder with an industrial Windows PC and a 12″ touchscreen in one IP66 case.
A 7° beam gives focused resolution, depths are logged at up to 60 Hz, and pulse-width discrimination suppresses redundant data.
Key features
- High-performance sounding – 200 kHz, 7° beam, up to 500 W.
- Extended range – 0.15–300 m.
- Built-in PC – Windows 10, 4 GB RAM, 32 GB.
- HydroSurvey – Navigation, acquisition and export in one app.
- Any GNSS – Standard NMEA input, CHCNAV-optimized.
- Rugged – Aluminium enclosure, –30 °C rated.
At a glance
- 300 m max depth
- 500 W RMS output
- 7° beam angle
- 60 Hz sampling
- 12″ HD touchscreen
- 4.7 kg IP66
Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.
- Authorized CHCNAV dealer in Canada
- Setup, training & local support from our Calgary geomatics team
- Shipped across Canada from Calgary
- See it before you buy – live demo available
Technical Specifications & Features
D390 Single-Beam Echosounder

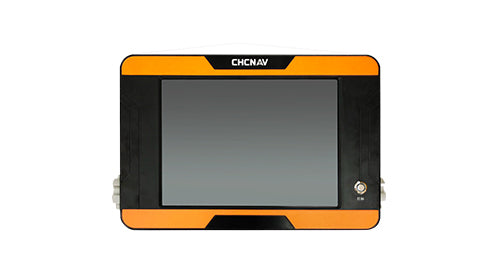

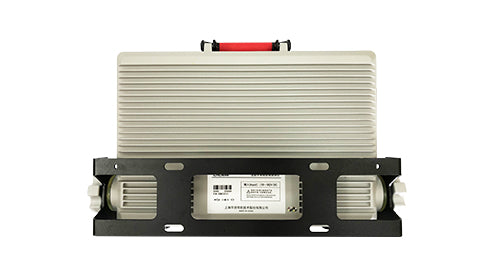

CHCNAV D390 – single-beam echosounder with a built-in 12″ PC
The D390 is a rugged, cost-effective bathymetric system combining a 200 kHz, 500 W echosounder with an industrial Windows PC and a 12″ touchscreen in one IP66 case.
A 7° beam gives focused resolution, depths are logged at up to 60 Hz, and pulse-width discrimination suppresses redundant data.
Cut mobilization cost by 20%
HydroSurvey 7 manages projects from positioning and navigation to acquisition, processing and CSV export. Standard serial ports accept any NMEA GNSS RTK receiver and motion sensors, and the embedded Windows 10 boots fast for quick starts. In Alberta, RTK corrections can come from the LATNET RTK network over 4G. See how single-beam, multibeam and ADCP surveys work in our 3D animations.
Why choose the D390
High-performance sounding
200 kHz, 7° beam, up to 500 W.
Extended range
0.15–300 m.
Built-in PC
Windows 10, 4 GB RAM, 32 GB.
HydroSurvey
Navigation, acquisition and export in one app.
Any GNSS
Standard NMEA input, CHCNAV-optimized.
Rugged
Aluminium enclosure, –30 °C rated.

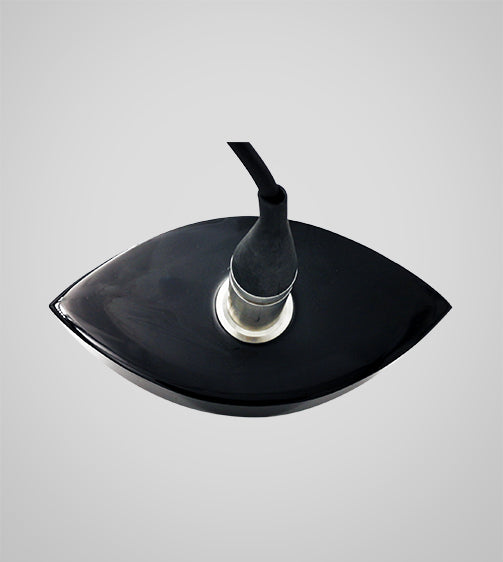

200 kHz transducer, 7° beam
The advanced 200 kHz transducer and focused 7° beam deliver precise depths in rivers, reservoirs and coastal water, with pulse-width discrimination and redundant-data suppression.
Up to 300 metres
Up to 500 W RMS output extends sounding to 300 m with ±0.01 m + 0.1% accuracy.

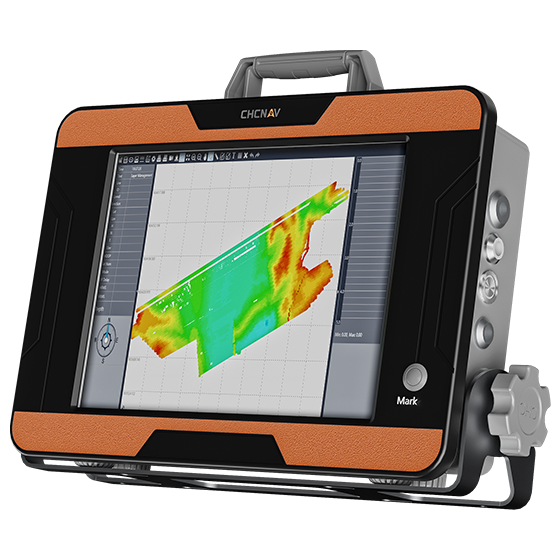

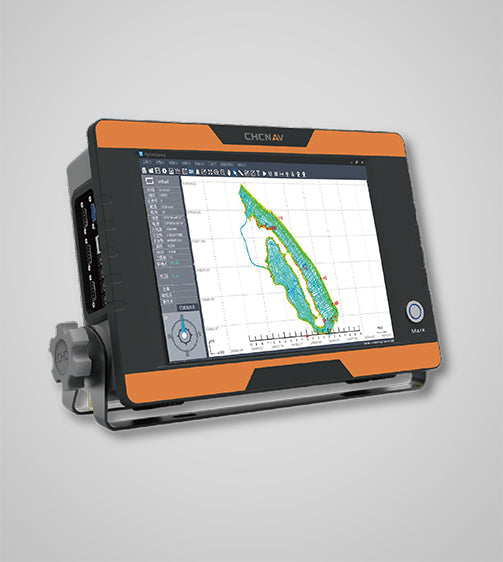

HydroSurvey on a 12″ screen
HydroSurvey 7 runs on the built-in PC: plan, navigate, log and export. Data is stored internally and copied by USB.
Compare CHCNAV echosounders
Single-beam sounders measure one depth under the boat; multibeam sounders map a full swath of the bottom on every pass.
| D270 | D390 | D60 | HQ-400 | HN-400M | |
|---|---|---|---|---|---|
| Type | Single-beam | Single-beam, all-in-one PC | Dual-frequency single-beam | Integrated multibeam | Dual-frequency multibeam |
| Frequency | 200 kHz | 200 kHz | 200 kHz + 33 kHz | 400 kHz | 400 / 550 kHz |
| Depth range | 0.15–200 m | 0.15–300 m | 0.2–250 m / 0.8–1000 m | 0.2–150 m | 0.2–200 m |
| Accuracy / beams | ±1 cm + 0.1% D | ±1 cm + 0.1% D | ±1 cm + 0.1% h (200 kHz) | 512 beams (1024), 140° | 512 beams, 145° (6× depth) |
| Motion sensor | Temp. sensor | Serial inputs | IMU 100 Hz | Built-in IMU + GNSS | INS, 0.03° roll/pitch |
| Weight | 0.84 kg + 2.15 kg | 4.7 kg | 1.2 kg + 4 kg | 2.7 kg | 3.5 kg |
| Best for | Boat or USV, cross-sections | Manned boats, one screen | Soft bottoms, deep or turbid water | Full-coverage rivers and lakes | Ports, dredging, turbid water |
| D270 | D390 | D60 | HQ-400 | HN-400M |
Where it works
Inland waterways
River and canal surveys.
Reservoir capacity
Volumes and contours.
Coastal surveys
Shallow and medium depth.
Dredging volumes
Before and after.

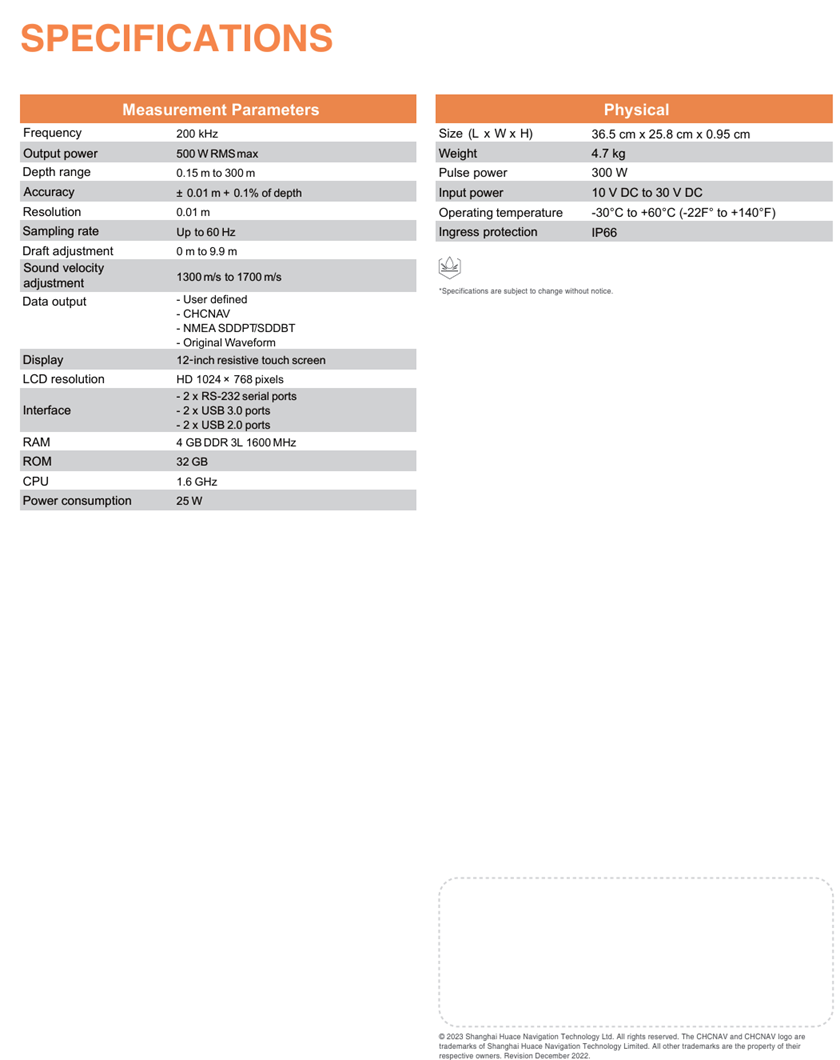

CHCNAV D390 technical specifications
| Frequency | 200 kHz |
|---|---|
| Output power | 500 W RMS max · 300 W pulse |
| Depth range | 0.15–300 m |
| Accuracy | ±0.01 m + 0.1% of depth |
| Resolution | 0.01 m |
| Sampling rate | Up to 60 Hz |
| Draft adjustment | 0–9.9 m |
| Sound velocity | 1300–1700 m/s |
| Data output | User defined, CHCNAV, NMEA SDDPT/SDDBT, original waveform |
| Display | 12″ resistive touchscreen, 1024 × 768 |
|---|---|
| OS | Embedded Windows 10 |
| CPU / RAM / ROM | 1.6 GHz · 4 GB DDR3L · 32 GB |
| Interfaces | 2 × RS-232, 2 × USB 3.0, 2 × USB 2.0 |
| Software | HydroSurvey 7 |
| Size | 36.5 × 25.8 cm |
|---|---|
| Weight | 4.7 kg |
| Power | 10–30 V DC, 25 W |
| Temperature | –30 to +60 °C |
| Protection | IP66 |
D390 FAQ
What is the D390 best for?
Manned-boat surveys of waterways, river sections, reservoirs and dredging where one rugged screen runs everything.
Which GNSS receivers work with it?
Any RTK receiver with standard NMEA output, with enhanced compatibility for CHCNAV receivers.
How fast does it start?
The embedded Windows 10 boots quickly for an immediate start in the field.
Get the D390 from LATNET
Get the D390 with a GNSS receiver, transducer mount and training from LATNET in Calgary.
Request a quoteAll hydrographic products
