CHCNAV iBase Integrated RTK GNSS Base Station
The CHCNAV iBase is an all-in-one GNSS base station with a built-in 5 W UHF radio, so there is no external radio, battery or cable to set up. One button starts the base and rovers pair in one tap.
- Up to 30 km range: DistLink compression, typically 8 to 12 km
- 13+ hours: as a UHF base on the twin internal batteries, 25 h static
- Full GNSS: 1408 channels, GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP
- Built tough: IP67, IK08 shock rating, –40 °C to +65 °C
Order the iBase alone or as a base and rover kit. We help with radio licensing, setup and training, and in much of Alberta the LATNET RTK network can replace a base altogether. See the full specifications.
- Authorized CHCNAV dealer in Canada
- Setup, training & local support from our Calgary geomatics team
- Shipped across Canada from Calgary
- See it before you buy – live demo or rental available
CHCNAV iBase: one button, 30 km, 13 hours
The iBase is an all-in-one GNSS base station with a built-in 5 W radio. No external radio, battery or cables, so setup is three times faster, and Ultra Base one-button start-up with one-tap rover matching gets crews fixed without entering parameters.
CHCNAV DistLink and correction compression boost radio sensitivity by 30% for rover coverage up to 30 km.

Everything a base needs, in one sealed unit
The iBase replaces the usual base station kit (receiver, external radio, battery and cables) with one IP67 unit. Its next-generation radio uses 33% less power, so twin 7,000 mAh batteries run more than 13 hours. Ultra Base mode sends corrections over radio and network at the same time and rovers switch automatically when they leave radio range.
Why the iBase speeds up every base setup
13 h+ worry-free work
Optimised transmission cuts power use by 33%, so no mid-day battery changes.
DistLink range
Proprietary compression + radio protocol: typical 8–12 km, up to 30 km.
Ultra Base
Radio and network corrections at once; AI auto-pairing and automatic fallback.
Premium tracking
1408 channels: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP.
Multipath mitigation
Advanced algorithms send cleaner corrections to rovers on tough sites.
Integrated and rugged
No external batteries or cables; IP67 and IK08 shock rating.
A full day on internal batteries
An upgraded radio with optimised transmission reduces power consumption by 33%. As a UHF base with DistLink the iBase runs up to 13 hours (8–10 h on other protocols) and up to 25 hours as a static logger. Long jobs can run on 9–28 V external power through the LEMO port.
- 2 × 7,000 mAh, 7.4 V
- Up to 13 h UHF base / 25 h static
- External 9–28 V DC
Corrections reach rovers further away
DistLink is deeply integrated with CHCNAV’s GNSS differential compression, which shrinks the data sent over the air. Combined with the 5 W transmitter, rovers receive corrections typically at 8–12 km and up to 30 km in good conditions, or 5–8 km and up to 25 km with standard protocols.
Ultra Base: radio and network together
Ultra Base transmits corrections over radio and network simultaneously. AI-powered pairing picks the optimal channel or server at start-up, and rovers switch to network mode automatically beyond radio range, so surveying continues without reconfiguration.
Ultra Base arrives with a future firmware update and depends on server coverage.
Built for the job site

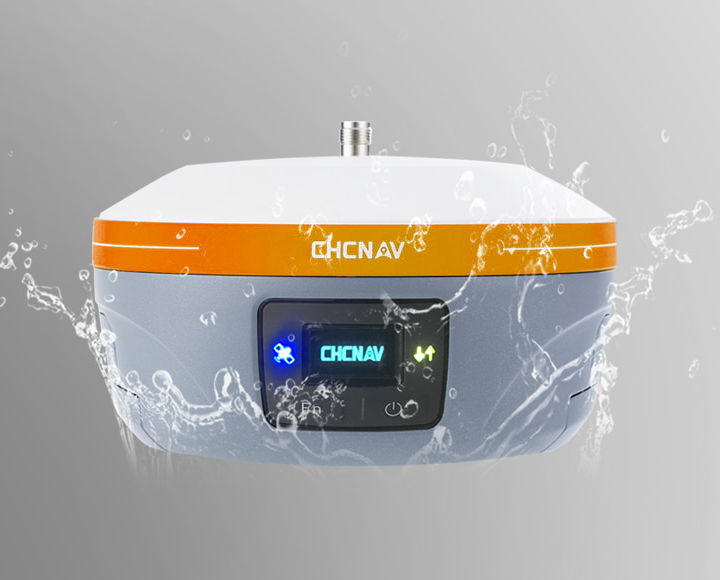

Advanced multipath mitigation keeps corrections clean on busy sites. The integrated design eliminates external batteries and cables, with IP67 dust and water protection and an IK08 impact rating. A 0.96″ OLED shows status at a glance.
- IP67, IK08
- –40 °C to +65 °C
- 1.73 kg
CHCNAV iBase technical specifications
| Channels | 1408 |
|---|---|
| GPS | L1C/A, L2C, L2P(Y), L5 |
| GLONASS | L1, L2, L3* |
| Galileo | E1, E5a, E5b, E6* |
| BeiDou | B1I, B2I, B3I, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC / IRNSS | L5 |
| SBAS | L1, L5* |
| PPP | B2b-PPP*, E6B-HAS* |
| Positioning rate | Up to 10 Hz |
| Time to first fix | Cold <45 s · hot <10 s · re-acquisition <1 s |
| RTK | H: 8 mm + 1 ppm RMS · V: 15 mm + 1 ppm RMS Initialization <10 s, reliability >99.9% |
|---|---|
| PPK | H: 3 mm + 1 ppm RMS · V: 5 mm + 1 ppm RMS |
| Post-processing static | H: 2.5 mm + 0.5 ppm RMS · V: 5 mm + 0.5 ppm RMS |
| High-precision static | H: 2.5 mm + 0.1 ppm RMS · V: 3.5 mm + 0.4 ppm RMS |
| Static and rapid static | H: 2.5 mm + 0.5 ppm RMS · V: 5 mm + 0.5 ppm RMS |
| Code differential | H: 0.4 m RMS · V: 0.8 m RMS |
| Autonomous | H: 1.5 m RMS · V: 2.5 m RMS |
| UHF radio | Internal Rx/Tx 410–470 MHz, up to 5 W; CHC, DistLink, Transparent, TT450, Satel; 9,600 / 19,200 bps |
|---|---|
| Range | DistLink typical 8–12 km, up to 30 km; other protocols typical 5–8 km, up to 25 km |
| Ultra Base | Simultaneous radio and network transmission* |
| 4G modem | LTE FDD B1/B2/B3/B4/B5/B7/B8/B20; HSPA+/UMTS B1/B2/B5/B8; EDGE/GPRS/GSM |
| Wi-Fi | 802.11 n, AP mode |
| Bluetooth | 5.0 |
| Other | NFC |

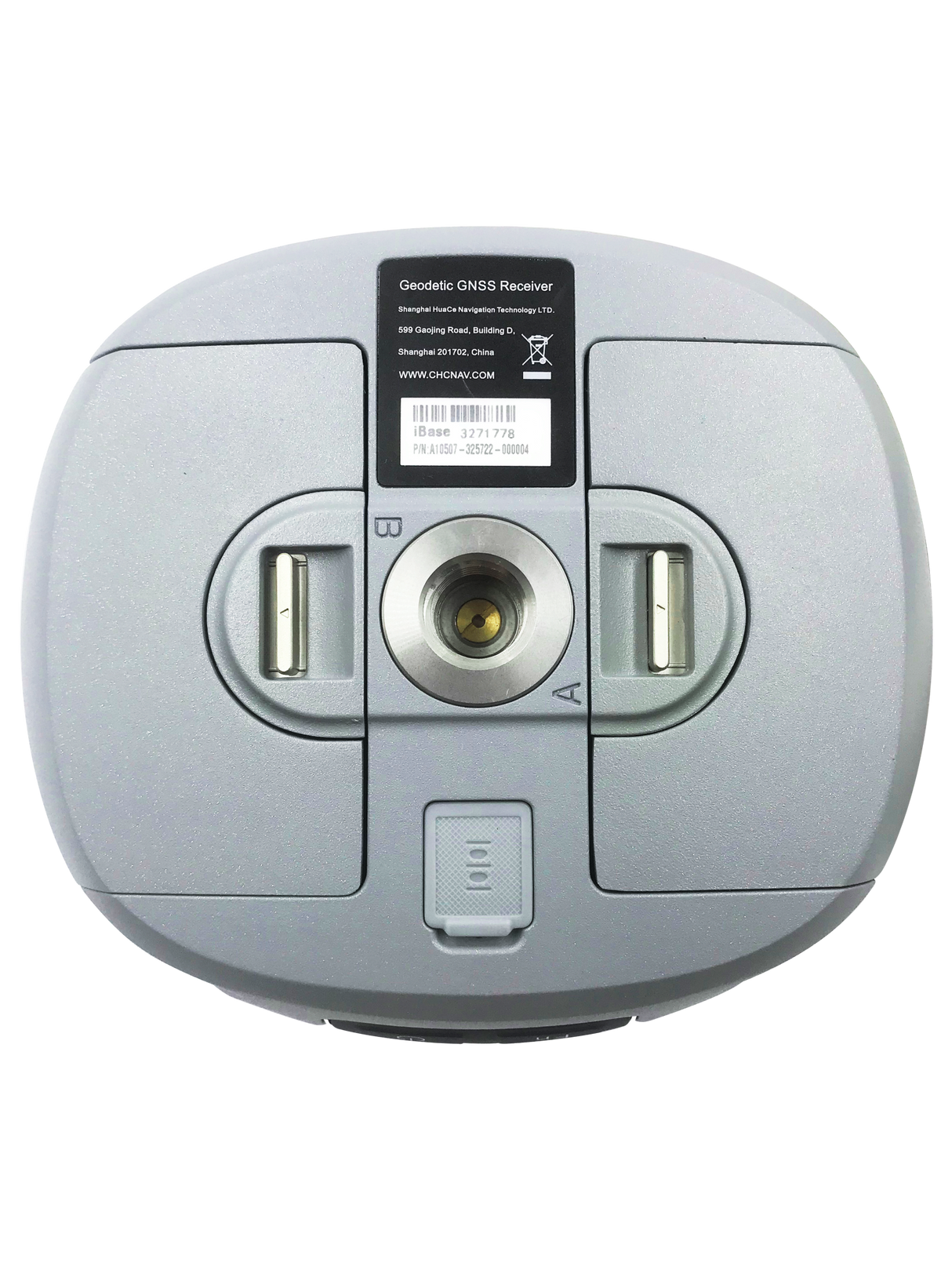

| Ports | 1 × 7-pin LEMO (power, RS-232); 1 × UHF antenna (TNC female) |
| Data formats | RTCM 2.x/3.x, CMR in/out; HCN, RINEX 2.11/3.02; NMEA 0183; NTRIP client and caster |
| Storage | 8 GB |
| Size | Φ160.5 × 103 mm (Φ6.32 × 4.06 in) |
|---|---|
| Weight | 1.73 kg (3.81 lb) |
| Front panel | 2 LEDs; 0.96″ OLED |
| Tilt sensor | IMU tilt compensation |
| Operating / storage | –40 °C to +65 °C / –40 °C to +85 °C |
| Protection | IP67 (temporary immersion to 1 m), IK08 |
| Battery | 2 × 7,000 mAh, 7.4 V; 12 W typical; external 9–28 V DC |
| Operating time | UHF base up to 13 h (DistLink), 8–10 h other protocols · static up to 25 h |
iBase FAQ
Do I need an external radio or battery?
No. The 5 W radio and twin 7,000 mAh batteries are built in. You can still power it externally (9–28 V DC) for multi-day setups.
Which rovers work with the iBase?
Do I need a radio licence in Canada?
UHF transmission in Canada generally requires an ISED licence for your frequency and power. We can help you set up legal frequencies.
How far will rovers get corrections?
Typically 8–12 km with DistLink and up to 30 km in good conditions; 5–8 km (up to 25 km) with other protocols. Terrain and antenna height matter most.
Do I need a base at all in Alberta?
Often not. The LATNET RTK network covers much of Alberta over NTRIP. The iBase is for areas without cellular coverage or where you need your own base.
Get the iBase from LATNET
Order the iBase alone or as a base + rover kit. We help with radio licensing, setup and training.
