LT800

CHCNAV LT800 - Rugged GNSS Data Controller

Product Overview: The LT800 by CHCNAV is a rugged Android™ tablet specifically designed as a reliable and efficient data controller for GNSS receivers. Built to enhance the efficiency and productivity of the mobile workforce in various GNSS applications, the LT800 offers portability, durability, and versatility. This rugged tablet is ideal for precision GNSS data collection in surveying, construction, and other demanding field operations.

Key Features:

High-Sensitivity GNSS Module

• Robust GNSS Positioning: The LT800 features a high-performance, high-sensitivity 45-channel GNSS module supporting GPS, GLONASS, Galileo, and BeiDou to deliver meter-level positioning accuracy even in challenging environments.

High Performance in All Aspects

• Seamless Data Collection: The LT800 increases productivity with a built-in 2.0 GHz octa-core processor that displays large maps and data sets without lag or slowdown. The dual-SIM 4G modem ensures fast and reliable connectivity between teams in the field.
• Sunlight-Readable Display: The 8.1" Corning Gorilla Glass 3 IPS touchscreen is designed for durability and clear visibility in all environments. The capacitive multi-touch screen supports data capture with a stylus, gloves, or wet hands.

High Portability and Versatility

• GMS Certified for Extended Compatibility: The LT800's Google Mobile Service (GMS) and Android Enterprise Recommended (AER) certifications ensure software compatibility and optimal performance. The tablet works seamlessly with popular data collection applications available in the Google Play Store.
• Flexible Integration: The LT800 is designed to work effortlessly with GNSS receivers, enhancing the precision and reliability of field data collection.

Keep Your Data Secure

• Rugged Design with Long Battery Life: Built to withstand harsh environments and adverse weather conditions, the LT800 has an IP67-rated design and a 9000 mAh Li-ion battery that offers up to 10 hours of continuous operation. This ensures your data is safe and uninterrupted, allowing for extended workdays in the field.

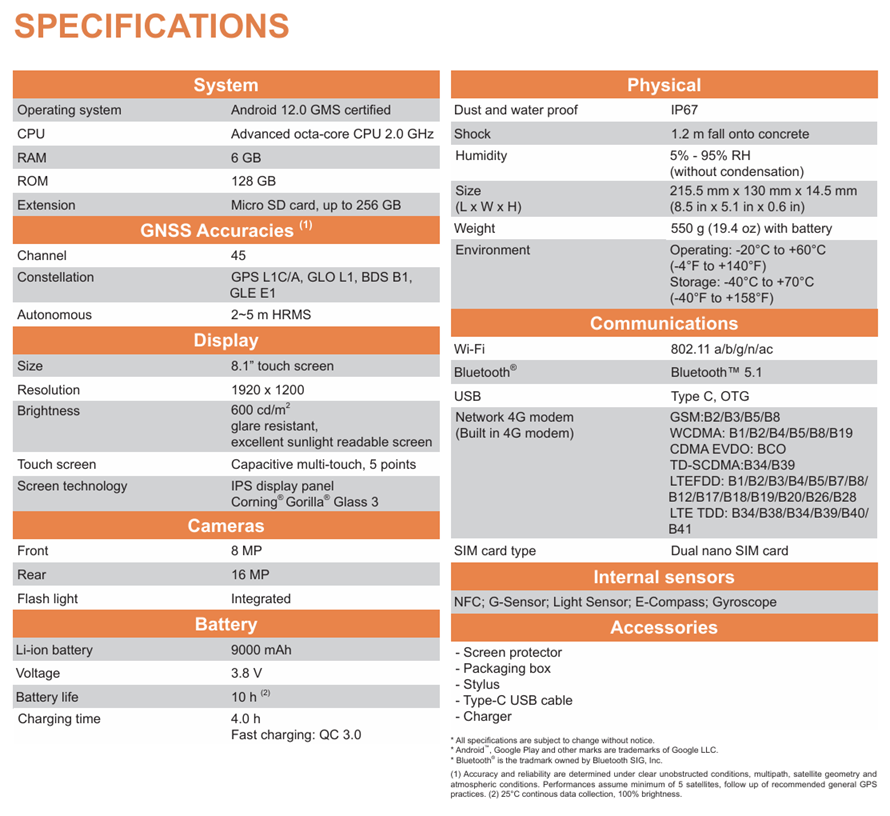

Technical Specifications:

• Operating System: Android 12.0 GMS certified
• RAM: 6 GB
• ROM: 128 GB
• Display: 8.1” touch screen, 1920 x 1200 resolution, IPS display panel, Corning® Gorilla® Glass 3, 600 cd/m² brightness
• Constellation Support: GPS L1C/A, GLONASS L1, BeiDou B1, Galileo E1
• GNSS Accuracies: < 1 m HRMS autonomous, 2 cm HRMS with RTK
• Processor: Advanced octa-core CPU 2.0 GHz
• Battery: Built-in 9000 mAh Li-ion battery, 10 hours battery life, 4.0 hours charging time, fast charging (QC 3.0)
• Durability: IP67 rated, withstands 1.2 m fall onto concrete, operating temperature -20°C to +60°C
• Weight: 550 g (with battery)
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.1, NFC, Type-C USB, OTG
• Camera: Rear 16 MP with flash, front 8 MP
• SIM Card Type: Dual nano-SIM card

System Features:

• Concise User Interface: Simple and intuitive, with physical keyboard shortcuts.
• High-Performance Graphics Engine: Opens large CAD files quickly.
• Online Software Registration and Update: Cloud services, sharing code, and remote tool support.
• Differential Data Relay: Supports RTCM message.
• Project Auto Backup: Local and cloud options for deployment backup and restore.
• Automatic Photographing: Enhances data collection.
• Flexible Installation: Compatible with a wide range of devices and peripherals.

Why Choose CHCNAV LT800? The LT800 is specifically engineered to enhance the capabilities of GNSS receivers, providing a reliable, high-performance data controller for precise and accurate field data collection. Its robust design, advanced processing capabilities, and comprehensive software integration make it the perfect choice for professionals in surveying, construction, and other GNSS applications.

Enhance your field operations with the CHCNAV LT800 and experience the ultimate in GNSS data control technology today.
