CHCNAV

CHCNAV NX510 SE RTK Auto Steering System for Tractors


Regular price $9,500.00
Shipping calculated at checkout.

The NX510 SE is a compact, all-in-one automated steering system that retrofits new and older tractors. It works in all visibility conditions and takes the fatigue out of long days.

Built-in 4G and UHF radio modems let you use your favourite RTK source, and it switches automatically between RTK and PPP to minimize downtime.

Key features

  • Affordable precision – High-accuracy auto-steer with fast payback.
  • Terrain compensation – GNSS+INS holds ±2.5 cm on slopes and rough ground.
  • Built-in 4G and UHF – Network RTK or your own base – plus automatic RTK/PPP switching.
  • Quick installation – Retrofits new and older tractors with minimal downtime.
  • AgNav software – Multilingual, 10.1″ display, multiple guidance patterns.
  • Durable – IP65 display, IP67 receiver, high-torque wheel.

At a glance

  • ±2.5 cm pass-to-pass
  • 8 mm +1 ppm RTK horizontal
  • <5 s RTK initialization
  • 4G + UHF built-in modems
  • 10.1″ AgNav display
  • 7.5 N·m steering torque

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.


Technical Specification

NX510 SE Autosteering system

Affordable auto-steering

CHCNAV NX510 SE – ±2.5 cm auto-steering at a price every farm can afford

The NX510 SE is a compact, all-in-one automated steering system that retrofits new and older tractors. It works in all visibility conditions and takes the fatigue out of long days.

Built-in 4G and UHF radio modems let you use your favourite RTK source, and it switches automatically between RTK and PPP to minimize downtime.

±2.5 cm4G + UHF built inUp to 30 km/hMoves between tractors

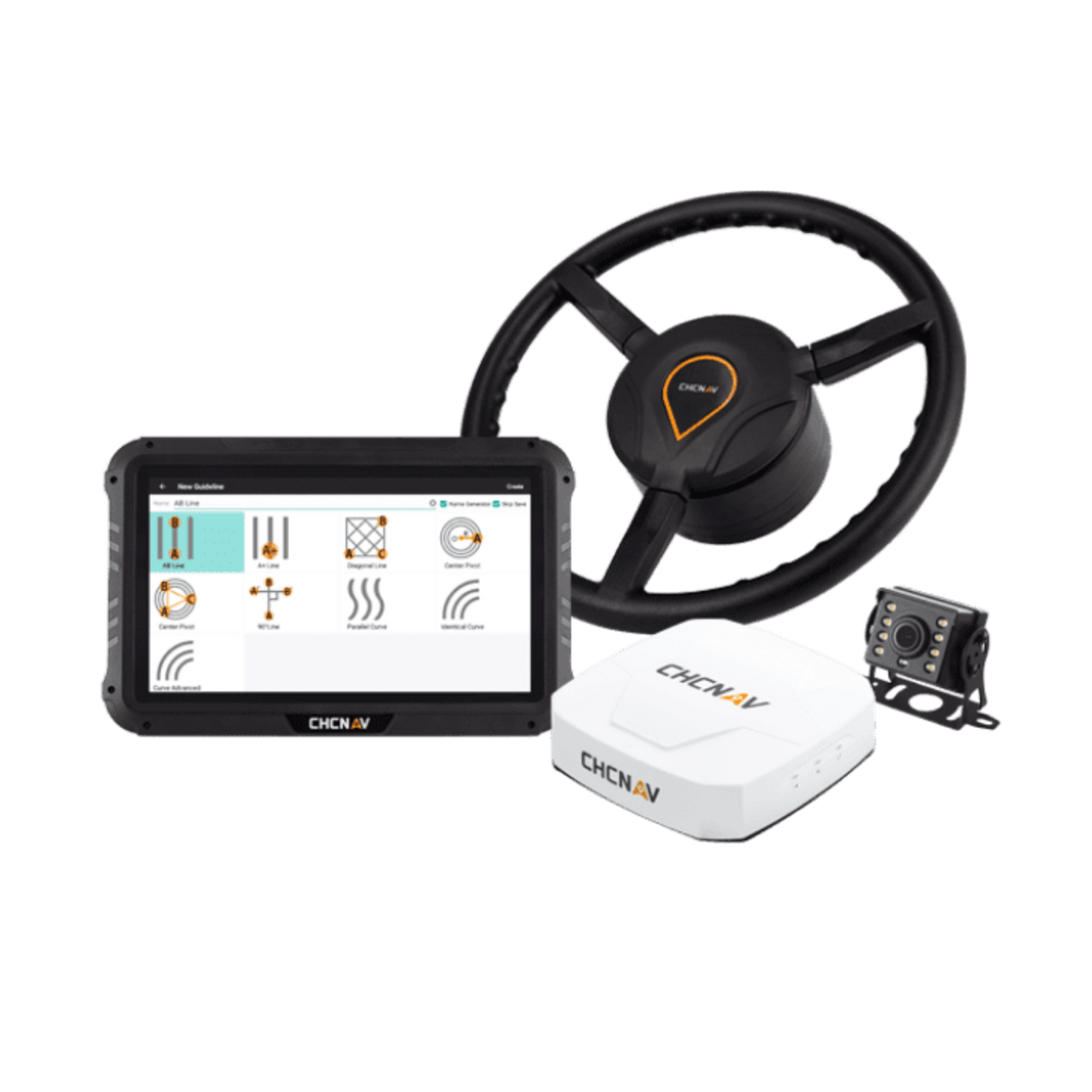

CHCNAV NX510 SE automated steering system
Our best-value system

Hands-free steering without the big-iron price

GNSS+INS terrain compensation keeps passes within ±2.5 cm in ditching, planting and harvesting, and the system moves easily from one tractor to another. In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

±2.5 cmpass-to-pass
8 mm+1 ppm RTK horizontal
<5 sRTK initialization
4G + UHFbuilt-in modems
10.1″AgNav display
7.5 N·msteering torque
Key features

Why choose the NX510 SE

$

Affordable precision

High-accuracy auto-steer with fast payback.

INS

Terrain compensation

GNSS+INS holds ±2.5 cm on slopes and rough ground.

UHF

Built-in 4G and UHF

Network RTK or your own base – plus automatic RTK/PPP switching.

Fit

Quick installation

Retrofits new and older tractors with minimal downtime.

UI

AgNav software

Multilingual, 10.1″ display, multiple guidance patterns.

IP

Durable

IP65 display, IP67 receiver, high-torque wheel.

Affordable precision

Productivity gains every farm can afford

The NX510 SE brings centimetre steering to tilling, ploughing, ditching, ridging, seeding, planting, spraying, fertilizing and harvesting – with less overlap, less fuel and less operator fatigue.

CHCNAV NX510 SE connectivity
Enhanced connectivity

4G and UHF radio built in

Connect to your favourite RTK source through the integrated 4G modem or the on-board 410–470 MHz UHF radio. H-PPP, E-PPP, DGPS and SPP are also supported, and the system switches automatically between RTK and PPP to keep you working.

In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

  • RTCM 3.0–3.3 corrections
  • 2 × CAN, 2 × RS232, Wi-Fi, Bluetooth
  • ISOBUS compatible
Quick, easy installation

Retrofit in a short time, move between tractors

The integrated guidance controller installs quickly on new and existing tractors, and the system transfers easily between vehicles – one kit can serve several machines through the season.

CHCNAV NX510 SE installation
CHCNAV NX510 SE AgNav display
Intuitive control

AgNav on a rugged 10.1″ display

AgNav multilingual software supports AB line, A+ line, circle line, irregular curve and headland turn patterns for all common operations. The high-torque electric steering wheel gives fast, reliable line acquisition – even on high-horsepower tractors.

CHCNAV NX510 SE accurate steering
CHCNAV NX510 SE durable design
Which CHCNAV system?

Compare CHCNAV tractor guidance and auto-steering

From an entry-level guidance display to a 12-inch flagship and harvester row guidance – all supplied, installed and supported by LATNET in Calgary.

Guide 10NX510 SENX510 ProNX510 Steer ReadyNX610NX612HG100
TypeManual guidanceElectric-wheel auto-steerElectric-wheel auto-steerUses tractor’s OEM valveElectric-wheel auto-steerElectric-wheel auto-steerHarvester row guidance
AccuracySub-metre±2.5 cm±2.5 cm±2.5 cm±2.5 cm±2.5 cm±8 cm to the row
Display10.1″10.1″10.1″10.1″10.1″ HD12.1″ HDWith NX600 series
CorrectionsGNSS / SBASRTK (4G + UHF), H-PPPRTK + Trimble RTXRTK (4G + UHF)RTK + PointSkyRTK + PointSkyCrop-row sensors
Working speed—Up to 30 km/h—0.1–30 km/h0.1–30 km/h0.1–30 km/hUp to 15 km/h
ISOBUS—YesYesVT / TC-SCUT, TC-BAS/SC/GEOUT, AUX-N, TC-BAS/SC/GEO—
Best forUpgrade path on a budgetBest valueNo base or network nearbySteer-ready tractorsMixed fleets, 3D viewsLarge farms, sprayersCorn and row-crop harvest
Guide 10NX510 SENX510 ProNX510 SRNX610NX612HG100
Applications

Where the NX510 SE works

Precision seeding

Precision seeding

Straight rows at any hour.

Strip cropping

Strip cropping

Repeatable lines.

Crop spraying

Crop spraying

Less overlap, fewer skips.

Harvesting

Harvesting

Hands-free passes.

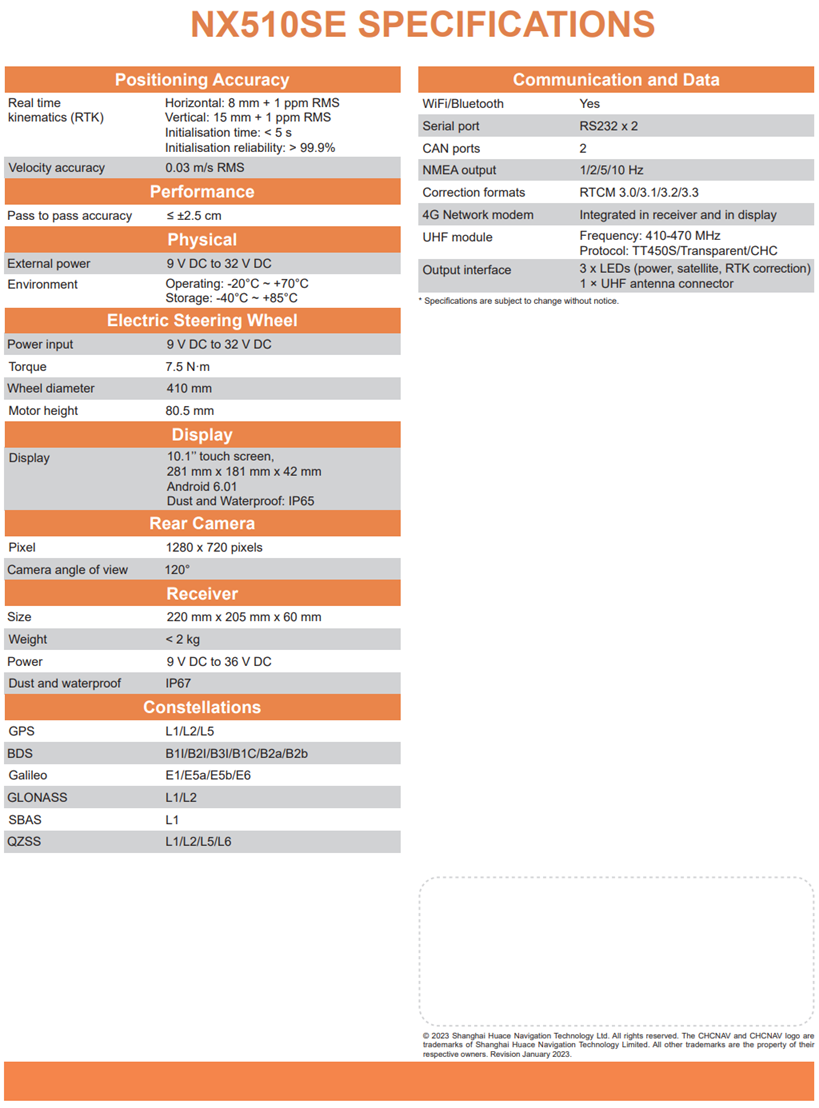

Datasheet

CHCNAV NX510 SE technical specifications

RTK accuracyHorizontal 8 mm + 1 ppm RMS · Vertical 15 mm + 1 ppm RMS
Initialization< 5 s, reliability > 99.9%
Velocity accuracy0.03 m/s RMS
Pass-to-pass accuracy≤ ±2.5 cm
GNSSGPS L1/L2/L5 · BDS B1I/B2I/B3I/B1C/B2a/B2b · Galileo E1/E5a/E5b/E6 · GLONASS L1/L2 · SBAS L1 · QZSS L1/L2/L5/L6
GNSS modesRTK (4G, UHF, Wi-Fi, Bluetooth), H-PPP, E-PPP, DGPS, SPP
Specifications from the CHCNAV datasheet and subject to change without notice. Pass-to-pass accuracy depends on correction source, satellite conditions, vehicle, implement and calibration.
Questions

NX510 SE FAQ

What accuracy does the NX510 SE achieve?

≤ ±2.5 cm pass-to-pass with RTK and GNSS+INS terrain compensation.

What is the maximum working speed?

High-precision field operations at up to 30 km/h.

Which correction sources can I use?

RTK via the built-in 4G modem (e.g. the LATNET RTK network) or the built-in UHF radio from a base such as the iBase Ag, plus H-PPP, E-PPP, DGPS and SPP.

Is it suitable for small farms?

Yes – it is designed as an affordable system that scales from small to large operations and moves easily between tractors.

NX510 SE or NX510 Pro?

The SE has a built-in UHF radio; the NX510 Pro adds L-band Trimble RTX for areas without RTK networks or base stations.

Authorized CHCNAV dealer · Calgary, Alberta

Get the NX510 SE from LATNET

Supply, installation and calibration by our Calgary team – the best-value way to add auto-steer to your fleet.

Request a quoteAll precision ag products

NX510SE GNSS RTK steering system

An automated steering system, that easily retrofits many types of new and old farm
tractors and other vehicles with a compact, up-to-date and all-in-one solution
