CHCNAV TD63 Pro 3D Dozer Machine Control System


CHCNAV TD63 Pro automatic 3D dozer control

The TD63 Pro combines dual GNSS, a 100 Hz IMU and intelligent hydraulic control to drive the dozer blade to the design in real time. Reach grade in fewer passes, without staking.

  • Accurate: ±2 cm blade control with the DO-Tech algorithm
  • Fewer passes: target grade in 1 to 2 passes instead of 3 to 4
  • Fast calibration: about 15 minutes
  • Compatible: pilot and PVG dozers, Rodx, DXF and LandXML designs

Read our guide: Dozer and excavator machine control in Canada: stop paying for dirt twice.

Supplied, installed, calibrated and supported in Canada by LATNET. Scroll down for features and specifications.

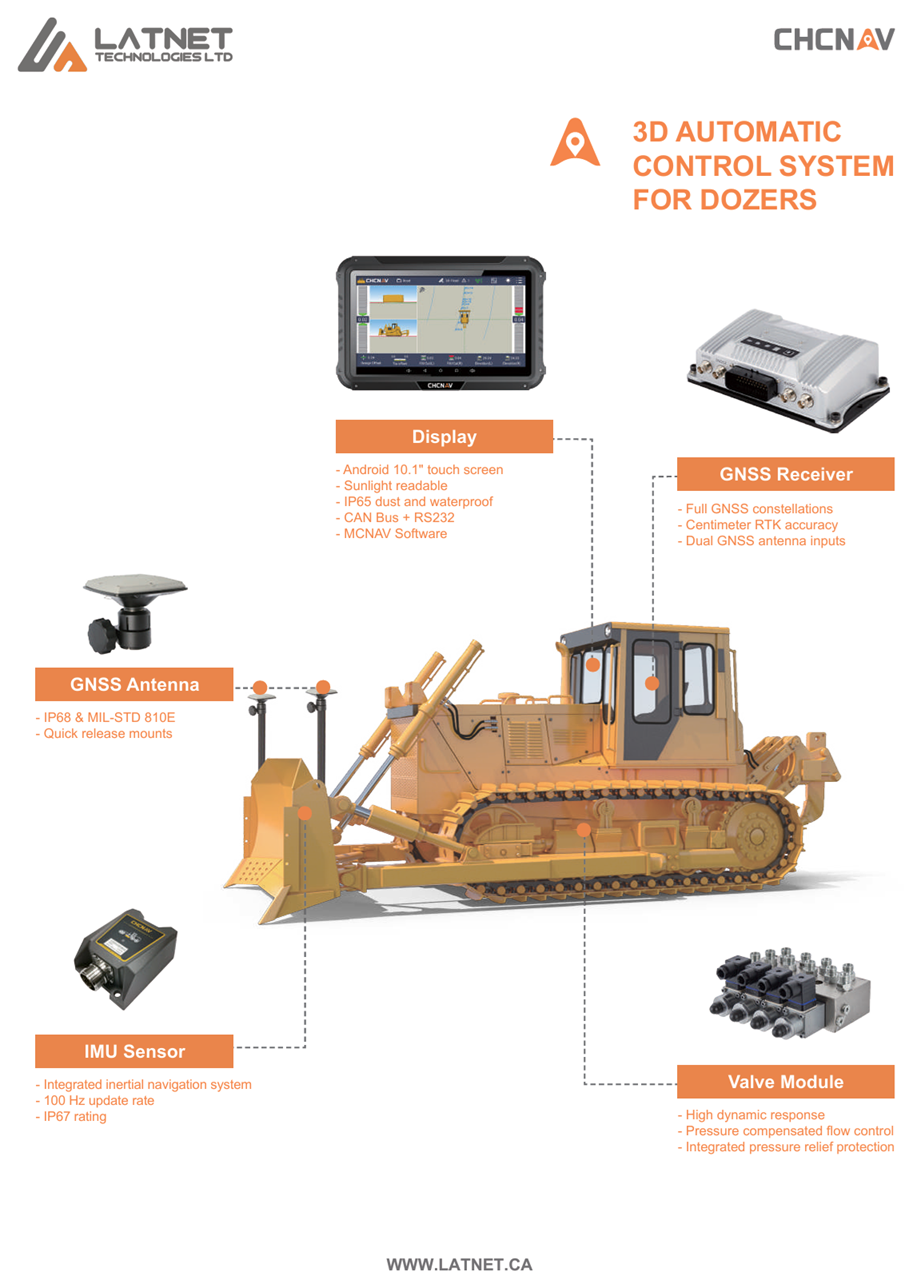

Diagram

TD 63 Pro 3D Dozer Control System

Your Image Description

Automatic 3D dozer control

Dual GNSS, a 100 Hz IMU and intelligent hydraulic control adjust the blade to your design in real time.

±2 cm blade control

Dual GNSS, 100 Hz IMU and the DO-Tech algorithm.

Fewer passes

Reach target grade in 1 to 2 passes instead of 3 to 4 by hand.

Fast calibration

About 15 minutes with a single IMU sensor and a model-based algorithm.

Fits your dozers

Pilot and PVG hydraulic dozers from most major brands.

TD63 PRO automatic control system with GNSS and IMU integration

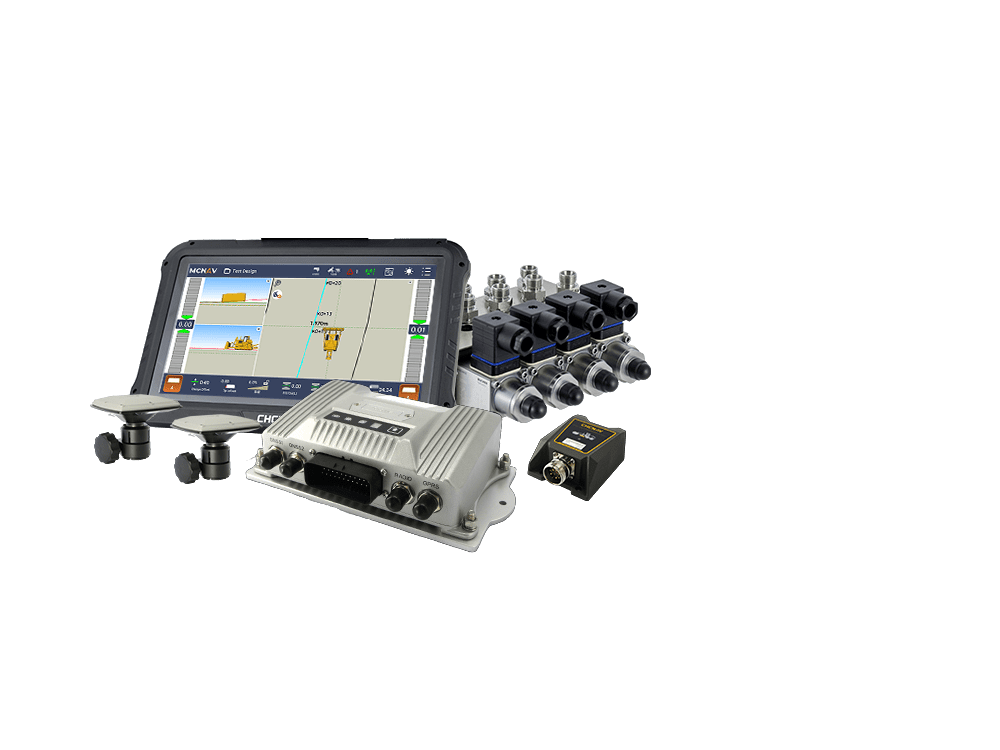

The system

Everything the dozer needs

A 10.1" Android tablet, an MC201 GNSS receiver with dual IP68 antennas, a 100 Hz IP67 IMU sensor, a hydraulic valve module and a PLC controller.

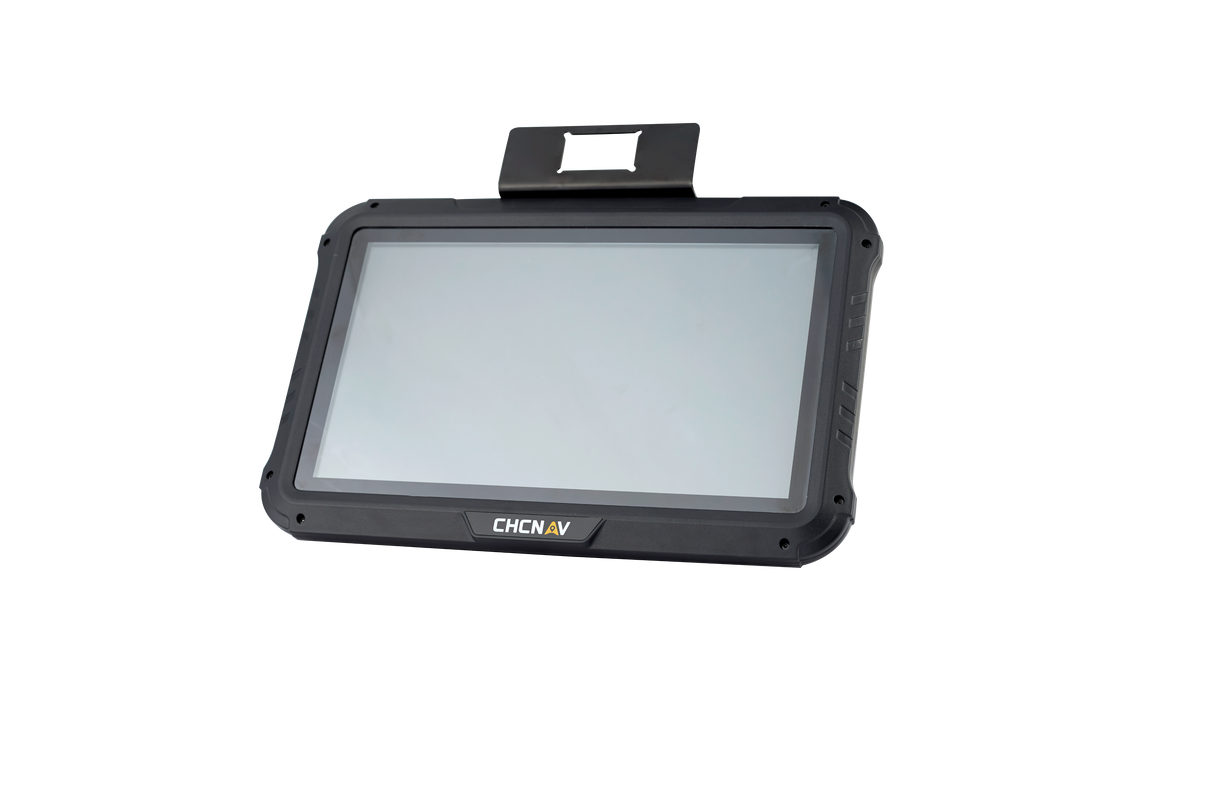

CHCNAV TD63 PRO CB-H10 on-machine display unit

In the cab

Clear guidance on a 10.1" tablet

  • Real-time cut and fill on a touchscreen operators learn quickly
  • Switch between 2D and 3D modes
  • Design files in Rodx, DXF and LandXML

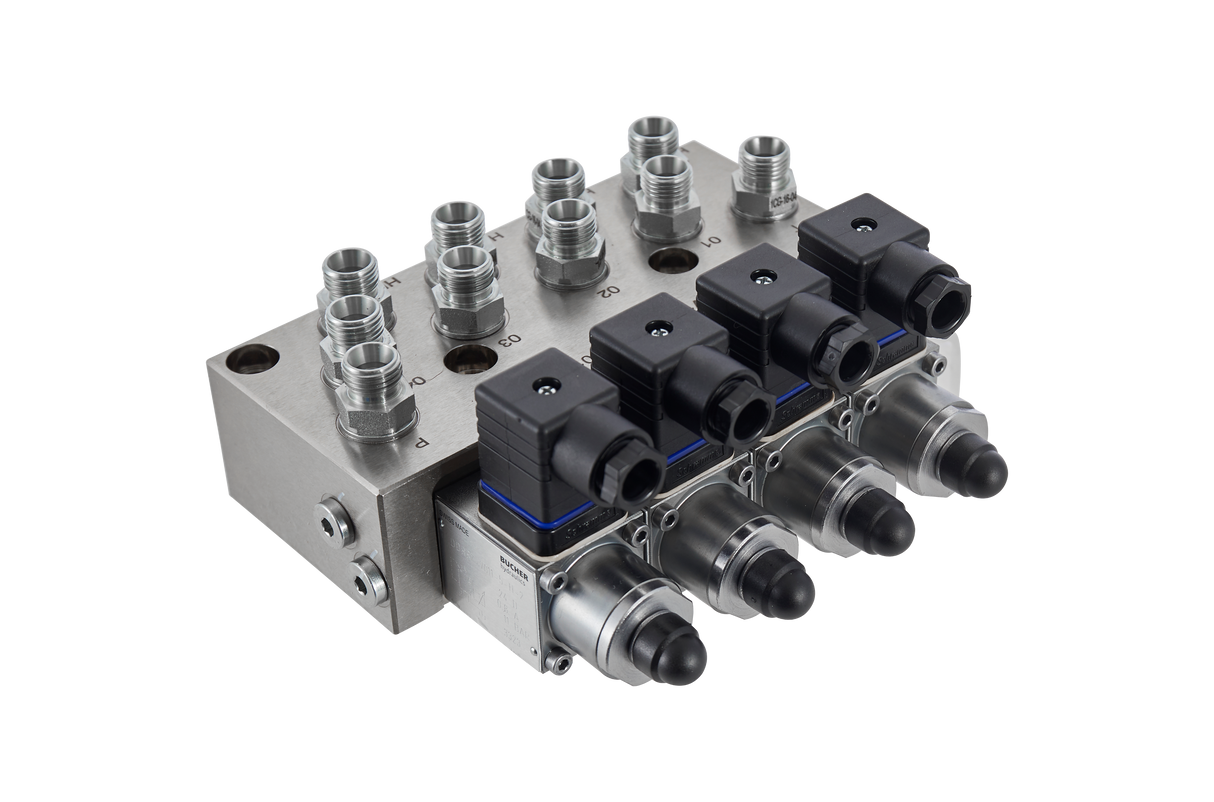

TD63 PRO hydraulic valve module for dozer blade control

Automatic blade control

Hydraulic control at any speed

The valve module adjusts the blade height automatically to the design surface, at varying speeds and in any machine position. Less staking, fewer errors and less wear on the machine.

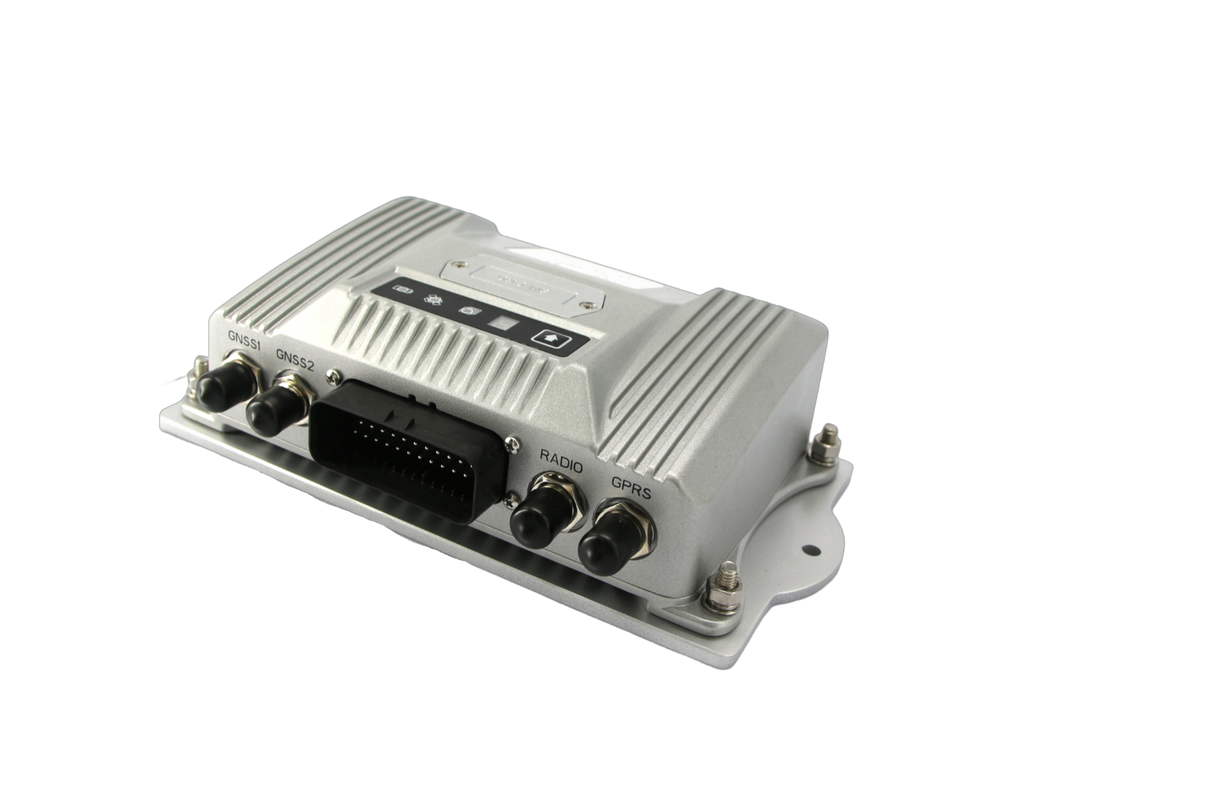

CHCNAV MC201 GNSS receiver for machine control systems

Positioning

Works with your corrections and files

  • Full GNSS with RTCM 3.0, 3.1 and 3.2 corrections
  • TT450S, Transparent and Satel_3AS radio protocols, or 4G
  • Calibration files: crd, dc, cal, lok, jxl and loc

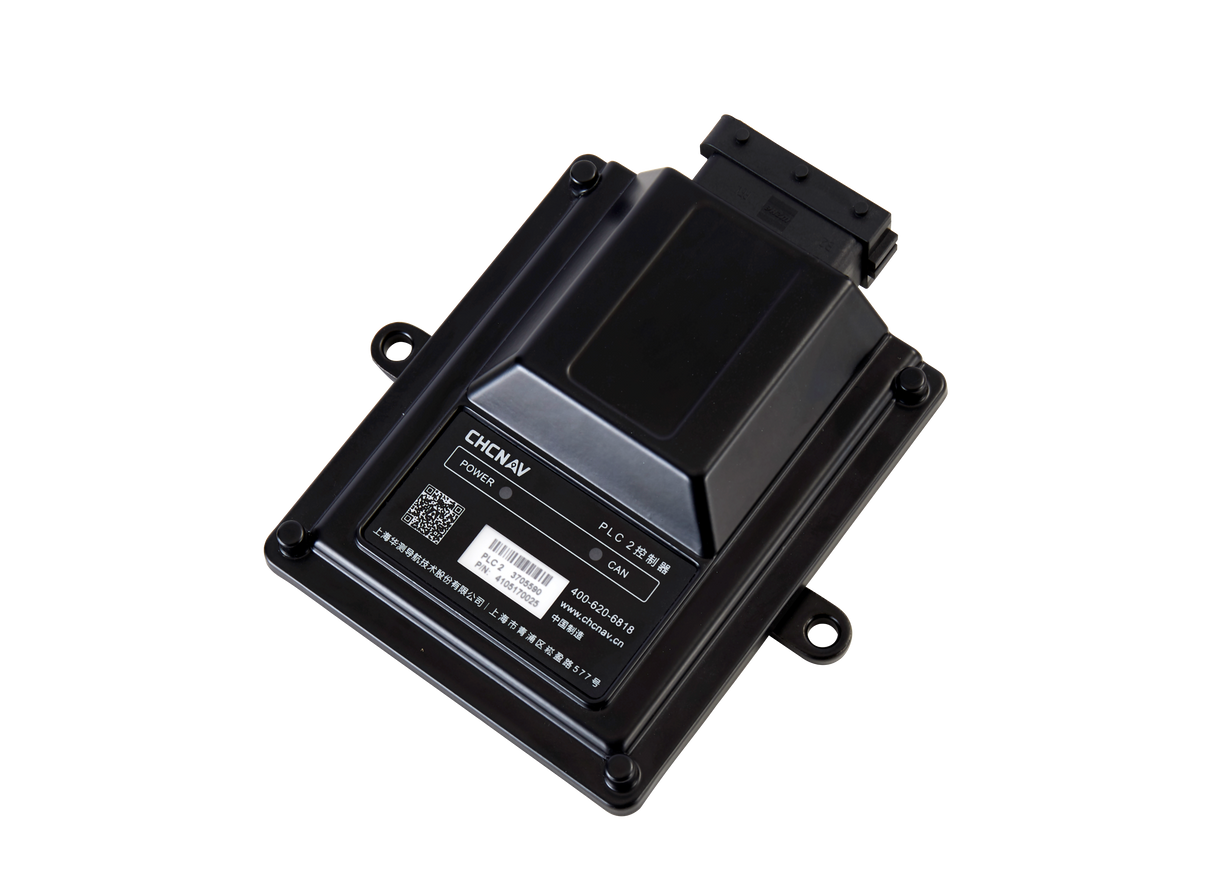

TD63 PRO PLC controller for automatic dozer blade adjustment

Control

Smart PLC controller

The PLC controller links the sensors and hydraulics for smooth, responsive blade control on rough sites.

Where the TD63 Pro works

Land clearing

Strip and level large areas quickly.

Foundation preparation

Build pads to design without stakes.

Dams and levees

Shape slopes and crests accurately.

Embankments

Place and grade fill layer by layer.

TD63 Pro specifications

GNSSFull GNSS, dual antennas
Accuracy±2 cm blade control
CorrectionsRTCM 3.0, 3.1, 3.2
Display10.1", Android, IP65
IMU sensor100 Hz, IP67
GNSS antennasDual, IP68
Valve moduleIncluded
WirelessWi-Fi, Bluetooth
Cellular4G LTE
Radio410–470 MHz receive
PortsCAN, RS232

What you get

  • Target grade in 1 to 2 passes instead of 3 to 4
  • No surveyor staking on the job
  • Lower labour, fuel and machine wear costs
  • Calibration in about 15 minutes

Supplied, installed and supported by LATNET

We install the TD63 Pro on your dozer, calibrate it and train your operators. After that our Calgary team is a phone call away for support, design files and updates.

Need RTK corrections? Pair it with a CHCNAV iBase base station, or ask us about using the LATNET RTK network in Alberta.

Book a demo or get a quote

TD63 PRO Automatic Control for Dozers

High Accuracy Automatic Grading System for Dozers
