AT311T – Rugged GNSS Geodetic Antenna
CHCNAV AT311T – Rugged GNSS Geodetic Antenna
Precision, Durability, and Superior Performance for Demanding Applications
The CHCNAV AT311T is a high-performance GNSS geodetic antenna engineered to deliver precise and reliable positioning in environments subjected to shocks and vibrations. Its advanced filtering capabilities, robust signal tracking, and rugged design make it ideal for applications such as marine navigation, machine control, precision agriculture, and industrial automation.
Key Features:
Full GNSS Support: The AT311T is compatible with all current and future GNSS signals, including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, SBAS, and L-Band. Its multi-feed point design ensures that the phase center aligns with the geometric center, minimizing measurement errors and enhancing accuracy.
Superior Performance: Featuring a 40 dB signal gain, advanced signal filtering, and a multipath rejection design, the AT311T delivers exceptional GNSS signal tracking even in challenging environments. Its high-gain, wide-beam pattern ensures effective reception of low-elevation signals, enabling signal acquisition in obstructed areas.

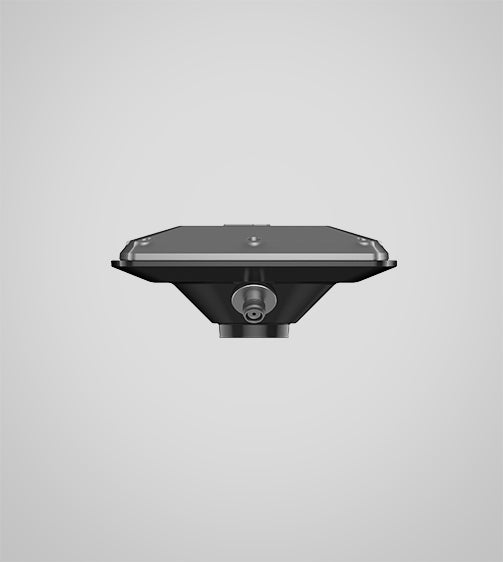

Ruggedized Design: Built for durability, the AT311T boasts an IP68 water-resistant rating, making it suitable for extreme conditions across a wide operating temperature range. The metal ground plane and high-strength enclosure provide superior drop resistance compared to traditional plastic-made GNSS antennas.
Applications:
Machine Control: Enhances precision in machine control applications, ensuring accurate positioning and operation.
Mining Operations: Provides reliable positioning data in mining environments, improving operational efficiency and safety.
Heavy Machinery Positioning: Ensures precise tracking and positioning of heavy machinery in various industrial settings.
Why Choose the CHCNAV AT311T?
The CHCNAV AT311T combines advanced GNSS technology with a rugged design to deliver exceptional performance in demanding applications. Its full GNSS support, superior signal tracking, and durability make it an ideal choice for professionals requiring reliable and precise positioning in challenging environments.
Experience enhanced accuracy and durability with the CHCNAV AT311T – your solution for demanding GNSS applications.

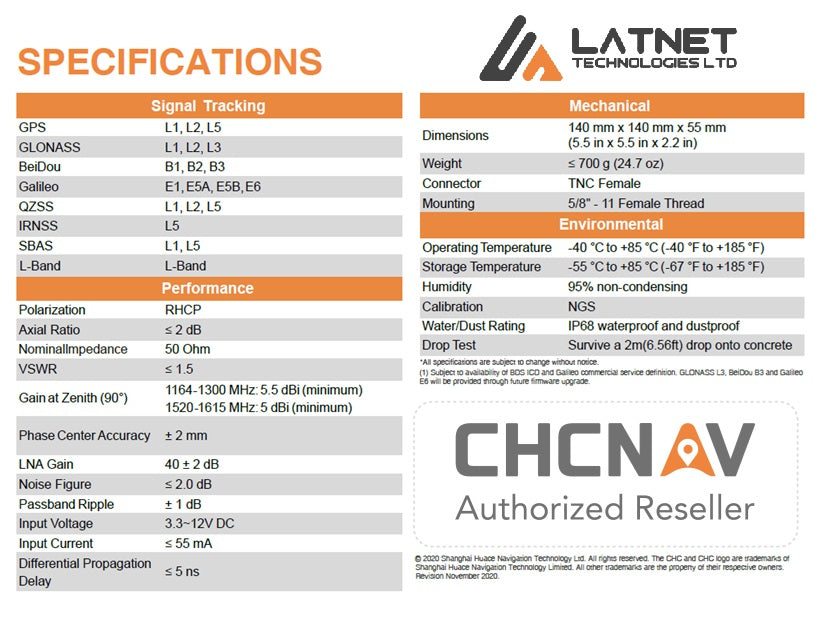

Technical Specifications
CHCNAV AT311T – Rugged GNSS Geodetic Antenna

AT311T Features
Rugged GNSS Geodetic Antenna
