CHCNAV

CHCNAV C504 45MP Aerial Mapping Camera


The C504 is a single-lens mapping camera with a 45 MP full-frame sensor and a professional 40 mm mapping lens, built for high image quality and productive aerial surveys.

It integrates with the CHCNAV X500 multirotor to form a complete aerial survey system for 2D and 3D modelling, object-based modelling and high-rise urban mapping.

Key features

  • Full-frame 45 MP – 36 × 24 mm CMOS, 4.4 µm pixels for sharp mapping imagery.
  • Mapping lens – Professional 40 mm lens, customizable to 56 mm.
  • 3-axis gimbal – Pitch –135° to +60°, heading ±160° for nadir, oblique and facades.
  • X500 integration – Plug-in gimbal interface for a complete aerial survey system.
  • Rugged monobloc – Aerospace-grade composite resists EMI, heat, water, UV and dust.
  • HD transmission – 4K 30 fps video and HD dynamic-bitrate live view.

At a glance

  • 45 MP 8192 × 5456 px
  • 40 mm mapping lens (56 mm option)
  • 280 g 650 g with gimbal
  • 512 GB image storage
  • 4K 30 fps video
  • IP53 rugged housing

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.



Technical Specifications & Features

CHCNAV C5 Aerial Camera

Aerial mapping camera for the X500

CHCNAV C504 – 45 MP full-frame mapping camera on a 3-axis gimbal

The C504 is a single-lens mapping camera with a 45 MP full-frame sensor and a professional 40 mm mapping lens, built for high image quality and productive aerial surveys.

It integrates with the CHCNAV X500 multirotor to form a complete aerial survey system for 2D and 3D modelling, object-based modelling and high-rise urban mapping.

45 MP full frame40 mm lens512 GBIP53

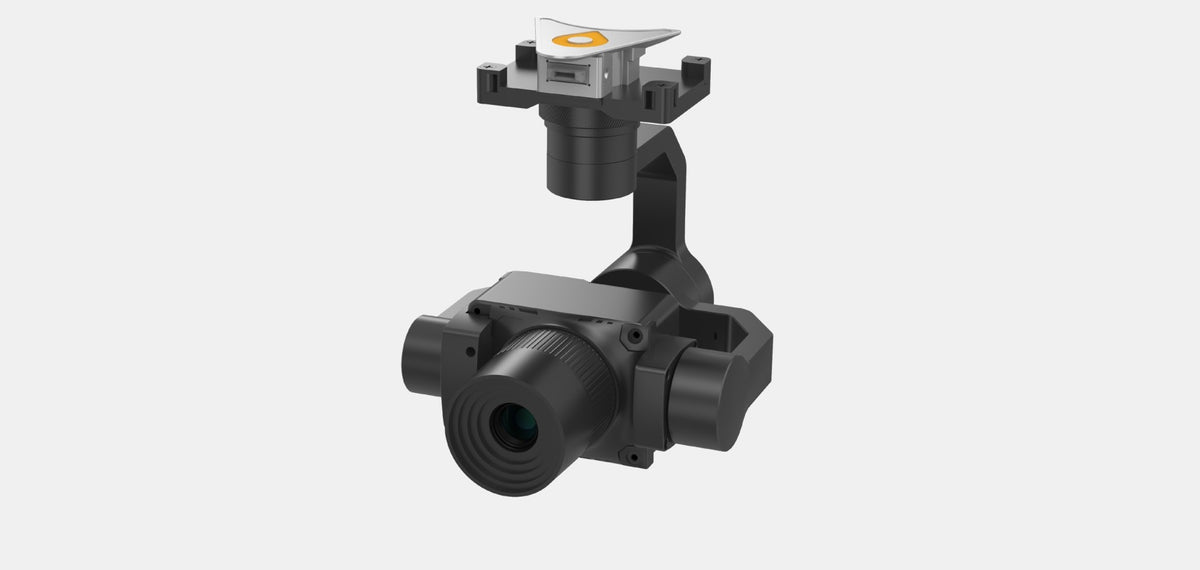

CHCNAV C504 aerial mapping camera on gimbal
Rugged monobloc design

Light, tough and made for the X500

The C504 is built as a monobloc from aerospace-grade metal composite, keeping it light while resisting electromagnetic interference, heat, water, impact, UV and dust. A 3-axis gimbal points the camera from –135° to +60°, so it captures nadir, oblique and facade imagery in one system.

45 MP8192 × 5456 px
40 mmmapping lens (56 mm option)
280 g650 g with gimbal
512 GBimage storage
4K30 fps video
IP53rugged housing
Key features

Why choose the C504

45

Full-frame 45 MP

36 × 24 mm CMOS, 4.4 µm pixels for sharp mapping imagery.

40

Mapping lens

Professional 40 mm lens, customizable to 56 mm.

3ax

3-axis gimbal

Pitch –135° to +60°, heading ±160° for nadir, oblique and facades.

X500

X500 integration

Plug-in gimbal interface for a complete aerial survey system.

IP53

Rugged monobloc

Aerospace-grade composite resists EMI, heat, water, UV and dust.

4K

HD transmission

4K 30 fps video and HD dynamic-bitrate live view.

Image quality

45 MP full-frame sensor and 40 mm mapping lens

A 36 × 24 mm full-frame CMOS with 4.4 µm pixels and an 8192 × 5456 image, paired with a professional 40 mm mapping lens at F5.6, delivers detailed imagery for orthophotos, 3D reconstruction and object-based modelling. A 56 mm lens is available for higher-altitude or higher-resolution work.

8192 × 5456 pxF5.620 m min. focus
CHCNAV C504 mapping camera
Built for the CHCNAV X500

A complete aerial survey solution

The C504 attaches to the X500 through a gimbal interface and universal aviation connector. Together they form a heavy-lift survey platform with up to 58 minutes of flight time (no payload), RTK positioning, an 80 m obstacle sensor and a 20 km link – and the X500 works fully offline, with no data shared online.

Gimbal-stabilized

Nadir, oblique and facade capture

The 3-axis gimbal (pitch –135° to +60°, heading ±160°, roll –90° to +55°) keeps images steady and lets you tilt the camera for building facades, high-rise urban surveys and object modelling – not just straight-down mapping.

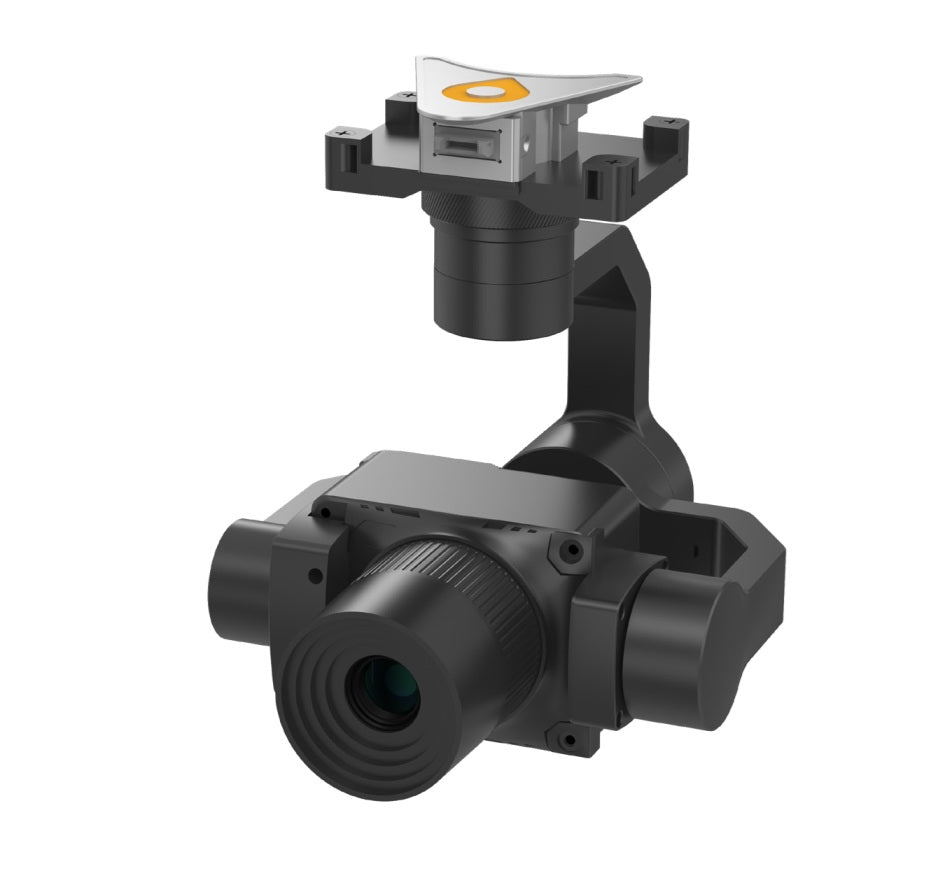

CHCNAV C504 front view
Which camera?

Compare CHCNAV aerial mapping cameras

Two full-frame nadir cameras and a five-lens oblique system – pick by deliverable, drone and workflow.

C5C504C30
TypeOrthographic (nadir)Orthographic on 3-axis gimbalOblique, 5 lenses
Resolution45 MP full frame45 MP full frame130 MP (5 × 26 MP)
Sensor36 × 24 mm, 4.4 µm36 × 24 mm, 4.4 µm23.5 × 15.7 mm, 3.76 µm
Lens35 mm, 54.3° × 37.8°40 mm (56 mm option)25 mm nadir / 35 mm oblique at 45°
Weight290 g280 g (650 g with gimbal)605 g
Storage256 GB internal, 80 Mb/s512 GB640 GB plug-in module, 300 Mb/s
MountAlphaport / DJI Skyport, on AlphaUni LiDARCHCNAV X500 gimbal interfaceAlphaport / DJI Skyport, on AlphaUni LiDAR
Best forOrthophotos, colour for LiDARX500 2D/3D mapping, high-rise3D city models, facades
C5C504C30
Applications

Where the C504 works

High-rise urban surveying

High-rise urban surveying

Facades and rooftops on a gimbal.

2D and 3D mapping

2D and 3D mapping

Orthophotos and 3D models.

High-altitude mapping

High-altitude mapping

Large areas with the X500.

Object-based modelling

Object-based modelling

Bridges, waterfronts and structures.

Datasheet

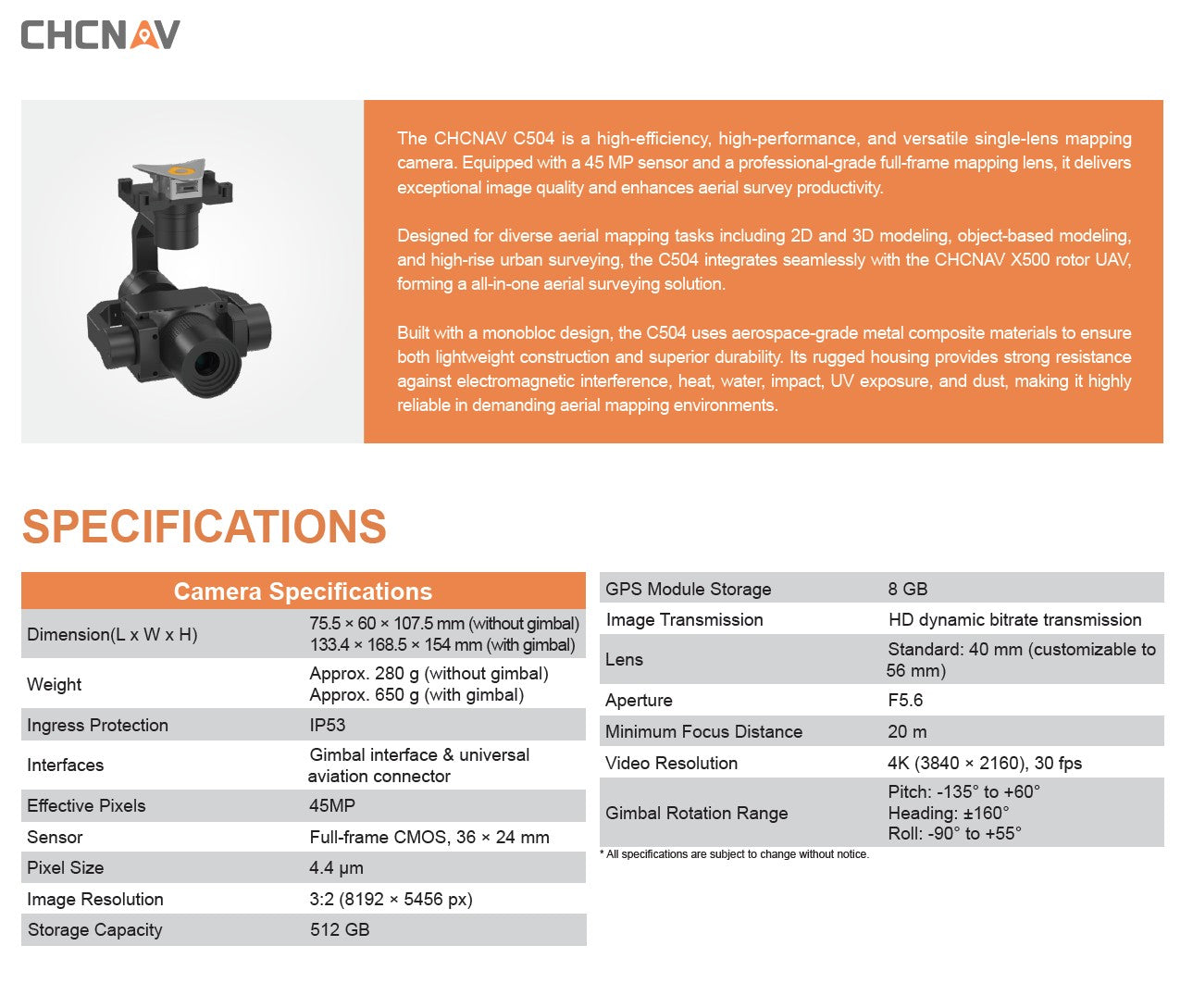

CHCNAV C504 technical specifications

SensorFull-frame CMOS, 36 × 24 mm
Effective pixels45 MP
Pixel size4.4 µm
Image resolution8192 × 5456 px (3:2)
Lens40 mm standard (customizable to 56 mm)
ApertureF5.6
Minimum focus distance20 m
Video4K (3840 × 2160), 30 fps
Storage512 GB
Specifications from the CHCNAV datasheet and subject to change without notice.
Questions

C504 FAQ

Which drone is the C504 for?

It is designed for the CHCNAV X500 and attaches through its gimbal interface.

What is the difference between the C504 and C5?

Both use 45 MP full-frame sensors. The C504 has a 40 mm lens on a 3-axis gimbal, 512 GB storage, IP53 and 4K video; the C5 is a fixed 35 mm nadir camera for many drones and LiDAR.

Can it capture oblique images?

Yes – the gimbal tilts from –135° to +60°, so you can capture facades and oblique views. For simultaneous five-direction capture, see the C30.

Is it weather resistant?

The monobloc housing is IP53 and resists EMI, heat, water, impact, UV and dust.

Authorized CHCNAV dealer · Calgary, Alberta

Get the C504 from LATNET

Order the C504 with an X500, training and processing support from our Calgary team.
