Bohnenstingl

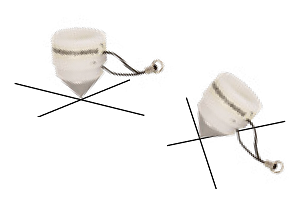

Precision Prism 17.5



Surveying Object Points on Structures and Buildings

When surveying facade points, measurements are typically taken reflectorlessly (via laser/direct reflection). If the total station lacks this capability or if reflectorless measurements aren't sufficiently accurate, a prism is used following a two-step process:

  1. Aim at the object point using the crosshairs.
  2. Position the prism directly in front of the object point, maintaining a known distance to the prism center.

The prism housing quality significantly affects measurement precision, concerning:

  • The distance accuracy between the prism center and the object point.
  • The reliability of the prism constants provided.
  • The potential alteration in length of the rear offset tip due to wear.

Features of the Precision Prism PP17.5

  • Prism: Ø 17.5 mm glass, with a grinding accuracy of 2".
  • Reflection: Silver mirrored back.
  • Housing: Outer diameter of 22 mm, crafted from anodized aluminum.
  • Distance Range: Capable of measurements up to 500 m+ (device and weather dependent).
  • Durability: Features a hardened steel pin end-piece that resists wear and maintains consistent length.
  • Adjustability: The prism can tilt up to 45° in any direction when placed vertically on a flat surface, facilitating alignment with the total station.
  • Prism Constant: K = 0 mm (Leica = +34.4 mm), removing the need for longitudinal adjustments.
  • Design: The steel pin at the theoretical reversal point of the measuring beam is only 11.3 mm from the visible prism center, ensuring symmetry.

Visor and Protective Cap

  • Aids in precise alignment of the prism to the tachymeter.
  • If misaligned, the cap obscures part of the prism. Proper alignment reveals the entire front side of the prism, indicating correct positioning toward the tachymeter.
  • Enhances grip and protects the prism from damage and environmental factors.
  • The cap is removable for easy cleaning of the prism.

Product Description

Precision Prism PP 17.5 – equipped with a steel tip and a visor/protective cap for enhanced usability and accuracy.

Product ID: 1470
