Bohnenstingl

Precision wall bolts with M8 internal thread



Features of the Wall Bolt and Wall Screw

  • Material: Made of high-quality stainless steel, ensuring durability and resistance to corrosion.
  • Head Design: Features a hexagon head with a precisely plane-turned surface, perpendicular to the M8 inner thread, for efficient force distribution and tool engagement.

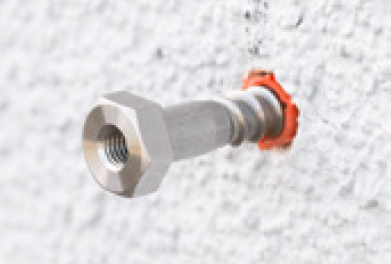

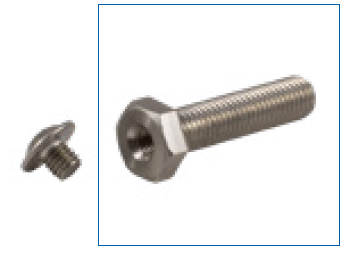

Wall Bolt Specifications

  • Application: Ideal for mounting by mortar.
  • Shaft: Designed with threaded grooves to enhance grip in mortar installations.
  • Bore Compatibility: Suitable for bore holes with a diameter of 14 mm or larger.

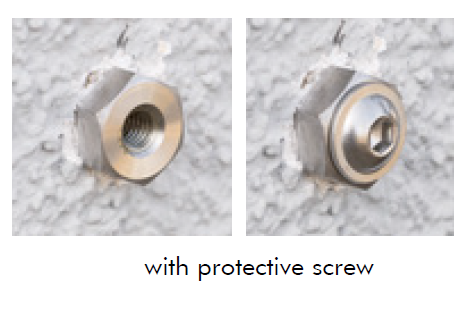

  • Protection: Includes a round head screw with a hexagon socket to protect the M8 thread when not in use.

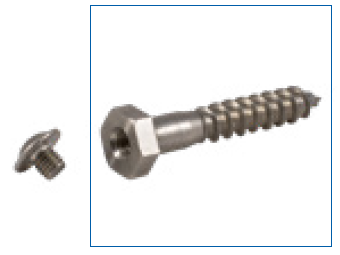

Wall Screw Specifications

  • Application: Designed for secure mounting in concrete and stone.
  • Dowel Compatibility: To be used with a dowel of diameter 14 mm.
  • Installation: Screw into the dowel using an open-end wrench until fully seated.
  • Thread Protection: Comes with a round head screw featuring a hexagon socket for safeguarding the M8 thread.

Product Descriptions

  • Wall Bolt: Diameter 12 mm x Length 60 mm, M8 inner thread, hexagon head, stainless steel (Product ID: 0892.60).
  • Wall Screw: Diameter 12 mm x Length 70 mm, M8 inner thread, hexagon head, stainless steel (Product ID: 0898).
