TrueView GO 116S

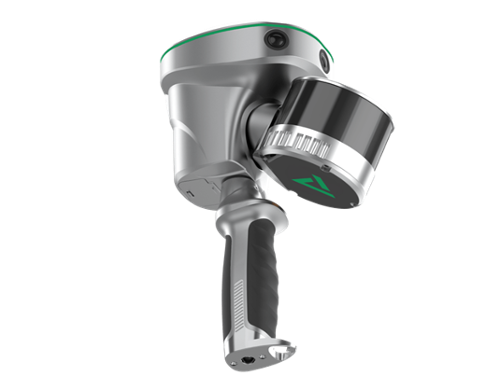

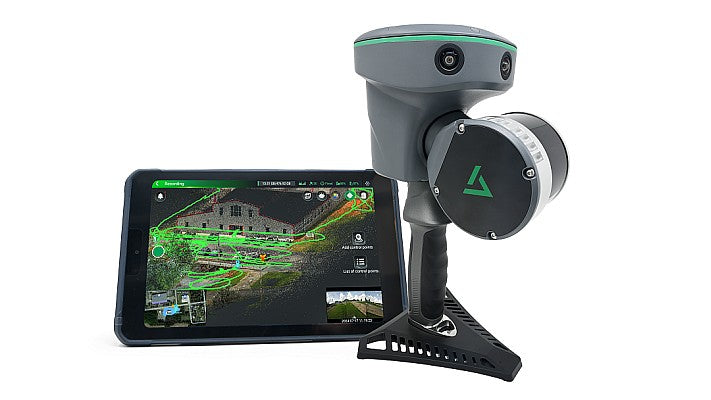

GeoCue TrueView GO 116S – Advanced Handheld SLAM Solution for High-Definition Reality Capture

Product Overview
The GeoCue TrueView GO 116S offers a cutting-edge handheld mapping solution that combines GNSS RTK, laser scanning, and SLAM (Simultaneous Localization and Mapping) technologies. Built for seamless indoor and outdoor reality capture, the TrueView GO 116S transforms complex environments into precise digital twins. Designed for professionals in surveying, construction, BIM, agriculture, forestry, and infrastructure inspection, this powerful yet user-friendly device captures data in real time, providing the flexibility to survey areas where GNSS signals are weak or unavailable.

Key Features

• Real-Time SLAM and RTK Fusion

  • High Accuracy: Equipped with a survey-grade laser scanner, the TrueView GO 116S provides horizontal and vertical absolute accuracy better than 5 cm RMS, with a relative accuracy of 1 cm. Its GNSS RTK functionality enables 3D positioning accuracy better than 3 cm.
  • Enhanced Data Collection: With 16 channels and a pulse repetition rate of 320 kHz, the TrueView GO 116S collects up to 640,000 points per second, creating highly detailed point clouds.
  • SLAM-Enabled GNSS-Free Operation: Powered by SFix technology, it achieves high-accuracy point measurements even in GNSS-denied environments, ensuring consistent 5 cm precision within minutes.

• Versatile LiDAR and Imaging Capabilities

  • Extended LiDAR Range: The TrueView GO 116S captures detailed measurements at distances up to 120 m, with optimal range performance for targets with over 10% reflectivity.
  • 3D LiDAR and RGB Integration: Features three high-resolution 5 MP RGB cameras that produce detailed imagery, creating a comprehensive 360° x 270° field of view for colorized, georeferenced point clouds.
  • Efficient Data Collection: Ideal for large-scale mapping projects, it can scan up to 13,000 square meters in real time, supporting rapid data acquisition without loop closures.

• Intuitive and User-Friendly Design

  • "Ready, Set, GO!" Operation: Designed for quick deployment, users can start scanning immediately, making it ideal for on-site adjustments and coverage checks.
  • Hot-Swappable Batteries: Provides up to 1 hour of continuous use with a single battery, with a convenient hot-swap feature for uninterrupted operation.
  • Instant Accuracy Alerts: Real-time accuracy assessment ensures users can make immediate adjustments to data quality during scanning, reducing post-processing errors.

• Advanced Workflow with LP360

  • LP360 Software Suite: Integrated with LP360, the TrueView GO 116S enables seamless data processing and management. LP360’s tools simplify point cloud classification, 3D accuracy checks, and feature extraction, enhancing data integrity and visualization.
  • Key Modules in LP360:
    • Strip Adjustment: Ensures consistent alignment of scan strips, crucial for high-precision mapping.
    • Automatic Ground Classification: Efficiently categorizes ground points for easy terrain analysis and digital surface model creation.
    • Real-Time Point Cloud Visualization: Allows operators to visualize data in real time, making it easier to identify areas that may need rescanning.
    • LP360 Cloud (Optional): Enables cloud storage, sharing, and remote access to data, enhancing collaboration and simplifying project management for teams.

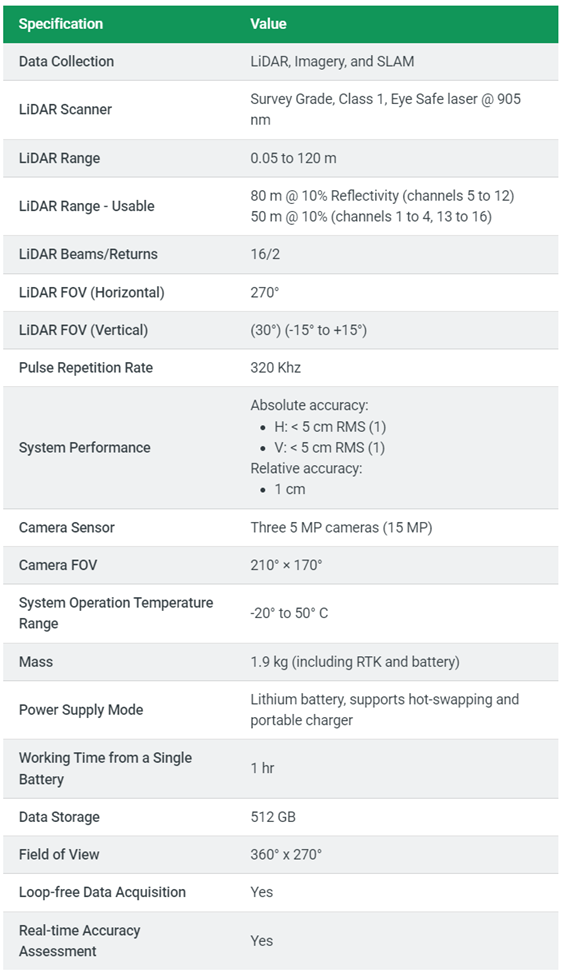

Technical Specifications

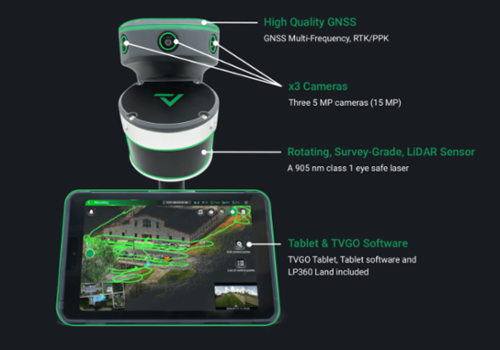

• LiDAR Sensor: Survey-grade, Class 1 eye-safe laser, 16 channels, and 270° horizontal FOV
• Range Performance: Up to 120 m; optimal up to 80 m for targets with 10% reflectivity
• Camera Sensor: Three 5 MP cameras (15 MP total) with 210° × 170° field of view
• GNSS Accuracy: RTK positioning accuracy of < 3 cm
• Power Supply: Lithium battery, hot-swappable, with up to 1 hour of operation per battery
• Operating Temperature: -20° to +50° C
• Data Storage: 512 GB for extensive data capacity
• Weight: 1.9 kg (including RTK and battery)

Why Choose GeoCue TrueView GO 116S?

The TrueView GO 116S redefines ease of use in high-definition 3D mapping. Its seamless integration of GNSS RTK and SLAM technologies offers precise data collection in both GNSS-available and GNSS-denied environments. Whether mapping large outdoor areas, complex indoor spaces, or underground structures, the TrueView GO 116S provides accurate, real-time insights, making it an essential tool for surveyors, civil engineers, and construction professionals.

Elevate your surveying capabilities with the TrueView GO 116S – the powerful, flexible, and intuitive solution for handheld reality capture.
