GeoCue TrueView 540 – Advanced Airborne LiDAR Solution for UAV Mapping

Product Overview

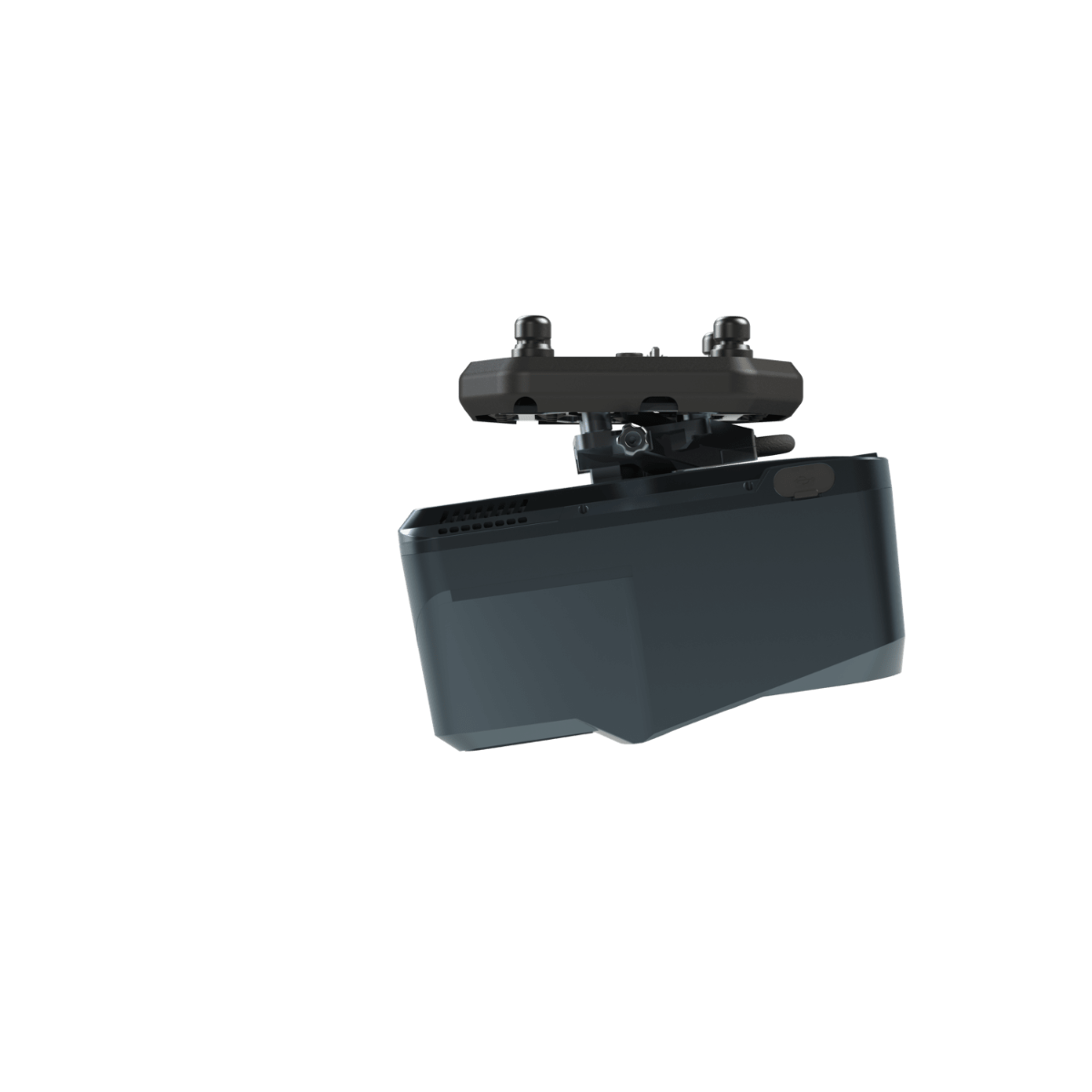

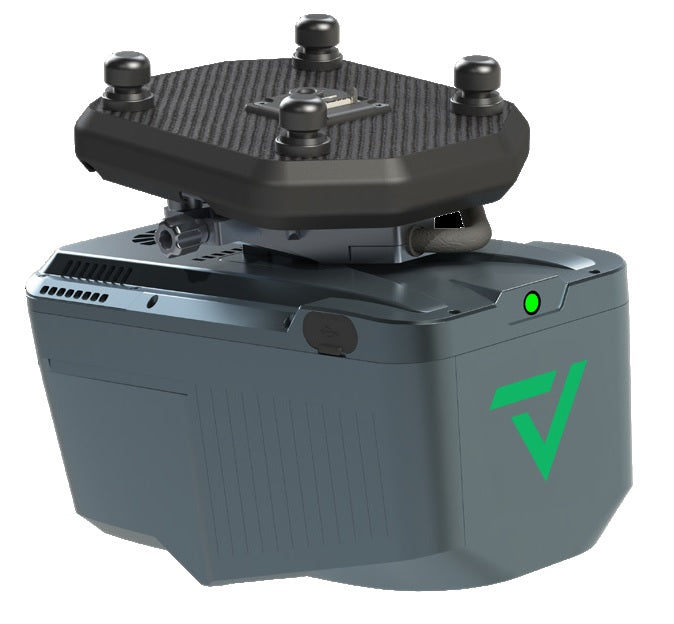

The GeoCue TrueView 540 is a next-generation airborne LiDAR solution that combines high-density LiDAR and RGB imagery, designed for demanding UAV mapping and photogrammetry applications. This system leverages cutting-edge LiDAR technology from CHC Navigation (CHCNAV) with precision GNSS positioning and an advanced IMU for unparalleled accuracy and quality. Powered by the LP360 software suite, the TrueView 540 provides a streamlined workflow for efficient data processing and 3D visualization, setting a new standard in accessible, high-end LiDAR for professionals.

Key Features

• Enhanced Precision and Accuracy

  • Precision LiDAR Scanning: Delivers a repeated range accuracy of 5 mm and absolute precision from 2 to 5 cm, even in complex environments.
  • Robust GNSS/INS Integration: Achieves 10-20 mm positional accuracy and angular accuracy of 0.006° for roll/pitch and 0.019° for heading, ensuring high-accuracy data capture.

• Long-Range Scanning Capabilities

  • Extended Range: Supports up to 400 meters for targets with >20% reflectivity.
  • High Point Density: Capable of a 500 kHz pulse repetition rate, generating up to 500,000 measurements per second, ideal for detailed topographic mapping and vegetation penetration.

• Versatile Multi-Target Capability

  • Advanced Target Echo: Captures up to 8 returns per pulse, enabling effective penetration through dense vegetation and accurate ground surface modeling. This feature produces high-quality Digital Elevation Models (DEMs) and Digital Surface Models (DSMs) even in forested areas.

• High-Resolution Imaging and Colorized Point Clouds

  • Integrated 45 MP Camera: The full-frame global shutter camera produces high-resolution RGB images, perfect for photogrammetry and creating colorized point clouds.
  • Efficient Workflow with LP360 Software: The TrueView 540 is supported by LP360, a powerful data processing and feature extraction tool, providing an intuitive, streamlined workflow for accurate 3D modeling.

• Rugged, Lightweight Design

  • Durable Construction: With an IP64 rating, the TrueView 540 is designed to withstand challenging conditions, including temperatures from -20°C to +50°C, ensuring reliable performance.

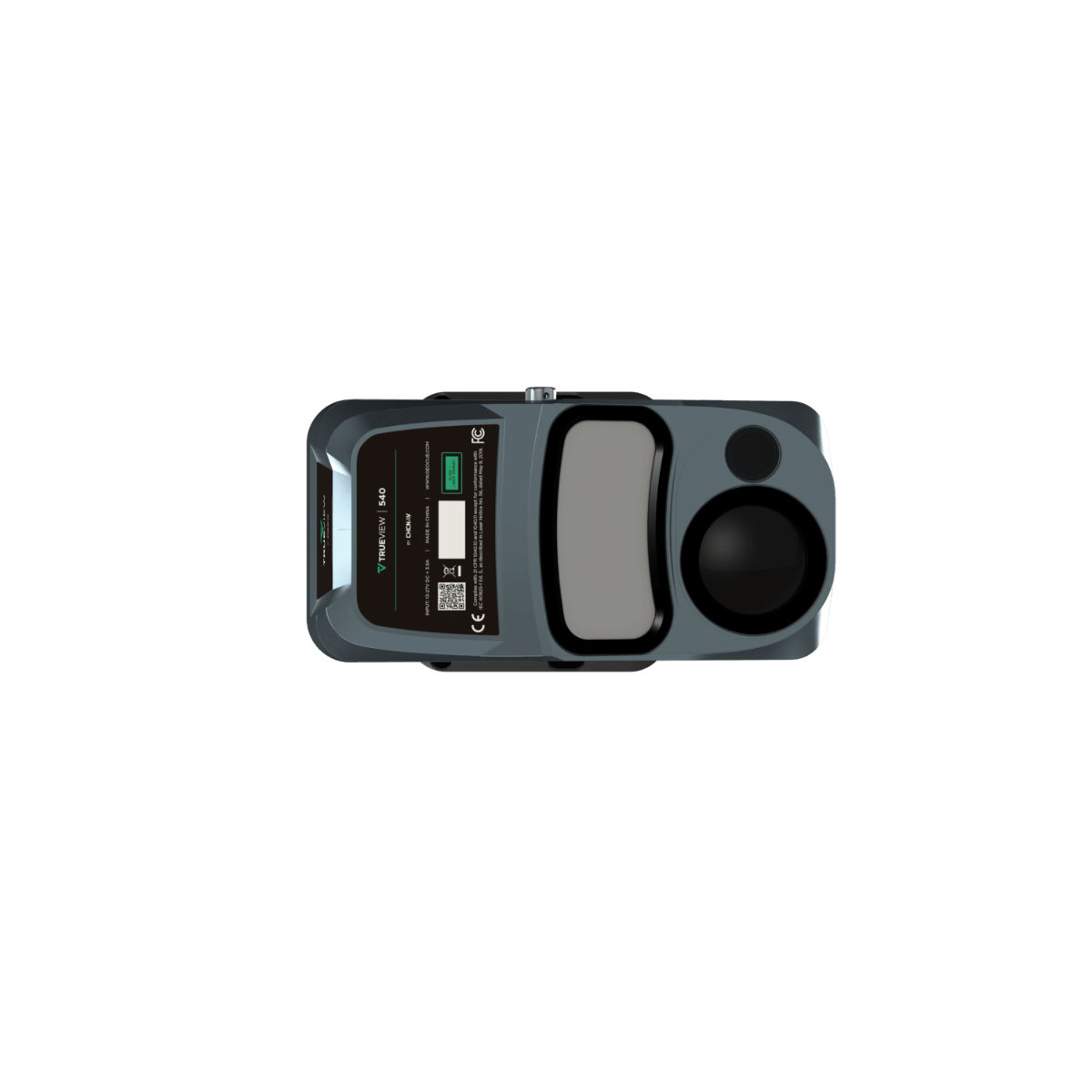

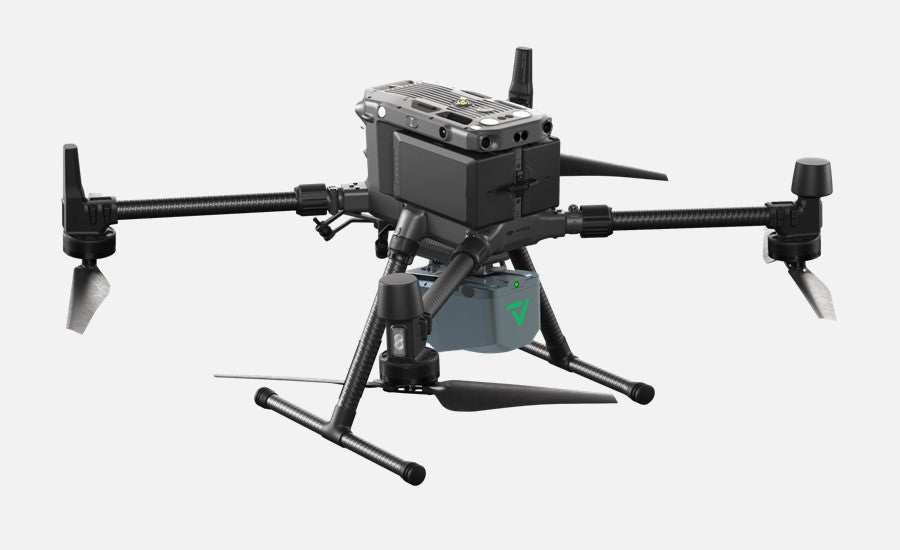

  • Compact and Adaptable: Weighing only 1.9 kg (2.15 kg with accessories), it’s easily mountable on various UAV platforms, including the DJI Matrice series, enhancing operational flexibility.

• Real-Time Insights and Data Visualization

  • Instant Data Access: Compatible with real-time data visualization tools, allowing operators to make informed decisions during flights and ensure comprehensive coverage in a single mission.

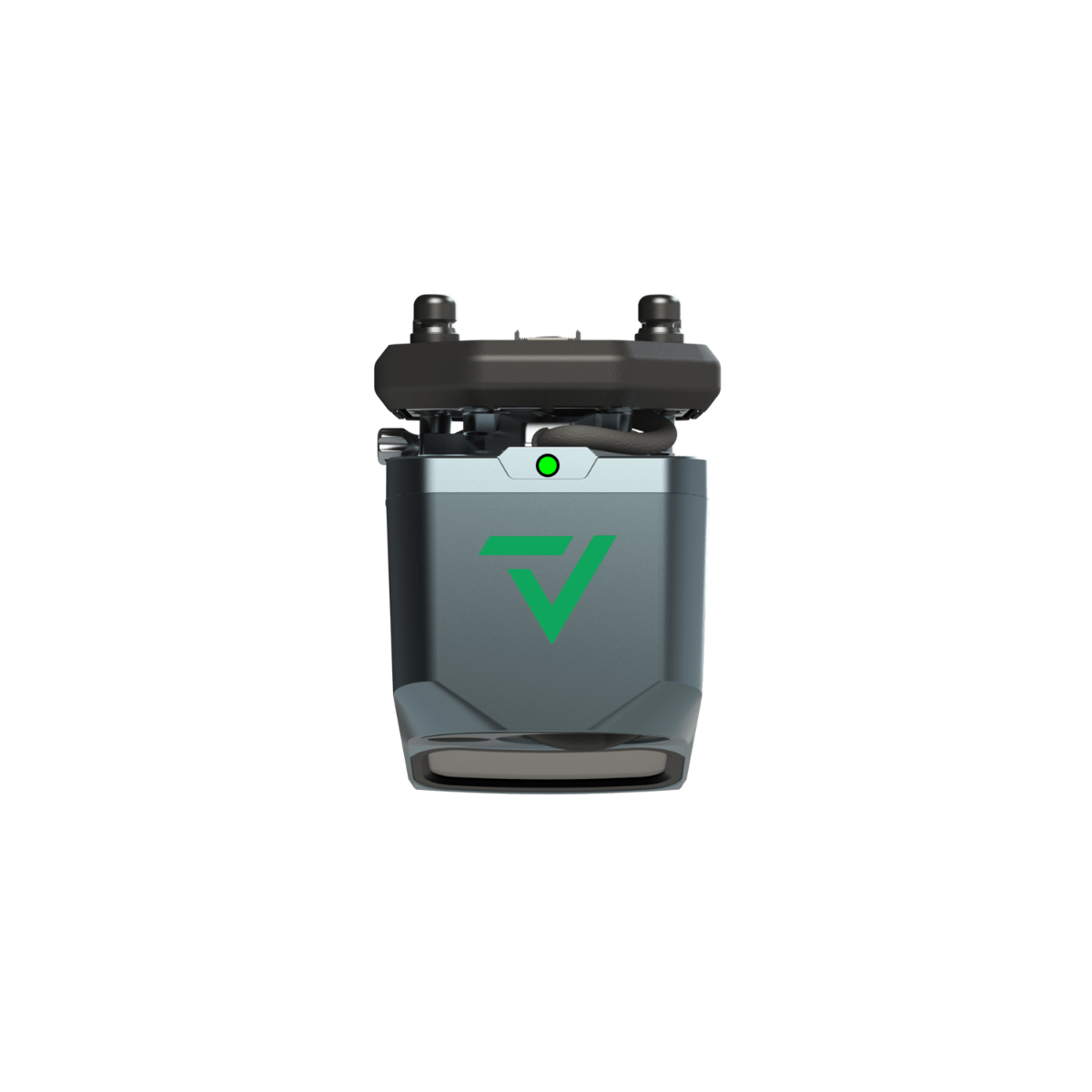

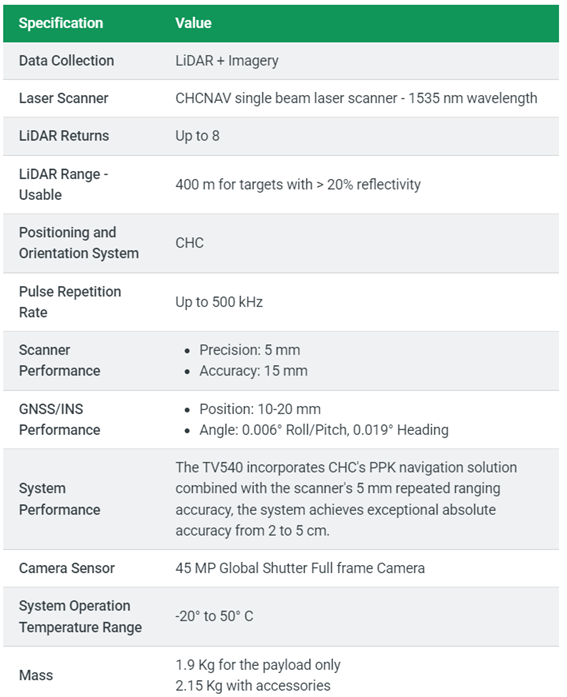

Technical Specifications

• LiDAR Specifications: Single-beam CHCNAV laser scanner (1535 nm wavelength), up to 8 returns, maximum range of 400 meters for targets with >20% reflectivity
• Positioning System: GNSS/INS precision of 10-20 mm in position and 0.006° roll/pitch and 0.019° heading
• System Performance: 5 mm precision with absolute accuracy between 2-5 cm
• Camera: 45 MP full-frame, global shutter for RGB imagery
• Operating Temperature: -20° to +50° C
• Weight: 1.9 kg payload (2.15 kg with accessories)
• Software: LP360 software suite for efficient post-processing and advanced data analytics, replacing CoPre for a more comprehensive and robust workflow

Why Choose GeoCue TrueView 540?

The TrueView 540 is engineered for professionals who demand high-quality, reliable, and accurate LiDAR solutions. Its unique combination of precision, versatility, and efficiency makes it suitable for a wide range of UAV-based LiDAR and photogrammetry applications. From topographic mapping to vegetation analysis and 3D model reconstruction, the TrueView 540 is an ideal solution for those seeking high-end results with accessible, user-friendly tools.
