CHCNAV RS10

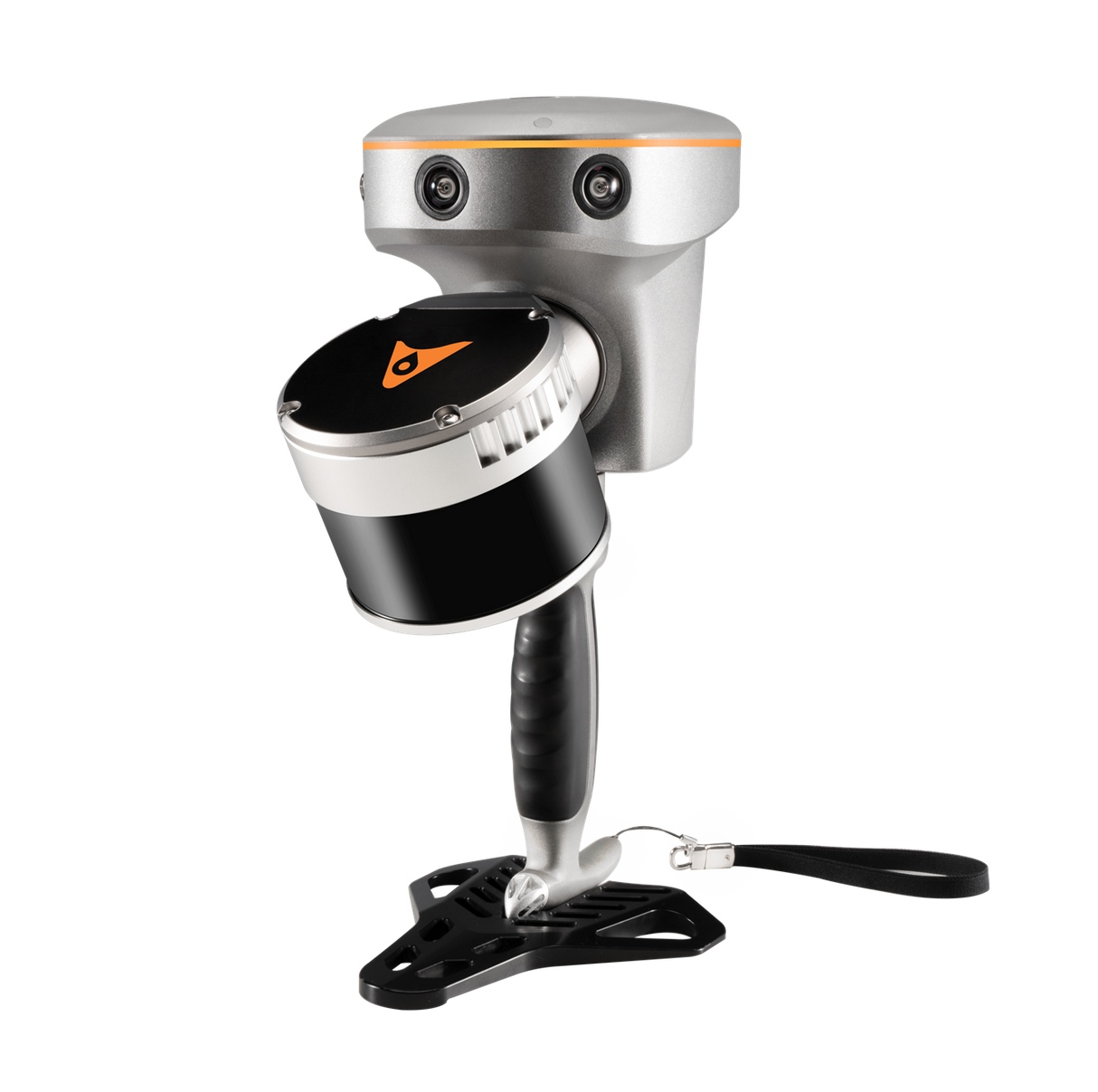

CHCNAV RS10 SLAM LiDAR Scanner + GNSS RTK System

Survey-grade 3D mapping, indoors and out

The CHCNAV RS10 brings GNSS RTK, visual SLAM, and high-precision LiDAR scanning together in one rugged, handheld platform — built for comprehensive 3D mapping in both GPS-covered and GNSS-denied environments. At just 1.9 kg (with GNSS and battery) and rated IP64, it's portable and field-ready for building interiors, tunnels, forests, power-line corridors, stockpiles, and more.

Available in 16-line and 32-line configurations to match your range and point-density needs.

Key Features

• Integrated GNSS RTK + SLAM fusion — CHCNAV's 4th-generation GNSS Smart Antenna and SLAM engine deliver 5 cm absolute accuracy with better than 1 cm relative precision, even across satellite-denied zones.
• Real-time, georeferenced SLAM mapping — view georeferenced point clouds live in the field and cover up to 13,000 m² in a single session, with no loop closures and no post-processed georeferencing.
• High-performance LiDAR & IMU — capture up to 320,000 pts/sec (16-line, 0.05–120 m) or 640,000 pts/sec (32-line, 0.5–300 m) across a 360° × 270° field of view, with up to 2 return echoes and a 200 Hz IMU.
• SFix technology for GNSS gaps — when satellites drop out, SFix fuses LiDAR ranging and SLAM constraints to reach 5 cm accuracy within 1 minute, enabling loop-free scanning in urban canyons and indoor spaces.
• Contactless Vi-LiDAR measurement — capture coordinates like a total station through the LiDAR/RTK visual interface in LandStar, accurate to 5 cm at 15 m, with no physical targets or prisms.
• Lightweight, field-ready & hot-swappable — under 2 kg total, ~60 min per battery, with hot-swap support for long missions and uninterrupted transitions.
• Seamless software ecosystem — works with SmartGo and LandStar for live capture and adjustment, plus CoPre and CoProcess for trajectory processing, point-cloud generation, and feature extraction.

Why Choose the RS10?

• True indoor–outdoor versatility — works seamlessly from woods to warehouses to tunnels, with no manual georeferencing.
• Highest ROI for SLAM mapping — one all-in-one device replaces multiple tools, with no tripod, base station, or loop-tie points required.
• Professional-grade results — reliable, survey-quality output trusted by BIM, construction, heritage, forestry, and utility-mapping professionals.
• Fully supported in Canada — available with training, warranty, and expert support from Latnet Technologies Ltd.
