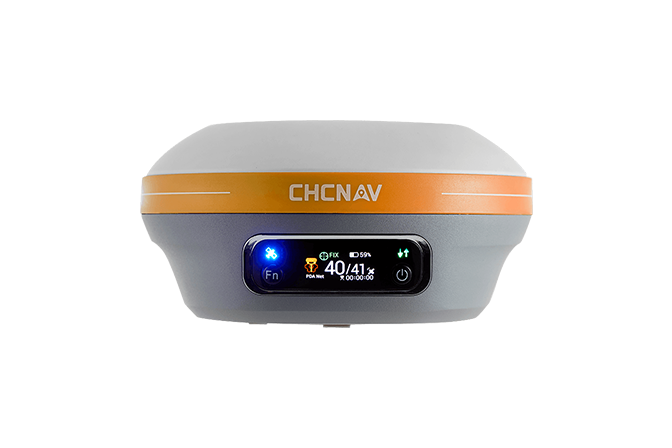

CHCNAV i83 Pro IMU-RTK GNSS Receiver with Trimble RTX Support


Regular price $15,900.00

The CHCNAV i83 Pro is a 336-channel IMU-RTK GNSS receiver with a Trimble-based engine. It adds optional Trimble RTX and OmniSTAR satellite corrections for RTK-level accuracy without a base station or network, and 20 Hz output as standard.

  • RTX ready: optional L-band corrections, under 4 cm horizontal (95%)
  • Tilt the pole: calibration-free 200 Hz IMU, tilt up to 60°
  • Every link built in: 4G, UHF radio, Wi-Fi, Bluetooth and NFC
  • Full-day battery: up to 20 h as a rover, IP68 sealed

Use it on the LATNET RTK network in Alberta, or with RTX where there is no coverage. See the full specifications.


Videos

See it in action

CHCNAV GNSS Receiver Firmware Update Tutorial

Short clips

CHCNAV GNSS Data Download Tutorial (RINEX / HCN)

More CHCNAV demos and tutorials on our YouTube channel →

What you can do with the i83 Pro

A Trimble-based IMU-RTK receiver with optional RTX, built-in 4G and UHF, and a full-day battery.

CHCNAV i83

GNSS performance

Fast, dependable RTK on real job sites

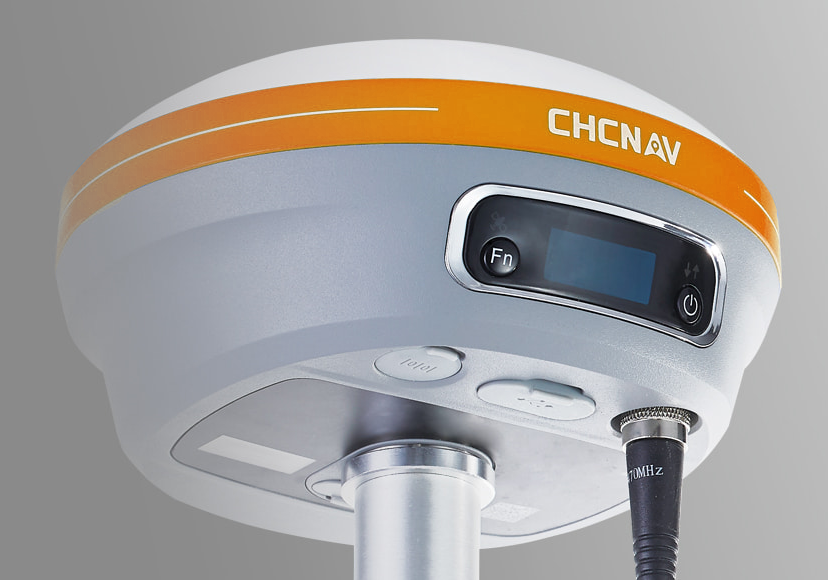

A 336-channel engine with a third-generation antenna and the iStar algorithm improves satellite tracking by up to 30%, for centimetre fixes in seconds on GPS, GLONASS, Galileo, BeiDou and QZSS.

FDE and RAIM integrity monitoring flag bad satellites, and an optional Trimble MAXPro engine helps in difficult conditions.

CHCNAV i83

Trimble RTX and OmniSTAR

RTK-level accuracy without a base station

With optional Trimble RTX or OmniSTAR, the i83 Pro takes corrections from satellite (L-band), so you can work where there is no base, no VRS network and no cell signal. CHCNAV quotes under 4 cm horizontal accuracy (95%) with RTX.

Inside our coverage area in Alberta, the LATNET RTK network gives fixes in seconds over 4G.

CHCNAV i83

IMU-RTK

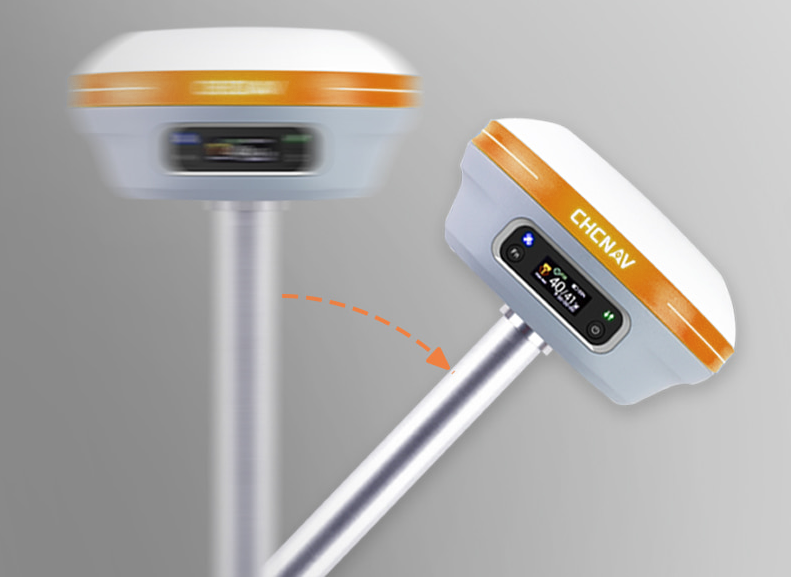

Tilt the pole, keep the accuracy

The built-in 200 Hz Auto-IMU needs no calibration and is immune to magnetic disturbance. It compensates pole tilt up to 60°, with added horizontal uncertainty typically under 8 mm + 0.7 mm per degree of tilt.

Measure corners, walls and hard-to-reach points without levelling the bubble, for up to 30% faster work.

CHCNAV i83

Connectivity

Every survey mode from one receiver

  • Integrated 4G modem for NTRIP: VRS, FKP and MAC
  • Built-in UHF radio, 0.5 or 1 W: typical 3 km, up to 8 km
  • Wi-Fi, Bluetooth and NFC for controllers and tablets
  • Works as a UHF base, data logger, or UHF or 4G rover

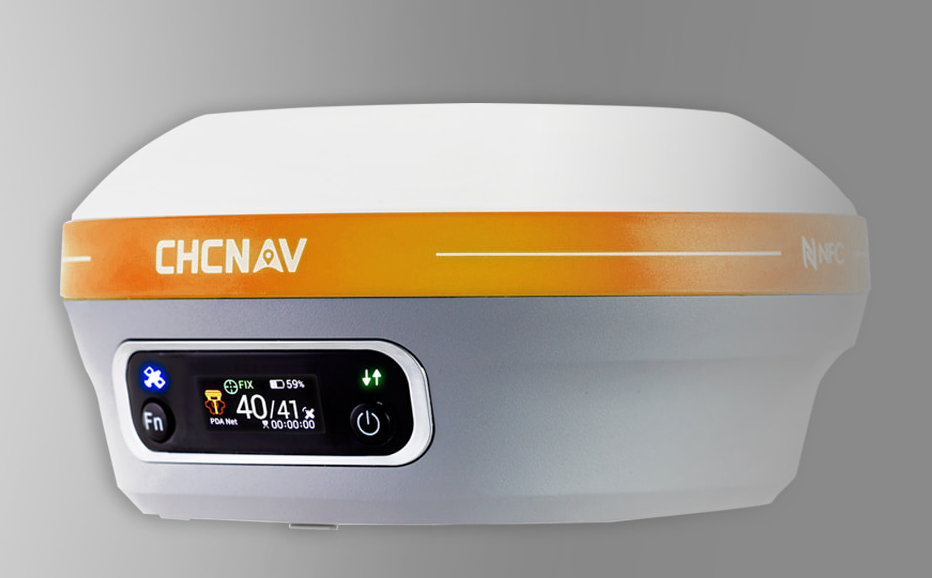

The colour OLED shows status at a glance, and the 9,900 mAh battery runs up to 20 h as a rover.

Where the i83 Pro works

Topographic surveys

Fast point and line collection with tilt compensation and 20 Hz output.

Construction stakeout

Stake points and lines quickly without levelling the pole.

Control and static

High-precision static logging with 8 GB storage and up to 20 h runtime.

Remote sites

Optional Trimble RTX or OmniSTAR when there is no base, network or cell coverage.

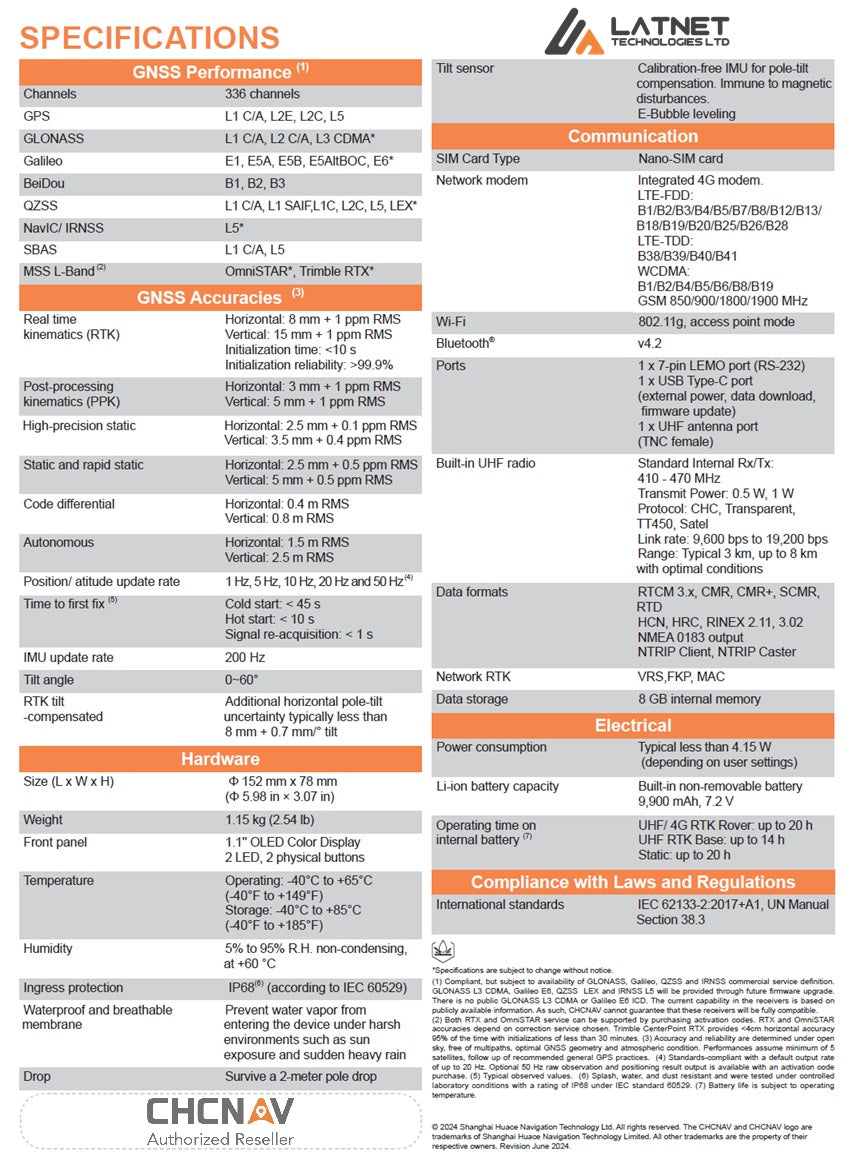

i83 Pro specifications

Channels336
ConstellationsGPS, GLONASS, Galileo, BeiDou, QZSS, NavIC*, SBAS
L-bandTrimble RTX* (< 4 cm horizontal, 95%), OmniSTAR*
RTKH 8 mm + 1 ppm, V 15 mm + 1 ppm RMS; initialization < 10 s
PPKH 3 mm + 1 ppm, V 5 mm + 1 ppm RMS
StaticH 2.5 mm + 0.5 ppm, V 5 mm + 0.5 ppm RMS
Update rate1, 5, 10, 20 Hz; 50 Hz optional
Network RTKVRS, FKP, MAC; RTCM SSR
IMU200 Hz, calibration-free, immune to magnetic disturbance
Tilt0 to 60°; typically < 8 mm + 0.7 mm/° of tilt
4GIntegrated LTE modem, nano-SIM
UHF radio410 to 470 MHz, 0.5 or 1 W; typical 3 km, up to 8 km
Wi-Fi / Bluetooth802.11g with access point; Bluetooth 4.2; NFC
Ports7-pin LEMO (RS-232), USB-C, TNC (UHF antenna)
Storage8 GB internal
Battery9,900 mAh built in; rover up to 20 h, UHF base up to 14 h, static up to 20 h
Size / weightΦ152 × 78 mm; 1.15 kg
ProtectionIP68; survives a 2 m pole drop; −40 °C to +65 °C
Display1.1" colour OLED, 2 LEDs, 2 buttons

* Optional or via firmware. Specifications from the CHCNAV datasheet (June 2024) and subject to change.

i83 or i83 Pro?

i83 Pro: Trimble-based 336-channel engine, optional Trimble RTX and OmniSTAR, 20 Hz output (50 Hz optional), IP68, up to 20 h as a rover.

i83: 1408-channel iStar 2.0 engine, 2 W UHF radio, up to 34 h as a rover, IP67.

Not sure which fits your work? We'll help you choose, set it up with LandStar or your field software, and connect it to the LATNET RTK network.

Request a quote

i83 Pro RTK Receiver

Smart IMU-RTK GNSS + L-Band Receiver
