CHCNAV AU20 AP7 Dual-Head Mobile Mapping System

Name: CHCNAV AU20 AP7 Dual-Head Mobile Mapping System
Brand: CHCNAV
Availability: InStock

The AU20 AP7 dual head runs two AlphaUni 20 lasers on the next-generation AlphaPano AP7 vehicle platform, with up to eight cameras – Ladybug5+, Ladybug6, Basler and others – for complete, blind-spot-free road capture.

At 60 km/h it delivers 4 cm line spacing and 6,000 pts/m², with 20 mm horizontal and 10 mm vertical accuracy.

Key features

Dual-head scanning – Two AU20 lasers eliminate blind spots and double density.
Up to 8 cameras – LD5+, LD6, Basler and other cameras simultaneously.
Survey-grade vehicle data – Hz 20 mm, V 10 mm in normal GNSS conditions.
Ladybug6 panoramas – 72 MP (6 × 12 MP) at 15 FPS for detailed asset imagery.
Still multi-platform – Each AU20 head also flies on UAVs or works in a backpack.
Full software suite – CoPre and CoProcess with road and building extraction.

At a glance

20 / 10 mm vehicle Hz / V accuracy
6,000 pts/m² @60 km/h
4 cm line spacing
72 MP Ladybug6, 15 FPS
2 × 2M pts/s, 16 returns
IP64 60 W / 70 W with camera

Configure dual-head kits, cameras and software with our Calgary team. Contact LATNET for pricing, training and support.

AP7 + AU20 Brochure

See it in action – videos

More CHCNAV demos and tutorials on our YouTube channel →

Technical Specification

CHCNAV AP7 + AU20 Mobile Mapping System

Vehicle mobile mapping · dual head

CHCNAV AU20 AP7 dual head – maximum density, no blind spots

At 60 km/h it delivers 4 cm line spacing and 6,000 pts/m², with 20 mm horizontal and 10 mm vertical accuracy.

Hz 20 mm · V 10 mm6,000 pts/m² @60 km/hUp to 8 cameras

Request a quote Full specifications

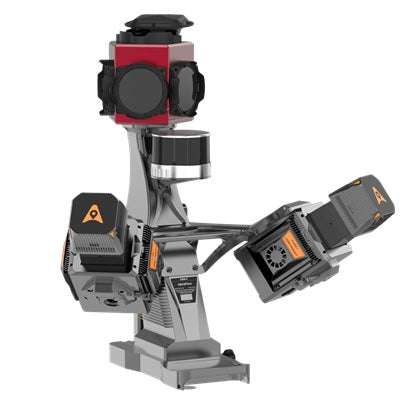

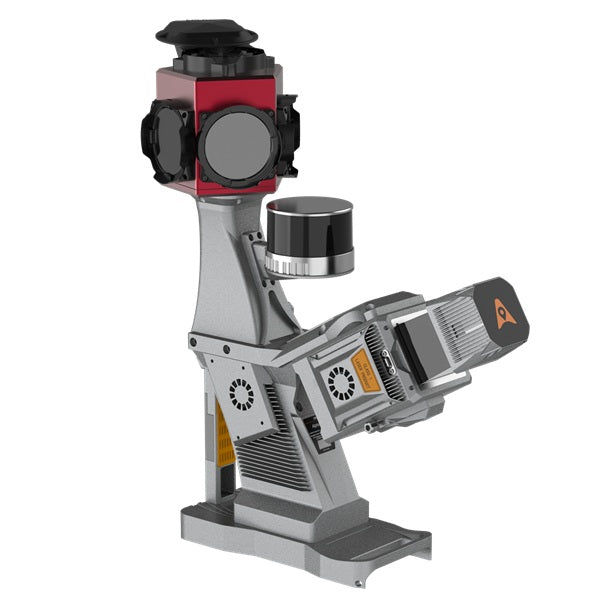

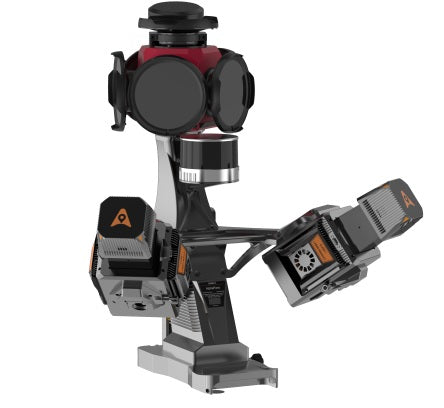

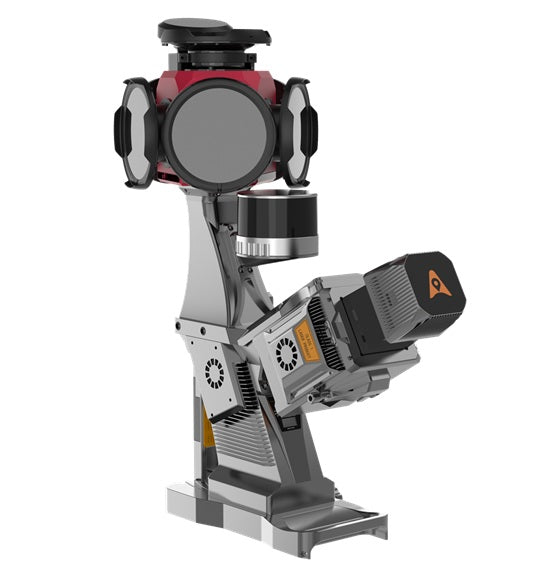

CHCNAV AU20 on the AlphaPano AP7 dual-head vehicle platform

Built for highways and corridors

Two scanners, twice the coverage

Two AU20 heads scan the road from two angles, eliminating shadows behind vehicles, poles and barriers. Add a Ladybug6 for 72 MP panoramas at 15 FPS, and you have survey-grade road inventories, pavement and asset data in one drive. For a lighter single-head kit see the AU20 AP5.

20 / 10 mmvehicle Hz / V accuracy

6,000pts/m² @60 km/h

4 cmline spacing

72 MPLadybug6, 15 FPS

2 × 2Mpts/s, 16 returns

IP6460 W / 70 W with camera

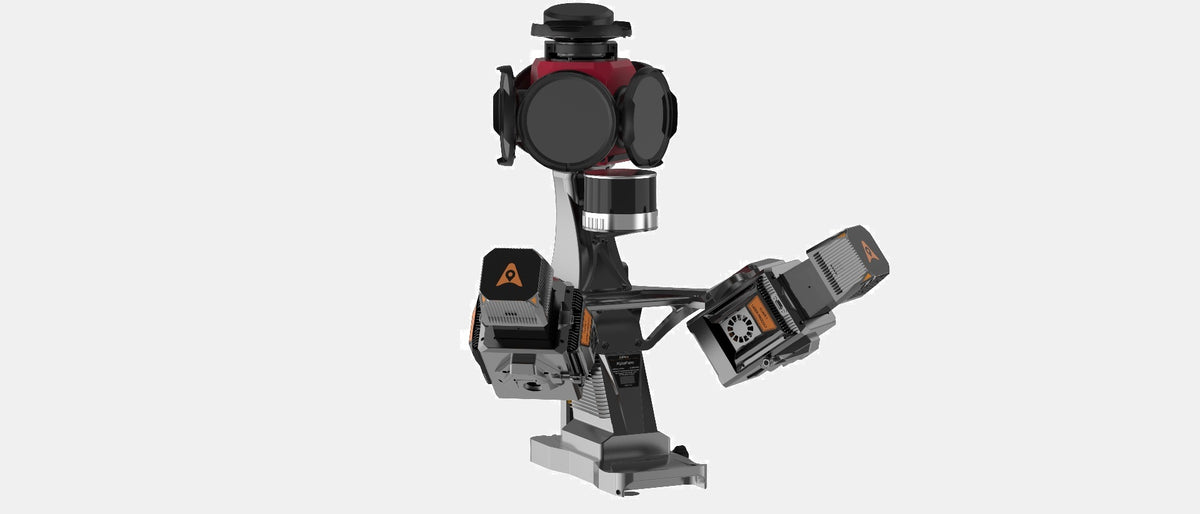

Key features

Why choose the AP7 dual head

Dual-head scanning

Two AU20 lasers eliminate blind spots and double density.

8cam

Up to 8 cameras

LD5+, LD6, Basler and other cameras simultaneously.

1cm

Survey-grade vehicle data

Hz 20 mm, V 10 mm in normal GNSS conditions.

72MP

Ladybug6 panoramas

72 MP (6 × 12 MP) at 15 FPS for detailed asset imagery.

3in1

Still multi-platform

Each AU20 head also flies on UAVs or works in a backpack.

Full software suite

CoPre and CoProcess with road and building extraction.

Dual-laser scanning

4 cm line spacing at highway speed

Two AU20 heads at 2 million measurements per second each capture pavement, curbs, signs and structures on both sides of the road at once. At 60 km/h the dual-head setup gives 6,000 pts/m² and 4 cm line spacing (single-head AP7: 4,000 pts/m², 8 cm).

Dual head: 4 cm, 6,000 pts/m²
Up to 16 returns; 10 at 1.5 MHz, 8 at 2 MHz
Full waveform

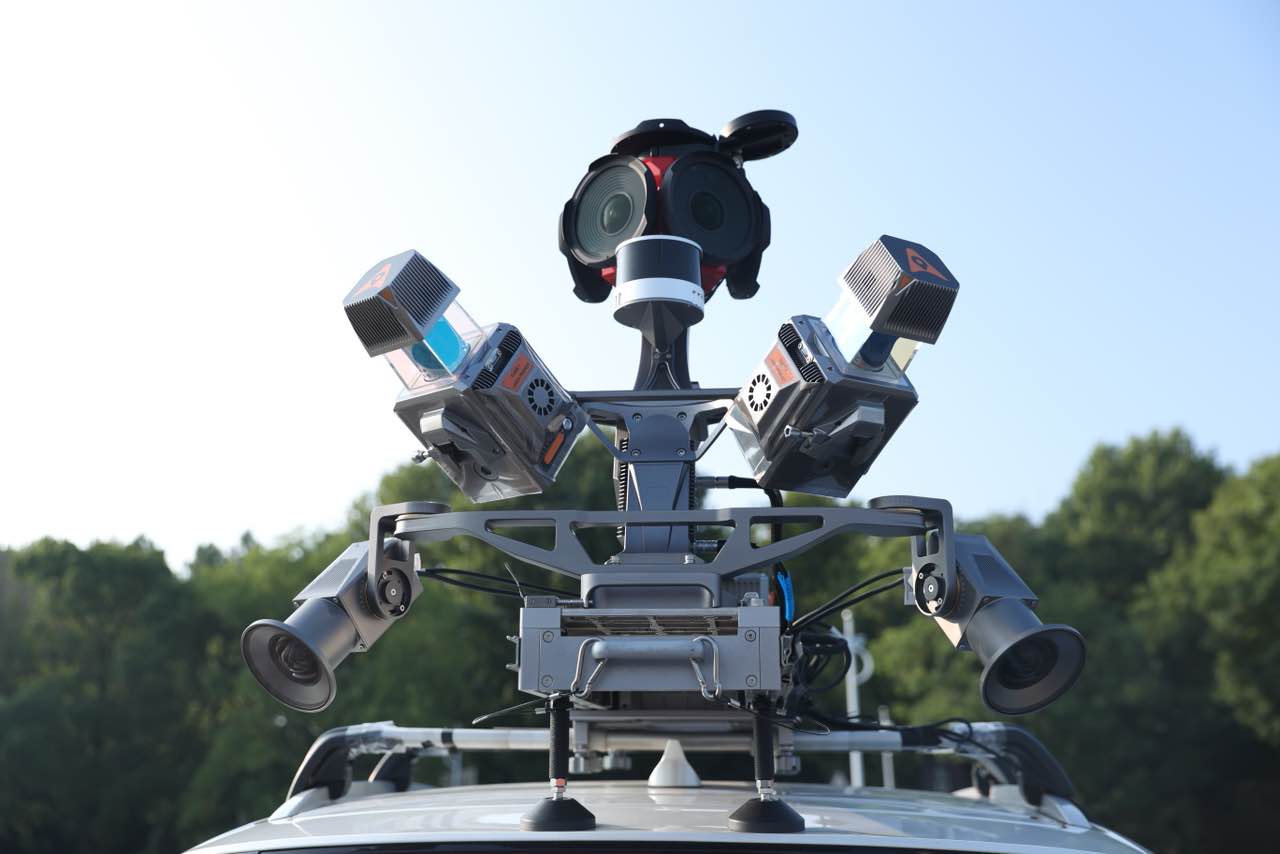

Multi-camera imaging

Ladybug5+, Ladybug6 or your own cameras

The AP7 platform accepts mainstream panoramic cameras and up to eight cameras simultaneously. Ladybug6 delivers 72 MP (6 × 12 MP) at 15 FPS; Ladybug5+ gives 30 MP at 10 FPS in a lighter 3.0 kg package.

Ladybug6: 72 MPLadybug5+: 30 MPUp to 8 cameras

High-density point clouds

Complete roadside capture

Dense, shadow-free point clouds make it easy to extract lane markings, curbs, barriers, signs, poles and building façades for design, maintenance and as-built work.

CHCNAV AP7 vehicle mobile mapping city street data collection

Efficient workflow

Road and building extraction built in

CoPre processes POS, generates point clouds and imagery, runs strip adjustment and GCP refinement, optimises noise and builds DOMs and 3D models. CoProcess extracts terrain, roads, buildings and volumes.

Road asset management with CHCNAV AU20 AP7

Which AlphaUni 20 setup?

AU20 multi-platform vs AP5 single head vs AP7 dual head

Every option uses the same AU20 laser scanner: 1,450 m range, 2M pts/s and 16 returns. Choose by platform and how much road you need to cover.

	AU20 multi-platform	AU20 AP5 single head	AU20 AP7 dual head
Best for	Drone, car, boat and backpack	Roads, assets and streets with 360° imagery	Highways and high-density corridor mapping
Platforms	UAV, helicopter, aircraft, vehicle, backpack	Vehicle (AlphaPano AP5)	Vehicle (AlphaPano AP7)
Scanner heads	1	1	2
Panoramic camera	Optional	Ladybug5+ 30 MP + SLAM scanner	Ladybug5+ 30 MP or Ladybug6 72 MP
Cameras at once	45 / 61 MP airborne	Panorama + options	Up to 8
Accuracy	<2.5 cm @30 m, <5 cm @150 m	<2.5 cm @30 m, <5 cm @150 m	Hz 20 mm · V 10 mm (vehicle)
Density @60 km/h	—	—	6,000 pts/m², 4 cm line spacing
Weight	2.82 kg scanner	10.97 kg platform	16.8 kg dual head with Ladybug5+
	AU20	AU20 AP5	AU20 AP7

Applications

Where the AU20 AP7 dual head works best

Highway surveying

Survey-grade corridors at traffic speed.

Road asset management

Signs, poles, barriers and markings.

Reconstruction and widening

Existing-condition models for design.

As-built road measurement

Verify finished roads and structures.

Datasheet

CHCNAV AU20 AP7 technical specifications

Absolute H & V accuracy	<0.025 m RMS @30 m · <0.050 m RMS @150 m
Vehicle accuracy	Hz 20 mm · V 10 mm (normal GNSS, no outage)
Line spacing / density @60 km/h	Dual head: 4 cm, 6,000 pts/m² · Single head: 8 cm, 4,000 pts/m²
Multi-platform	Vehicle, airborne, backpack; LD5+, LD6, Basler and other cameras, up to 8 simultaneously
Weight	AU20 2.82 kg (3.12 kg with C5) · 16.8 kg AP7 dual head with Ladybug5+ · 15.5 kg single head with Ladybug6
Dimensions	AU20 262.3 × 141.5 × 161 mm · AlphaPano dual head 505 × 604 × 609 mm
Storage	512 GB (1 TB optional), 80 Mb/s
Power	60 W / 70 W with camera
Input voltage	24 V (15–27 V)
Operating / storage	–20 °C to +50 °C / –20 °C to +60 °C
Protection	IP64

Class	Class 1 (IEC 60825-1:2014)
Minimum range	1.5 m
Accuracy	15 mm (1σ @150 m) · 5 mm (1σ @30 m)
Precision	5 mm (1σ @150 m)
Multi-period (MTA)	Up to 7 zones
Field of view	360°, selectable; rotating mirror
Max. measurement rate	2,000,000 meas./s (depending on mode)
Scan speed	10–200 scans/s
Returns	Up to 16
Waveform	Full waveform
Max. range @ρ>80%	100 kHz: 1450 m · 200 kHz: 1320 m · 300 kHz: 1220 m · 400 kHz: 1120 m · 500 kHz: 1000 m · 800 kHz: 790 m · 1 MHz: 706 m · 1.5 MHz: 576 m · 2 MHz: 500 m
Max. range @ρ>20%	100 kHz: 750 m · 200 kHz: 660 m · 300 kHz: 610 m · 400 kHz: 560 m · 500 kHz: 500 m · 800 kHz: 395 m · 1 MHz: 353 m · 1.5 MHz: 288 m · 2 MHz: 250 m
Max. flight altitude AGL @ρ>20%	100 kHz: 530 m · 200 kHz: 467 m · 300 kHz: 431 m · 400 kHz: 396 m · 500 kHz: 354 m · 800 kHz: 354 m · 1 MHz: 279 m · 1.5 MHz: 204 m · 2 MHz: 177 m
Returns by PRR	16 up to 1 MHz · 10 at 1.5 MHz · 8 at 2 MHz

GNSS	GPS L1, L2, L5 · GLONASS L1, L2 · BeiDou B1, B2, B3 · Galileo E1, E5a, E5b
IMU rate	600 Hz
Attitude (post-processed)	0.005° RMS pitch/roll · 0.010° RMS heading
Position (post-processed)	0.010 m RMS H · 0.020 m RMS V

Ladybug5+	30 MP (6 × 5 MP), 10 FPS, 2048 × 2448, 4.4 mm; 160 × 197 mm, 3.0 kg
Ladybug6	72 MP (6 × 12 MP), 15 FPS, 12,288 × 6,144, 6.94 mm; 198 × 269 mm, 5.2 kg
Coverage / HDR	90% of full sphere · 4 gain and exposure presets
AlphaPano dimensions	Dual head with AU20: 505 × 604 × 609 mm · with Ladybug6: 528 × 301 × 638 mm

CoPre	Data copy, POS solve, point cloud and image creation, strip adjustment and GCP refinement, noise optimisation, DOM and 3D model generation
CoProcess	Terrain, road, volume, road-extraction and building-extraction modules

Specifications from the CHCNAV datasheet and subject to change. Accuracy values were obtained under CHCNAV test conditions; range values are typical for average conditions. Actual results depend on platform, flight or walking speed, GNSS conditions and target reflectivity.
