CHCNAV

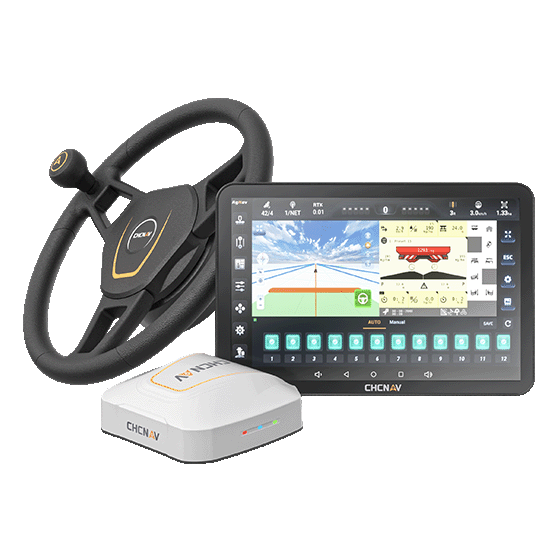

CHCNAV NX612 RTK Auto Steering System for Tractors


Regular price $11,900.00
Shipping calculated at checkout.

The NX612 is CHCNAV’s flagship automated steering system. It works with GNSS RTK networks and CHCNAV’s PointSky satellite corrections, holding ±2.5 cm even where there is no network coverage.

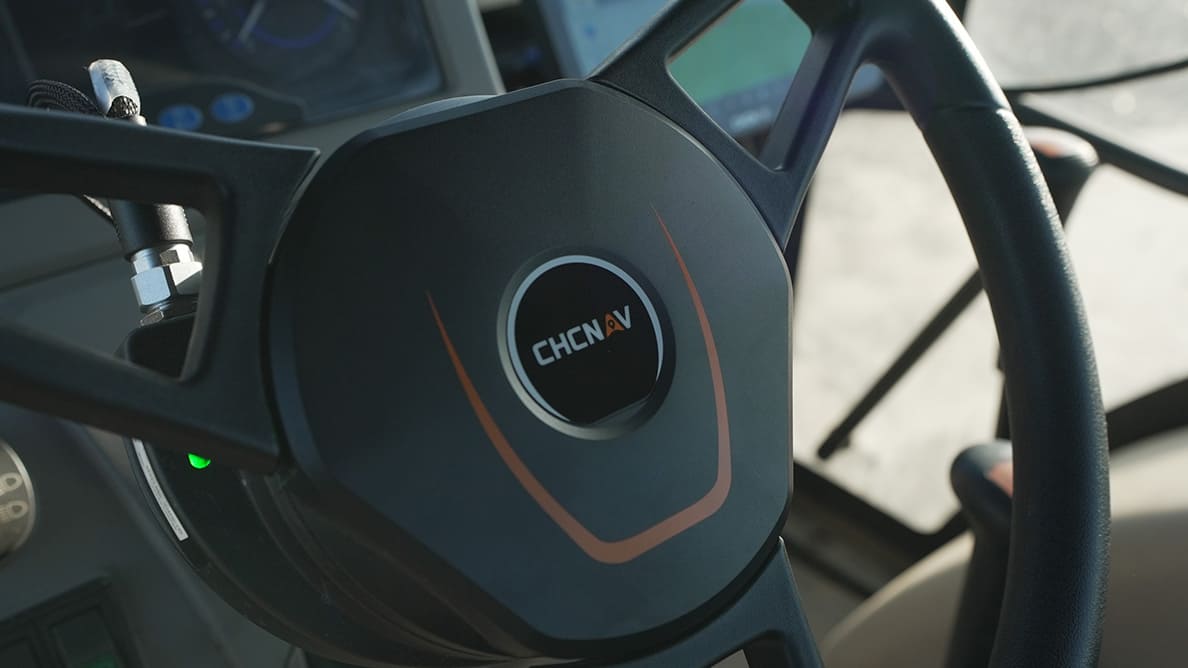

A compact drive-wheel motor saves cab space, and the industrial 12.1″ display with large icons, 3D views and a customizable layout makes long days easier.

Key features

  • RTK + PointSky – ±2.5 cm with RTK or CHCNAV satellite corrections – even without network coverage.
  • Accurate at any speed – Holds ±2.5 cm from 0.1 to 30 km/h – seeding, spraying, tilling and land prep.
  • ISOBUS compliant – UT, AUX-N, TC-BAS, TC-SC and TC-GEO for implement control and data.
  • Smarter U-turns – AB (incl. skipping), A+, curve, boundary and headland U-turns.
  • Implement guidance – Keeps implements on line on slopes to prevent drift.
  • Panoramic view – Up to four cameras for safer work with large machines.

At a glance

  • ±2.5 cm pass-to-pass
  • 0.1–30 km/h working speed
  • 12.1″ 1280 × 800, 750 nits
  • 6 GNSS modes incl. PointSky
  • 5 U-turn modes
  • 4 camera channels

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.


Videos

See it in action

CHCNAV NX612 Auto Steering System

Short clips

CHCNAV Precision Agriculture Autosteering

More CHCNAV demos and tutorials on our YouTube channel →

Technical Specification

NX612 Autosteering system

Advanced Implement Guidance

With advanced implement guidance, the NX612 maintains accuracy and straightness when operating on slopes. By keeping implements in line, it prevents drift and improves accuracy.

Smarter U-Turn

With five U-turn modes available—Basic AB Line U-turn (including Skipping U-turn), A+ Line U-turn, Curve Line U-turn, Boundary U-turn, and Headland U-turn—the system adapts to diverse operational requirements.

Panoramic Control View

Four-channel cameras provide a panoramic view, improving safety and reliability for large harvesters and other vehicles during farming operations.

Flagship auto-steering

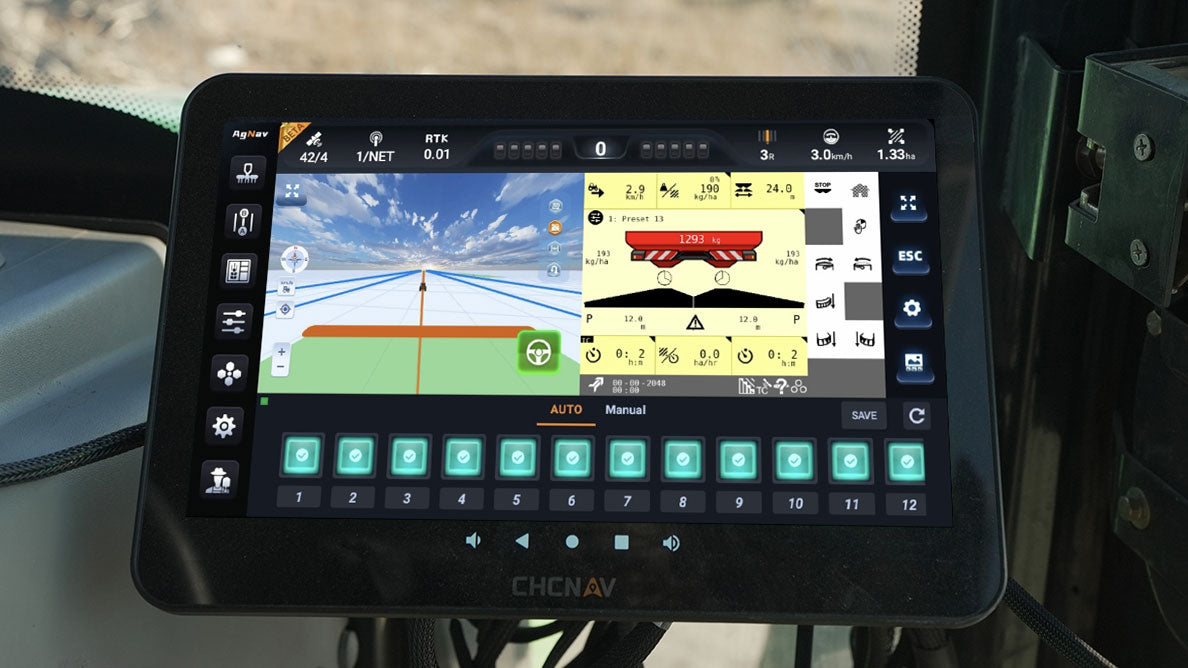

CHCNAV NX612 – ±2.5 cm auto-steering with a 12-inch HD display

The NX612 is CHCNAV’s flagship automated steering system. It works with GNSS RTK networks and CHCNAV’s PointSky satellite corrections, holding ±2.5 cm even where there is no network coverage.

A compact drive-wheel motor saves cab space, and the industrial 12.1″ display with large icons, 3D views and a customizable layout makes long days easier.

±2.5 cm0.1–30 km/h12.1″ HDPointSky PPP
CHCNAV NX612 automated steering system
Precision farming anywhere

RTK where you have it, PointSky where you don’t

The NX612 supports SPP, DGPS, RTK, E-PPP, H-PPP (Galileo HAS) and PointSky, so it adapts to the corrections available in every field. In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio. It fits front- and rear-wheel-steer, articulated and tracked tractors and self-propelled sprayers – one system for the whole fleet.

±2.5 cmpass-to-pass
0.1–30km/h working speed
12.1″1280 × 800, 750 nits
6GNSS modes incl. PointSky
5U-turn modes
4camera channels
Key features

Why choose the NX612

PPP

RTK + PointSky

±2.5 cm with RTK or CHCNAV satellite corrections – even without network coverage.

30

Accurate at any speed

Holds ±2.5 cm from 0.1 to 30 km/h – seeding, spraying, tilling and land prep.

ISO

ISOBUS compliant

UT, AUX-N, TC-BAS, TC-SC and TC-GEO for implement control and data.

U

Smarter U-turns

AB (incl. skipping), A+, curve, boundary and headland U-turns.

Slope

Implement guidance

Keeps implements on line on slopes to prevent drift.

360

Panoramic view

Up to four cameras for safer work with large machines.

GNSS RTK and PointSky positioning

±2.5 cm with or without a network

The NX612 uses RTK corrections from a network or base station, and switches to PointSky – CHCNAV’s satellite-based correction service – when you are out of coverage. PointSky converges in under 5 minutes to ±2.5 cm (CEP95).

In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

RTK 8 mm + 1 ppmPointSky ±2.5 cm< 5 min convergence
CHCNAV NX612 ISOBUS implement control
ISOBUS compliant

Control implements from one screen

ISOBUS UT, AUX-N, TC-BAS, TC-SC and TC-GEO let the NX612 monitor and control compatible implements in real time and record task data – no extra terminal in the cab. Section control and as-applied data cut overlap on sprayers and seeders.

Smarter U-turn

Five automatic U-turn modes

Basic AB line U-turn (including skipping U-turns), A+ line, curve line, boundary and headland U-turns let the system turn at the end of each pass, so the operator can focus on the implement.

Guidance patterns: AB line, A+ line, curve, circular curve, irregular rake line, 90° line, boxed line, all-path line and path-planning line.

Advanced implement guidance

Straight lines on slopes

Advanced implement guidance keeps the implement – not just the tractor – on line when working across slopes, preventing drift and improving row accuracy for planting and strip-till.

Panoramic control view

Four cameras, full visibility

Connect up to four cameras for a panoramic view around large harvesters, sprayers and tractors, improving safety in the yard and in the field.

Optional FarmMaster cloud access adds a real-time dashboard and remote tools to create tasks, transfer data and view machine locations.

CHCNAV FarmMaster farm management
CHCNAV NX612 installed in a tractor
Which CHCNAV system?

Compare CHCNAV tractor guidance and auto-steering

From an entry-level guidance display to a 12-inch flagship and harvester row guidance – all supplied, installed and supported by LATNET in Calgary.

Guide 10NX510 SENX510 ProNX510 Steer ReadyNX610NX612HG100
TypeManual guidanceElectric-wheel auto-steerElectric-wheel auto-steerUses tractor’s OEM valveElectric-wheel auto-steerElectric-wheel auto-steerHarvester row guidance
AccuracySub-metre±2.5 cm±2.5 cm±2.5 cm±2.5 cm±2.5 cm±8 cm to the row
Display10.1″10.1″10.1″10.1″10.1″ HD12.1″ HDWith NX600 series
CorrectionsGNSS / SBASRTK (4G + UHF), H-PPPRTK + Trimble RTXRTK (4G + UHF)RTK + PointSkyRTK + PointSkyCrop-row sensors
Working speed—Up to 30 km/h—0.1–30 km/h0.1–30 km/h0.1–30 km/hUp to 15 km/h
ISOBUS—YesYesVT / TC-SCUT, TC-BAS/SC/GEOUT, AUX-N, TC-BAS/SC/GEO—
Best forUpgrade path on a budgetBest valueNo base or network nearbySteer-ready tractorsMixed fleets, 3D viewsLarge farms, sprayersCorn and row-crop harvest
Guide 10NX510 SENX510 ProNX510 SRNX610NX612HG100
Applications

Where the NX612 works

Precision seeding

Precision seeding

Straight, evenly spaced rows.

Crop spraying

Crop spraying

Less overlap and fewer skips.

Tillage and strip cropping

Tillage and strip cropping

Repeatable lines season after season.

Harvesting

Harvesting

Hands-free passes and panoramic view.

Datasheet

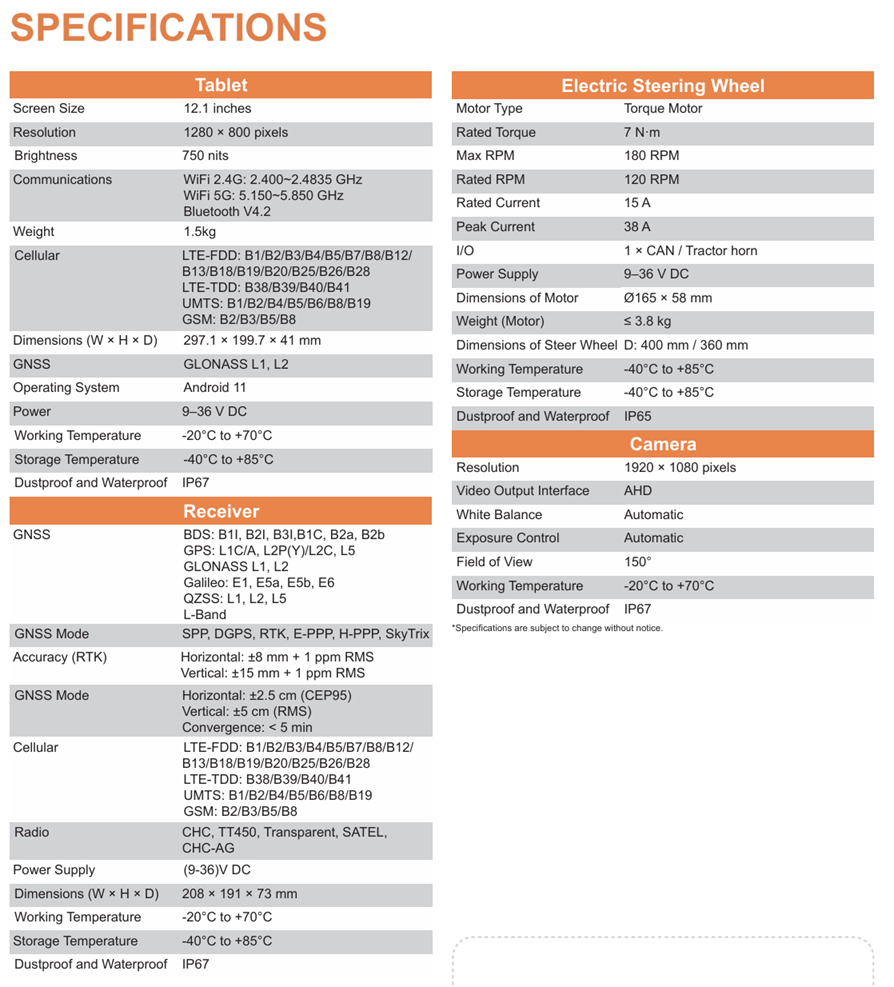

CHCNAV NX612 technical specifications

Display12.1″, 1280 × 800, 750 nits, Android 11
WirelessWi-Fi 2.4 / 5 GHz, Bluetooth 4.2, 4G LTE
Dimensions297.1 × 199.7 × 41 mm · 1.5 kg
Power / protection9–36 V DC · IP67
Operating temperature–20 °C to +70 °C
Specifications from the CHCNAV datasheet and subject to change without notice. Pass-to-pass accuracy depends on correction source, satellite conditions, vehicle, implement and calibration.
Questions

NX612 FAQ

What accuracy does the NX612 deliver?

±2.5 cm pass-to-pass at 0.1 to 30 km/h, for land preparation, seeding, planting, spraying, fertilizing, inter-tillage and harvesting.

Do I need an RTK network?

No. Use RTK from a network such as the LATNET RTK network or an iBase Ag base station, or CHCNAV PointSky satellite corrections where there is no coverage.

Which machines can it be installed on?

Front-wheel and rear-wheel steer, articulated and tracked tractors, rice transplanters and self-propelled sprayers from most makes – including older tractors.

NX612 or NX610?

They share the receiver, motor and software. The NX612 has a larger 12.1″ display and adds ISOBUS AUX-N; the NX610 uses a 10.1″ display.

What is AgNav?

AgNav is CHCNAV’s auto-steering software. Common functions take two steps, so new operators learn it quickly.

Authorized CHCNAV dealer · Calgary, Alberta

Get the NX612 from LATNET

We supply, install and calibrate the NX612 on your tractors and support you through the season from Calgary.

Request a quoteAll precision ag products

NX612 video

NX612 auto steering in action

See how the NX612 automated steering system works for precision agriculture.

  • 2:35OverviewNX612 auto steering for precision agricultureWhat the NX612 does in the field and how it keeps your tractor on line.

All videos are by CHCNAV. Open the full playlist on YouTube.

NX612 Automated steering system

An automated steering system, that easily retrofits many types of new and old farm
tractors and other vehicles with a compact, up-to-date and all-in-one solution
