CHCNAV

CHCNAV NX510 Steer Ready RTK Auto Steering System for Tractors


Regular price $9,500.00
Shipping calculated at checkout.

The NX510 Steer Ready connects directly to the built-in steering interface of steer-ready or guidance-ready tractors – no electric steering wheel and no extra valve.

It drives the OEM steering valve over CANBUS or PWM, so installation is quick and the cab stays factory-clean.

Key features

  • Steer-ready compatible – Works through the tractor’s own valve – CANBUS or PWM.
  • High pass-to-pass accuracy – Full-constellation RTK and terrain compensation.
  • ISOBUS support – BAS, GEO, VT and TC-SC – one display for implements.
  • Multiple patterns – AB, A+, pivot, curve, 90° line and headland.
  • Versatile outputs – .SHP import, NMEA and 5 V pulse outputs.
  • Remote support – Real-time remote assistance through AgNav.

At a glance

  • ±2.5 cm pass-to-pass
  • 0.1–30 km/h working speed
  • <5 s RTK initialization
  • PWM / CAN OEM valve control
  • 10.1″ AgNav display
  • 5 min to get new users running

Supplied, installed and supported by LATNET in Calgary. Contact us for pricing.


Technical Specification

NX510 Steer Ready

For steer-ready tractors

CHCNAV NX510 Steer Ready – auto-steering through your tractor’s own hydraulics

The NX510 Steer Ready connects directly to the built-in steering interface of steer-ready or guidance-ready tractors – no electric steering wheel and no extra valve.

It drives the OEM steering valve over CANBUS or PWM, so installation is quick and the cab stays factory-clean.

±2.5 cmCANBUS or PWMNo extra wheel or valveISOBUS VT
CHCNAV NX510 Steer Ready automated steering system
Hydraulic-compliant auto-steering

Use the steering your tractor already has

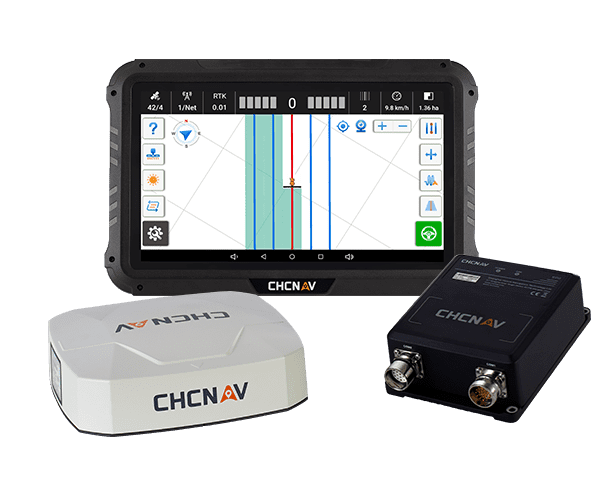

The GNSS board, IMU, 4G, radio and touchscreen are integrated into three core modules – receiver, display and PLC ECU – for fast installation and easy transfer between vehicles. 6-axis terrain compensation keeps passes within ±2.5 cm. In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

±2.5 cmpass-to-pass
0.1–30km/h working speed
<5 sRTK initialization
PWM / CANOEM valve control
10.1″AgNav display
5 minto get new users running
Key features

Why choose the NX510 Steer Ready

OEM

Steer-ready compatible

Works through the tractor’s own valve – CANBUS or PWM.

2.5

High pass-to-pass accuracy

Full-constellation RTK and terrain compensation.

ISO

ISOBUS support

BAS, GEO, VT and TC-SC – one display for implements.

Path

Multiple patterns

AB, A+, pivot, curve, 90° line and headland.

I/O

Versatile outputs

.SHP import, NMEA and 5 V pulse outputs.

Help

Remote support

Real-time remote assistance through AgNav.

Broad steer-ready compatibility

No steering wheel motor, no extra valve

Because the NX510 Steer Ready drives the tractor’s OEM steering valve, installation needs only minor changes to the vehicle. Some steer-ready tractors don’t even need calibration. The system supports both PWM- and CANBUS-controlled valves.

CHCNAV NX510 Steer Ready accuracy
High pass-to-pass accuracy

±2.5 cm at working speed

Full-constellation GNSS with autonomous, SBAS and RTK modes and advanced terrain compensation keeps accuracy consistent in challenging conditions and at high speeds.

In Alberta, corrections can come from the LATNET RTK network over 4G or from your own iBase Ag base station over UHF radio.

ISOBUS support

One display for steering and implements

ISOBUS BAS, GEO, VT and TC-SC let you control compatible implements from the NX510 SR display – no separate terminal to buy. .SHP field files, NMEA and 5 V pulse outputs connect third-party devices.

CHCNAV NX510 Steer Ready ISOBUS

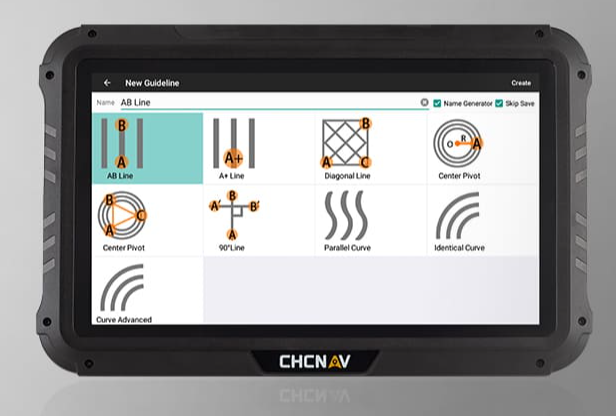

CHCNAV NX510 Steer Ready guidance patterns
Easy to use

Guidance patterns and AgNav software

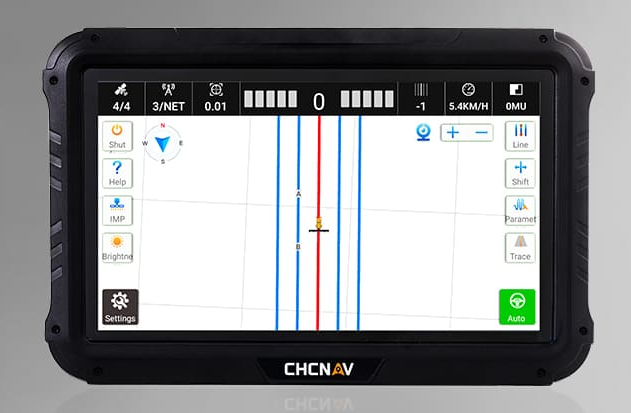

AB line, A+ line, pivot, curve, 90° line and headland patterns cover tillage, seeding, spraying, spreading and harvesting. The multilingual AgNav software on a 10.1″ Android display gets new users running in about five minutes, with remote assistance built in.

CHCNAV NX510 Steer Ready compatibility
CHCNAV NX510 Steer Ready AgNav
Which CHCNAV system?

Compare CHCNAV tractor guidance and auto-steering

From an entry-level guidance display to a 12-inch flagship and harvester row guidance – all supplied, installed and supported by LATNET in Calgary.

Guide 10NX510 SENX510 ProNX510 Steer ReadyNX610NX612HG100
TypeManual guidanceElectric-wheel auto-steerElectric-wheel auto-steerUses tractor’s OEM valveElectric-wheel auto-steerElectric-wheel auto-steerHarvester row guidance
AccuracySub-metre±2.5 cm±2.5 cm±2.5 cm±2.5 cm±2.5 cm±8 cm to the row
Display10.1″10.1″10.1″10.1″10.1″ HD12.1″ HDWith NX600 series
CorrectionsGNSS / SBASRTK (4G + UHF), H-PPPRTK + Trimble RTXRTK (4G + UHF)RTK + PointSkyRTK + PointSkyCrop-row sensors
Working speed—Up to 30 km/h—0.1–30 km/h0.1–30 km/h0.1–30 km/hUp to 15 km/h
ISOBUS—YesYesVT / TC-SCUT, TC-BAS/SC/GEOUT, AUX-N, TC-BAS/SC/GEO—
Best forUpgrade path on a budgetBest valueNo base or network nearbySteer-ready tractorsMixed fleets, 3D viewsLarge farms, sprayersCorn and row-crop harvest
Guide 10NX510 SENX510 ProNX510 SRNX610NX612HG100
Applications

Where the NX510 Steer Ready works

Precision seeding

Precision seeding

Straight rows, every pass.

Row cropping

Row cropping

Repeatable lines.

Spraying and spreading

Spraying and spreading

Accurate bout widths.

Harvesting

Harvesting

Hands-free passes.

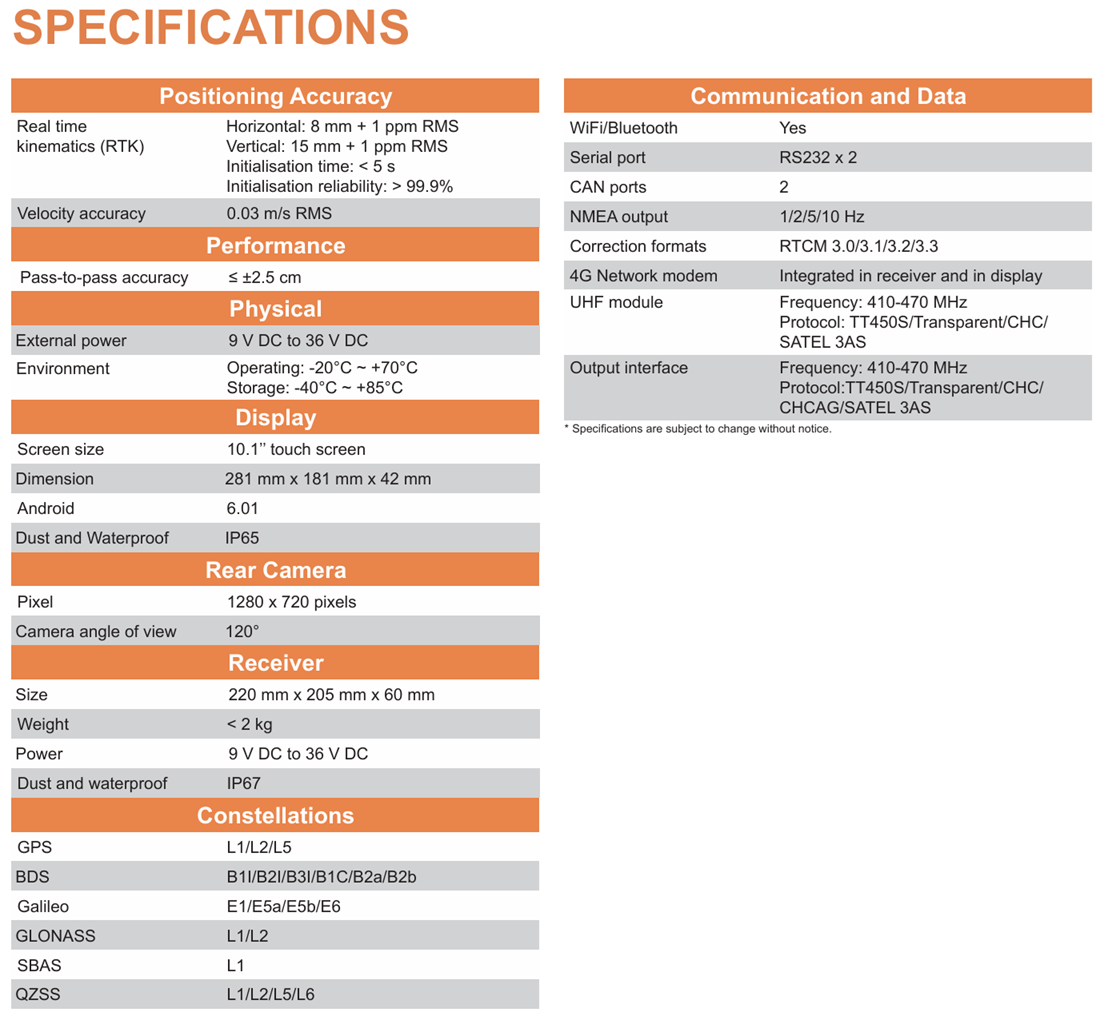

Datasheet

CHCNAV NX510 Steer Ready technical specifications

RTK accuracyHorizontal 8 mm + 1 ppm RMS · Vertical 15 mm + 1 ppm RMS
Initialization< 5 s, reliability > 99.9%
Velocity accuracy0.03 m/s RMS
Pass-to-pass accuracy≤ ±2.5 cm
GNSSGPS L1/L2/L5 · BDS B1I/B2I/B3I/B1C/B2a/B2b · Galileo E1/E5a/E5b/E6 · GLONASS L1/L2 · SBAS L1 · QZSS L1/L2/L5/L6
ModesAutonomous, SBAS, RTK
Specifications from the CHCNAV datasheet and subject to change without notice. Pass-to-pass accuracy depends on correction source, satellite conditions, vehicle, implement and calibration.
Questions

NX510 Steer Ready FAQ

Which tractors does it work with?

Steer-ready or auto-guidance-ready tractors whose OEM steering valve is controlled over CANBUS or PWM. Ask us with your make, model and year and we will confirm compatibility.

Do I need an electric steering wheel?

No – it uses the tractor’s own hydraulic steering valve, so there is no wheel motor or extra valve to fit.

Which constellations does it support?

GPS, GLONASS, Galileo, BeiDou and QZSS.

What jobs is it suited for?

Tillage, seeding, spraying, spreading and harvesting, with a 0.1–30 km/h working range.

My tractor isn’t steer-ready – what should I choose?

An electric-wheel system such as the NX510 SE, NX610 or NX612.

Authorized CHCNAV dealer · Calgary, Alberta

Get the NX510 Steer Ready from LATNET

We confirm compatibility with your tractor, install and calibrate the NX510 Steer Ready and support you from Calgary.

Request a quoteAll precision ag products

NX510 Steer Ready

The NX510 Steer Ready is an automatic hydraulic steering system that connects directly to the built-in interface of your steer- or auto-guidance ready agricultural vehicles.
