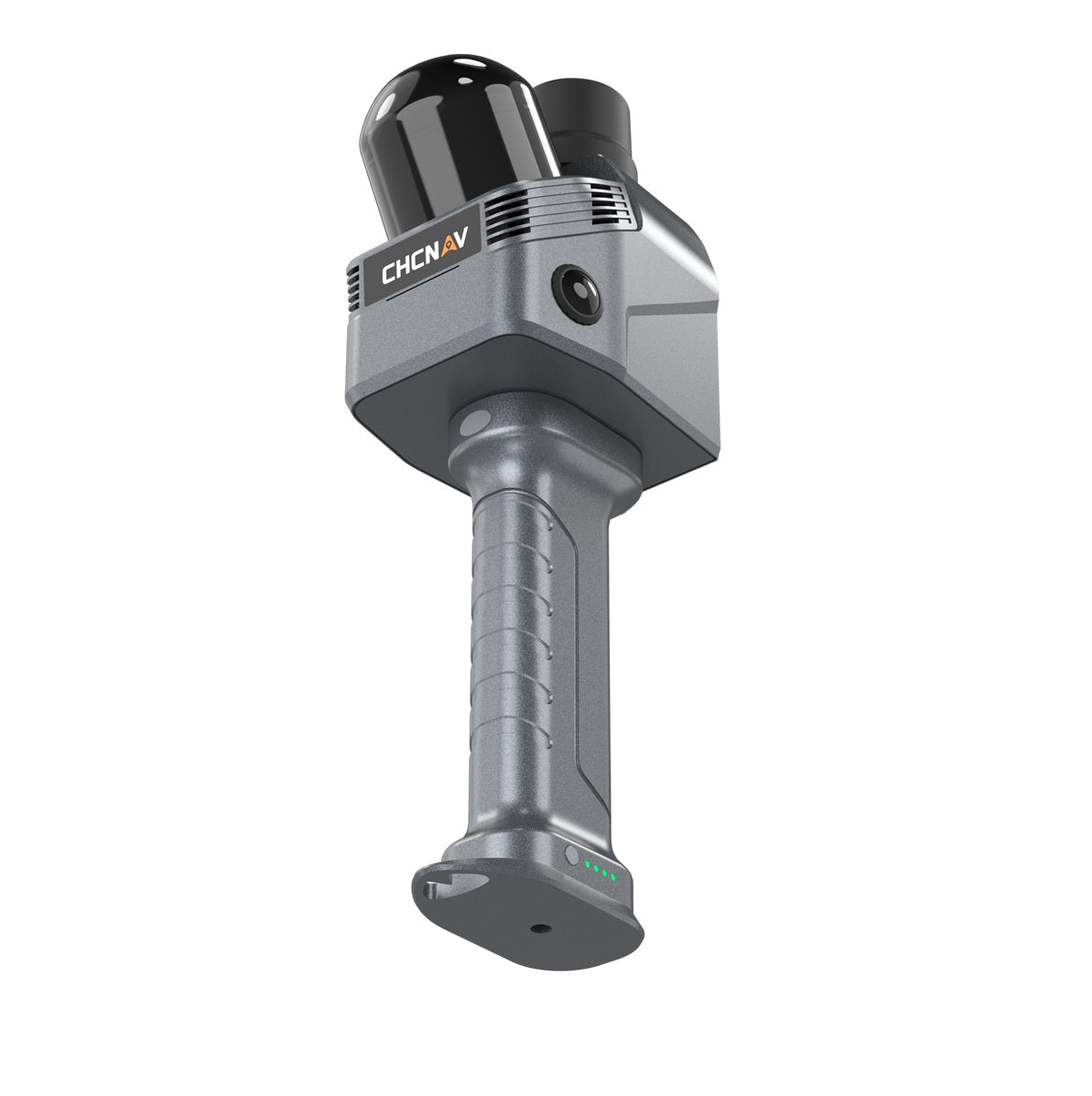

CHCNAV RS7 Handheld SLAM LiDAR system for indoor and underground 3D mapping
CHCNAV RS7 Handheld LiDAR SLAM Scanner
Real-Time 3D Indoor Mapping with Deep INS + NIC-SLAM
The CHCNAV RS7 is a professional-grade handheld LiDAR SLAM scanner designed for fast, high-density indoor 3D mapping. Built on CHCNAV’s navigation-grade INS and third-generation NIC-SLAM algorithm, the RS7 delivers stable, drift-controlled trajectory performance in corridors, stairwells, and multi-level buildings.
With up to 1.15 million points per second, an ultra-wide 360° × 189° field of view, and dual 12MP HD cameras, the RS7 captures complete, colorized point clouds in a single walk-through — no tripod, no targeting, no manual angle adjustments.
Deep INS + SLAM Fusion for Reliable Mapping
Unlike consumer-grade handheld scanners, the RS7 integrates a tactical-grade IMU (0.5°/h bias instability) with real-time SLAM correction.
This enables:
• Stable trajectory control in feature-poor environments
• Reduced drift in long corridors
• Accurate multi-floor alignment
• Distortion-free stairwell scanning
CHCNAV’s NIC-SLAM (Navigation-grade INS Core SLAM) algorithm deeply fuses high-rate inertial data with SLAM poses to maintain mapping continuity in complex indoor spaces.
High-Rate LiDAR & Ultra-Wide Coverage
• Up to 1.15 million pts/sec
• 360° horizontal × 189° vertical FOV
• No blind zones
• No manual aiming required
The extended vertical field of view captures ceilings and overhead structures in a single pass — ideal for industrial facilities, parking garages, commercial buildings, and infrastructure environments.
High-density point clouds improve automated feature extraction accuracy (>95% in supported workflows)
HD Colorization & 3D Gaussian Splatting
The RS7 integrates dual 12MP HD cameras with Sony binning technology for improved low-light performance.
Features include:
• Sharper imaging in underground or dim environments
• HPC color optimization engine
• Mesh modeling with enhanced color richness
• 3D Gaussian Splatting (3DGS) output via HPGS 2.0
The result: visually realistic digital twins with precise geometric detail.
Device-to-Cloud Workflow with CoCloud
The RS7 is fully integrated with CHCNAV CoCloud:
• One-click data upload
• Automatic cloud processing
• No high-end workstation required
• Outputs: Point Cloud, Mesh, 3DGS
Field-to-office workflow is streamlined — even processing from a smartphone via WiFi or LTE module
Expandable Architecture & SDK Support
The RS7 features an open hardware interface and SDK, enabling integration into:
• Robotics platforms
• Unmanned deployments
• Inspection systems
• Custom software environments
Expansion interfaces include:
• Ethernet (100 Mbps)

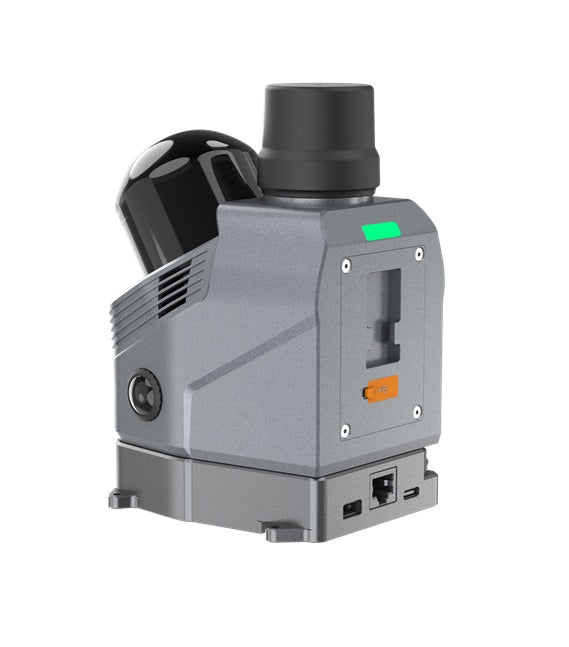

• XT30 power interface (long-term unmanned deployment)
• USB-C power bank support
• MAVLink & ROS compatibility
This makes the RS7 suitable for automation, robotics integration, and advanced industrial workflows
Available Software Variants
RS7 is offered in configurable bundles:
Standard Version
Core SLAM + CoPre (Perpetual)
GEO Pro Version
Adds 3D Mesh, 3DGS, CoProcess CAD drafting & volume tools (1YR)
Flagship Version
Includes CoProcess Professional + CoCloud subscription + advanced modeling capabilities (1Yr)
Software modules are upgradeable.
Technical Highlights
• Scan Rate: Up to 1.15M pts/sec
• Field of View: 360° × 189°
• IMU Bias Instability: < 0.5°/h
• Dual 12MP HD Cameras
• 512GB onboard storage
• Lightweight handheld design (~1.2 kg class)
• IP64 protection
• Up to 150 min battery operation
Applications
• Indoor building surveys
• Architectural as-builts
• Renovation & retrofits
• Underground parking structures
• Multi-floor commercial buildings
• Infrastructure documentation
• Digital twin creation
Why Choose CHCNAV RS7?
The RS7 bridges the gap between consumer SLAM scanners and high-end survey systems by combining:
Navigation-grade INS
Ultra-high scan density
Cloud-based automation
SDK integration
Upgradeable software ecosystem
It is a scalable professional solution for firms that require reliable indoor 3D data capture without complex setup.

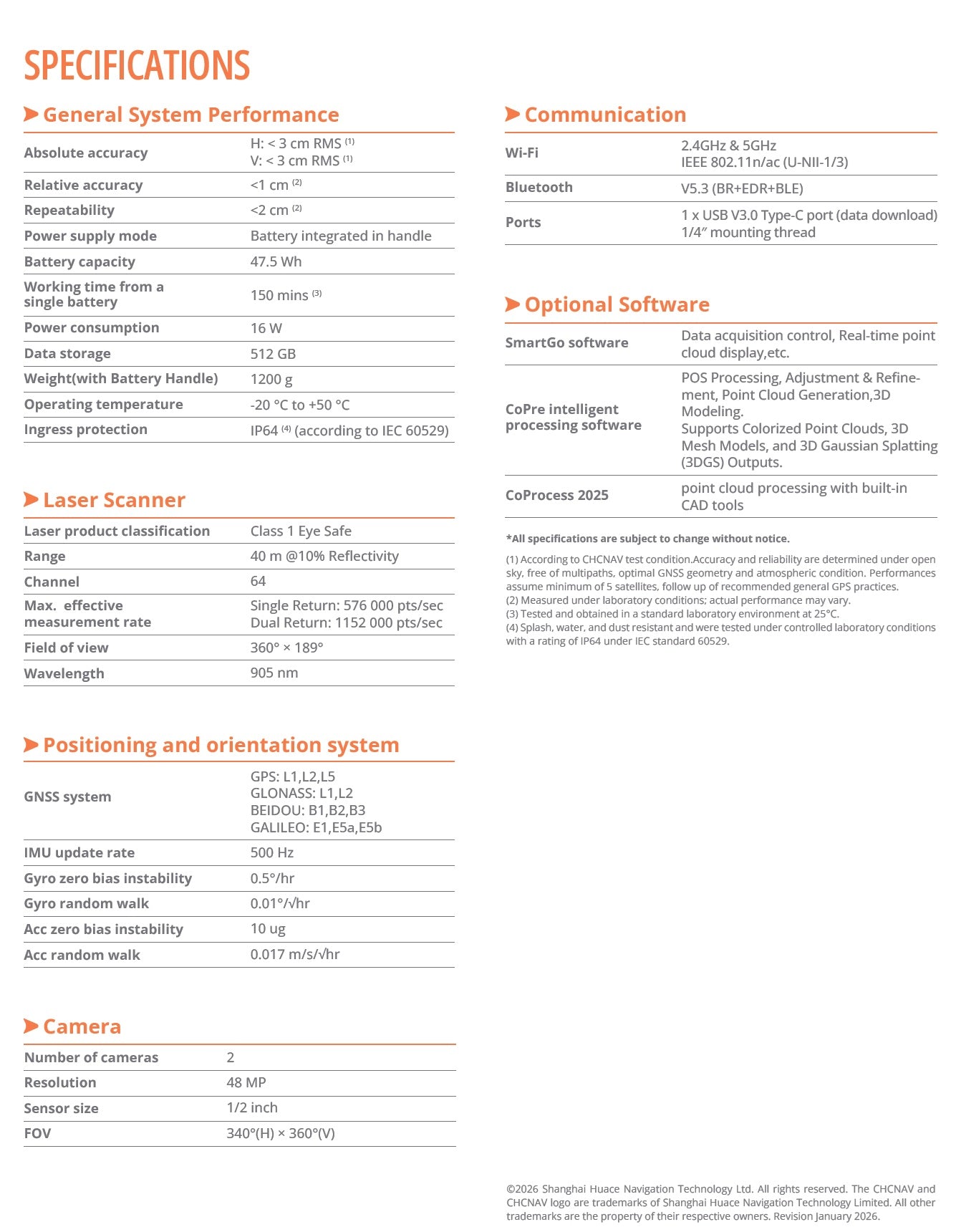

Technical Specification
CHCNAV RS7 SLAM Scanner

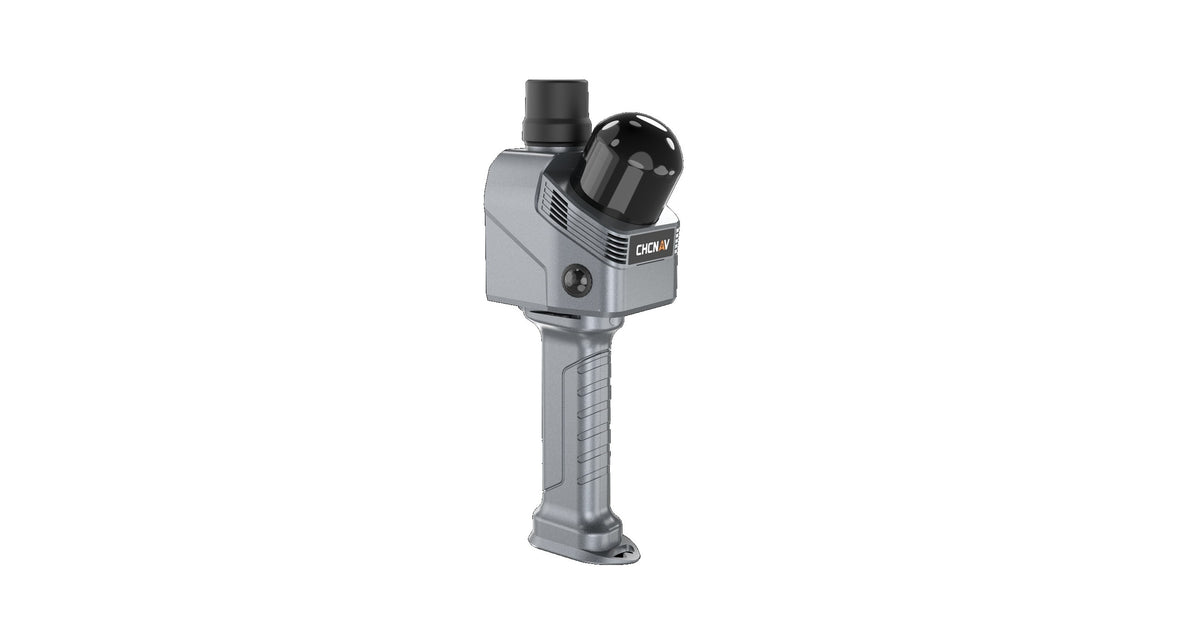

CHCNAV RS7 Features
Handheld Real-Time 3D LiDAR Scanner
Engineered for Precision and Stability
The CHCNAV RS7 combines advanced INS + SLAM fusion with a high-precision 0.5°/h IMU to deliver stable and accurate 3D mapping in challenging environments.. Designed for indoor, underground, and feature-poor areas such as corridors and staircases, the RS7 maintains reliable trajectory tracking and consistent point cloud quality where traditional systems struggle.
High-Rate Scanning and Ultra-Wide FOV for Complete Coverage
The CHCNAV RS7 is equipped with a next-generation LiDAR scanner delivering up to 1.15 million points per second, capturing fine details and surface textures with exceptional precision. Its ultra-wide 360° × 189°field of view enables full ceiling and corner coverage without manual repositioning, ensuring complete, accurate 3D scans in complex indoor environments.
RS7 Supports Base-Mounted Expansion with Open SDK Integration
The RS7 features a modular base-mounted architecture with fully open hardware interfaces and SDK access for advanced system integration. Developers can access sensor data and control parameters to integrate the RS7 into robotics platforms, autonomous deployments, and custom mapping workflows. Designed for scalability, it supports real-time communication and seamless device-to-cloud processing across complex operational environments.
Complete Solution
The CHCNAV RS7 is delivered as a fully integrated hardware and software ecosystem. From field data collection to processing and final CAD deliverables , the entire workflow is streamlined into one unified platform. RS7 captures high-precision SLAM data in the field. SmartGo enables intuitive mission control and real-time visualization. CoCloud / CoPre processes datasets into point clouds and 3D models. CoProcess transforms results into professional CAD drawings and annotated deliverables. One device. One workflow. From scan to final output — efficiently and seamlessly.
CHCNAV RS7 Handheld SLAM LiDAR System
Premium Handheld Mobile Mapping Solution
The CHCNAV RS7 is a high-performance handheld SLAM LiDAR system built for fast and precise 3D data capture in indoor and underground environments.
By combining high-rate LiDAR with advanced INS and SLAM fusion, RS7 delivers accurate and reliable mapping.
Ideal for buildings, industrial facilities, tunnels, and complex infrastructure environments.
