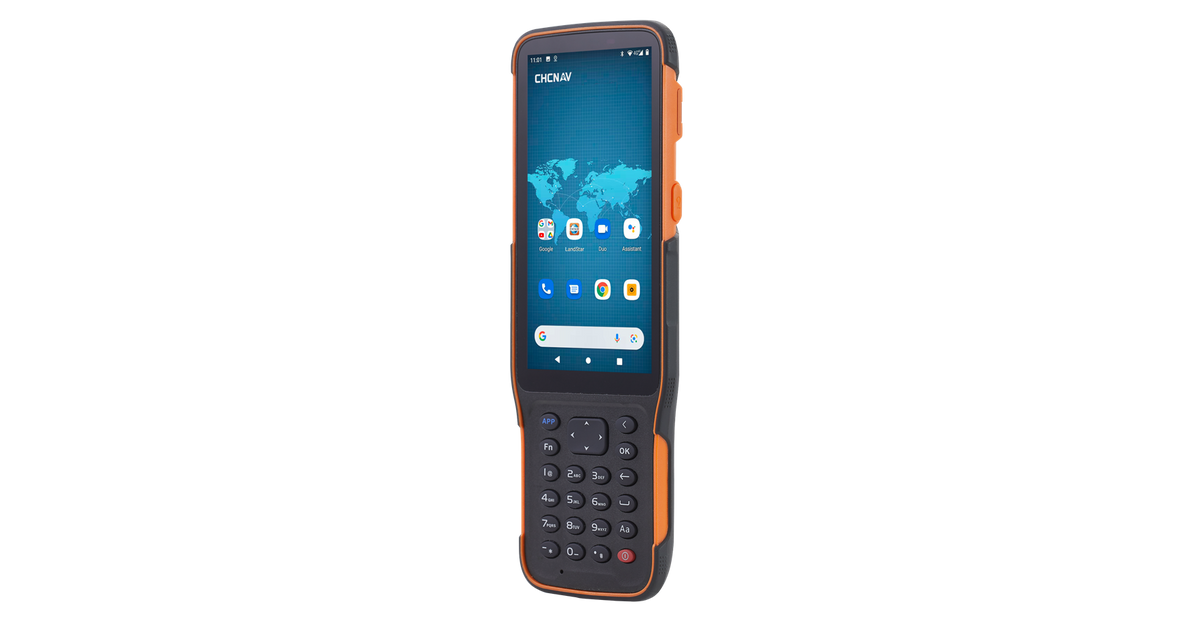

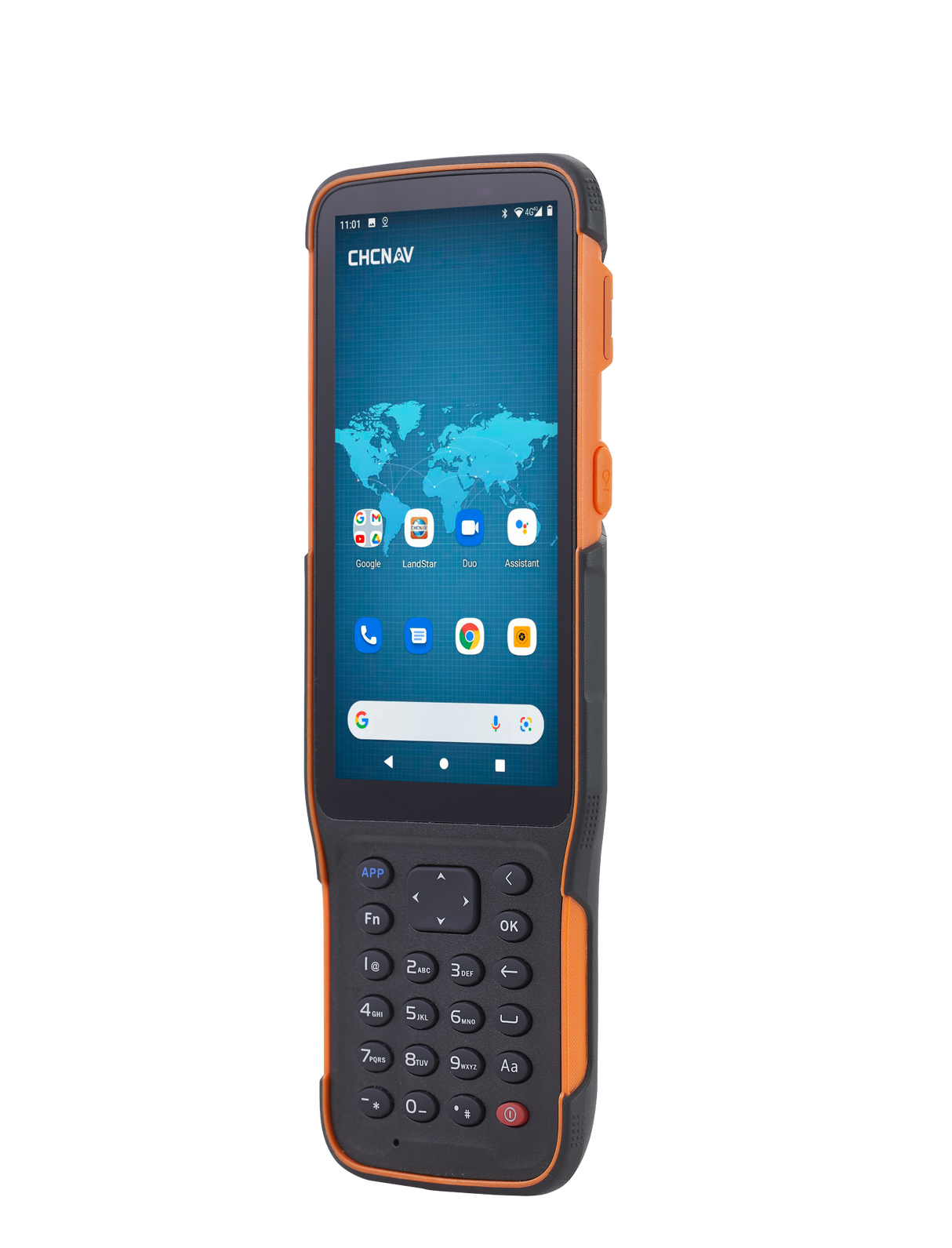

CHCNAV HCE600 - Portable GNSS Device Data Collector

Product Overview: The CHCNAV HCE600 is a lightweight, compact, professional Android 10 data collector designed for surveying and mapping operations in the field. With a 5.5-inch DragonTrail™ display, the HCE600 offers extreme durability, long-term performance, and exceptional sunlight readability. Packed with connectivity options including Bluetooth 5.0, dual-band Wi-Fi, and a 4G modem, the HCE600 ensures seamless and reliable connections to GNSS receivers and RTK network correction sources. This ultra-rugged device withstands a 1.5-meter drop on concrete and meets stringent IP67 and MIL-STD-810H standards, making it the ideal handheld controller for harsh field environments.

Key Features:

Brilliant HD+ Display

  • High-Brightness Display: The 5.5-inch HD+ display with 500 nits brightness ensures your data remains easily readable in all weather conditions, from direct sunlight to rainy days.
  • Enhanced Viewing Experience: Displays complex survey projects, DXF base maps, and data tables with detailed clarity.

Designed for Mobile Workforce

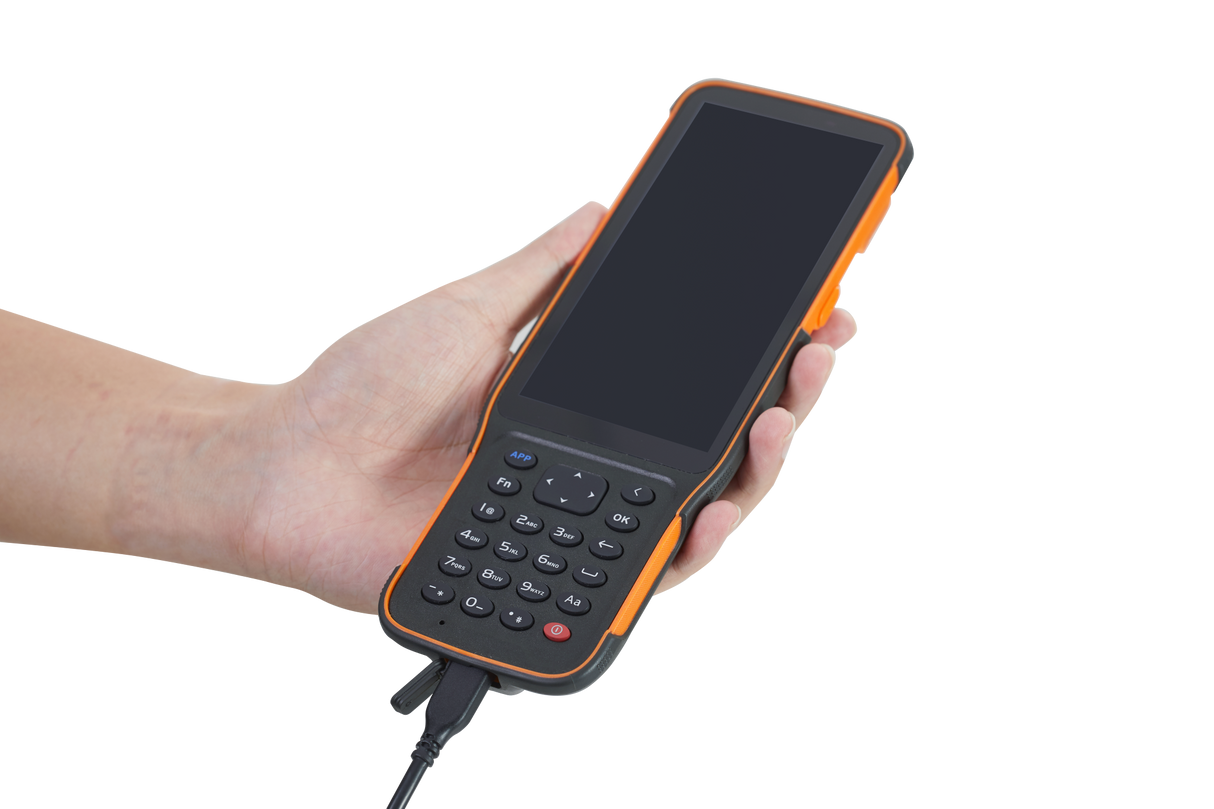

  • Ultra-Lightweight Design: Weighs only 345 g and is 1.54 cm thick, providing excellent handling and one-handed operation.
  • Customizable Shortcut Key: Allows for one-step measurement for quick data entry.
  • All-Day Battery Life: Offers uninterrupted data collection in the field with extended battery life.

Extended Field Performance

  • Rugged and Durable: Features Asahi DragonTrail™ glass display that is ultra-tough and scratch-resistant. Meets IP67 and MIL-STD 810H standards for extreme durability.
  • Accurate Heading Information: Nine-axis compass and gyro fusion algorithm correct errors due to magnetic interference.

Powerful Platform for Field Data Collection

  • High-Performance Processor: Equipped with an eight-core Helio MTK 6762 processor operating up to 2 GHz, providing 50% faster performance and 25% less power consumption.
  • Android 10 Operating System: Enables smooth CAD drawing management and base map display with no lag.

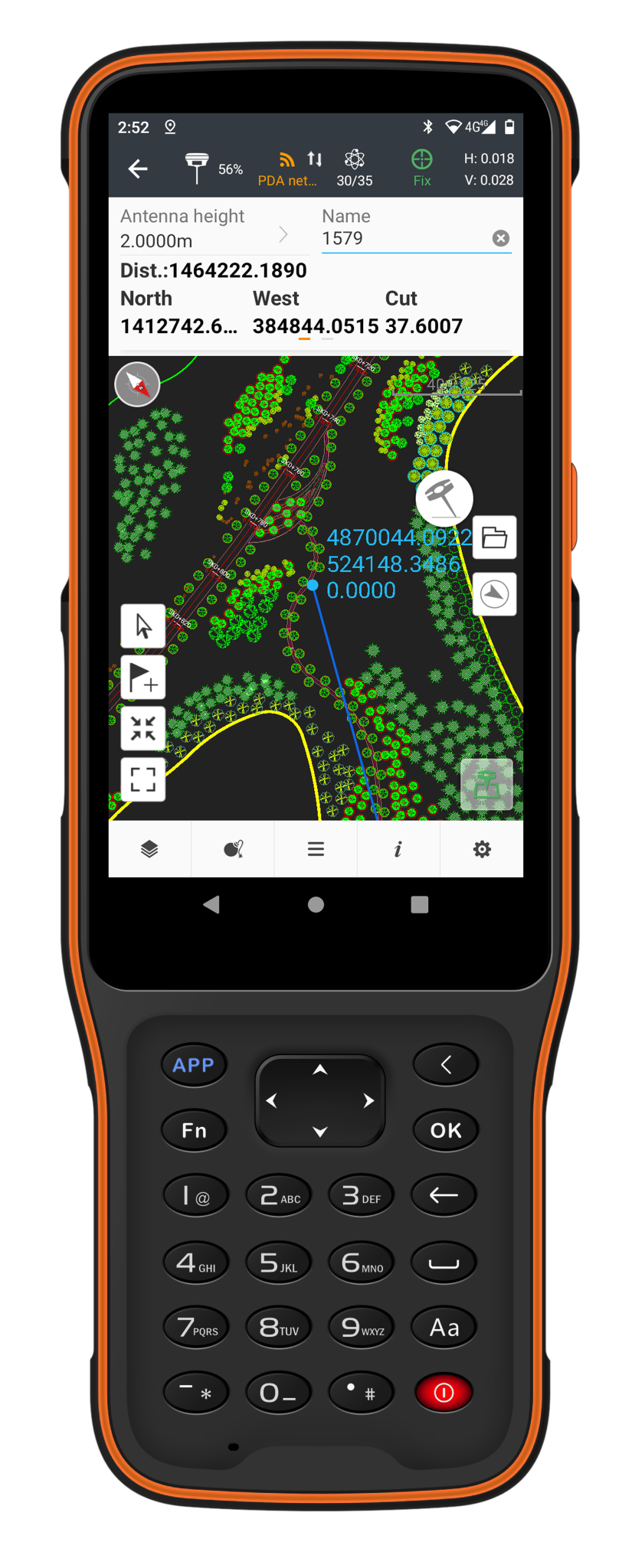

  • Reliable Connectivity: Built-in 4G cellular modem for stable and reliable Internet connection. Includes a 90-day trial version of CHCNAV's LandStar Surveying and Mapping App with integrated cloud services.

Technical Specifications:

  • Operating System: Android 10
  • Processor: Helio MTK 6762 octa-core 2.0 GHz
  • Memory: 3 GB SDRAM, 32 GB Flash memory
  • Display: 5.5" IPS LTPS LCD capacitive multi-touch, 1440 x 720 pixels HD+ 296 ppi, DragonTrail™ scratch-resistant glass, 500 cd/m² brightness

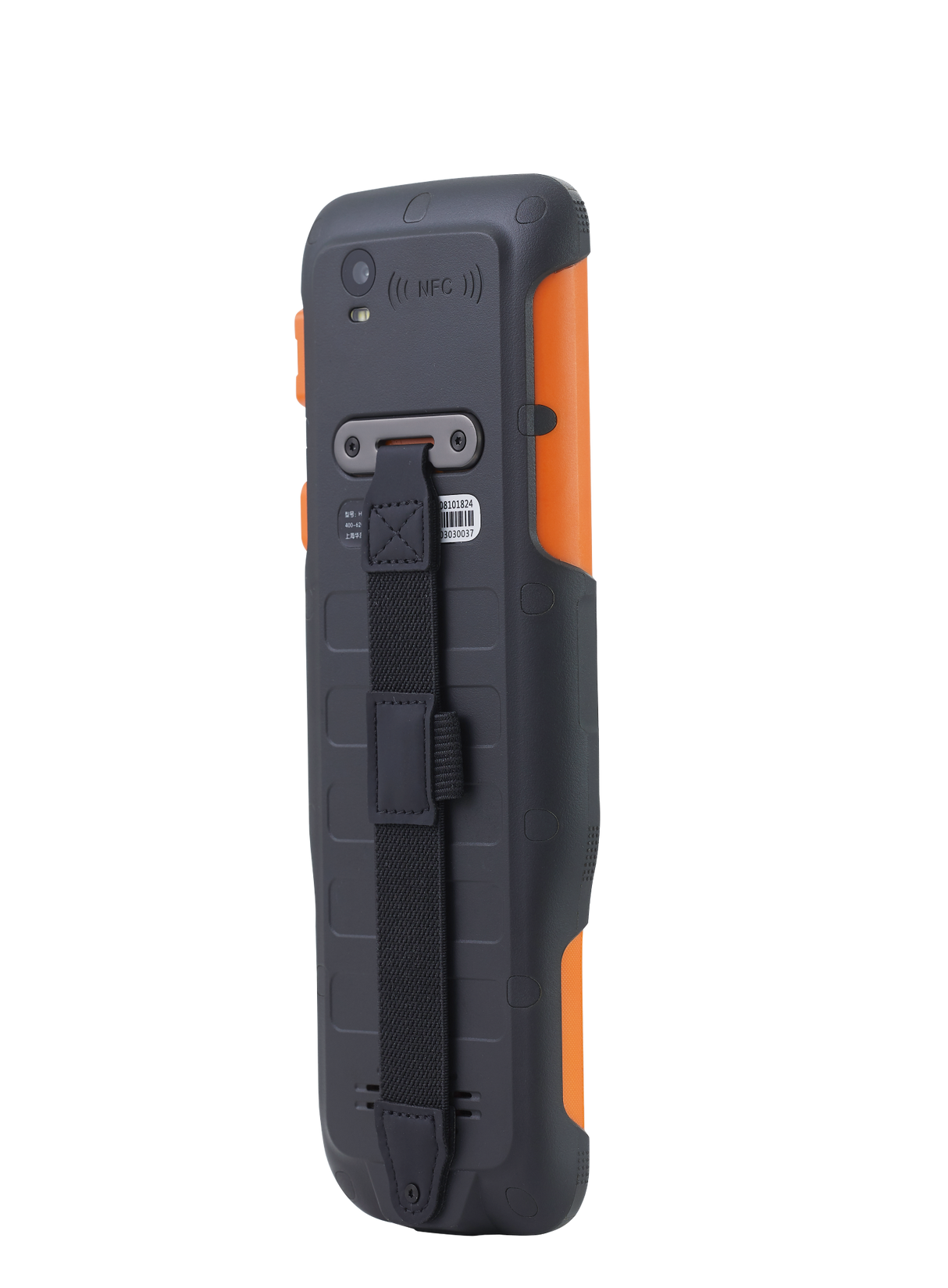

  • Cameras: 13 MP rear camera with auto-focus and flash
  • GNSS Constellations: GPS, GLONASS, BDS, Galileo
  • Battery: 6240 mAh Li-ion battery, 14 hours operating time
  • Weight: 345 g (12.2 oz)
  • Durability: IP67-rated, shock-resistant to 1.5 m fall onto concrete

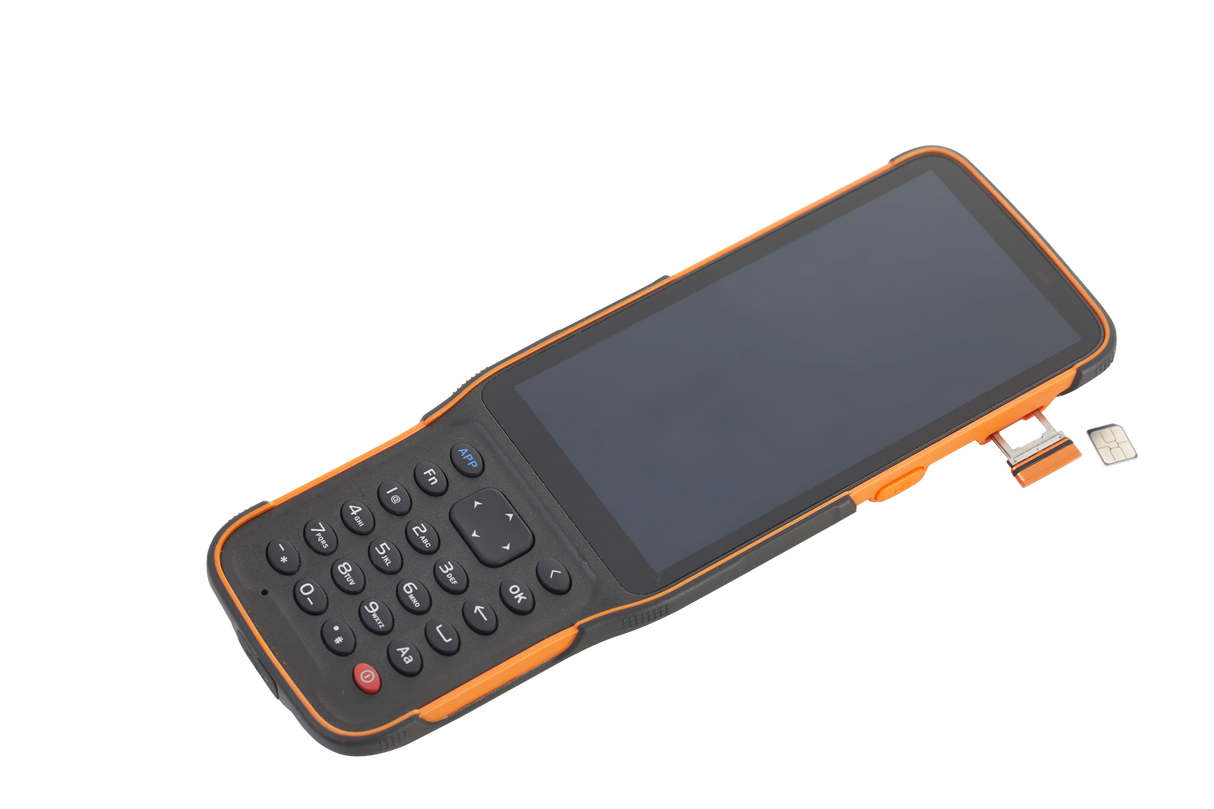

  • Connectivity: Dual-SIM 4G modem, Wi-Fi, Bluetooth 5.0, USB Type-C, OTG supported

Why Choose the CHCNAV HCE600? The HCE600 offers an unparalleled combination of portability, durability, and high performance, making it the ideal choice for a wide range of field data collection applications. Whether for surveying, mapping, or construction site development, the HCE600’s advanced features and rugged design ensure reliable and efficient performance in any environment.

Enhance your field data collection efficiency with the CHCNAV HCE600 – the ultimate portable GNSS device data collector for professionals.
